P1.86 SMD Indoor LED Module 320 x 160mm Minimum Order of 40 Units as 1 box
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
P1.86 SMD Indoor LED Modules

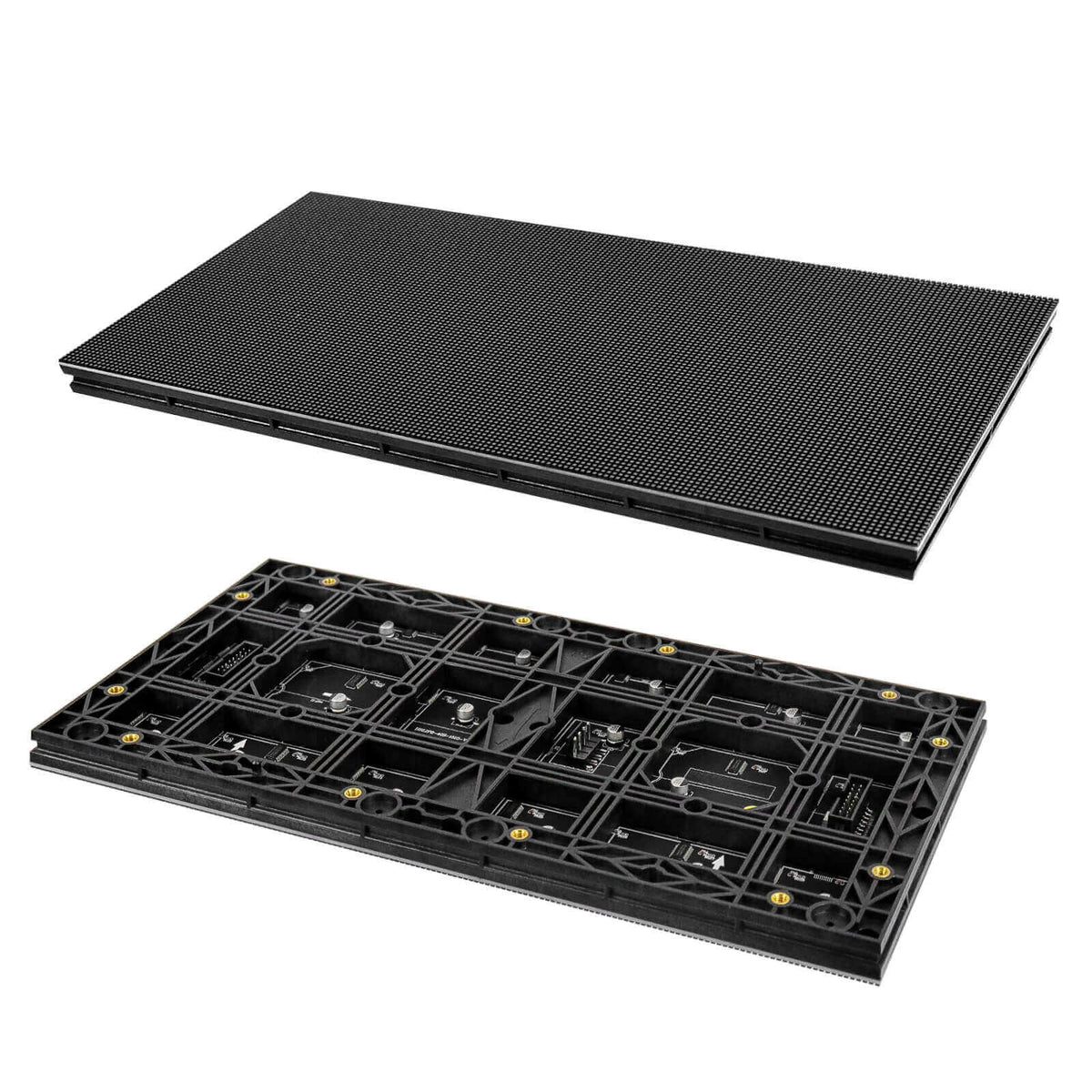

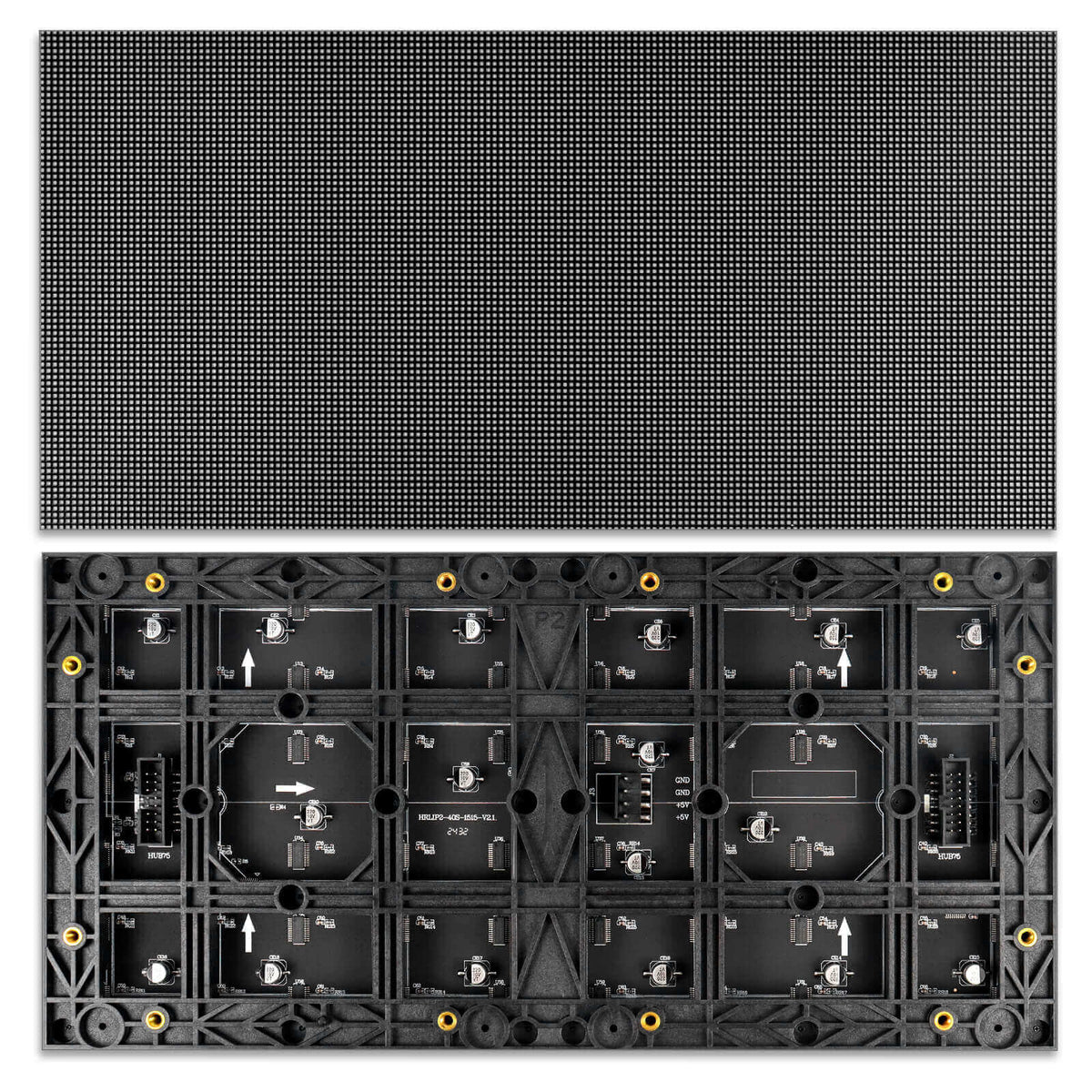

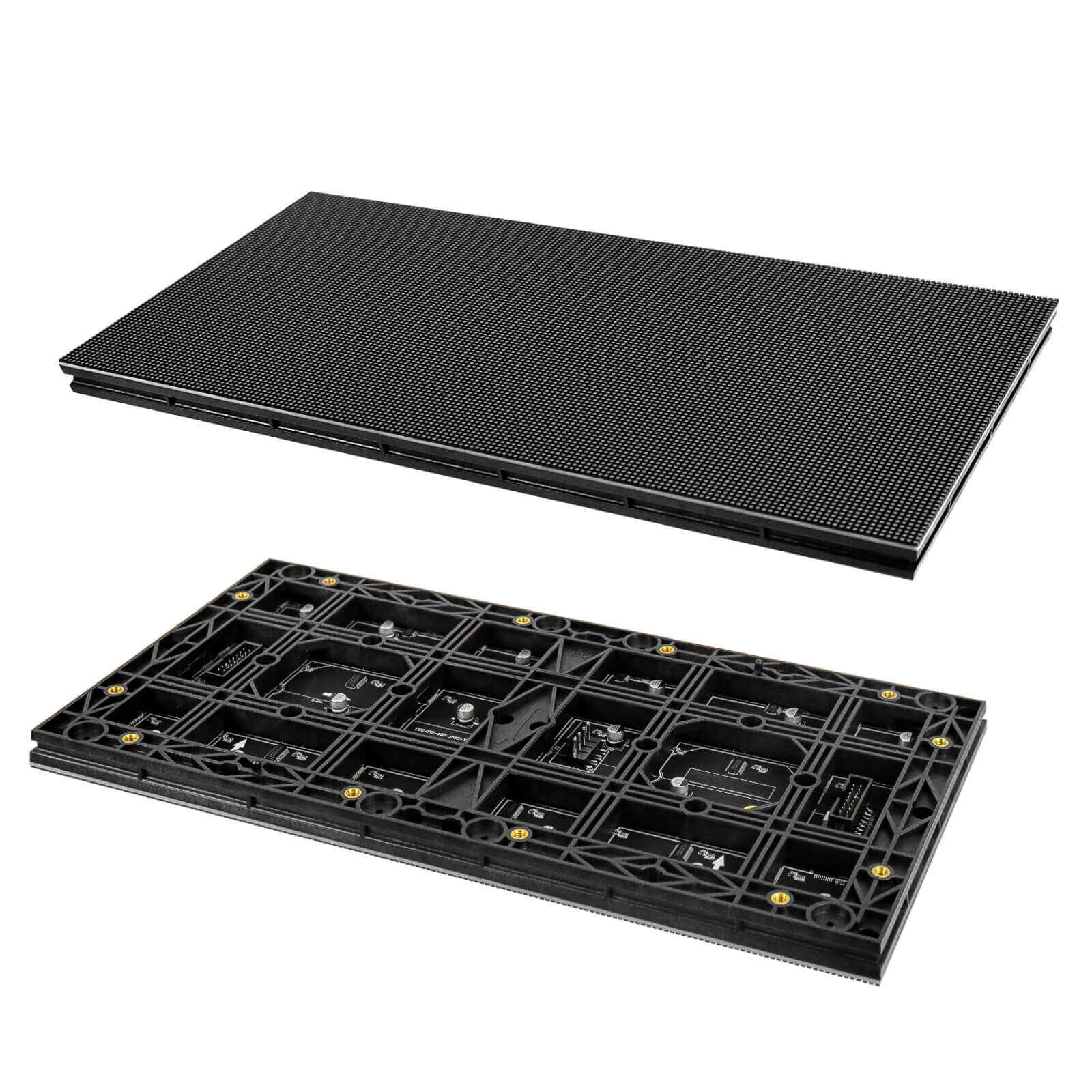

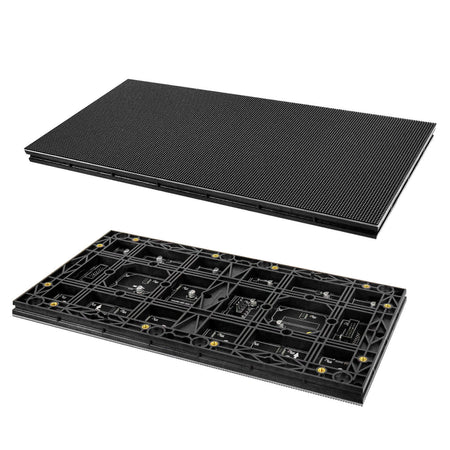

Indoor P1.86 SMD LED Display Module Size is 320mm x 160 mm With 172 × 86 dots.
Packing Detail

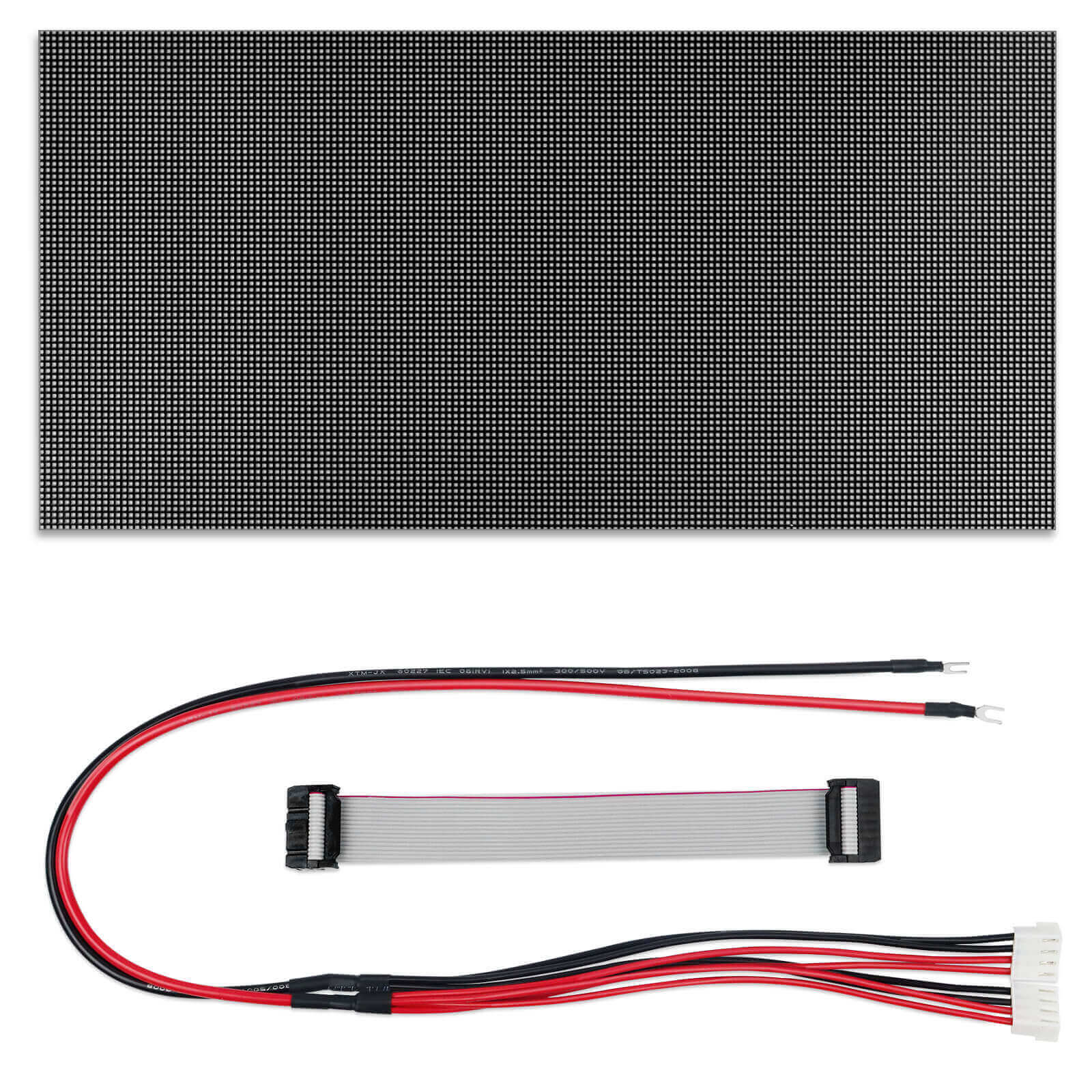

| Packing Accessories Included | 1 x 5V AC Cable, 1 x Flat data Cable |
| Q'ty Per Carton Box | 40pcs |
| Carton Box Size (L x W x H) | 600 x 400 x 410 |
Purchase Recommendations and Importation Information
To ensure optimal performance and uniformity in your LED display, we highly recommend purchasing LED modules from the same batch.
Different batches of LED modules may exhibit variations in brightness, color display, and even configuration files. This can lead to inconsistencies in your final display quality. Please order more q'ty as extra spare part for maintenance using in the future.
If you are planning to build an LED screen, please ensure that you purchase enough LED modules along with any necessary spare parts to complete your project. This will help you maintain uniformity in display quality and reduce the likelihood of any future compatibility issues.
About Shipping:
All our indoor modules are shipped by default via air freight with DDP (Delivered Duty Paid) service. The delivery time may vary depending on the destination country or region, with an estimated time frame of 5-15 days. If you wish to switch to a more economical sea freight DDP option, please contact our customer service team online or reach out to our account manager via email info@primeledmodules.com. We will revise your order price based on the real-time sea freight rates.
Please note: Tariffs or duties that may apply at the destination are not included in the purchase price. We advise you to check with your local customs regulations and be aware of any additional costs that may arise.
About In-Stock :
1. Our SMD module inventory is dynamic and updated every 7 days. Even for in-stock modules, once we receive your order, we will re-age the modules for 48 hours to ensure their quality before proceeding with packaging. The lead time is typically within 3-5 days, excluding public holidays.
2. All small-pitch indoor modules must first undergo the SMD process. If you choose modules with GOB technology, the order lead time will be extended by an additional 10 days.
P1.86 Indoor LED Module Specifications
| P/NO | PM-IN-320-P1.86 | |
| Item | Indoor LED Module 320 x 160mm | |
| Physical Parameters |
Pixel Pitch（ mm） | 1.86mm |
| LED Configuration | Copper Wired SMD1515 | |
| Module Resolution(dots) | 172 x 86 | |
| Pixel Density（dots /m²） | 289,032 | |

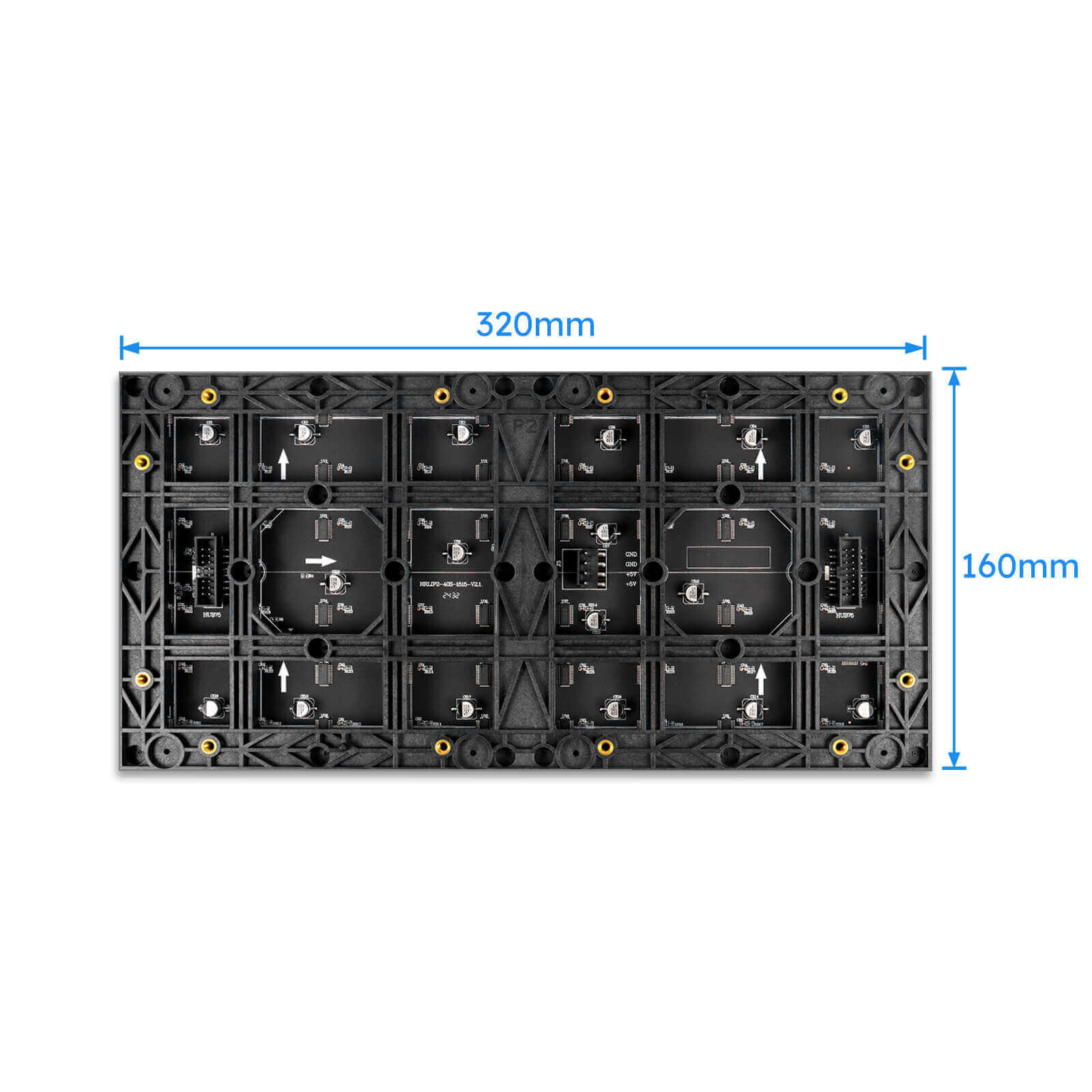

| Module Size（W x H） | 320 x 160 mm | |
| Surace Process | SMD or GOB | |
| Module Mask | No need | |
| Hub Connection Port | HUB75 | |
| Module Weight( Per/kg) | 0.47 | |
| Optical Processing |
Color processing | 16 Bit |
| Grey Level | 16-65536 Adjustable Levels | |
| Refresh Rate（Hz） | 3840Hz | |
| Driving Mode(scan) | 1/43 | |
| Standard Brightness | ≥600nits (SMD) | |
| ≥500nits (GOB) | ||
| Viewing Angle（H/V） | 160°/160° | |
| Electrical Parameters |
Input Voltage（V） | AC110/220V±10% |
| Input Power Frequency | 50/60Hz | |
| Max Power Consumption | 20W/pc | |
| Operating Environment | Operating Temperature（℃） | From '-10 to 60℃ |
| Storage Humidity（RH） | 10% ~ 85%RH No Condensation | |
| Operating Humidity | 10%~90% RH | |
| Lifetime（hrs） | ≥100,000 | |
| Usage Environment | indoor fixed installation | |
| Installation Method | Magnetic Front or Screw Rear | |
