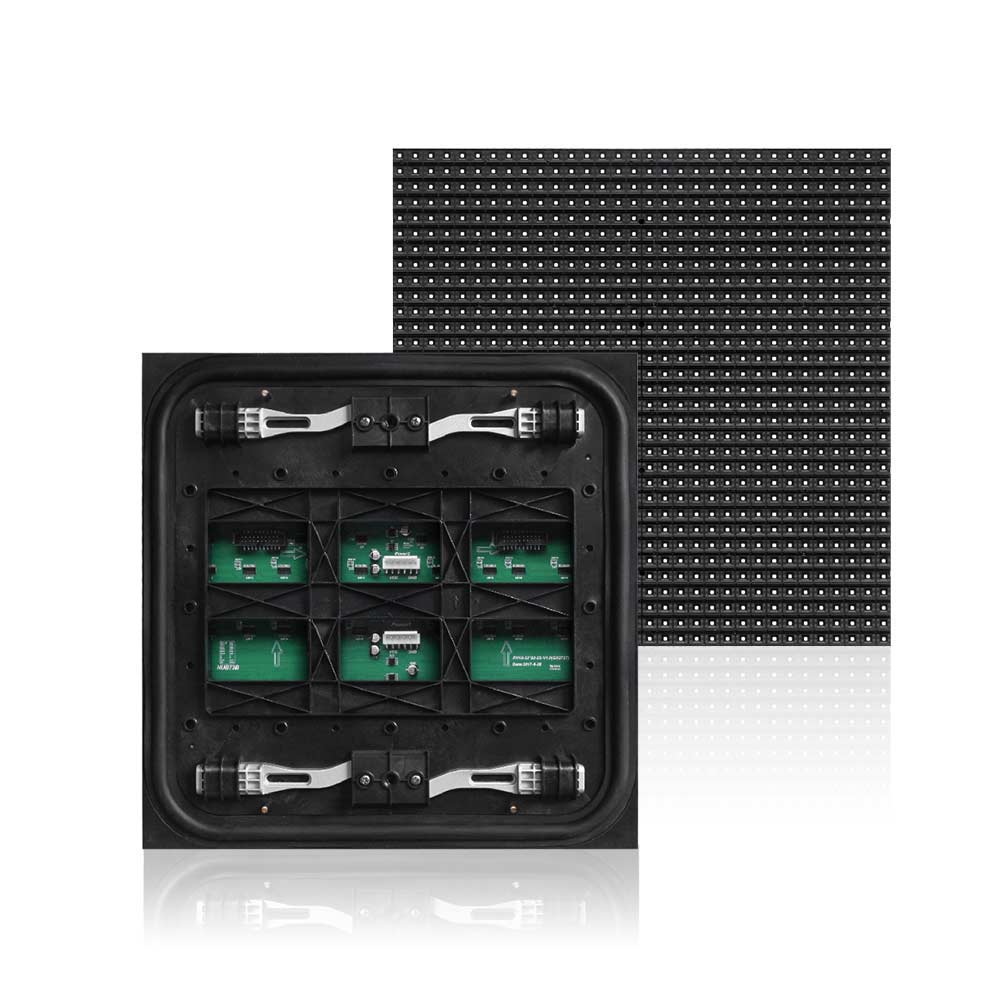

P10 Outdoor LED Module 320 x 320mm Minimum Order of 10 Units as 1 box
Regular price
$43.85
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Features:
Pixel Pitch: 10 mm
Module Resolution: 32 * 32 Pixels
LED Type: SMD2727
Module Size: 320 x 320 mm
Accessories:
| 1pc Sample Pack | Included 1pc 5V Power Cable & 1pc Flat data cables |
| 40pcs Standard Pack | Included 10pcs 5V Power Cable & 10pcs 16Pin Flat data cables |
Specifications
| P/NO. | NS-OT-F320-P10 | |
| Physical Parameters |
Pixel Pitch（ mm） | 10mm |
| LED Configuration | Nationstar Copper Wired SMD2727 | |
| Module Resolution(dots) | 32 x 32 | |
| Pixel Density（ dots /m²） | 10,000 | |
| Module Size（W x H） | 320 x 320mm | |
| Module Mask | High Mask | |
| Optical Processing | Driving Mode(scan) | 1/2 |
| Standard Brightness | ≥6800 nits | |
| Refresh Rate | 1920 Hz | |
| Contrast Ratio | ≥4000:1 | |
| Grey Level | 65536 | |
| Viewing Angle（ H/V） | 140/85 | |
| Electrical Parameters |
Input Voltage（V） | AC110/220V±10% |
| Input Power Frequency | 50/60 Hz | |
| Working Voltage | DC5V | |
| Power Consumption | Max. ≤830W/S.qm | |
| Ave. ≤276W/S.qm | ||
| Minium Viewing Distance | 10M | |
| Operating Environment | Operating Temperature | From '-15℃ to 70℃ |
| Operating Humidity | 10%~90% RH | |
| IP Rating | IP65 | |
| Lifetime（hrs） | ≥100000 | |
| Usage Environment | outdoor fixed installation | |
| Service Method | Front & Rear Service | |
