P2.5 Flexible Outdoor LED Module 320 x 160mm
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
P2.5 Dual Service High Quality Outdoor Flexible LED Modules
Key Features:
-
Durability: 5-8-years lifespan for long-term reliability.
-
Standard Size: Easy to splice and assemble for seamless installation.
-
Customized for Outdoor Structures: Perfect for tailored outdoor applications
-
Dual Maintenance Options : Supports both magnetic attachment and rear screw-locking on your structure or led cabinets.
Purchase Recommendations and Importation Information
To ensure optimal performance and uniformity in your LED display, we highly recommend purchasing LED modules from the same batch.
Different batches of LED modules may exhibit variations in brightness, color display, and even configuration files. This can lead to inconsistencies in your final display quality.
If you are planning to build an LED screen, please ensure that you purchase enough LED modules along with any necessary spare parts to complete your project. This will help you maintain uniformity in display quality and reduce the likelihood of any future compatibility issues.
Please note: Tariffs or duties that may apply at the destination are not included in the purchase price. We advise you to check with your local customs regulations and be aware of any additional costs that may arise.
P2.5 Flexible Outdoor LED Module Specifications
| P/N | HK-FX-320-P2.5 | |
| Physical Parameters |
Pixel Pitch（ mm） | 2.5mm |
| LED Configuration | Nationstar Copper Wired SMD1415 | |
| Module Resolution(dots) | 128 x 64 | |
| Pixel Density（ dots /m²） | 160,000 | |

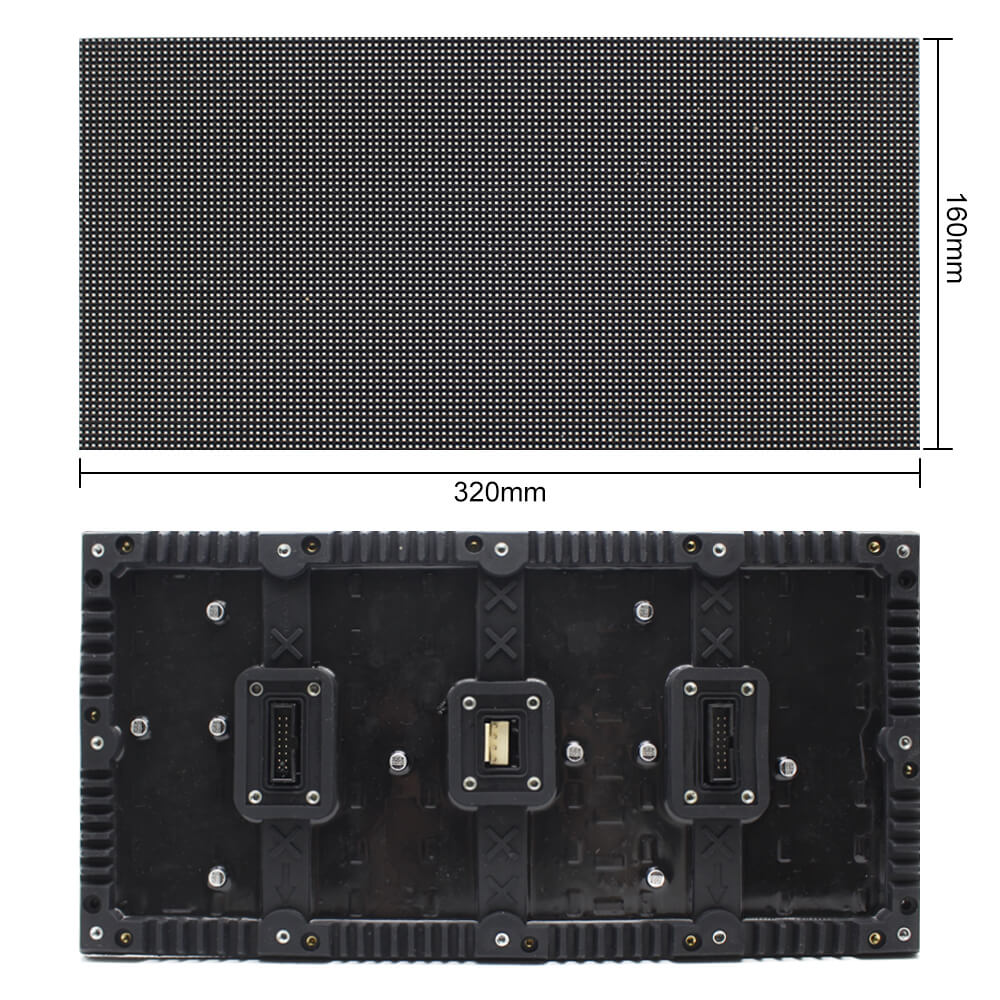

| Module Size（W x H） | 320 x 160 mm | |
| Module Type | Flexible Module | |
| Optical Processing | Driving Mode(scan) | 1/24 |
| Standard Brightness | ≥5000 nits | |
| Refresh Rate | 3840 Hz | |
| Contrast Ratio | ≥4000:1 | |
| Grey Level | 65536 | |
| Viewing Angle（ H/V） | 160/160 | |
| Electrical Parameters |
Input Voltage（V） | AC110/220V±10% |
| Input Power Frequency | 50/60 Hz | |
| Working Voltage | DC5V | |
| Power Consumption Max. | Max. ≤850W/S.qm | |
| Power Consumption Ave. | Ave. ≤283W/S.qm | |
| Minium Viewing Distance | 2.5M | |
| Operating Environment | Operating Temperature | From '-15℃ to 70℃ |
| Operating Humidity | 10%~90% RH | |
| IP Rating | IP65 | |
| Lifetime（hrs） | ≥100000 | |
| Usage Environment | outdoor fixed installation | |
| Service Method | Front & Rear | |
