PID-G Series P1.86 GOB Indoor LED Module - Durable Fine-Pitch LED Panel | 320×160mm | 14,792 Pixels RGB Tile | 1.86mm Pixel Pitch | Impact-Resistant Display | 1pcs / 40pcs

In stock

SKU: MZ01-PID-G-P1.86-01

$33.85

Pixel Pitch P1.86

Surface Type GOB (Glue-on-Board)

Package Qty 1pc Sample Pack 40pcs Standard Pack

Product variants

P1.86 GOB Indoor LED Modules

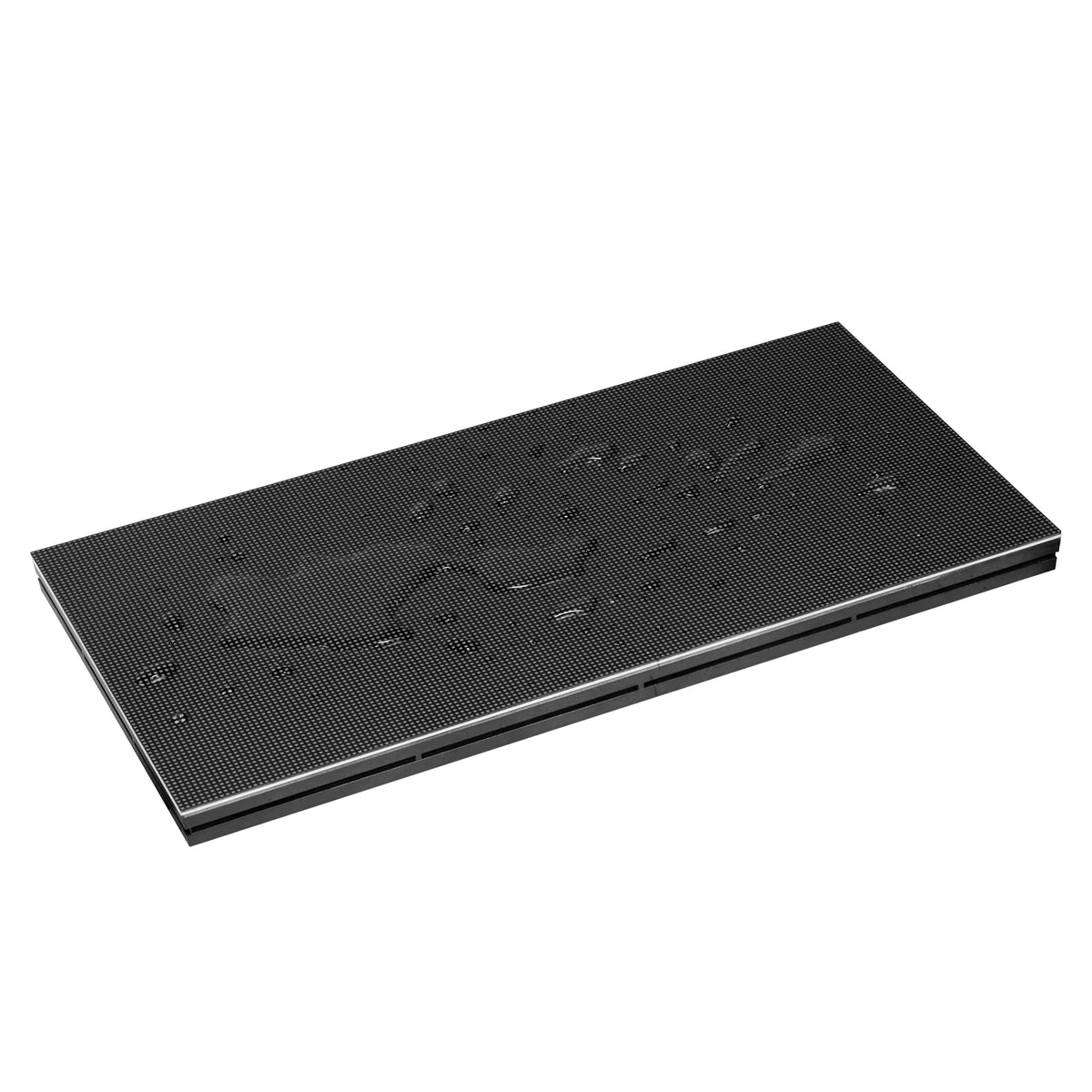

The P1.86 GOB Indoor LED Module is a durable fine-pitch full-color display panel designed for professional indoor LED video walls that require high resolution, strong impact resistance, and long-term stability. With a 1.86 mm pixel pitch, 172 × 86 resolution, and a standard 320 × 160 mm module size, it delivers sharp, smooth, and vibrant visuals suitable for commercial LED displays and small-pitch indoor installations.

Built with copper-wired SMD1515 LEDs, GOB (Gel On Board) surface encapsulation, 12–14 bit color processing, and a high 3840 Hz refresh rate, the module offers superior surface protection against impact, dust, moisture, and glare. Its IK10 anti-collision durability and IP65-level surface sealing make it ideal for conference rooms, control rooms, studios, retail environments, command centers, and indoor locations requiring a protected LED surface.

The module supports magnetic front service or screw-rear maintenance, allowing flexible installation and seamless splicing. With a 160° horizontal and vertical viewing angle, consistent ≥550 nits brightness, and low color degradation, it delivers long-lasting performance for fine-pitch indoor LED applications, including flat, curved, cylindrical, and custom-shaped display structures.

Packing Details

Version	Package Included
1-Pack Sample Kit	1 × P1.86 GOB Indoor LED Module 1 × 5V Power Cable 1-to-2 Split 1 × Data Cable
40-Pack Standard Carton	40 × P1.86 GOB Indoor LED Module 20 × 5V Power Cable 1-to-2 Split 40 × Data Cable

Purchase Recommendations and Importation Information

Same Batch Purchase: To ensure optimal performance and consistency, we recommend purchasing LED modules from the same production batch. This will help avoid discrepancies in brightness, color display, and configuration between different batches.
Spare Parts: Ordering extra modules as spare parts is advised for future maintenance, ensuring consistent display quality in the long term.
Full Project Purchases: To maintain uniformity in your LED screen project, we recommend purchasing enough modules and necessary spare parts at once.

Shipping Information

Lead Time: In-stock products ship within 1–3 business days
Packaging: Safe packaging with foam padding to ensure safe transport.
Shipping Origin: All products ship directly from our warehouse.
Standard Shipping: 9–18 days | Express Shipping: 5–9 days
Shipping Costs: Calculated based on cart weight, dimensions, and destination

Technical Specifications

Specification	Details
Part Number	P1.86
Item	Indoor LED Module
Pixel Pitch	1.86 mm
LED Configuration	Copper Wired SMD1515
Module Resolution	172 × 86 dots
Pixel Density	289,032 dots/m²
Module Size (W × H)	320 × 160 mm
Surface Process	GOB
Module Mask	No need
Hub Connection Port	HUB75
Module Weight	0.46 kg
Color Processing (Bit)	12–14 bit
Gray Level	16–65,536 adjustable levels
Refresh Rate	3840 Hz
Driving Mode (Scan)	1/43
Standard Brightness	≥550 nits (GOB)
Viewing Angle (H/V)	160° / 160°
Input Voltage	AC110/220V ±10%
Input Power Frequency	50/60 Hz
Max Power Consumption	20 W per module
Operating Temperature	-10°C ~ 60°C
Operating Humidity	10% ~ 90% RH
Storage Humidity	10% ~ 85% RH, no condensation
Lifetime	≥100,000 hours
Usage Environment	Indoor fixed installation
Maintenance Method	Magnetic front or screw rear

Applications

Indoor Environments: Retail shops, conference rooms, exhibitions, broadcast studios, and control centers.
Creative Displays: Video walls, artistic installations, and custom-shaped LED designs.
Brand Showcases: High-impact visual displays for product launches and retail branding.
Professional Settings: Ideal for monitoring rooms, studios, and commercial indoor signage.
