PID-S Series P1.86 Indoor LED Module - High-Clarity RGB LED Panel | 320×160mm | 14,792 Pixels RGB Tile | 1.86mm Pixel Pitch | Fine-Pitch Display Module | 1pcs / 40pcs

In stock
SKU: MZ01-PID-S-P1.86-01
$27.85
Pixel Pitch
Package Qty

P1.86 Indoor LED Modules

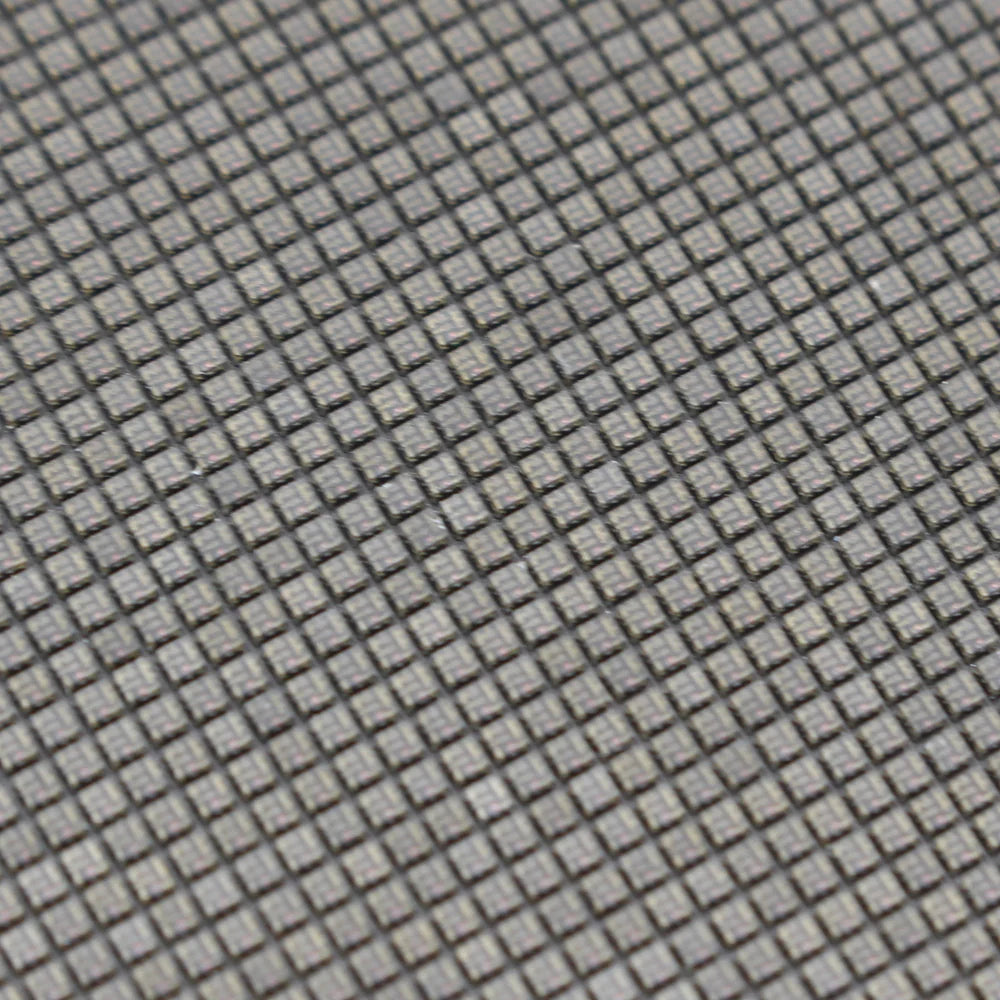

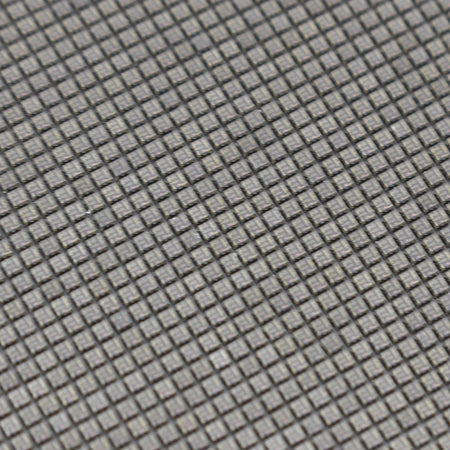

The P1.86 indoor LED module is a fine-pitch RGB display panel designed for high-clarity indoor LED applications. With a 1.86 mm pixel pitch, 172 × 86 resolution, and a standard 320 × 160 mm size, it delivers sharp, stable visuals for LED video walls, command centers, lobbies, control rooms, retail signage, and broadcast environments.

Using copper-wired SMD1515 LEDs, 12–14 bit color processing, and a 3840 Hz refresh rate, the module offers smooth gradients, consistent color accuracy, and flicker-free output suitable for filming and dynamic content. Brightness reaches ≥600 nits, and low lumen depreciation helps maintain long-term visual stability in indoor installations.

The module supports magnetic front service or rear-screw maintenance for flexible setup. A 160° horizontal and vertical viewing angle ensures uniform brightness and color across the display, making it suitable for fine-pitch indoor LED projects requiring clarity, reliability, and seamless panel alignment.

Packing Details

Version Package Included
1-Pack Sample Kit 1 × P1.86 Indoor LED Module
1 × 5V Power Cable 1-to-2 Split
1 × Data Cable
40-Pack Standard Carton 40 × P1.86 Indoor LED Module
20 × 5V Power Cable 1-to-2 Split
40 × Data Cables

Purchase Recommendations and Importation Information

  • Same Batch Purchase: To ensure optimal performance and consistency, we recommend purchasing LED modules from the same production batch. This will help avoid discrepancies in brightness, color display, and configuration between different batches.

  • Spare Parts: Ordering extra modules as spare parts is advised for future maintenance, ensuring consistent display quality in the long term.

  • Full Project Purchases: To maintain uniformity in your LED screen project, we recommend purchasing enough modules and necessary spare parts at once.

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days

  • Packaging: Safe packaging with foam padding to ensure secure transport

  • Shipping Origin: All products ship directly from our warehouse

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination

Technical Specifications

Specification Details
Part Number P1.86
Item Indoor LED Module
Pixel Pitch 1.86 millimeters
LED Configuration Copper Wired SMD1515
Module Resolution 172 × 86 dots
Pixel Density 289,032 dots per square meter
Module Size (Width × Height) 320 × 160 millimeters
Surface Process SMD
Module Mask No need
Hub Connection Port HUB75
Module Weight 0.45 kilograms
Color Processing (Bit Depth) 12–14 Bit
Grey Level 16–65,536 adjustable levels
Refresh Rate 3,840 Hertz
Driving Mode (Scan) 1/43 scan
Standard Brightness ≥600 nits (SMD)
Viewing Angle (Horizontal/Vertical) 160° / 160°
Input Voltage Alternating Current 110/220 volts ±10%
Input Power Frequency 50/60 Hertz
Maximum Power Consumption 20 watts per module
Operating Temperature –10°C to 60°C
Operating Humidity 10%–90% relative humidity
Storage Humidity 10%–85% relative humidity, no condensation
Lifetime ≥100,000 hours
Usage Environment Indoor fixed installation
Maintenance Method Magnetic front service or screw rear maintenance

Applications

  • Indoor Fine-Pitch Displays: High-definition LED video walls for control rooms, monitoring centers, conference rooms, and broadcast studios

  • Commercial and Retail Signage: Indoor LED advertising screens, retail displays, and feature walls

  • Exhibitions and Events: Trade show booths, exhibition halls, immersive environments, and stage displays

  • Corporate and Public Spaces: Lobby LED walls, corporate branding displays, and transportation / government information screens
