PID-S Series P2.5 Indoor LED Module - Fine-Pitch LED Display Module | 320×160mm | 8,192 Pixels LED Tile | 2.5mm Pixel Pitch | Full-Color Panel | 1pcs / 40pcs

In stock
SKU: MZ01-PID-S-P2.5-01
$18.85
Pixel Pitch
Package Qty

    P2.5 Indoor LED Modules

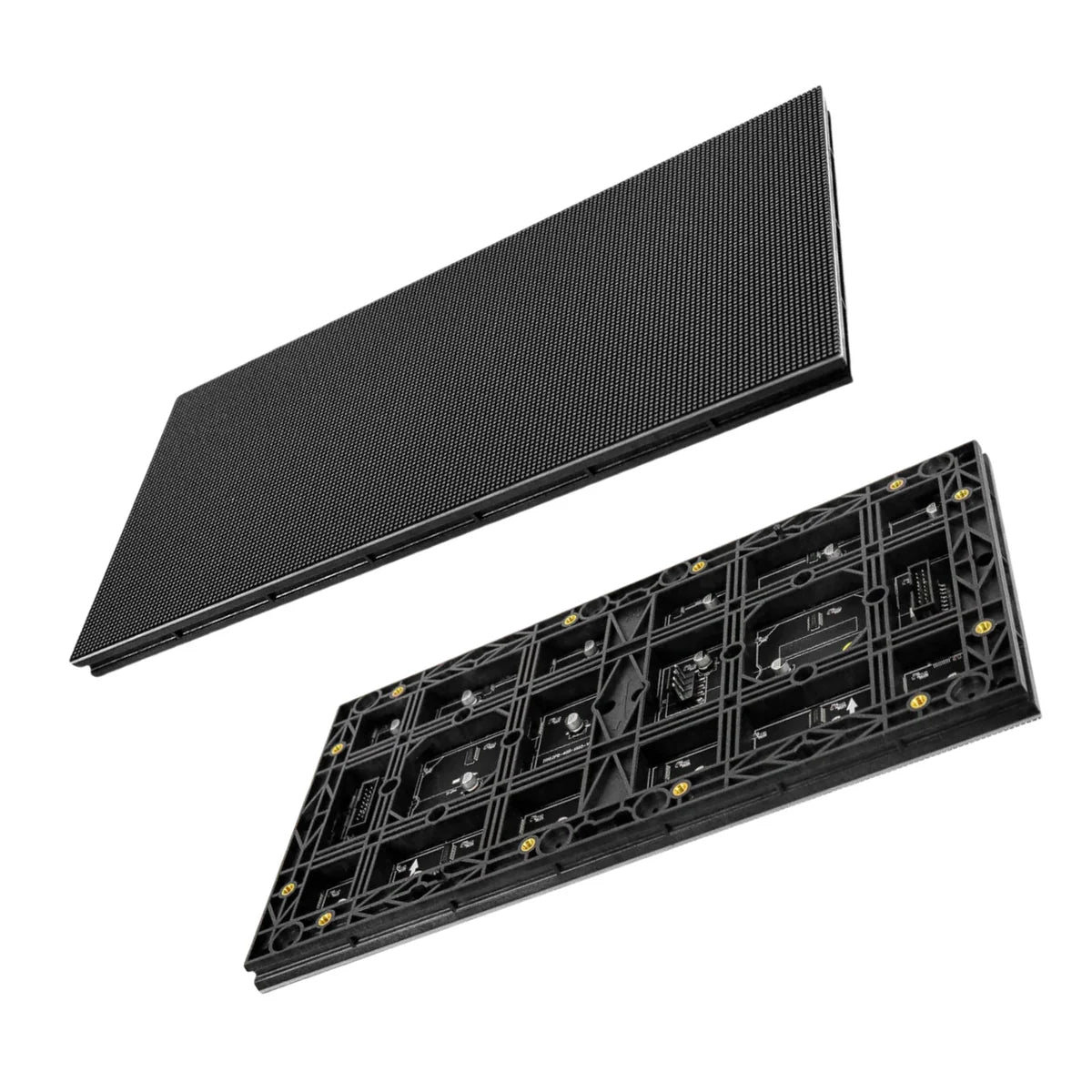

    The P2.5 Indoor LED Module is a fine-pitch RGB display tile designed for high-detail indoor applications. With a 2.5 mm pixel pitch, 128 × 64 resolution, and a standard 320 × 160 mm size, it delivers clear and stable visuals for LED video walls, retail signage, exhibitions, command rooms, and commercial display setups.

    Built with copper-wired SMD2121 LEDs, 12–14 bit color processing, and a 3840 Hz refresh rate, the module provides smooth gradients, accurate color performance, and flicker-free output suitable for dynamic content and camera environments. Brightness reaches ≥600 nits with low attenuation for long-term indoor use.

    The module supports magnetic front service or rear-screw maintenance. A wide 160° horizontal and vertical viewing angle ensures uniform brightness and color across the screen, making it suitable for multi-panel indoor LED display installations.

    Packing Details

    Version Package Included
    1-Pack Sample Kit 1 × P2.5 Indoor LED Module
    1 × 5V Power Cable 1-to-2 Split
    1 × Data Cable
    40-Pack Standard Carton 40 × P2.5 Indoor LED Module
    20 × 5V Power Cable 1-to-2 Split
    40 × Data Cables

    Purchase Recommendations and Importation Information

    • Same Batch Purchase: To ensure optimal performance and consistency, we recommend purchasing LED modules from the same production batch. This will help avoid discrepancies in brightness, color display, and configuration between different batches.

    • Spare Parts: Ordering extra modules as spare parts is advised for future maintenance, ensuring consistent display quality in the long term.

    • Full Project Purchases: To maintain uniformity in your LED screen project, we recommend purchasing enough modules and necessary spare parts at once.

    Shipping Information

    • Lead Time: In-stock products ship within 1–3 business days

    • Packaging: Safe packaging with foam padding to ensure secure transport

    • Shipping Origin: All products ship directly from our warehouse

    • Standard Shipping: 9–18 days | Express Shipping: 5–9 days

    • Shipping Costs: Calculated based on cart weight, dimensions, and destination

    Technical Specifications

    Specification Details
    Part Number P2.5
    Item Indoor LED Module
    Pixel Pitch 2.5 mm
    LED Configuration Copper Wired SMD2121
    Module Resolution 128 × 64 dots
    Pixel Density 160,000 dots/m²
    Module Size (W × H) 320 × 160 mm
    Surface Process SMD
    Module Mask No need
    Hub Connection Port HUB75
    Module Weight 0.44 kg
    Color Processing (Bit) 12–14 Bit
    Grey Level 16–65,536 adjustable levels
    Refresh Rate 3840 Hz
    Driving Mode (Scan) 1/32
    Standard Brightness ≥600 nits (SMD)
    Viewing Angle (H/V) 160° / 160°
    Input Voltage AC110/220V ±10%
    Input Power Frequency 50/60 Hz
    Max Power Consumption 20 W per module
    Operating Temperature –10°C to 60°C
    Operating Humidity 10%–90% RH
    Storage Humidity 10%–85% RH, no condensation
    Lifetime ≥100,000 hours
    Usage Environment Indoor fixed installation
    Maintenance Method Magnetic front or screw rear

    Applications

    • Indoor Fine-Pitch Displays: High-definition LED video walls for control rooms, monitoring centers, conference rooms, and broadcast studios

    • Commercial and Retail Signage: Indoor LED advertising screens, retail displays, and feature walls

    • Exhibitions and Events: Trade show booths, exhibition halls, immersive environments, and stage displays

    • Corporate and Public Spaces: Lobby LED walls, corporate branding displays, and transportation / government information screens
