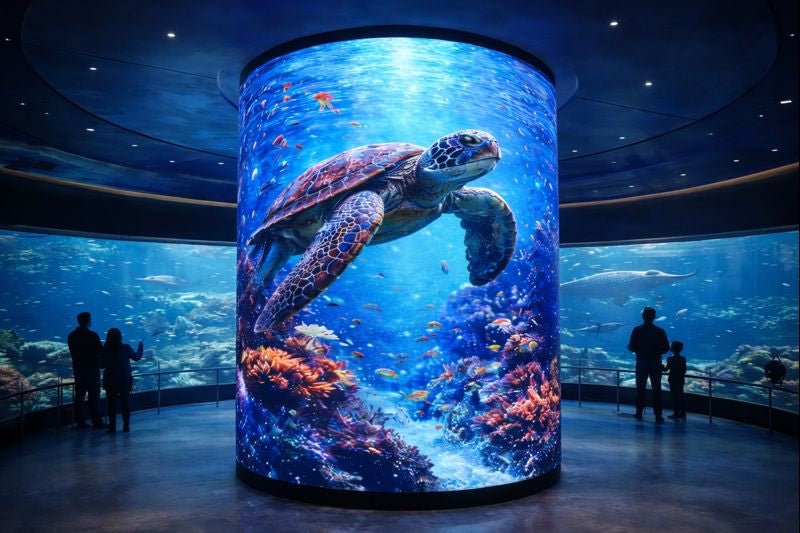

A cylindrical LED screen can turn a structural column or freestanding display into a continuous digital surface. Unlike a flat video wall, however, a cylinder must satisfy three systems at the same time: the geometric layout, the mechanical curvature, and the electrical and control architecture. A visually convincing result depends on accurate planning before any modules are installed.
This guide explains how to plan and build a cylindrical display using PIF Series indoor flexible LED modules. It covers diameter and module-layout calculations, model selection, supporting structures, power and signal distribution, installation, calibration, and maintenance. All curvature limits must be verified against the specification of the exact module selected.
1. Define the Cylinder and Viewing Requirements
Begin by confirming whether the display will form a complete 360-degree cylinder, a partial wrap around an existing column, or a curved wall with open ends. Record the finished outside diameter, active display height, visible viewing directions, nearest viewing distance, content type, ambient light, and available service access.
The content strategy matters. A full cylinder may be viewed from several directions at once, so conventional flat-screen compositions can place important text on the rear or across the closing seam. Cylindrical content should use seam-aware layouts, repeated focal points, flowing motion, or mapped compositions designed for the final circumference.
2. Select the PIF Technology, Size, and Pixel Pitch
PIF-S standard flexible SMD modules are practical for general commercial cylinders and curved structures. PIF-G modules add a GOB protective layer over the SMD display surface for installations with greater contact or handling risk. PIF-C flexible COB modules address premium fine- and ultra-fine-pitch applications requiring higher pixel density and close-viewing detail.
Current formats include 240×120mm, 256×128mm, 320×160mm, and 300×168.75mm. The correct dimension around the circumference depends on the permitted bending direction of the chosen model. Do not assume that the first number in the size description is always the circumferential dimension; confirm the PCB orientation and installation drawing.
Select pixel pitch according to the nearest viewing distance, required native resolution, content detail, cylinder size, and budget. P0.9375–P1.25 supports premium close-viewing detail, P1.53/P1.5625–P2 provides a strong balance for professional indoor environments, and P2.5–P4 is often practical for larger architectural cylinders viewed from farther away. These are selection directions rather than universal viewing-distance guarantees.
3. Separate Geometric Diameter from Bending Capability
Two different calculations are often confused. The first determines how many modules are needed to form the designed circumference. The second verifies whether the selected module can safely conform to that diameter. Passing the layout calculation does not prove that the module can tolerate the required bend.
For a full cylinder:
Circumference = Finished Diameter × π
Modules per Ring = Circumference ÷ Active Module Dimension Along the Circumference
Modules Vertically = Active Display Height ÷ Active Module Dimension Along the Height
The result should normally be a whole-number layout. If it is not, adjust the finished diameter, active height, module orientation, or structural design. The designed circumference for a ring of whole modules can be checked with:
Designed Diameter = (Modules per Ring × Circumferential Module Dimension) ÷ π
This is a geometric layout formula only. It must not be used to claim the module’s minimum bending diameter. The allowable radius or minimum cylinder diameter must come from the model-specific mechanical specification or written manufacturer confirmation.
Illustrative Layout Example
Suppose a confirmed module uses 240mm along the circumference and the design uses 16 modules per ring. The active circumference is 3,840mm, producing a geometric active diameter of approximately 1,222mm. If the display height is 1,920mm and the vertical module dimension is 120mm, the structure requires 16 rows. The active display therefore uses 256 modules before spare modules are added.
This example does not confirm that every 240×120mm model can be installed at that diameter. The exact selected model must still be checked for bending direction, minimum diameter, rear-housing clearance, connector position, and cable behavior.
4. Design an Accurate Supporting Structure
Flexible modules conform to the supporting surface; they do not correct an inaccurate frame. A full cylinder may use circular steel rings, aluminum profiles, formed sheet metal, or another engineered magnetic support surface. The structure must provide consistent roundness, vertical alignment, load capacity, magnetic attachment, grounding, ventilation, cable space, and access for servicing.
Required manufacturing tolerances depend on the cylinder diameter, module design, seam target, structural material, fabrication method, and project drawing. A universal tolerance such as ±2mm or ±1° should not be applied without engineering review. The frame fabricator and LED-system integrator should agree on measurable tolerances before production.
Plan the closing seam deliberately. It may be positioned away from the primary viewing direction, aligned with an architectural feature, or incorporated into the content map. Even on a 360-degree display, a physical closing seam and module joints remain part of the structure and must be controlled through fabrication, alignment, and calibration.
5. Plan Power, Signal, and Service Access
Divide the cylinder into logical electrical and data zones. Calculate the maximum and typical power demand using the confirmed module specification, then size power supplies, distribution cables, protection devices, and circuits with an appropriate engineering margin. Do not rely on a generic wattage value for the entire PIF Series.
Power and signal cables should follow organized, serviceable routes without being pinched or forced against the bend. Confirm DC voltage, polarity, connector type, signal interface and pinout, scan rate, driver IC, receiving-card loading, and configuration files before installation. Keep power and data routing organized and label zones, rows, receiving cards, and supplies for future maintenance.
Determine how modules will be removed before closing the structure. Magnetic mounting may support front access, but a practical service plan also needs removal clearance, accessible connectors, cable slack, and a safe method for reaching higher rows. Control equipment and power supplies should remain accessible without dismantling large areas of the display.
6. Install the Modules in a Controlled Sequence
Inspect the frame and verify its dimensions, roundness, grounding, magnetic surface, and cable openings before mounting LED modules. Test a small representative section first to confirm curvature, magnet position, connector clearance, seam behavior, and service removal.
For many cylinders, installation can begin at a defined vertical datum and proceed ring by ring. Align each module before completing the adjacent area, maintain consistent orientation, and avoid using excessive force to pull a module into position. The structure—not the PCB—should establish the final curve.
Wear anti-static gloves and follow ESD procedures. Do not fold, twist, sharply bend, pull, or repeatedly flex a module beyond its documented limit. Protect LED surfaces and GOB or COB layers from hard tools, concentrated pressure, and unapproved cleaning chemicals.
7. Configure and Calibrate the Display
Configure the receiving cards according to the physical signal route and map the canvas to the complete active circumference and height. Verify module resolution, scan configuration, data direction, row order, color order, and loading capacity before displaying full-brightness content.
Test solid red, green, blue, white, grayscale, grid, text, and moving patterns. Inspect the cylinder from all intended viewing directions for dead pixels, incorrect mapping, brightness variation, color shift, uneven seams, and visible mechanical distortion. Calibration should be performed after installation because curvature, viewing angle, module batches, and brightness settings influence the final appearance.
Content should be produced for the exact cylindrical canvas. Avoid placing essential text across the closing seam, allow for wraparound transitions, and preview the work on the installed display. Camera-facing projects should also test refresh performance, shutter interaction, scan artifacts, color, and exposure using the actual production camera settings.
8. Commissioning and Long-Term Maintenance
Before handover, run the display under representative content and brightness, check temperatures, inspect power and signal stability, and confirm access to every service zone. Record receiving-card files, calibration data, wiring diagrams, module orientation, batch information, and spare-module locations.
Keep spare modules from the same product configuration and production batch whenever possible. When replacing a module, verify mechanical fit, signal interface, scan configuration, firmware, and calibration rather than relying only on matching size and pixel pitch.
Conclusion
A successful cylindrical LED screen begins with an exact layout and a model-specific curvature check. The circumference formula determines the number of modules and the geometric diameter; it does not define how tightly a module may bend. Structural accuracy, electrical zoning, service access, configuration, calibration, and cylindrical content design are equally important.
The PIF Series provides SMD, GOB-protected SMD, and flexible COB options from P0.9375 to P4 for different cylindrical and curved indoor applications. Before finalizing a structure, contact PrimeLEDModules with the proposed diameter, height, module orientation, viewing distance, drawing, content requirements, and control-system plan so the exact model and curvature can be verified.
