Indoor Flexible LED Modules – PIF Series

Our PIF Series Indoor Flexible LED Modules are engineered for curved, creative, and custom LED display applications. This collection covers pixel pitches from P1.25 to P4, with panel formats including 240×120mm, 320×160mm.

All models use highly flexible PCB substrates with magnetic front-service design and are available in SMD and GOB versions for enhanced durability.

Build your full system with our recommended essentials:

Control Systems
Power Supplies
Cables & Accessories

Need an outdoor option? Discover our POF Series Outdoor Flexible LED Modules ›

Lead Time

Orders are typically processed and shipped within 1–3 business days from our main warehouse.

Fulfillment Details

Shipping Origin: All products ship directly from our warehouse.
Standard: 9–18 days | Express: 5–9 days
Shipping Costs: Calculated based on cart weight, dimensions, and destination

Important Notes for Indoor Flexible LED Modules – PIF Series

LED display modules are the core building blocks of a complete LED screen. Modules can be purchased individually and assembled into custom display configurations.

To ensure consistent visual performance and system compatibility, please note the following:

Batch Consistency

Even modules from the same manufacturer may show slight differences between production batches, including LED color tone, mask color, and overall appearance.
For best uniformity, modules used within the same screen should come from the same batch whenever possible.

Manufacturer Compatibility

LED modules from different factories may vary in PCB design, driver IC configuration, and LED components.
Because of these differences, modules from different manufacturers should not be mixed within the same display.

Before You Purchase

If you plan to combine these modules with existing LED modules, please CONTACT US in advance to confirm compatibility.
For new LED screen projects, modules from the same PIF series can be used together without concern.

PIF Series – Product Overview

Sub-Series	Module Size	Protection Type	Brightness	Application Scenarios	Available Pixel Pitches
PIF-2S Series	240×120 mm	Standard SMD	600 nits	Indoor curved/backlit installations	P3.0, P2.5, P2.0, P1.875, P1.579, P1.25
PIF-2G Series	240×120 mm	GOB (Glue-on-Board)	550 nits	High durability indoor creative display	P1.875, P1.579, P1.25
PIF-3S Series	320×160 mm	Standard SMD	600 nits	Indoor flexible screen walls	P4.0, P3.076, P2.5, P2.0, P1.86, P1.53, P1.25
PIF-3G Series	320×160 mm	GOB (Glue-on-Board)	550 nits	Durable indoor curved walls	P1.86, P1.53, P1.25
PIF-1FT Series	304.8×304.8 mm	Standard SMD	1000 nits	1ft-sized indoor installations	P1.905-P1.27 (Request Quote)

Build smooth curves and creative shapes with our indoor flexible LED display modules, designed for curved LED screens, arc walls, cylinders, and space-saving installations. Choose from ultra-fine pixel pitch options (P1.25, P1.5, P1.8, P2) for close viewing, or standard indoor pitches (P2.5, P3, P4) for larger video walls with better cost efficiency. With a typical brightness range of 400–800 cd/m², these panels deliver sharp, vibrant visuals that look comfortable in indoor environments.

Multiple module sizes (320 × 160 mm, 256 × 128 mm, 240 × 120 mm) make system design easier: you can combine tiles for custom layouts while maintaining clean alignment and image continuity. The lightweight, bendable structure helps reduce installation complexity and supports creative displays without sacrificing display uniformity.

CATALOG OF INDOOR FLEXIBLE LED DISPLAY MODULES

STRUCTURE AND INSTALLATION BASE

The silicone-based flexible LED module uses a reinforced silicone backing to improve stability during mounting. Embedded magnets help keep the rear surface even, reduce visible stitching gaps, and support faster positioning on compatible metal structures.

Flexible LED module rear silicone base with embedded magnets

Flexible LED panel structure detail for curved installations

* HIGH FLEXIBILITY
Designed to bend forward and backward within a controlled curvature, suitable for rolled, curved, wave-shaped, and custom creative structures.

Flexible LED screen module bending demonstration image 1

Flexible LED screen module bending demonstration image 2

* SUPER THIN AND LIGHT
A slim profile (typically under 6 mm) and low weight per tile help reduce structural load and support compact indoor builds.

* FRONT OR REAR SERVICE

Magnetic mounting allows quick installation and convenient service access. Modules can be removed from the front on compatible structures, supporting efficient maintenance in tight spaces.

Flexible LED module magnet mounting detail close-up

Flexible LED panel magnet installation example

KEY ADVANTAGES FOR INDOOR CURVED LED DISPLAYS

Flexible and bendable – Supports cylinders, arcs, waves, and custom-shaped LED walls
Ultra-fine pixel pitch options – P1.25 to P2 for close-up, high-detail indoor viewing
Standard indoor pitches – P2.5 to P4 for larger LED video walls and budget-friendly builds
Lightweight slim structure – Easier handling, reduced load, faster installation
Comfortable brightness – 400–800 cd/m² for indoor environments
Clean curve continuity – Smooth surfaces for immersive creative installations
Multiple module sizes – Flexible system design for different layouts and radii

NO CABINET OPTION Reduce total screen weight and cost by skipping traditional metal cabinets. Structures can be designed to match your required shape and installation environment.	EASY SPLICING, INSTALLATION, AND MAINTENANCE Modular design minimizes extra wiring. Install compatible metal plates or magnetic surfaces first, then attach flexible modules for quick assembly and simplified service.

FIRM AND STABLE BUILD Advanced SMT process helps reduce solder defects and improves consistency, supporting clean video and text reproduction.	CUSTOMIZATION SUPPORT Flexible LED tile sizes can be customized for projects like spheres, cylinders, and creative architectural displays. Share your drawing or requirements for a detailed quotation.

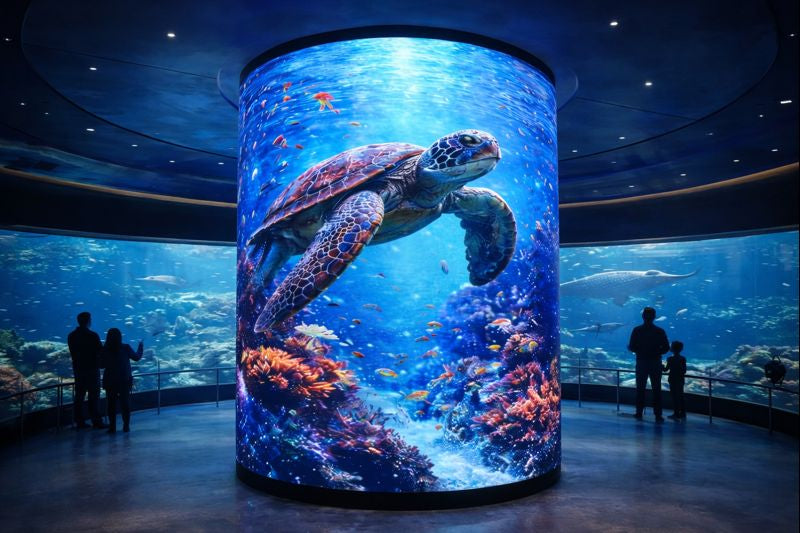

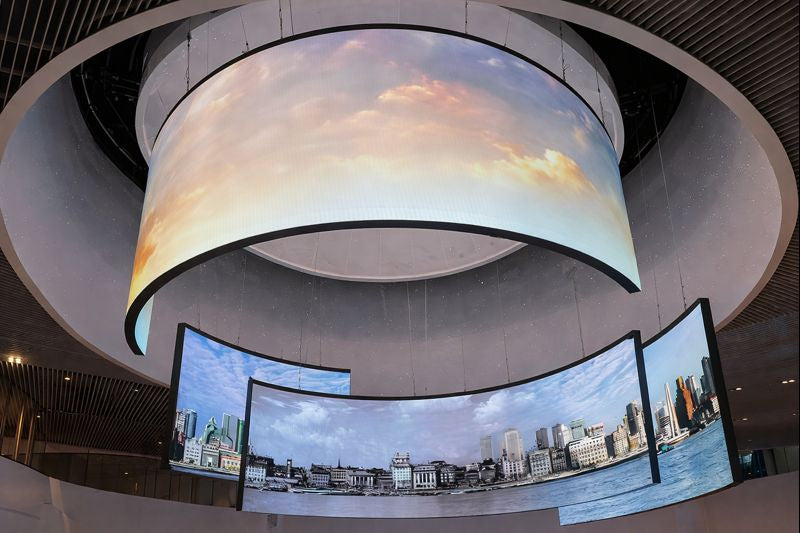

Curved and cylindrical LED screens – Pillars, arches, entrance features, and artistic indoor displays
Retail and exhibition booths – Eye-catching curved video walls for brand storytelling
Stage and event backdrops – Dynamic curved backgrounds for shows and product launches
Corporate and control rooms – High-detail curved LED walls for data visualization
Luxury interior design – Seamless integration into walls, ceilings, and custom structures
Museums and theaters – Immersive curved displays for visitor experiences

If you need a bendable indoor LED display solution for creative design, this flexible LED module series offers the balance of pixel pitch options, curvature capability, and installation efficiency required for modern indoor LED projects.

IMPORTANT ALERT

Operators must wear anti-static gloves when assembling modules.
* Do not splash water on the screen or module. When cleaning dust, do not use wet cloths or hard objects. Use an anti-static soft brush.
* Keep working humidity within 20% to 75%. Store modules in a dry place before assembly. Storage temperature should not exceed 30°C and humidity should not exceed 65%.
* Do not pull or tear with force. When unplugging cables, pull gently to avoid damaging copper pillars and PCB.
* Do not use galvanized square pipes for installation because flatness cannot be guaranteed. Use sprayed iron box structures instead.
* For arc and cylindrical sheet-metal boxes, spraying process is recommended for easier installation and better flatness.
* Bending angle range is 135° to 169°. Do not bend violently or repeatedly.

Smallest diameter achievable with 320mm flexible LED modules

Comparison Between P1.86, P2, P2.5 and P3.076

Smaller pixel pitch delivers finer detail when viewing at the same distance with the same content. (Please ignore color differences caused by different production batches of LED lamps.)
