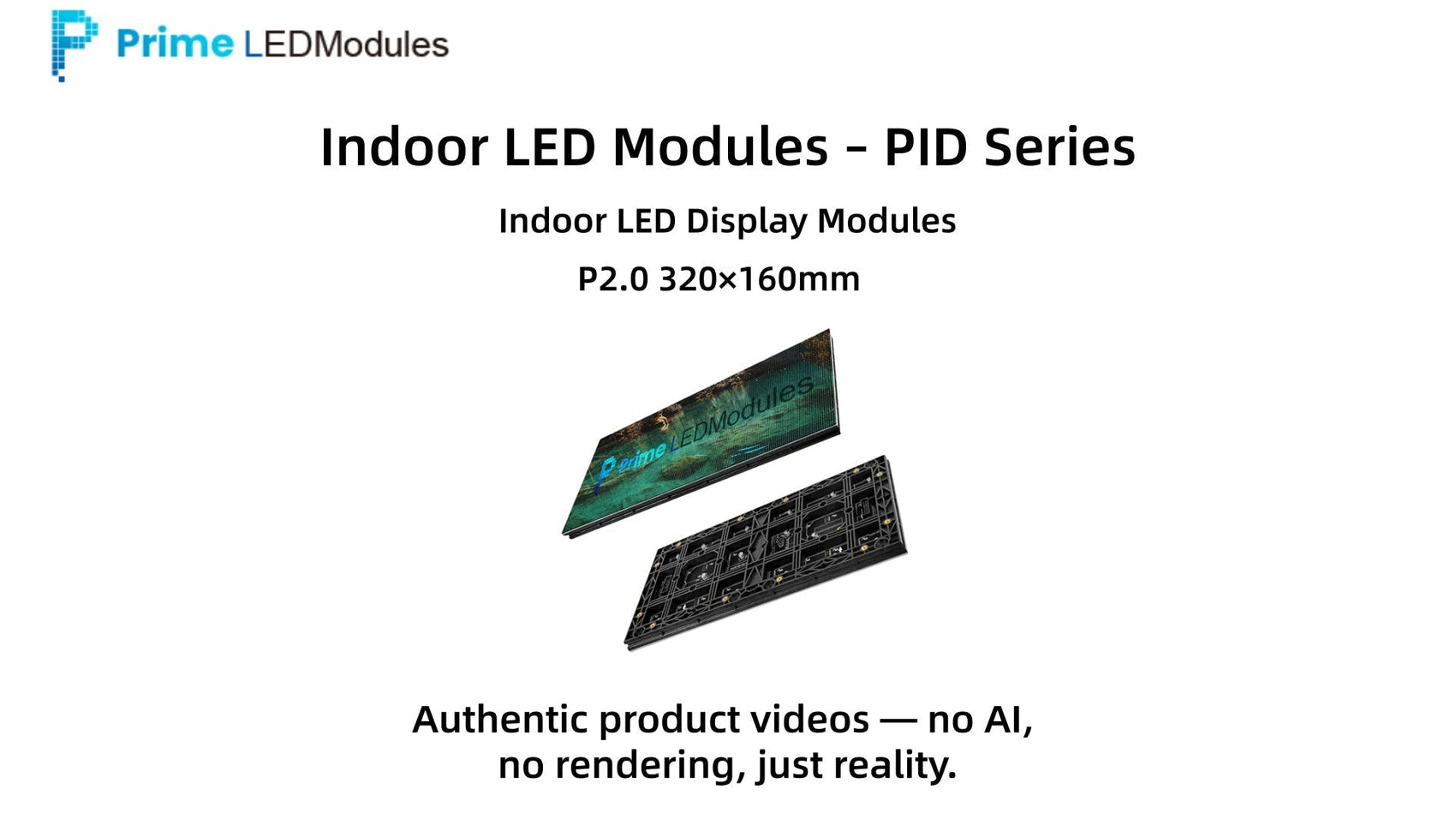

PID-S Series P2.0 Indoor LED Module Demo | 320×160mm Ultra-Fine SMD Panel
Watch the PID-S Series P2.0 indoor LED module demonstration. This ultra-fine LED display module features a 2.0mm pixel pitch and a standard 320 × 160mm SMD panel design for high-resolution indoor LED video walls.
Designed for close-viewing applications, the PID-S Series delivers smooth visuals, stable brightness, and reliable performance for professional indoor LED display installations.
Product Features
- Ultra-fine 2.0mm pixel pitch for high-resolution indoor displays
- Standard 320 × 160mm LED module size for common cabinets
- SMD LED technology for uniform brightness and color consistency
- High refresh rate for smooth video playback and camera-friendly performance
- Modular design allowing flexible screen size configurations
Application Scenarios
- Indoor LED video walls
- Control rooms and monitoring centers
- Broadcast studios and TV production environments
- Conference rooms and exhibition halls
- Commercial digital signage and showroom displays
Key Specifications
- Series: PID-S Series
- Pixel Pitch: 2.0mm
- Module Size: 320 × 160mm
- Module Resolution: 160 × 80 dots
- LED Type: SMD
- Pixel Density: 250000 dots/m²
- Brightness: ≥ 800 nits
- Refresh Rate: ≥ 3840Hz
- Scan Mode: 1/20 Scan
- Input Voltage: DC 5V
- Protection Grade: IP20
FAQ
Q: What applications is the PID-S Series P2.0 LED module suitable for?
A: It is designed for ultra-fine indoor LED displays such as control rooms, conference displays, broadcast studios, exhibitions, and commercial LED video walls.
Q: Is this LED module suitable for close viewing?
A: Yes. With a 2.0mm pixel pitch, it is designed for high-resolution indoor displays viewed from short distances.
Q: Can multiple modules be combined to build larger screens?
A: Yes. The modular 320 × 160mm design allows flexible configuration for various LED display sizes.
