When people discuss LED display technology, the conversation usually revolves around pixel pitch, brightness, resolution, or screen size. While these factors are important for visual performance, they only represent the visible layer of an LED display system. Behind every stable and high-quality LED screen, there is a complex control architecture that processes video signals and distributes image data to thousands or even millions of pixels.
One of the most important components in this architecture is the LED receiving card.
The receiving card acts as the core signal processing unit installed inside LED display cabinets. It receives digital image data transmitted by the LED sending card, processes that data, and converts it into electrical signals that LED modules can understand. In other words, the receiving card works as a bridge between the control system and the physical LED display modules.
Without receiving cards, LED modules would not know how to interpret incoming image data or how to display video content correctly. Every LED pixel on the screen ultimately relies on instructions processed by a receiving card.
In this article, we will explain what an LED receiving card is, how it works inside an LED display system, how it interacts with sending cards, and why it plays a crucial role in determining display quality and stability.
What Is an LED Receiving Card?
An LED receiving card, also known as an LED display receiver card or LED screen receiver card, is a hardware control board that is installed inside LED display cabinets. Its primary function is to receive video signal data transmitted from the LED sending card and convert that data into pixel control signals for LED modules.
Each receiving card controls a specific portion of the LED display. In large LED screens, hundreds of receiving cards may work together simultaneously to control different sections of the screen.
Receiving cards typically connect to LED modules through HUB75 or HUB320 interfaces, which distribute pixel data and scanning signals to LED driver ICs on the modules.
Modern LED receiving cards support different loading capacities depending on their design and processing capability. For example:
-
The NovaStar MRV208-N Receiving Card is commonly used in smaller indoor LED displays with HUB75 interfaces and moderate pixel loading requirements.
-
The NovaStar MRV412-N Receiving Card and NovaStar MRV416-N Receiving Card support higher data capacity and are widely used in commercial LED display installations.
-
For larger LED video wall projects that require higher stability and monitoring features, models such as the NovaStar MRV532 Receiving Card and NovaStar MRV570-1 Receiving Card are often selected.
These receiving cards ensure that image data is distributed accurately across LED modules so that the final display appears seamless and synchronized.
The Relationship Between Sending Cards and Receiving Cards
An LED display control system is usually composed of several key components that work together to deliver video content to the screen.
The typical architecture includes:
-
Video source (computer, media player, or video processor)
-
LED sending card or video controller
-
LED receiving cards installed inside LED cabinets
The sending card functions as the central signal distributor. It receives the video signal from the source device, converts that signal into digital display data, and transmits it through Ethernet cables to multiple receiving cards.
The receiving cards then decode the incoming data and send pixel signals to the LED modules.
This layered control architecture allows LED displays to scale easily. A single sending card can distribute image data to dozens or even hundreds of receiving cards, enabling large LED video walls to operate as a single synchronized display.
For professional LED display systems that require higher loading capacity and advanced color processing, receiving cards such as the NovaStar A5s Plus Receiving Card and NovaStar A8s-N Receiving Card are commonly used. These cards support higher grayscale depth and more advanced image processing capabilities.
How Signal Processing Works Inside an LED Receiving Card
Once a receiving card receives video data from the sending card, it performs several critical signal processing tasks to convert the digital information into pixel-level control signals.
First, the receiving card decodes the incoming video data stream. This process involves separating the display data into pixel blocks that correspond to specific sections of the LED display.
Next, the receiving card converts the image data into RGB grayscale signals that LED driver ICs can process. These signals determine the brightness levels of the red, green, and blue LEDs within each pixel.
After that, the receiving card distributes the processed signals through HUB interfaces to the LED modules.
During this process, the receiving card also manages several important display parameters, including:
-
Pixel mapping
-
Scan mode control
-
Refresh timing
-
Brightness calibration
-
Signal synchronization
High-performance receiving cards are capable of processing extremely large amounts of data while maintaining precise timing control.
For example, receiving cards such as the Mooncell A708 Receiving Card, Mooncell A712 Receiving Card, and Mooncell A716 Receiving Card are designed to deliver stable signal processing and broad compatibility with different LED driver ICs.
The Pixel Control Principle in LED Displays
To understand the importance of receiving cards, it is helpful to look at how LED pixels are controlled.
Each LED pixel consists of three primary light sources:
-
Red LED
-
Green LED
-
Blue LED
By adjusting the brightness of these three LEDs, the display can produce millions of color combinations.
However, LED brightness cannot simply be adjusted by changing voltage levels. Instead, LED displays use a technique known as Pulse Width Modulation (PWM) to control brightness.
PWM works by rapidly switching LEDs on and off during each refresh cycle. The receiving card determines how long each LED remains on within that cycle. The longer an LED stays on, the brighter it appears to the human eye.
Through precise PWM timing control, receiving cards can generate smooth grayscale transitions and accurate color reproduction.
Advanced receiving cards used in high-end LED displays also support high refresh rates and high grayscale depth, which are essential for applications such as broadcasting studios, virtual production environments, and command center displays.
For example, receiving cards such as the Colorlight i5 Receiving Card and Colorlight 5A-75E Receiving Card are designed for high-performance LED display systems where stable signal processing and high image quality are required.
Why Receiving Cards Affect Display Quality
Many people assume that LED display quality depends entirely on the LED modules themselves. While module quality is certainly important, the receiving card also has a significant impact on overall display performance.
A well-designed LED receiving card can influence several key aspects of display quality.
Signal Stability
High-quality receiving cards are designed to minimize signal interference and transmission errors. Stable data communication between sending cards and LED modules ensures that the display operates smoothly without image distortion or data loss.
Refresh Rate Performance
The refresh rate of an LED display determines how frequently the screen updates its image. Higher refresh rates reduce flicker and ensure that the display performs well when recorded by cameras.
Grayscale Depth
Grayscale depth determines how many brightness levels can be displayed between black and white. Receiving cards with advanced grayscale processing can produce smoother gradients and more accurate colors.
Compatibility with LED Driver ICs
Different LED modules use different driver ICs and scanning configurations. Receiving cards that support a wide range of driver ICs provide greater flexibility for system integrators.
For example, receiving cards such as Huidu HD-R708, Huidu HD-R712, Huidu HD-R716, and Huidu HD-R732 are designed to support multiple LED driver ICs and deliver stable signal performance across both indoor and outdoor LED displays.
Additional Control Devices in LED Display Systems
In some LED display installations, additional control devices may be used to simplify the system architecture and reduce hardware complexity.

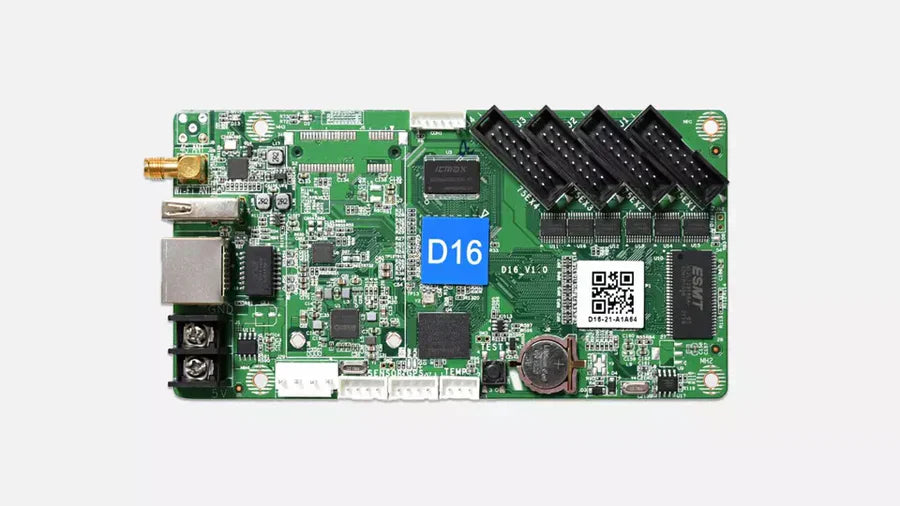

For example, the Huidu HD-D16 LED Controller integrates media playback and LED control functions into a single device. Instead of using a separate sending card and external media player, this type of controller allows digital signage systems to operate independently.
Integrated controllers are commonly used in digital advertising screens, retail signage displays, and information boards where scheduled content playback is required.
Conclusion
The LED receiving card plays a fundamental role in every LED display system. Acting as the communication bridge between the sending card and the LED modules, it ensures that video signals are accurately converted into pixel-level control signals.
Through sophisticated signal processing, grayscale control, and data distribution, receiving cards allow LED displays to deliver smooth motion, accurate colors, and stable performance.
Modern receiving cards from manufacturers such as NovaStar, Mooncell, Huidu, and Colorlight offer powerful processing capabilities, high refresh rates, and strong compatibility with a wide variety of LED modules.
Whether used in digital signage, advertising LED displays, indoor video walls, or command center screens, selecting the right receiving card is essential for building a reliable and high-performance LED display system.
