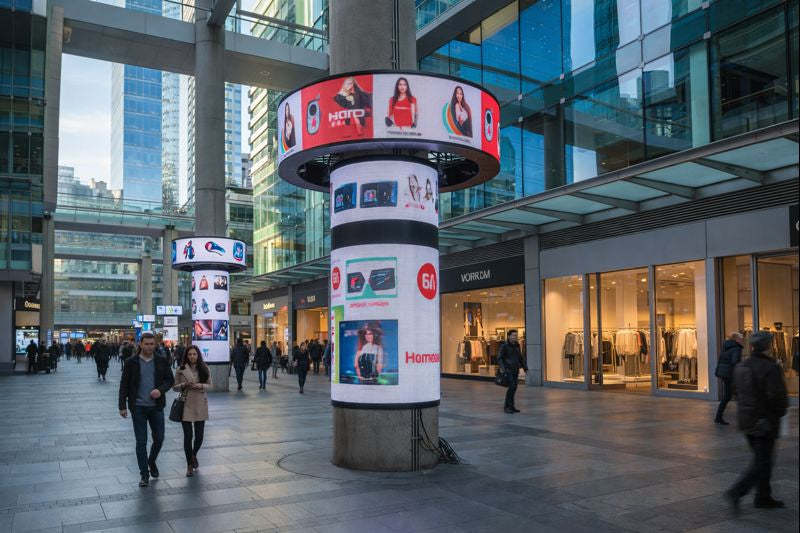

Outdoor cylindrical LED screens are becoming a defining visual element in modern commercial and architectural spaces. In shopping mall atriums, city squares, landmark buildings, stadium entrances, and large exhibition venues, they no longer serve only as information displays, but as spatial landmarks that reshape how people perceive and interact with an environment.
Unlike traditional flat LED displays that present content in a single direction, a cylindrical screen surrounds its audience and delivers a true 360° visual experience. No matter where viewers stand, they are always within the screen’s visual field. This sense of immersion is what makes cylindrical screens so powerful in branding, advertising, and public installations.
The technical foundation behind this form of display is the outdoor LED flexible module. These modules are specifically engineered to bend and conform to curved structures while maintaining outdoor-grade brightness, protection, and operational stability. In practice, the success of a cylindrical LED screen is determined far more by the characteristics of the flexible module than by the external structure itself.
This article explores how to build a high-quality outdoor cylindrical screen using outdoor LED flexible modules, focusing on design logic, structural planning, installation workflow, and the correct selection of pixel pitch. The discussion is based on engineering principles and real-world application needs, rather than promotional language.
1. Why Cylindrical Screens Rely on Flexible LED Modules
1.1 Curved geometry cannot be achieved with rigid cabinets
Traditional LED cabinets are optimized for flat wall installations. When they are forced into a curved structure, several problems immediately appear: gaps form between cabinets, mechanical stress concentrates on corners, and the visual surface becomes uneven. Over time, this stress leads to deformation, unstable performance, and even failure of the display.
Outdoor LED flexible modules fundamentally change this situation. They are built using:
-
Flexible PCB substrates that allow controlled bending
-
Soft rubber masks that maintain pixel alignment under curvature
-
Structural designs that define a safe bending radius
Because the curvature is absorbed by the module itself, the cylindrical shape is achieved naturally rather than mechanically. The result is a smooth, continuous surface with minimal visual seams and significantly reduced internal stress.
This same principle is also what enables other creative structures such as:
-
Column wrapping
-
Curved facades
-
Wave-shaped walls
-
Partial spherical screens
Among all these forms, cylindrical screens stand out because of their symmetry and complete 360° visibility.
1.2 Outdoor performance requirements go beyond flexibility
Flexibility alone is meaningless if the module cannot survive in outdoor conditions. A cylindrical screen must withstand continuous exposure to rain, dust, UV radiation, wind, and temperature variations.
That is why outdoor flexible LED modules are designed with:
-
IP65 or higher protection
-
Sealed front and rear structures
-
UV-resistant materials
-
Stable long-term electrical insulation
This ensures that bending the module does not compromise its waterproofing or durability. Even after being formed into a curved structure, the module remains a true outdoor-grade product, capable of long-term, reliable operation.
1.3 Brightness and viewing angle define real usability
Cylindrical screens are often installed in open or semi-open environments where ambient light changes constantly. If brightness is insufficient, the display becomes washed out under sunlight and loses its visual impact.
For outdoor cylindrical projects, flexible modules usually require:
-
Brightness levels of 4500–5500 nits
-
Viewing angles of ≥140° horizontally and vertically
This ensures that content remains vivid and readable from different heights and directions, reinforcing the cylindrical screen’s role as a central visual focus rather than a directional billboard.
2. Designing the Cylinder: The Relationship Between Diameter and Pixel Pitch
Every cylindrical LED project starts with one fundamental question:
How close will people stand to the screen, and how detailed does the image need to be?
Pixel pitch directly determines the balance between visual quality and project cost.
-
Smaller pixel pitch provides higher resolution and better close-range clarity
-
Larger pixel pitch reduces cost and power consumption but requires longer viewing distances
For outdoor cylindrical screens using 320 mm wide flexible modules, the following diameter references are widely adopted:
| Pixel Pitch | Recommended Minimum Diameter |
|---|---|
| P2.5 | ≈ 1.2 m |
| P3.076 | ≈ 1.4–1.5 m |
| P4 | ≈ 1.6 m |
In real projects:
-
Shopping mall atriums and exhibition entrances usually choose P2.5 or P3.076 to achieve near-distance clarity and refined image quality.
-
Commercial plazas and city square installations often select P4, balancing cost efficiency and outdoor readability.
The goal is not to pursue maximum resolution, but to achieve a visually comfortable experience that aligns with the actual viewing distance.
3. Structural Design: The Hidden Core of Stability
Although cylindrical LED screens appear light and artistic, structurally they behave like architectural installations. Their stability directly affects both safety and display lifespan.
3.1 Frame shape
Most projects use:
-
True cylindrical steel frames for precise curvature
-
Polygonal frames (octagonal or dodecagonal) to simplify fabrication
Both methods aim to minimize stress on the flexible modules and maintain consistent curvature across the entire screen surface.
3.2 Fixing methods
Two main mounting approaches are commonly adopted:
Magnetic mounting
-
Enables fast module installation and replacement
-
Allows full front maintenance
-
Ideal for projects requiring frequent servicing
Screw mounting
-
Provides stronger wind resistance
-
Ensures long-term mechanical stability
-
Preferred for permanent outdoor installations
In large-scale projects, it is common to combine magnetic mounting for the modules with screw-reinforced steel or aluminum structures for the main frame.
3.3 Reinforcement logic
As the cylinder increases in height and diameter:
-
Reinforcing rings become essential
-
Frame segmentation improves load distribution
-
Structural calculations must consider wind pressure and vibration
In coastal or high-humidity regions, corrosion-resistant coatings and materials significantly extend the lifespan of the entire installation.
4. Power, Control, and Safety Layout
A cylindrical LED screen is a fully integrated outdoor electronic system.
Key design principles include:
-
Power supplies and control cards must be installed in sealed, waterproof, and ventilated enclosures
-
Maintenance access points must be reserved during the frame design stage
-
Power and signal cables must follow outdoor anti-interference standards
Control systems can operate in:
-
Synchronous mode for real-time video and live broadcasting
-
Asynchronous mode for scheduled advertising and loop playback
The module itself supports both, making the choice purely dependent on application needs.
5. Installation Workflow: How Cylindrical Screens Are Built
Unlike flat LED walls, cylindrical screens demand geometry-driven installation.
-
Design planning
-
Confirm diameter, height, and viewing distance
-
Draw detailed frame and wiring layouts
-
Select pixel pitch
-
-
Frame fabrication
-
Use steel or aluminum structures
-
Apply anti-rust treatment
-
Reinforce critical joints
-
-
Module installation
-
Install progressively from bottom to top
-
Test each ring before moving upward
-
Ensure consistent seam spacing
-
-
Wiring and control setup
-
Separate power and signal paths
-
Ensure waterproof cable sealing
-
-
System testing and optimization
-
Check brightness uniformity
-
Perform color calibration
-
Activate auto-brightness control
-
Adjust seams for visual flatness
-
6. Choosing Modules for Different Viewing Distances
Close-range viewing (2–4 m)
For installations requiring fine detail and immersive clarity, P2.5 outdoor flexible LED modules provide excellent resolution.
They are particularly suitable for:
-
Shopping mall atriums
-
Exhibition entrances
-
High-end commercial branding spaces
Medium viewing distance (5–8 m)
For a balanced solution, both P3.076 outdoor flexible LED modules and P4 outdoor flexible LED modules are widely adopted.
They deliver a strong combination of:
-
Outdoor brightness
-
Cost efficiency
-
Installation flexibility
-
Stable long-term performance
These are common choices for:
-
Commercial plazas
-
City squares
-
Stadium entrances
7. Final Thoughts
An outdoor cylindrical LED screen is the result of precise integration between flexible module design, structural engineering, optical performance, and environmental resistance.
When outdoor LED flexible modules are correctly selected and applied, they enable cylindrical screens that are:
-
Structurally stable
-
Visually immersive
-
Environmentally durable
-
Economically scalable
A cylindrical LED screen is not merely an information carrier. It becomes a spatial centerpiece that defines the surrounding environment.
Instead of guiding viewers to look in one direction, it invites them to walk around and engage with space. This interaction transforms the screen into a landmark, a gathering point, and a powerful branding medium.
