In today’s outdoor LED display projects, flexibility is no longer just an added feature. It has become a core design requirement. As architectural forms move away from flat walls toward curved façades, columns, cylinders, and even folded structures, traditional rigid LED panels are often unable to meet creative or structural demands. This is where outdoor flexible LED modules step in.
They allow designers and engineers to wrap screens around curved surfaces, create seamless cylindrical displays, and build visually dynamic installations that were almost impossible a few years ago. However, flexibility does not mean “unlimited bending.” Every flexible module has physical limits. Ignoring those limits may shorten its lifespan or even cause permanent damage.
Understanding bending radius, mechanical strain, and fatigue resistance is essential if you want outdoor flexible LED modules to perform reliably for years in real outdoor environments. This article takes a practical engineering perspective and explains how to balance flexibility with durability.
1. Flexibility and Bending Radius
Every outdoor flexible LED module is engineered with a defined minimum bending radius. This radius determines how tightly the module can be curved without introducing structural stress that could damage the internal PCB, solder joints, or LEDs.
When a module is bent beyond its safe radius, several risks appear:
-
Micro-cracks can form in solder joints
-
PCB layers may start to delaminate
-
LED chips can lose alignment or fail
-
Waterproof layers can weaken over time
These issues often do not appear immediately. Instead, they accumulate gradually, leading to unstable pixels, dark spots, or sudden failures months after installation.
Several factors influence how small a bending radius a module can tolerate:
Pixel pitch
Modules with finer pixel pitch contain more LEDs in the same area, which means higher density of solder points and circuitry. High-density modules such as P2.5 and P3.076 are more sensitive to tight bending and require more careful handling than larger-pitch models.
Substrate material
Flexible PCBs are designed to distribute stress across the surface rather than concentrating it in one point. A high-quality substrate significantly reduces mechanical pressure on solder joints and LED pads during bending.
Encapsulation and waterproof layers
Outdoor flexible LED modules rely on waterproof coatings not only for environmental protection but also for mechanical buffering. These layers absorb part of the bending energy and reduce sudden stress peaks.
In outdoor applications, respecting the bending radius is not optional. It directly determines whether the screen will remain stable after long-term exposure to temperature change, wind vibration, and humidity.
2. Mechanical Strain and Fatigue Resistance
Mechanical strain does not only occur during installation. It also happens:
-
During transportation
-
When modules are removed for maintenance
-
When temperature expansion and contraction occur
-
When wind or vibration repeatedly loads the structure
Over time, repeated bending and micro-movement lead to fatigue failure. Even if each bending action is within the safe radius, thousands of cycles can gradually weaken solder joints or copper traces.
Manufacturers evaluate fatigue resistance through repeated bending tests, simulating real-world conditions. Modules are flexed thousands of times to confirm that electrical performance remains stable.
Key contributors to fatigue resistance include:
-
Durable PCB substrate: spreads mechanical force and prevents stress concentration
-
Encapsulation layers: act as shock absorbers during bending
-
Controlled pixel density: finer pitch requires stricter handling rules
Understanding fatigue behavior helps installers plan realistic maintenance strategies. Instead of repeatedly removing and bending modules, front-service designs and stable mounting systems reduce unnecessary stress.
3. Curved, Folded, and Cylindrical Installations
Outdoor flexible LED modules support many creative forms, but each configuration has its own stress characteristics.
Folded displays
Folding introduces localized stress at the fold line. Unlike curved surfaces, where stress is distributed gradually, folding concentrates force in a narrow area.
To protect the module:
-
Add buffer materials at fold points
-
Avoid sharp angles
-
Design supporting brackets that relieve bending force
Curved surfaces
Curved installations are the most natural use case for flexible modules. A gentle and continuous radius distributes stress evenly across the PCB and solder joints. This is the safest form of deformation and results in the longest lifespan.

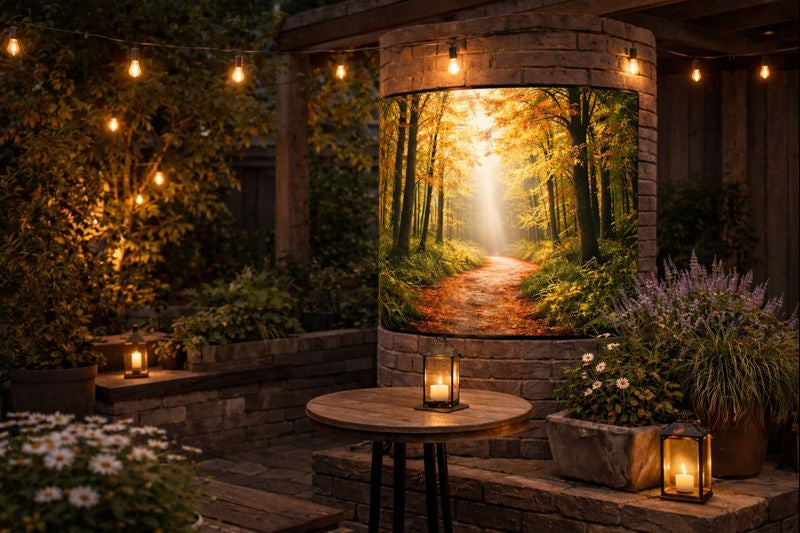

Cylindrical and arched installations
Wrapping modules around columns or cylinders introduces constant curvature along the horizontal axis. This means the module stays under long-term bending stress.
To control that stress:
-
Use segmented frames
-
Add internal tension supports
-
Avoid forcing the module to “self-hold” the curve
When properly supported, cylindrical installations remain one of the most reliable and visually striking applications of outdoor flexible LED modules.
4. Structural Design and Stress Mitigation
The module itself is only one part of the system. Structural design determines whether flexibility becomes an advantage or a weakness.
Key stress-control strategies include:
Backplates
Backplates provide semi-rigid support. They allow bending but prevent excessive deformation, protecting solder joints and PCB layers.
Buffer layers
Silicone or rubber layers absorb mechanical energy and protect against sudden shocks, vibration, and accidental impacts.
Adaptive mounting frames
Frames should follow the target curvature rather than forcing the module to adapt. A properly shaped frame reduces long-term mechanical strain.
Shock absorption
Outdoor installations face wind load, vibration, and occasional impact. Shock-absorbing design prevents cumulative damage.
When flexible modules are paired with correct structural design, flexibility and durability coexist rather than conflict.
5. Choosing Outdoor Flexible LED Modules by Pixel Pitch
Different pixel pitches respond differently to bending stress and outdoor demands.
For medium-distance viewing with excellent balance between resolution and durability, modules like the OF-3S Series P4 Outdoor Flexible LED Module are widely used. Their structure tolerates bending well while maintaining strong brightness and outdoor protection.
For projects requiring finer image detail, the OF-3S Series P3.076 Outdoor Flexible LED Module offers higher pixel density but demands stricter control over bending radius and installation accuracy.
When close-range viewing clarity is essential, the OF-3S Series P2.5 Outdoor Flexible LED Module delivers exceptional visual sharpness. However, it is also the most sensitive to mechanical stress and must be handled with the highest care.
This progressive relationship is important:
higher resolution → higher sensitivity → higher structural precision required.
6. Damage Control in Real Projects
Even with perfect design, mistakes happen. Damage control focuses on minimizing irreversible stress.
Best practices include:
-
Never force a module to match a structure
-
Always design structure first, module second
-
Avoid repeated bending during maintenance
-
Transport modules in flat or lightly curved protective packaging
-
Train installers to understand bending limits
Many failures attributed to “module quality” are actually caused by exceeding mechanical limits during installation.
7. Conclusion
Outdoor flexible LED modules represent one of the most powerful tools in modern display engineering. They enable curved, folded, and cylindrical displays that redefine how LED screens interact with architecture.
But flexibility is not unlimited. It must be controlled, respected, and supported by intelligent structural design.
When bending radius, fatigue resistance, mechanical strain, and support systems are properly understood, outdoor flexible LED modules become both visually impressive and structurally reliable.
The result is not only a stunning display, but a long-term, stable installation that continues to perform under real outdoor conditions year after year.
