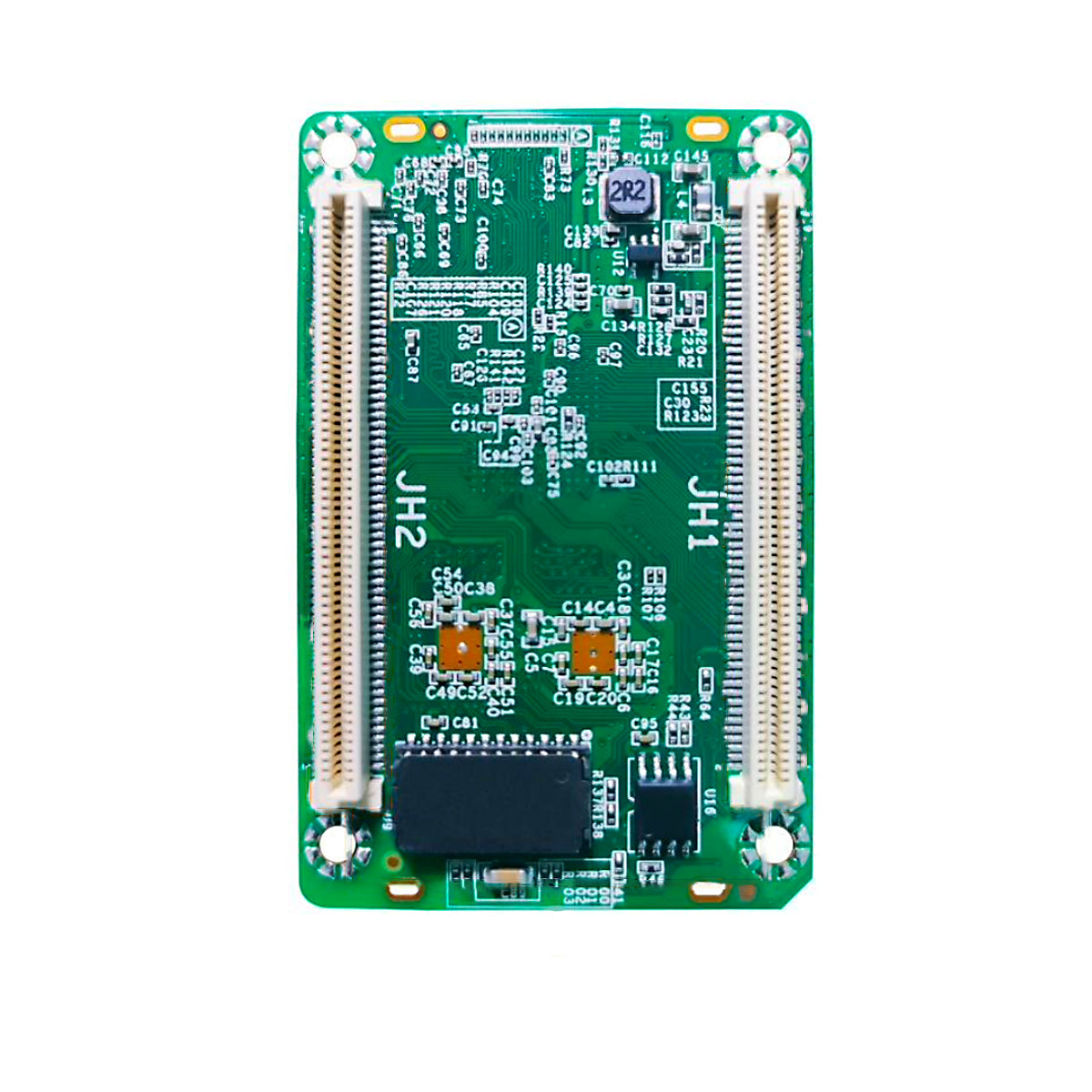

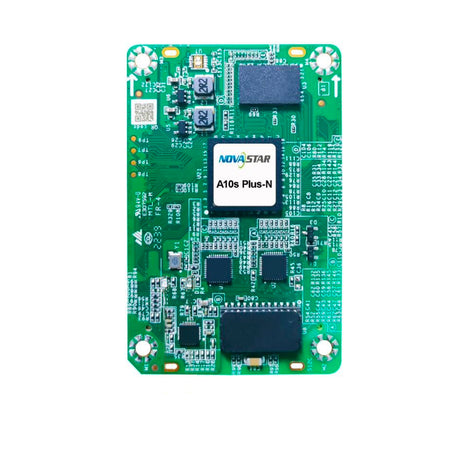

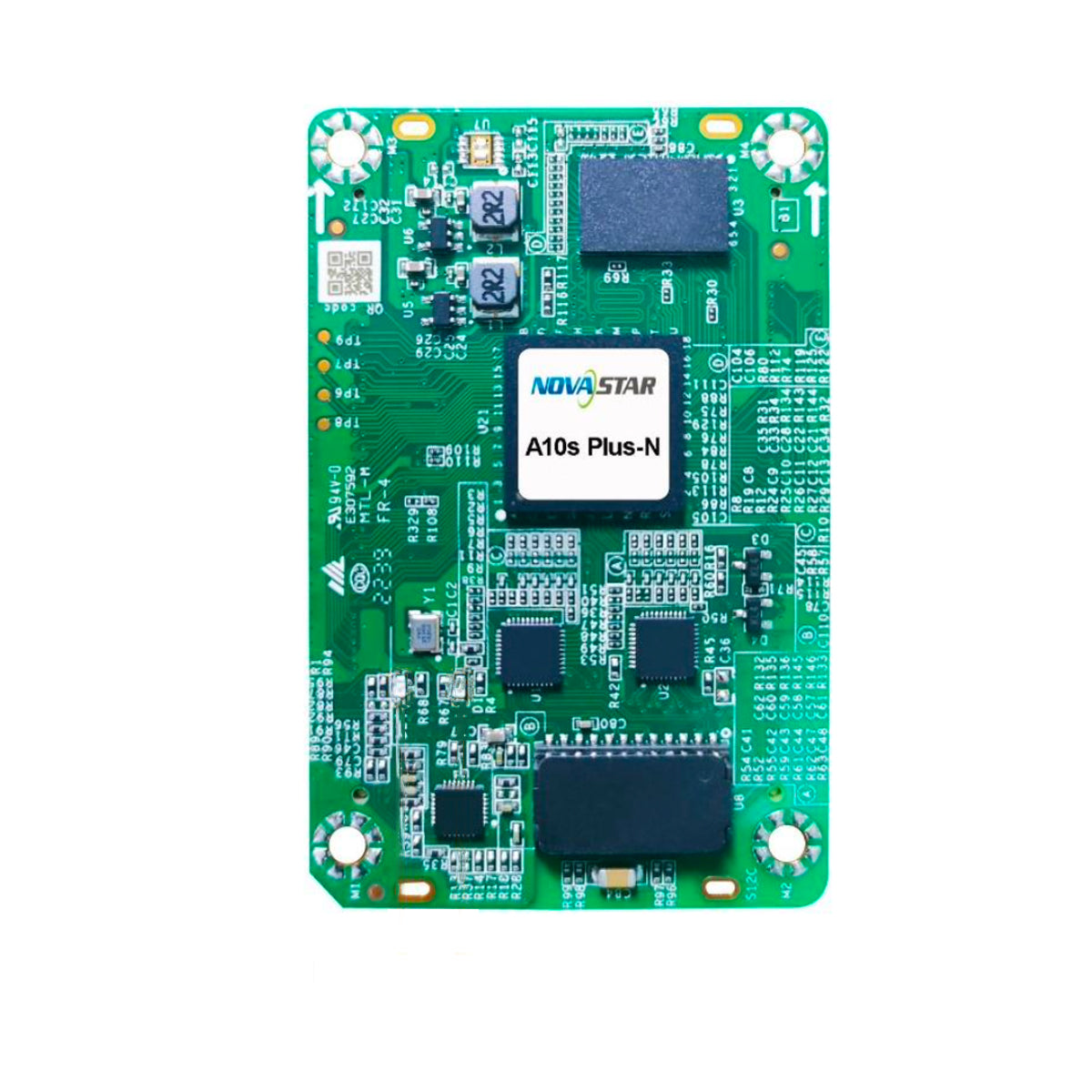

NovaStar A10s Plus-N Receiving Card – 5G-Ready High-Load Controller with 512×512 Pixel Capacity for Large LED Display Projects

In stock
SKU: PL-PKZQ01-NS-A10s-Plus-N
$36.85
Package Qty

NovaStar A10s Plus-N 5G-Ready High-Load Receiving Card

The NovaStar A10s Plus-N Receiving Card is a high-performance LED display controller supporting up to 512×512 pixels with 32-group RGB parallel output or 64-group serial output, designed for high-load LED display systems. It delivers stable, low-latency transmission and superior image quality for large-scale indoor and outdoor LED installations.

Equipped with HDR10 and HLG support, pixel-level brightness & chroma calibration, advanced grayscale technology, and precise color management, the A10s Plus-N ensures accurate and uniform color reproduction. Its compact, optimized hardware design guarantees long-term reliability for fixed screens, rental LED walls, commercial advertising displays, and creative LED projects.

Packing Details

Version Package Included
A10s Plus-N 1 × A10s Plus-N Receiving Card
1 × Antistatic Bag
1 × User Manual

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Key Specifications

  • HDR10 / HLG compatible input for advanced color processing

  • 32-group RGB parallel & 64-group serial output for stable LED data transmission

  • Max load: 512×512 pixels for high-resolution displays

  • Network-based control via compatible sending controllers

  • DC 3.8–5.5 V wide-range input for reliable performance

  • Operates reliably from –20°C to +70°C in diverse environments

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the receiving card to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the receiving card.

Technical Specifications

Model A5s Plus A8s-N A10s Plus-N
Loading Capacity 512×384 512×384 512×512
Parallel RGB Groups 32 32 32
Serial Data Groups 64 64 64
HDR × √ √
Mapping √ √ √
Temperature/Voltage/Communication Monitoring √ √ √
Dual-Card Backup √ √ √
Automatic Calibration √ √ √
Pixel-Level Calibration √ √ √
Calibration Coefficient Backup × √ √
Firmware Readback √ √ √
Individual RGB Gamma Adjustment √ √ √
18bit+ √ √ √
22bit+ × √ √
Precise Grayscale × √ √
Color Management √ √ √
Full Grayscale Calibration × × ×
Shutter Fit × × ×
Dynamic Booster × × ×

Applications

  • Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.

  • Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.

  • Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.

  • Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
