NovaStar MRV570-1 Receiving Card – High-Stability Self-Monitoring Controller, 512×256 Pixel Loading for Pro LED Screens

In stock
SKU: PL-PKZQ01-NS-MRV570-1
$29.85
Package Qty

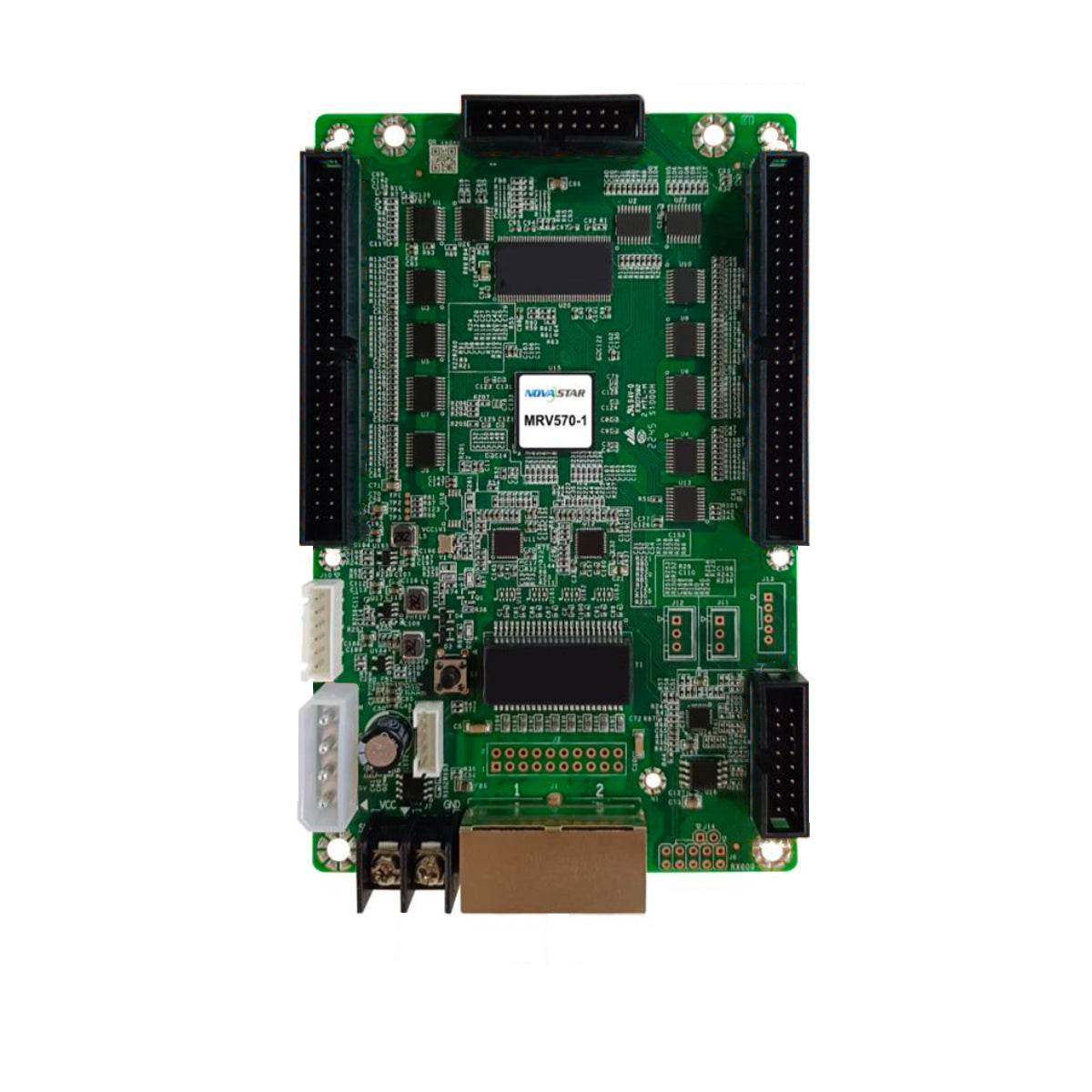

NovaStar MRV570-1 High-Stability Receiving Card

The NovaStar MRV570-1 Receiving Card is a high-reliability LED display controller designed for professional fixed and rental LED screens. Supporting up to 512 × 256 pixels and efficient Ethernet-based data transmission, it delivers stable performance for indoor and outdoor panels.

With real-time temperature and voltage monitoring, network status checks, and precise mapping functions, the MRV570-1 ensures superior screen stability. Its compact PCB and passive heat dissipation make it ideal for commercial displays, digital signage, and high-precision LED control systems.

Packing Details

Version Package Included
MRV570-1 1 × MRV570-1 Receiving Card
1 × Antistatic Bag
1 × User Manual

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Key Specifications

  • Dual Ethernet input for stable LED signal reception

  • Dual Ethernet output for smooth, low-latency transmission

  • Max load: 512 × 256 pixels @ 60Hz for crisp display

  • Network-based control compatible with mainstream LED senders

  • Wide-range DC 3.8–5.5V power supply for reliable operation

  • Works reliably from –20°C to +70°C

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the receiving card to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the receiving card.

Technical Specifications

Model MRV570-1
Maximum Resolution 512 × 256 @ 60Hz
Input Voltage DC 3.8V – 5.5V
Rated Current 0.5 A
Rated Power Consumption 2.5 W
Operating Temperature –20°C to +70°C
Operating Humidity 10% RH – 90% RH (Non-condensing)
Storage Temperature –25°C to +125°C
Storage Humidity 0% RH – 95% RH (Non-condensing)
Dimensions 145.8 mm × 91.5 mm × 18.4 mm
Packing Specifications Each card includes an antistatic bag and protective anti-collision foam. One carton contains 100 receiving cards.
Packing Box Dimensions 625.0 mm × 180.0 mm × 470.0 mm

Applications

  • Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.

  • Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.

  • Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.

  • Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
