P6 SMD Outdoor LED Module 192 x 192mm Rear Service Minimum Order of 56 Units as 1 box
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
P6 Rear Service LED Modules Brightness ≥5500nits

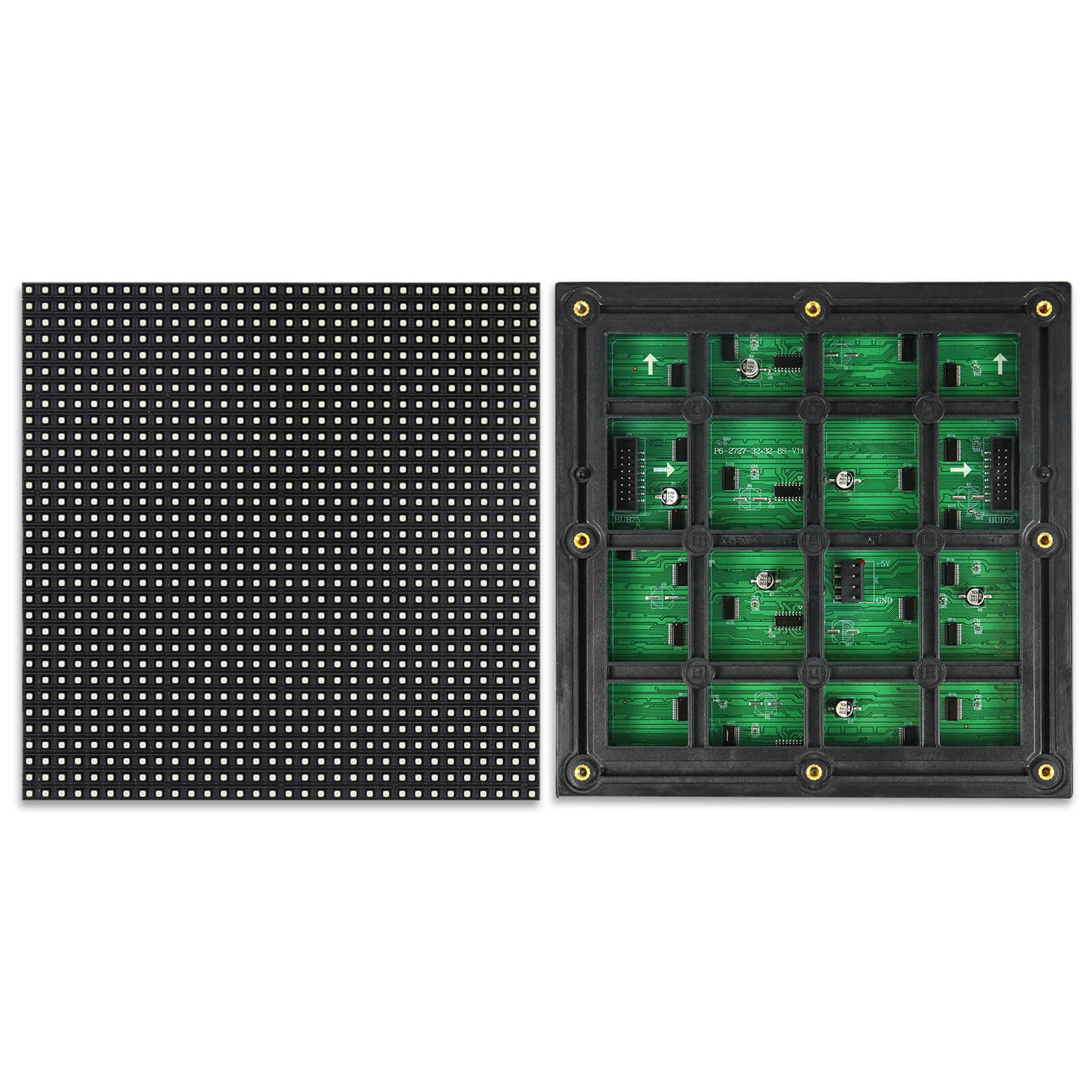

Outdoor P6 SMD LED Display Module Size is 192mm x 192mm With 32 ×32 dots.
Purchase Recommendations and Importation Information
To ensure optimal performance and uniformity in your LED display, we highly recommend purchasing LED modules from the same batch.
Different batches of LED modules may exhibit variations in brightness, color display, and even configuration files. This can lead to inconsistencies in your final display quality.
If you are planning to build an LED screen, please ensure that you purchase enough LED modules along with any necessary spare parts to complete your project. This will help you maintain uniformity in display quality and reduce the likelihood of any future compatibility issues.
Please note: Tariffs or duties that may apply at the destination are not included in the purchase price. We advise you to check with your local customs regulations and be aware of any additional costs that may arise.
P6 Outdoor LED Module Specifications
| P/NO | PM-OT-R160-P6 | |
| Physical Parameters |
Pixel Pitch（ mm） | 6mm |
| LED Configuration | Copper Wired SMD3535 | |
| Module Resolution(dots) | 32 x 32 | |
| Pixel Density（ dots /m²） | 27,889 | |
| Module Size（W x H） | 192 x 192 mm | |
| Module Mask | Flat | |
| Optical Processing | Driving Mode(scan) | 1/8 |
| Standard Brightness | ≥5500 nits | |
| Refresh Rate | 3840 Hz | |
| Contrast Ratio | ≥4000:1 | |
| Grey Level | 65536 | |
| Viewing Angle（ H/V） | 140/140 | |
| Electrical Parameters |
Input Voltage（V） | AC110/220V±10% |
| Input Power Frequency | 50/60 Hz | |
| Working Voltage | DC5V | |
| Power Consumption | Max. ≤830W/S.qm | |
| Ave. ≤276W/S.qm | ||
| Minium Viewing Distance | 6M | |
| Operating Environment | Operating Temperature | From '-15℃ to 70℃ |
| Operating Humidity | 10%~90% RH | |
| IP Rating | IP65 | |
| Lifetime（hrs） | ≥100000 | |
| Usage Environment | outdoor fixed installation | |
| Service Method | Rear | |
