Home » POD-PM Series P4.81 Outdoor LED Module – 250×250mm IP65 | 4.81mm Pixel Pitch | For Rental & Stage Use | 1pcs / 16pcs
PrimeLEDModules

POD-PM Series P4.81 Outdoor LED Module – 250×250mm IP65 | 4.81mm Pixel Pitch | For Rental & Stage Use | 1pcs / 16pcs

In stock
SKU: PLM-MZ03-POD-PM-P481-01
$49.85
Pixel Pitch
Package Qty

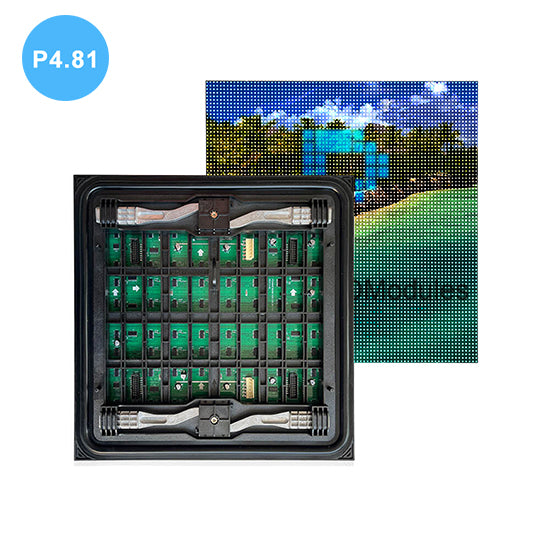

POD-PM Series P4.81 Outdoor LED Module – 250 × 250 mm IP65 Panel for Rental Stage Use

The POD-PM Series P4.81 outdoor LED module is specially designed for rental stage applications that demand high durability, fast installation, and stable visual performance.
With a compact 250 × 250 mm size and IP65 protection, it delivers excellent image clarity and reliable operation for outdoor events and touring stage displays.

Package & Packing Details

Version Package Included
1-Pack Sample Kit 1 × Power Supply Cable
1 × Data Cable
1 × P4.81 Outdoor LED Module
16-Pack Standard Pack 16 × Power Supply Cables
16 × Data Cables
16 × P4.81 Outdoor LED Modules

About this item

  • 4.81 mm pixel pitch offers a perfect balance between resolution and viewing distance for outdoor rental stages

  • IP65 waterproof and dustproof protection ensures safe operation in rain, dust, and humid outdoor environments

  • Compact 250 × 250 mm module size supports lightweight cabinet design and fast assembly for rental applications

  • High-brightness LEDs provide clear visibility under daylight and stage lighting

  • Robust structure is engineered for frequent installation, dismantling, and transportation

  • High refresh rate guarantees flicker-free images for live broadcasting and camera shooting

  • Uniform brightness and accurate color calibration ensure consistent image quality across the entire screen

  • Designed for professional stage rental systems with long service life and reduced maintenance cost

Quick Specs

Specification Detail
Pixel Pitch 4.81 mm
Module Size 250 × 250 mm
Resolution 52 × 52 dots
LED Type SMD
Pixel Density 43,264 dots/m²
Brightness ≥ 4,500 nits
Refresh Rate ≥ 3,840 Hz
Scan Mode 1/13
Viewing Angle 140° (H) / 120° (V)
Input Voltage DC 5 V
Maintenance Front or Rear Service
Protection Grade IP65 (front), IP54 (rear)

Installation & Maintenance Tips

  • Always use LED modules from the same production batch to maintain uniform brightness and color

  • Ensure cabinet frames are correctly sealed to preserve IP65 waterproof performance

  • Use waterproof power and signal connectors suitable for outdoor environments

  • Avoid heavy impact or bending during installation and transportation

  • Regularly inspect connectors, seals, and cables before each stage deployment

  • Clean the module surface with a soft cloth and clean water to remove dust and dirt

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days

  • Packaging: Waterproof and shock-absorbing packaging with reinforced foam protection

  • Shipping Origin: Shipped directly from warehouse

  • Standard Shipping: 9–18 days

  • Express Shipping: 5–9 days

  • Shipping Costs: Calculated automatically based on destination, weight, and dimensions

Full Specifications

Specification Detail
Series POD-PM
Product Type Outdoor Rental LED Module
Pixel Pitch 4.81 mm
LED Configuration SMD
Module Resolution 52 × 52 dots
Pixel Density 43,264 dots/m²
Module Dimensions 250 × 250 × 16 mm
Module Weight 0.95 kg
Connector Type HUB75
Color Processing 12-bit
Gray Level 16–4096
Refresh Rate ≥ 3,840 Hz
Scan Mode 1/13
Brightness ≥ 4,500 nits
Viewing Angle 140° horizontal / 120° vertical
Input Voltage DC 5 V
Max Power Consumption 38 W per module
Average Power Consumption 13 W per module
Operating Temperature −20 °C to 50 °C
Storage Temperature −20 °C to 60 °C
Operating Humidity 10%–90% RH
Lifetime ≥ 100,000 hours
Maintenance Method Front or rear service
IP Rating IP65 front / IP54 rear
Color Uniformity ≥ 97%
Dead Pixel Rate ≤ 0.0003
Structural Strength Designed for frequent assembly and transportation

Applications

  • Outdoor rental stage LED screens

  • Concert and live performance backdrops

  • Touring event LED display systems

  • Outdoor exhibitions and trade shows

  • Temporary advertising installations

  • Festival and large-scale event visual systems
