POD-PM Series P5.95 Outdoor LED Module – 250×250mm IP65 | 5.95mm Pixel Pitch | For Rental & Signage | 1pcs / 16pcs
Couldn't load pickup availability

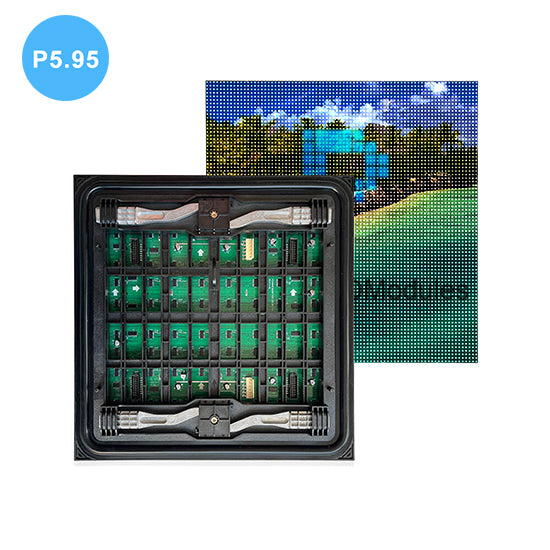

POD-PM Series P5.95 Outdoor LED Module – 250 × 250 mm IP65 Panel for Rental Signage
The POD-PM Series P5.95 outdoor LED module is designed for rental signage systems that require fast installation, stable performance, and strong outdoor durability.
With a 250 × 250 mm compact size and IP65 protection, it delivers reliable image quality for touring events, temporary advertising, and outdoor stage applications.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P5.95 Outdoor LED Module |
| 16-Pack Standard Pack | 16 × Power Supply Cables 16 × Data Cables 16 × P5.95 Outdoor LED Modules |
About this item
-
5.95 mm pixel pitch offers an ideal balance between clarity and viewing distance for outdoor rental signage
-
IP65 waterproof and dustproof design ensures stable operation in rain, dust, and humid environments
-
Compact 250 × 250 mm module size supports lightweight cabinets and fast assembly for rental systems
-
High-brightness LEDs provide excellent visibility under daylight and strong stage lighting
-
Rugged structure is engineered for frequent installation, dismantling, and transportation
-
High refresh rate guarantees flicker-free performance for live broadcasting and camera shooting
-
Uniform brightness and precise color calibration ensure consistent visual quality across the entire screen
-
Designed for professional rental signage with long service life and reduced maintenance requirements
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 5.95 mm |
| Module Size | 250 × 250 mm |
| Resolution | 42 × 42 dots |
| LED Type | SMD |
| Pixel Density | 28,224 dots/m² |
| Brightness | ≥ 4,500 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/7 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Front or Rear Service |
| Protection Grade | IP65 (front), IP54 (rear) |
Installation & Maintenance Tips
-
Use LED modules from the same production batch to ensure consistent brightness and color
-
Ensure cabinets are correctly sealed to maintain IP65 waterproof protection
-
Use outdoor-grade waterproof power and signal connectors
-
Avoid heavy impact or bending during transportation and installation
-
Inspect connectors, cables, and waterproof seals before each deployment
-
Clean the surface with a soft cloth and clean water to remove dust and dirt
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Waterproof and shock-absorbing packaging with reinforced foam protection
-
Shipping Origin: Shipped directly from warehouse
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-PM |
| Product Type | Outdoor Rental LED Module |
| Pixel Pitch | 5.95 mm |
| LED Configuration | SMD |
| Module Resolution | 42 × 42 dots |
| Pixel Density | 28,224 dots/m² |
| Module Dimensions | 250 × 250 × 16 mm |
| Module Weight | 1.05 kg |
| Connector Type | HUB75 |
| Color Processing | 12-bit |
| Gray Level | 16–4096 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/7 |
| Brightness | ≥ 4,500 nits |
| Viewing Angle | 140° horizontal / 120° vertical |
| Input Voltage | DC 5 V |
| Max Power Consumption | 40 W per module |
| Average Power Consumption | 14 W per module |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Front or rear service |
| IP Rating | IP65 front / IP54 rear |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Structural Strength | Designed for frequent assembly and transportation |
Applications
-
Outdoor rental signage systems
-
Concert and live performance LED backdrops
-
Touring event display solutions
-
Temporary outdoor advertising screens
-
Festival and exhibition LED displays
-
Mobile stage and rental LED screen setups
