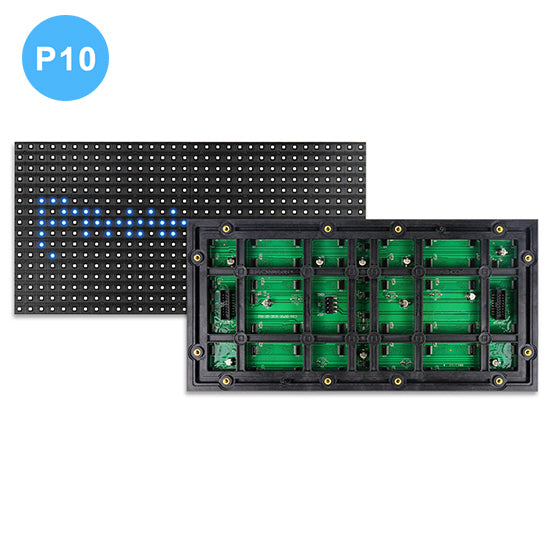

POD-SL Series P10 Outdoor LED Module – 320 × 160 mm IP65 Screw-Lock Panel for Commercial LED Screens
The POD-SL Series P10 outdoor LED module is designed for large-scale commercial LED screens that require maximum stability, durability, and weather resistance.
With a 10 mm pixel pitch and IP65 screw-lock structure, it delivers strong brightness, secure installation, and reliable performance for billboards, stadium displays, and outdoor digital signage projects.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × P10 Outdoor LED Module 1 × 5V Power Cable 1 × Data Cable |
| 40-Pack Standard Carton | 40 × P10 Outdoor LED Module 20 × 5V Power Cables 40 × Data Cables |
About this item
• 10 mm pixel pitch is optimized for large-format outdoor LED displays with long viewing distances
• IP65 screw-lock waterproof design provides superior sealing and protection in rain, dust, and harsh weather
• High-brightness outdoor SMD LEDs ensure excellent visibility even under direct sunlight
• Screw-lock mechanical structure improves cabinet flatness and enhances vibration resistance
• Standard 320 × 160 mm module size ensures easy maintenance and strong compatibility with outdoor cabinets
• High refresh rate supports smooth, flicker-free video playback for live broadcasting and camera shooting
• Uniform brightness and accurate color calibration deliver consistent image quality across large video walls
• Built for continuous outdoor operation with long lifespan and reduced maintenance cost
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 10 mm |
| Module Size | 320 × 160 mm |
| Resolution | 32 × 16 dots |
| LED Type | Outdoor SMD |
| Pixel Density | 10,000 dots/m² |
| Brightness | ≥ 5,000 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/4 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Screw-Lock Rear Service |
| Protection Grade | IP65 |
Installation & Maintenance Tips
• Use LED modules from the same production batch to ensure consistent brightness and color uniformity
• Tighten all screw-lock fasteners evenly to maintain cabinet flatness and waterproof performance
• Apply outdoor-grade waterproof connectors for both power and signal cables
• Ensure stable DC 5 V power supply to avoid voltage drop in long-distance cabling
• Avoid strong impact, bending, or twisting during transportation and installation
• Inspect waterproof gaskets, screws, and cables regularly, especially in rental or high-vibration environments
• Clean module surfaces periodically to maintain optimal brightness and heat dissipation
Shipping Information
• Lead Time: In-stock products ship within 1–3 business days
• Packaging: Reinforced cartons with shock-absorbing foam protection
• Shipping Origin: Shipped directly from our warehouse
• Standard Shipping: 9–18 days
• Express Shipping: 5–9 days
• Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-SL |
| Product Type | Outdoor LED Module |
| Pixel Pitch | 10 mm |
| LED Configuration | Outdoor SMD |
| Module Resolution | 32 × 16 dots |
| Pixel Density | 10,000 dots/m² |
| Module Dimensions | 320 × 160 × 16 mm |
| Module Weight | ≈ 0.68 kg |
| Connector Type | HUB75 |
| Color Processing | 12-bit |
| Gray Level | 16–4096 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/4 |
| Brightness | ≥ 5,000 nits |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Max Power Consumption | ≤ 28 W per module |
| Average Power Consumption | ≤ 9 W per module |
| Operating Temperature | −20 °C to 70 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Screw-Lock Rear Service |
| IP Rating | IP65 |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Weather Resistance | Designed for long-term outdoor advertising and commercial LED installations |
Applications
• Large outdoor LED billboards and advertising screens
• Commercial outdoor video walls
• Stadium perimeter LED displays and sponsorship boards
• Building façade LED media displays
• Outdoor rental LED screens for events and exhibitions
• Public squares, transportation hubs, and landmark LED installations
