POD-SL Series P2.5 Outdoor LED Module – 320×160mm IP65 Screw-Lock | 2.5mm Pixel Pitch | For High-Res Outdoor Displays | 1pcs / 40pcs
Couldn't load pickup availability

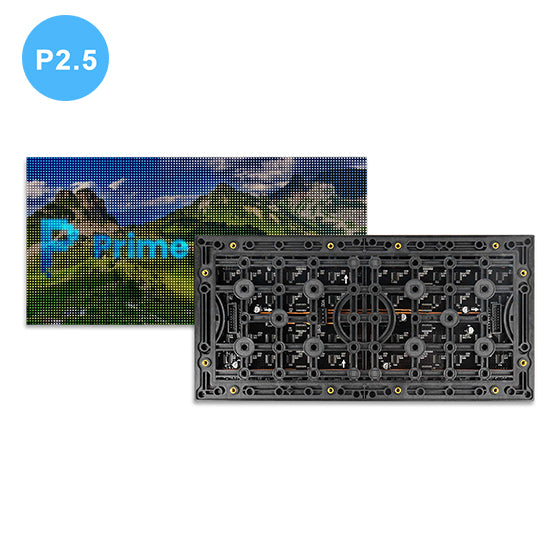

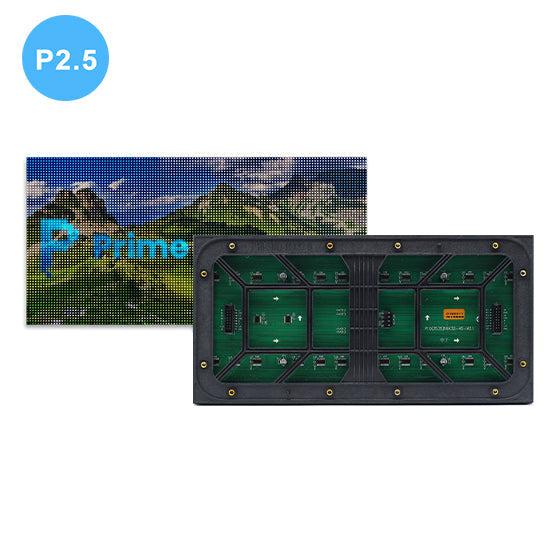

POD-SL Series P2.5 Outdoor LED Module – 320 × 160 mm IP65 Screw-Lock Panel for High-Resolution Outdoor Displays
The POD-SL Series P2.5 outdoor LED module is engineered for high-resolution outdoor LED screens that demand superior image clarity, stability, and strong weather resistance.
With a 2.5 mm pixel pitch and IP65 screw-lock waterproof design, it delivers crisp visuals and reliable performance for premium outdoor advertising and commercial LED display projects.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × P2.5 Outdoor LED Module 1 × 5V Power Cable 1 × Data Cable |
| 40-Pack Standard Pack | 40 × P2.5 Outdoor LED Modules 20 × 5V Power Cables 40 × Data Cables |
About this item
• 2.5 mm pixel pitch delivers high-resolution image quality for close-to-medium outdoor viewing distances
• IP65 waterproof screw-lock structure ensures superior sealing against rain, dust, and moisture
• High-brightness outdoor SMD LEDs provide excellent visibility even under strong sunlight
• Standard 320 × 160 mm module size ensures easy replacement and strong cabinet compatibility
• Screw-lock fixing design enhances structural stability for permanent outdoor installations
• High refresh rate supports smooth, flicker-free video playback for broadcasting and camera shooting
• Uniform brightness and precise color calibration ensure consistent performance across large screens
• Designed for premium outdoor LED displays requiring high resolution and long-term durability
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 2.5 mm |
| Module Size | 320 × 160 mm |
| Resolution | 128 × 64 dots |
| LED Type | Outdoor SMD |
| Pixel Density | 160,000 dots/m² |
| Brightness | ≥ 5,000 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/16 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Screw-Lock Rear Service |
| Protection Grade | IP65 |
Installation & Maintenance Tips
• Use LED modules from the same production batch to ensure consistent color and brightness
• Tighten screw-lock fasteners evenly to maintain uniform sealing and flat installation
• Apply outdoor-rated waterproof connectors for both power and signal cables
• Avoid impact, bending, or excessive force during handling and installation
• Regularly inspect screws, gaskets, and waterproof seals
• Ensure stable DC5V power supply to prevent voltage drop and image instability
• Clean the surface gently to maintain brightness and proper heat dissipation
Shipping Information
• Lead Time: In-stock products ship within 1–3 business days
• Packaging: Safe packaging with shock-absorbing foam for secure transportation
• Shipping Origin: All products ship directly from our warehouse
• Standard Shipping: 9–18 days
• Express Shipping: 5–9 days
• Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-SL |
| Product Type | Outdoor LED Module |
| Pixel Pitch | 2.5 mm |
| LED Configuration | Outdoor SMD |
| Module Resolution | 128 × 64 dots |
| Pixel Density | 160,000 dots/m² |
| Module Dimensions | 320 × 160 × 16 mm |
| Connector Type | HUB75 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/16 |
| Brightness | ≥ 5,000 nits |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Max Power Consumption | ≤ 35 W per module |
| Average Power Consumption | ≤ 12 W per module |
| Operating Temperature | −20 °C to 70 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Screw-Lock Rear Service |
| IP Rating | IP65 |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Weather Resistance | Designed for long-term outdoor commercial use |
Applications
• High-resolution outdoor advertising screens
• Premium commercial LED video walls
• Building façade digital signage
• Shopping mall exterior LED displays
• Stadium perimeter LED screens
• Transportation hubs and public information displays
• Outdoor brand promotion and landmark LED installations
