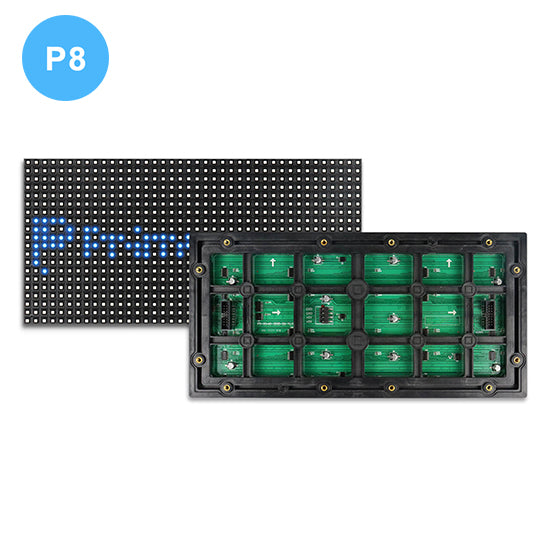

POD-SL Series P8 Outdoor LED Module – 320 × 160 mm IP65 Screw-Lock Panel for Advertising Displays
The POD-SL Series P8 outdoor LED module is built for large outdoor advertising screens that require high durability, strong waterproof protection, and stable long-term performance.
With an 8 mm pixel pitch and IP65 screw-lock structure, it delivers reliable brightness, fast installation, and excellent visibility for billboards, stadium displays, and commercial outdoor signage.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × P8 Outdoor LED Module 1 × 5V Power Cable 1 × Data Cable |
| 40-Pack Standard Carton | 40 × P8 Outdoor LED Module 20 × 5V Power Cables 40 × Data Cables |
About this item
• 8 mm pixel pitch is ideal for large-format outdoor LED screens with long viewing distances
• IP65 screw-lock waterproof design ensures excellent sealing and stability in harsh outdoor environments
• High-brightness outdoor SMD LEDs provide strong visibility even under direct sunlight
• Screw-lock mechanical structure enhances cabinet flatness and vibration resistance
• Standard 320 × 160 mm module size allows easy replacement and strong cabinet compatibility
• High refresh rate guarantees smooth, flicker-free video playback for broadcasting and camera shooting
• Uniform brightness and precise color calibration maintain consistent image quality across large video walls
• Designed for continuous outdoor operation with long service life and minimal maintenance
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 8 mm |
| Module Size | 320 × 160 mm |
| Resolution | 40 × 20 dots |
| LED Type | Outdoor SMD |
| Pixel Density | 15,625 dots/m² |
| Brightness | ≥ 5,000 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/5 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Screw-Lock Rear Service |
| Protection Grade | IP65 |
Installation & Maintenance Tips
• Use LED modules from the same production batch to ensure uniform color and brightness
• Tighten all screw-lock fasteners evenly to maintain waterproof performance and cabinet flatness
• Use outdoor-rated waterproof connectors for both power and signal cables
• Ensure stable DC 5 V power supply to avoid voltage drops across long cable runs
• Avoid bending, impact, or excessive force during handling and installation
• Regularly inspect screw connections, waterproof gaskets, and cables, especially for rental use
• Clean module surfaces periodically to maintain optimal brightness and heat dissipation
Shipping Information
• Lead Time: In-stock products ship within 1–3 business days
• Packaging: Shock-absorbing foam with reinforced cartons for safe transportation
• Shipping Origin: All products ship directly from our warehouse
• Standard Shipping: 9–18 days
• Express Shipping: 5–9 days
• Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-SL |
| Product Type | Outdoor LED Module |
| Pixel Pitch | 8 mm |
| LED Configuration | Outdoor SMD |
| Module Resolution | 40 × 20 dots |
| Pixel Density | 15,625 dots/m² |
| Module Dimensions | 320 × 160 × 16 mm |
| Module Weight | ≈ 0.65 kg |
| Connector Type | HUB75 |
| Color Processing | 12-bit |
| Gray Level | 16–4096 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/5 |
| Brightness | ≥ 5,000 nits |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Max Power Consumption | ≤ 26 W per module |
| Average Power Consumption | ≤ 8 W per module |
| Operating Temperature | −20 °C to 70 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Screw-Lock Rear Service |
| IP Rating | IP65 |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Weather Resistance | Designed for long-term outdoor advertising and rental installations |
Applications
• Outdoor LED billboards and advertising screens
• Large commercial outdoor video walls
• Stadium perimeter LED displays and sponsorship boards
• Building façade digital signage
• Outdoor rental LED screens for events and exhibitions
• Public squares, transportation hubs, and landmark displays
