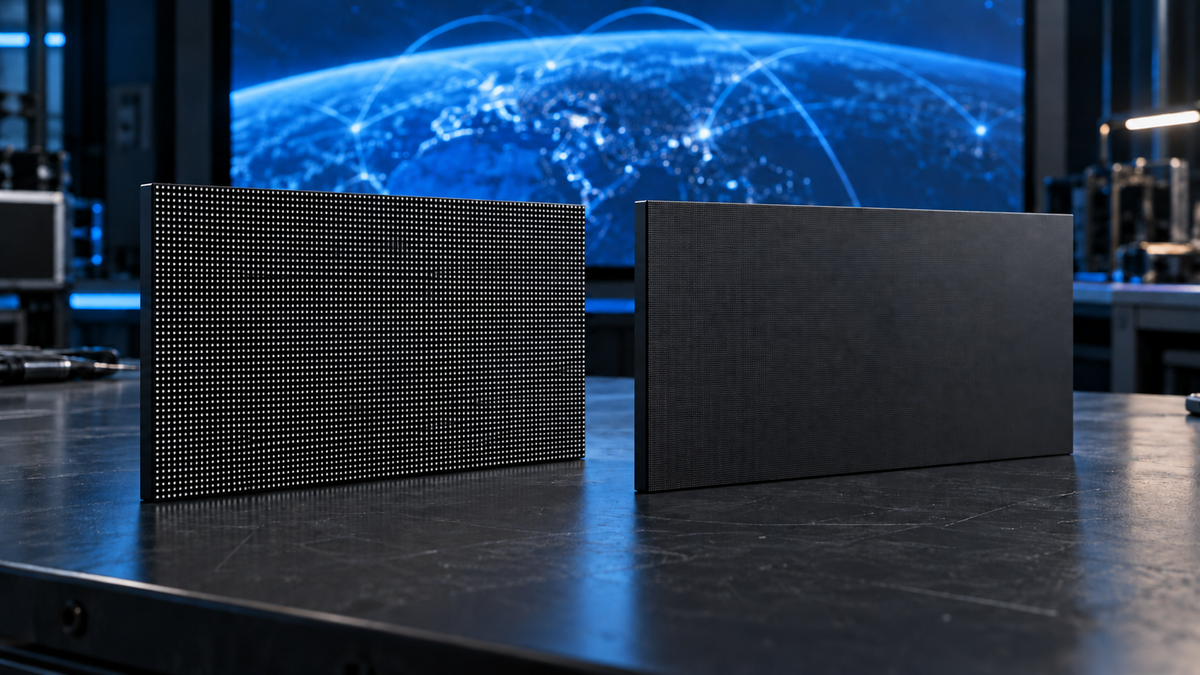

COB and SMD LED modules can both produce high-quality direct-view LED displays, but they reach the finished screen through different packaging and assembly routes. In an SMD module, each red-green-blue pixel is first manufactured as an independent LED package and then mounted onto the module PCB. In a COB module, bare RGB chips are bonded directly to the final PCB and the complete pixel surface is encapsulated at board level.
That structural difference influences the visible pixel texture, black surface consistency, resistance to handling, thermal path, repair method and manufacturing economics. It does not mean that every COB screen is automatically better than every SMD screen. Pixel pitch, LED chip quality, driver IC, scan ratio, calibration, cabinet precision, power design and production control remain decisive.
Practical conclusion: COB is usually strongest when close-view image integration, a protected front surface and long-hour indoor operation are priorities. SMD remains highly competitive when a broad pitch range, high brightness, straightforward component-level repair and cost control are more important.
1. COB LED vs SMD LED: The Fundamental Structural Difference
The easiest way to understand the comparison is to identify where the independent package ends.
- SMD: RGB chips are assembled inside an individual package. That completed device is tested, sorted and placed on the module PCB by surface-mount equipment.
- COB: Bare RGB chips are placed and electrically connected directly on the final module PCB. A board-level encapsulation layer is then formed across the pixel surface.
Simplified engineering comparison. Exact die layout, bonding method, encapsulation chemistry and layer thickness vary by product.
SMD therefore creates a surface made from many visibly independent devices. COB creates a more integrated surface because the dies and their interconnections are protected as part of the finished board. This distinction explains many of the later differences, but it should not be used alone to predict complete screen performance.
2. Pixel Texture, Black Consistency and Close-Viewing Performance
SMD retains a visibly discrete pixel structure
On an unlit SMD module, the raised LED packages, soldered device edges and spaces between packages remain visible. A black package body and optical mask can improve the black area, but ambient light still interacts with many separate surfaces. At wider pixel pitches or normal viewing distances, this texture is usually not a problem. It can become more apparent as the viewer moves closer to a fine-pitch screen.
COB creates a more continuous optical surface
A well-controlled COB surface can appear darker, flatter and more uniform when the screen is off or showing dark content. Reduced visible package relief can support stronger perceived contrast, smoother low-gray imagery and a less granular appearance at close viewing distances. These benefits are particularly relevant for control rooms, boardrooms, broadcast environments and premium visualization spaces.
However, packaging is only one part of image quality. Poor chip consistency, unsuitable driver ICs, an aggressive scan ratio, weak grayscale processing or inadequate calibration can still produce color variation, low-gray artifacts or nonuniform brightness on a COB display.
3. Contrast, Reflection and Viewing Angle
COB is often associated with high contrast because its continuous dark surface can increase the effective black area and reduce the visual interruption caused by individual package bodies. Surface treatment can also be engineered to control glare and reflection. The actual result depends on the encapsulation material, pigmentation, surface finish and ambient lighting.
SMD contrast depends strongly on package color, mask design, package height, pitch and surface geometry. A carefully designed SMD module can deliver excellent contrast, especially when the viewing distance is appropriate. Conversely, a highly reflective COB coating may lose part of its theoretical advantage in a brightly lit room.
Both technologies can provide wide viewing angles. The useful viewing angle is affected by package optics or encapsulation geometry, mask obstruction, color shift, cabinet flatness and brightness consistency—not merely by the COB or SMD label.
4. Front-Surface Protection and Resistance to Handling
Independent SMD packages protrude from the PCB and can be damaged by impact, scraping, repeated handling or incorrect cleaning. Fine-pitch packages are especially vulnerable because the devices and solder joints are small. This matters during installation, rental handling, public interaction and maintenance.
COB encapsulation surrounds the chips and bonding area with a continuous protective layer. A properly designed surface can improve resistance to light impact, dust, fingerprints and routine cleaning. It also removes the exposed package edge that may be struck or lifted.
This protection should not be confused with a complete environmental rating. A protected front surface does not automatically make the rear electronics, connectors, power system, cabinet or installation waterproof. Indoor/outdoor suitability and IP classification must be confirmed from the exact product specification.
5. Heat Dissipation: Why the Thermal Path Is Different
Every LED converts part of its electrical input into heat. The objective is to move that heat away from the semiconductor junction while keeping temperature differences across the module controlled.
In an SMD route, heat travels from the chip through the internal package structure and solder joints to the module PCB. In a COB route, the chip is bonded directly to the final board, removing the conventional independent package from the path. This can shorten the thermal route and distribute heat across the board more directly.
A shorter path can support thermal performance, but the final result still depends on PCB construction, copper distribution, thermal interface, cabinet airflow, power efficiency and ambient temperature.
It is therefore inaccurate to judge operating temperature from packaging alone. A well-designed SMD module can operate reliably, while an inadequately designed COB module can still develop hot spots. Thermal imaging, steady-state temperature testing and long-hour aging data are more useful than a generic technology claim.
6. Reliability and Long-Term Operation
COB reduces exposure of the chip and bonding area at the front surface. This can be valuable in 24/7 environments where cleaning, accidental contact and long operating hours are expected. The integrated structure may also reduce some package-interface risks.
SMD benefits from a mature and widely standardized supply chain. Established LED packages, placement processes, inspection systems and repair workflows make it possible to build highly reliable products across a broad range of pitches and brightness levels.
For either technology, long-term reliability depends on more than pixel packaging:
- LED chip binning and consistency;
- bonding or solder-joint quality;
- driver IC and power-supply operating margin;
- PCB material, copper design and flatness;
- encapsulation or coating stability;
- cabinet heat management and ventilation;
- aging, calibration and quality-control procedures;
- actual operating temperature, humidity and duty cycle.
7. Maintenance and Repair: A Major Practical Difference
SMD supports familiar component-level repair
A technician can often remove an individual failed SMD package and solder a matched replacement device onto the PCB. This does not make every repair simple: fine-pitch packages require proper tools, skill, temperature control and optical matching. Nevertheless, the component and process are familiar to many service teams.
COB repair requires a different service plan
With COB, the emitting dies and connections sit beneath a board-level encapsulation surface. Local access may require specialized removal, laser or precision rework equipment, controlled material restoration and recalibration. Some suppliers support die- or pixel-level factory repair; other projects are organized around complete module replacement.
The correct question is therefore not simply “Can COB be repaired?” It is “What repair level does this product support, where is the repair performed, what equipment is required, and how many calibrated spare modules should be stored?”
8. Manufacturing Yield, Cost and Supply Considerations
SMD separates LED-package production from module assembly. Devices can be tested and sorted before SMT placement, and mature high-volume processes support a wide range of pitches and prices. Component availability and established repair channels remain important commercial advantages.
COB moves critical die bonding, electrical connection and board-level encapsulation onto the final module. Fine-pitch production demands tight control of die placement, bonding yield, flatness, material consistency and calibration. A defect before encapsulation should be detected and corrected as early as possible because later access is more complex.
COB pricing has become increasingly practical for fine-pitch applications, but the lowest purchase price should not be the only comparison. Project teams should consider spare-module policy, calibration retention, expected service method, power consumption, heat management and operating life.
9. Side-by-Side Engineering Comparison
| Factor | SMD LED Module | COB LED Module |
|---|---|---|
| Pixel construction | Independent packaged LED device mounted by SMT | Bare RGB chips bonded directly to final module PCB |
| Front surface | Discrete raised packages and mask structure | More continuous board-level encapsulated surface |
| Close-view texture | Package grid is more visible at short distance | Usually smoother and less granular |
| Surface protection | Packages remain more exposed to impact and handling | Chips and bonds are protected beneath encapsulation |
| Thermal route | Chip → package → solder joint → PCB | Chip → bonding interface → final PCB |
| Individual pixel repair | Often possible with conventional rework tools | Product- and factory-dependent; specialized rework may be required |
| Pitch and brightness range | Very broad, including many indoor and outdoor options | Most established in fine-pitch premium indoor applications |
| Cost structure | Mature supply chain and broad price range | Higher process-control requirements; evaluate total ownership cost |
| Typical strength | Versatility, serviceability, brightness and cost control | Close-view integration, surface protection and premium visualization |
This table describes common engineering tendencies, not guaranteed specifications. Compare exact product data and samples.
10. Where COB Is Usually the Better Fit
COB is particularly relevant when viewers are close to the screen and the display must appear visually integrated rather than granular. Typical projects include:
- command centers and 24/7 control rooms;
- executive boardrooms and premium corporate lobbies;
- broadcast studios and virtual production monitoring walls;
- museums, digital art and high-end experience centers;
- fine-pitch commercial displays exposed to occasional touch or cleaning;
- custom curved indoor displays using compatible flexible COB modules.
COB is most valuable when the project benefits from close-view clarity, a continuous dark surface and stronger front-side protection.
11. Where SMD May Remain the More Practical Choice
SMD remains a strong choice for conventional indoor displays, rental systems, outdoor advertising, high-brightness billboards and projects where component availability and field repair are important. It also covers a much broader range of pixel pitches, module sizes and environmental configurations.
For a screen viewed from several meters away, the close-view surface advantage of COB may not create enough practical value to justify a higher system cost. A correctly selected SMD product can provide excellent results when brightness, pitch, viewing distance and maintenance strategy are aligned.
12. How to Compare Real Samples Correctly
Do not compare one technology in a premium configuration with the other in an entry-level configuration. Use samples with similar pixel pitch, brightness class, refresh rate and processing level, and evaluate them under the intended ambient light.
- Inspect black consistency with the screen off and with dark content.
- Check low-gray gradients, skin tones, fine text and moving detail.
- View the screen from the planned minimum distance and from side angles.
- Look for reflections, color shift, moiré and visible module boundaries.
- Measure temperature after the system reaches thermal steady state.
- Ask for the pixel, module and cabinet repair procedure.
- Confirm spare-module storage, calibration data and batch-matching policy.
13. Purchase Checklist for a COB or SMD Project
- indoor or outdoor environment and required protection level;
- minimum and typical viewing distance;
- pixel pitch, module resolution and total screen resolution;
- brightness, contrast, refresh rate, grayscale and scan mode;
- driver IC, LED chip/package source and calibration method;
- module dimensions, cabinet structure and front/rear service access;
- power consumption, heat path, ventilation and ambient temperature;
- supported repair level, spare quantity and future batch compatibility;
- control system, data interface and power connection;
- warranty scope and technical support process.
14. Frequently Asked Questions
Is COB always sharper than SMD at the same pixel pitch?
No. The nominal pixel count is the same at the same pitch and screen size. COB may appear smoother and more integrated at close range, but actual sharpness also depends on calibration, processing, contrast, module flatness and source resolution.
Is COB automatically waterproof?
No. Board-level encapsulation can protect the front pixel surface, but outdoor use and IP rating depend on the complete module, rear electronics, connectors, cabinet and installation.
Can a COB dead pixel be repaired?
It may be repairable with suitable equipment and a product-specific process, but the supported repair level varies. Confirm whether the supplier offers local die/pixel repair, factory repair or complete module replacement.
Does COB consume less power than SMD?
Packaging can influence optical and thermal efficiency, but power consumption cannot be predicted from the technology name alone. Compare brightness-normalized power data under the same test conditions.
Can COB and SMD modules be mixed in one screen?
No. Their optical surfaces, pixel structures, electrical characteristics and calibration behavior differ. Even modules of the same technology and pitch should not be mixed unless the exact model, interface, driver configuration and production batch are compatible.
15. Final Selection Principle
Choose COB when a fine-pitch indoor project places high value on close-view image integration, black surface consistency, front-side protection and controlled long-hour operation. Choose SMD when versatility, brightness range, familiar field repair, broad component availability and budget flexibility lead the decision.
The technology label should narrow the options, not replace engineering verification. The best module is the one whose pixel pitch, optical performance, thermal design, mechanical structure, service plan and production consistency match the actual project.
