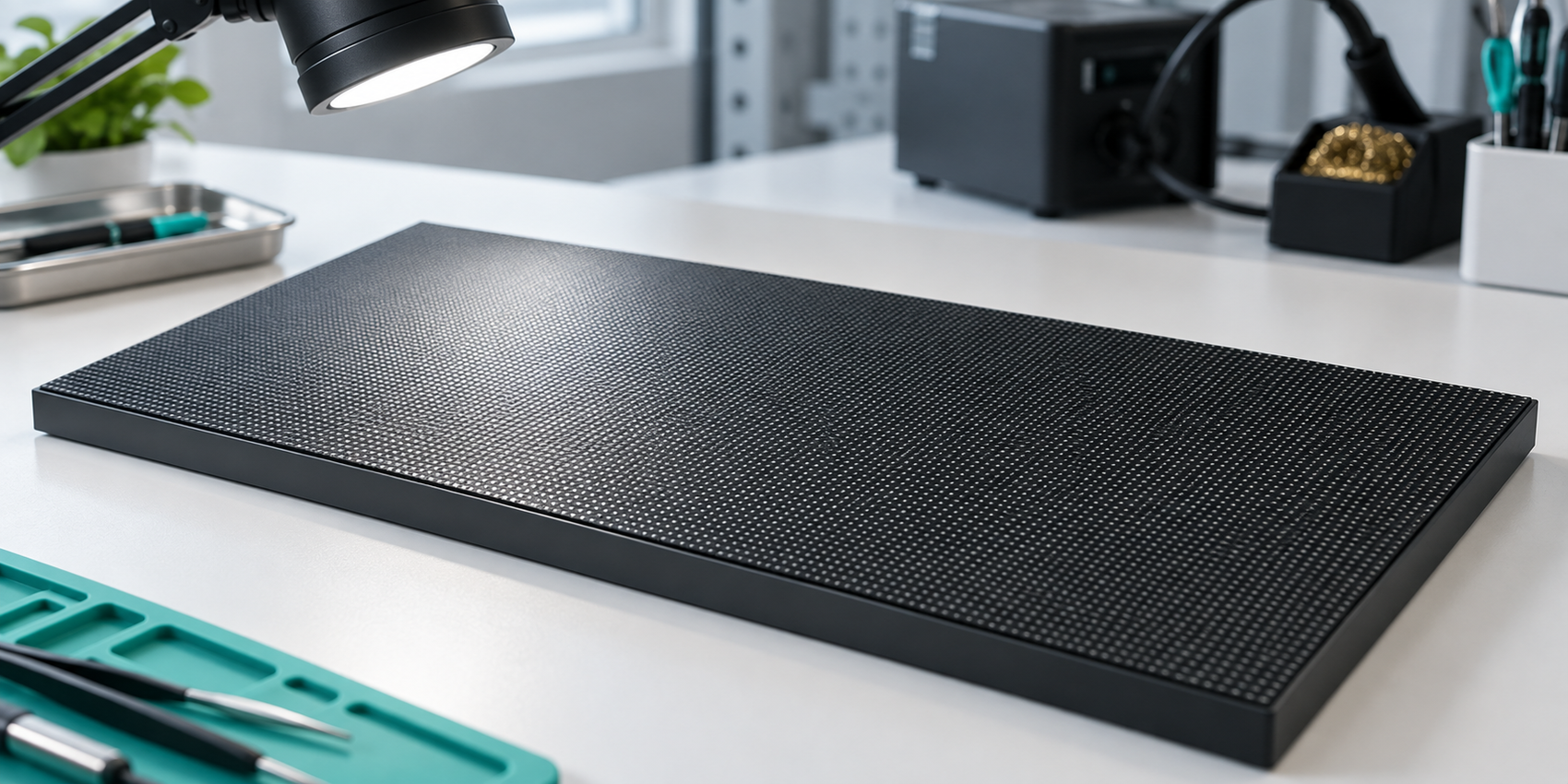

GOB does not replace the SMD LED package; it protects an already assembled SMD module. This guide explains the real structure and manufacturing sequence of a GOB LED module, what the protective layer can and cannot do, how it changes optical performance and repair, and what project teams should verify before ordering.
Fine-pitch LED modules place thousands of small, raised LED devices across a relatively exposed surface. That surface may be touched during installation, cleaned in public areas, flexed around a structure, or exposed to dust and moisture. Glue-on-Board, usually shortened to GOB, was developed to reduce those surface-level risks without abandoning the mature SMD supply chain.
The term is easy to misunderstand because “GOB” is often listed beside SMD, COB and MIP as though all four names describe equivalent chip-packaging routes. They do not. SMD, COB and MIP describe different ways of forming and mounting the emitting pixel. GOB describes an additional protective treatment performed after SMD devices have already been mounted on the module PCB.
One-sentence definition: A GOB LED module is an assembled SMD LED module whose front pixel surface is covered and filled with a controlled transparent or optically modified protective resin.
1. What Does GOB Mean in an LED Module?
GOB stands for Glue-on-Board. In practical module manufacturing, solder paste is printed on the PCB, individually packaged SMD LEDs and electronic components are placed, and the assembly passes through reflow soldering and inspection. Only after a functional SMD module exists is protective resin applied across the LED side of the board.
The cured material fills much of the space around the LED packages and forms a continuous protective surface above them. The exact chemistry, hardness, thickness, optical transmission, surface finish and rework method are product-specific. “GOB” therefore identifies the presence of a board-surface encapsulation step, not one universal recipe or performance level.
Figure 1. The defining sequence is SMD assembly first, GOB surface protection second. Component geometry and resin formulation vary by product.
2. How a GOB LED Module Is Manufactured
Stage A: manufacture and sort the SMD LED devices
Red, green and blue chips are attached and electrically connected inside an independent LED package. The package is encapsulated, electrically and optically tested, sorted into controlled bins, and supplied on tape for automated placement. This is the same fundamental upstream route used for a conventional SMD module.
Stage B: assemble and test the SMD module
- Solder paste is printed onto the PCB through a stencil.
- LED packages, driver ICs and passive components are placed by SMT equipment.
- Reflow soldering forms the electrical and mechanical solder joints.
- AOI, electrical testing and visual inspection identify placement, polarity and solder defects.
- The module is lit and checked before the GOB material makes front-side access more difficult.
Stage C: apply and cure the protective layer
The LED surface is cleaned and prepared. A controlled resin is dispensed, coated, molded or otherwise distributed so that it fills gaps around the packages and reaches the specified thickness. Air removal and level control are important because bubbles, contamination, uneven thickness or local stress can cause visible defects. The material is then cured under conditions selected for its chemistry.
After curing, the surface is inspected for bubbles, delamination, flatness, contamination and optical consistency. The module is aged and calibrated again because the added material changes the path by which light leaves the LEDs.
3. What the GOB Layer Actually Protects
Figure 2. GOB is primarily a front-surface protection strategy. Complete environmental protection still depends on the PCB, rear structure, connectors, cabinet and sealing design.
Accidental contact and impact
On a conventional SMD module, a small lateral force can act directly on an LED package and its solder joints. GOB distributes contact over a larger cured surface and supports the space around the package, reducing the likelihood of LEDs being knocked off during installation, transport or public interaction. The result is improved resistance, not immunity: resin hardness, thickness, substrate flex and impact energy still matter.
Dust, cleaning and static contact
The continuous front surface reduces open gaps around the LED packages where dust can accumulate. It also prevents a finger or cleaning tool from contacting the exposed package and solder region directly. Cleaning procedures must still match the resin chemistry; unsuitable solvents, sharp tools or abrasive cloths can haze or scratch the surface.
Moisture at the pixel surface
By covering the front-side LED and solder region, GOB can reduce direct moisture and contamination exposure. However, water can still reach a module through its rear electronics, connectors, screw holes, cabinet joints or cable entries. A front GOB layer alone does not establish a complete IP rating.
4. Why GOB Does Not Automatically Mean IP65
An IP rating applies to the tested enclosure or product configuration and distinguishes protection against solids and water. It cannot be inferred solely from the presence of resin on the front surface. An indoor GOB module may have excellent resistance to touch and cleaning yet still use unsealed rear electronics and indoor connectors. An outdoor module may combine GOB with PCB coating, sealed connectors, gaskets, rear covers, drainage and a suitable cabinet to achieve a declared protection level.
Procurement rule: Ask whether the stated IP rating applies to the module front, the module front and rear, a completed cabinet, or the fully assembled display. These are not interchangeable claims.
5. How GOB Changes Image Appearance
The protective layer becomes part of the optical system. Its refractive index, transmission, haze, surface texture, thickness and uniformity can affect black level, glare, viewing angle, color shift and apparent pixel texture. A well-controlled matte or low-reflection surface may make a fine-pitch display look more integrated and reduce visible pixel grain. A poor process can create excess reflection, localized haze, bubbles, color inconsistency or mura.
Brightness must be evaluated after GOB processing rather than copied from the uncovered SMD design. The resin can alter light extraction and may require different calibration. Likewise, a smooth-looking black screen does not guarantee good low-gray performance; driver IC behavior, grayscale processing, scan ratio and calibration remain decisive.
6. Thermal Behavior and Long-Term Reliability
GOB resin surrounds the LED packages but does not convert the architecture into direct chip-on-board construction. Heat still travels from the LED chips through the package structure and solder joints to the PCB. The added material can change surface heat spreading and restrict direct convection around the packages, so resin thermal properties, module power, PCB design, rear shell and cabinet ventilation must be considered together.
Material matching is equally important. The resin, LED packages and PCB expand and contract at different rates as temperature changes. Incorrect cure conditions or material selection may introduce stress, delamination, discoloration or cracking over time. Reliable products require controlled dispensing, curing, aging and environmental validation—not merely a thick visible coating.
7. Can a GOB LED Module Be Repaired?
Yes, many GOB modules can be repaired, but the process is more involved than replacing an exposed SMD device. A technician may need to remove the local resin without damaging adjacent pixels or PCB traces, replace the defective LED package, clean the area, apply compatible repair material, cure it and restore the optical surface. The repaired area may require recalibration, and surface appearance may not be identical if the process is poorly controlled.
For this reason, project teams should ask who performs pixel-level repair, whether local resin-removal tools and matching repair compound are available, whether the module must return to the factory, and how spare modules and calibration data will be managed. “Repairable” should describe a documented service route, not just a theoretical possibility.
8. Standard, Integrated, Flexible and Outdoor GOB Modules
| GOB structure | Typical purpose | Key points to verify |
|---|---|---|
| Standard indoor | Flat fine-pitch video walls, meeting rooms, control rooms and commercial displays | Module size, front-service method, brightness, surface reflection, cabinet flatness and repair route |
| Integrated indoor | Larger module assemblies intended to reduce connection points and simplify installation | Integrated dimensions, power/data architecture, cabinet compatibility, weight and replacement strategy |
| Indoor flexible | Curved walls, columns, arches and immersive structures | Bending direction and radius, magnetic layout, soft rear structure, surface stress and seam control |
| Outdoor high-brightness | High-resolution outdoor signage and information displays | Post-GOB brightness, front/rear protection, UV and temperature resistance, drainage, connectors and service access |
Figure 3. Public close-viewing and curved installations can benefit from stronger pixel-surface protection, provided that optical, bending and maintenance requirements are engineered together.
9. GOB vs Conventional SMD and COB
| Factor | Conventional SMD | GOB | COB |
|---|---|---|---|
| Pixel construction | Independent packaged LED device | The same SMD device beneath an added board-surface resin | Bare LED chips bonded directly to the final PCB |
| Process order | Package, sort, then SMT mount | Package, sort, SMT mount, then apply GOB | Bond chips to PCB, then encapsulate at board level |
| Visible surface | Raised packages and open gaps | Filled, more continuous protective surface | Continuous board-level encapsulated surface |
| Front protection | Product-specific; packages remain exposed | Improved resistance to touch, dust, moisture and impact at the front | Strong integrated chip-surface protection |
| Pixel repair | Usually the most direct | Possible on serviceable designs, but resin removal and restoration add steps | Usually planned around module replacement or precision factory repair |
| Correct classification | SMD packaging/mounting route | Protected SMD module solution | Chip-on-board packaging route |
10. How to Specify a GOB Module for a Real Project
- Start with the application: define indoor or outdoor use, viewing distance, ambient light, expected contact, operating hours and screen geometry.
- Select pixel pitch and module format: pitch controls pixel density; dimensions affect cabinet layout, seams, resolution and replacement compatibility.
- Verify post-treatment optical data: request brightness, refresh rate, viewing angle, grayscale and calibration information for the finished GOB module.
- Define protection precisely: separate front-surface GOB protection from front IP, rear IP and completed-cabinet protection.
- Confirm installation and service: check magnetic or screw mounting, front or rear access, bending direction, connectors and module-removal tools.
- Plan repair and spares: confirm local pixel repair capability, spare quantity, calibration-data retention and batch matching.
- Test a representative sample: examine reflections, black consistency, low-gray performance, camera behavior, cleaning response and mechanical fit under real project conditions.
11. Why the Same Pitch and Size Do Not Guarantee Compatibility
Two GOB modules labeled P1.25 and 320×160mm may still be incompatible. Resolution, package type, PCB hole positions, module thickness, scan mode, driver IC, HUB interface, power connector, pinout, current setting, magnetic layout, cabinet structure, GOB thickness, calibration data and production batch can all differ. A replacement should be identified from complete electrical, mechanical and optical information rather than pitch and dimensions alone.
12. Frequently Asked Questions
Is GOB the same as COB?
No. GOB adds protective resin over an assembled SMD module. COB bonds bare chips directly to the final PCB before board-level encapsulation.
Does every GOB module have an IP65 rating?
No. The applicable rating must be stated and tested for the relevant side or complete enclosure. Front resin alone does not prove rear or cabinet protection.
Does GOB always improve image quality?
It can improve perceived surface integration and reduce visible pixel texture, but optical quality depends on resin, finish, process uniformity, LEDs, drivers and calibration.
Can GOB be used on flexible modules?
Yes, when the resin, flexible PCB and mechanical structure are designed for the required bending direction and radius. Excessive bending can still damage the surface or electrical structure.
Should GOB and uncovered SMD modules be mixed in one screen?
No. Their reflection, light output, black appearance and calibration behavior can differ even when pitch and size match.
