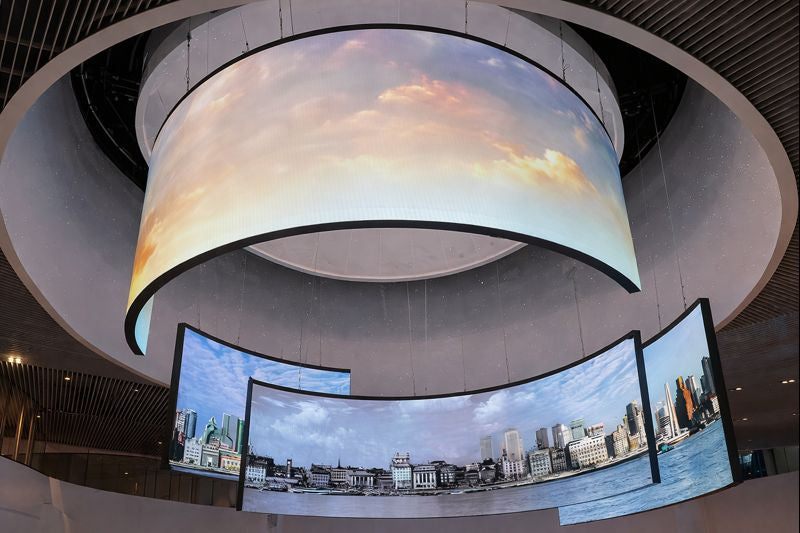

Indoor LED displays are no longer limited to flat video walls. Curved walls, wrapped columns, arches, waves, cylinders, and immersive architectural displays allow the screen to become part of the space itself. Achieving that effect, however, requires more than selecting the smallest pixel pitch. The module technology, physical size, allowable curvature, supporting structure, viewing distance, content, control system, and maintenance strategy must all work together.
The PIF Series indoor flexible LED modules currently cover pixel pitches from P0.9375 to P4. The range includes standard flexible SMD modules, GOB-protected flexible SMD modules, and flexible COB modules in 240×120mm, 256×128mm, 320×160mm, and 300×168.75mm formats. This guide explains how to translate a real project brief into an appropriate PIF Series configuration without treating any single specification as the whole decision.
For other structures and operating environments, explore our LED Display Modules, including PI Series indoor LED modules, POD Series outdoor LED modules, and POF Series outdoor flexible LED modules.
1. Begin with the Viewing Experience, Not Only the Pixel Pitch
The first question is how the audience will experience the display. A close-viewing installation may need to reproduce small text, interface graphics, product details, fine lines, or camera-facing content. In that situation, pixel density and image detail become primary. A display viewed from farther away may rely more on large imagery, motion, atmosphere, and the continuity of the overall curved form.
For close viewing and premium visualization, the PIF Series offers fine- and ultra-fine-pitch choices such as P0.9375, P1.25, P1.53/P1.5625, P1.579, P1.86/P1.875, and P2. For larger commercial installations and longer viewing distances, P2.5, P3/P3.076, and P4 can provide an effective balance of visual detail, screen scale, and project cost.
Viewing distance is a useful starting point, but it is not an absolute formula. The required native resolution, screen dimensions, content detail, brightness, camera requirements, curvature, and budget can all change the final choice. A large screen showing broad visual content may not require the same pitch as a smaller screen displaying detailed data at the same distance.
2. Understand the Three PIF Technology Platforms
PIF-S: Standard Flexible SMD
PIF-S is the broadest platform in the series. It is suited to general curved indoor displays where mature SMD performance, flexible configuration, serviceability, and project cost are important. Current PIF-S choices span P1.25 to P4 across 240×120mm and 320×160mm formats, with selected P2 and P4 products also available in 256×128mm.
PIF-G: GOB-Protected Flexible SMD
PIF-G uses SMD LEDs with a GOB protective layer over the front display surface. It is intended for fine-pitch curved installations where the LEDs may face greater risk from accidental contact, static exposure, dust, or routine handling. Current options include P1.25, P1.579, and P1.875 in 240×120mm, plus P1.25, P1.53, and P1.86 in 320×160mm.
GOB improves front-surface protection, but it does not make the entire module waterproof. The rear PCB, connectors, edges, power interfaces, and complete display system still require an appropriate dry indoor environment and correctly designed protection.
PIF-C: Flexible COB
PIF-C extends the range into premium fine-pitch and ultra-fine-pitch visualization. The 300×168.75mm flexible COB platform is available in P0.9375, P1.25, P1.5625, and P1.875. It is intended for applications requiring high pixel density, strong contrast, close-viewing detail, and a flexible structure, including broadcast, XR and virtual production, control rooms, and premium brand environments.
The three platforms are not a simple ranking from basic to best. PIF-S, PIF-G, and PIF-C address different combinations of image performance, surface protection, maintenance strategy, module format, and project budget.
3. Choose the Module Size According to the Structure
The PIF Series uses four module formats, and each one belongs to a specific product platform and mechanical design. The module size affects layout efficiency, resolution planning, seam distribution, power and signal routing, and the design of the support surface.
| Module Size | Available Platform | Practical Selection Direction |
|---|---|---|
| 240×120mm | PIF-S and PIF-G | Useful for detailed layouts, localized adjustment, columns, arches, waves, and other compatible curved structures. |
| 256×128mm | Selected PIF-S models | Available for selected P2 and P4 projects using a compatible mounting layout. |
| 320×160mm | PIF-S and PIF-G | Provides efficient coverage and organized module planning for larger curved walls and cylindrical installations. |
| 300×168.75mm | PIF-C | Designed for premium flexible COB installations and fine- or ultra-fine-pitch visualization. |
A smaller module can provide more layout points across a complex shape, while a larger module can reduce the number of units required across a broad surface. That does not mean that a smaller module automatically supports a tighter bend. The allowable bending direction, bending angle, and minimum installation diameter depend on the specific PCB, rear housing, pixel pitch, and module model.
4. Match Pixel Pitch to Content, Resolution, and Screen Scale
Pixel pitch determines the distance between neighboring pixels. At the same physical screen size, a smaller pitch produces more pixels and finer detail. It can also increase the processing load, receiving-card requirements, power-system planning, and overall project cost.
P0.9375 to P1.25 is most relevant when close-viewing detail and high pixel density are central to the project. P1.53/P1.5625 to P2 provides a strong balance for conference, broadcast, control, retail, museum, and premium commercial environments. P2.5 to P4 is often practical for larger curved surfaces, stage backgrounds, architectural displays, and installations viewed from greater distances.
Before choosing, calculate the complete screen resolution rather than judging the P value alone. Divide the active display width and height by the selected pixel pitch, then verify that the resulting resolution supports the intended content and control-system capacity. For a cylindrical screen, the active width is based on the designed circumference or arc length, not the straight-line diameter.
5. Treat Curvature as a Model-Specific Engineering Parameter
“Flexible” means controlled conformity to an accurately designed surface; it does not mean that a module can be folded, twisted, or bent freely. Every model has a permitted bending direction and mechanical limit. Exceeding that limit can stress the PCB, copper traces, solder joints, LEDs, protective layer, rear housing, or connectors.
The supporting structure should define the final curve rather than forcing the modules to correct an inaccurate frame. It must provide consistent curvature, suitable flatness, reliable magnetic attachment, adequate load capacity, ventilation, grounding, cable space, and maintenance access. The final diameter or radius should be confirmed against the specification for the exact module before the frame is manufactured.
For cylinders and closed curves, the proposed circumference should also align with a practical whole-number module layout. If the circumference is not compatible with the module dimension used around the curve, the design may require a revised diameter, a partial display area, a non-active closing section, or a custom structural solution.
6. Plan Compatibility, Control, and Maintenance Before Ordering
Matching pixel pitch and module dimensions does not guarantee that a replacement module will work with an existing screen. The magnet layout, mounting points, signal interface and pinout, scan configuration, driver IC, DC power connector and polarity, receiving-card configuration, firmware, and calibration data must all be verified.
Modules used within one screen should be sourced from the same product configuration and production batch whenever possible. Different batches may show slight variations in wavelength, brightness, surface finish, calibration, and overall appearance. Mixing manufacturers, models, technology platforms, or batches should be avoided unless mechanical, electrical, signal, control, and calibration compatibility has been confirmed.
Maintenance planning should be part of the structural design. Magnetic mounting may support front-access module removal on a compatible frame, but the actual service method depends on cable routing, module-removal clearance, power and signal access, and the construction of the supporting surface.
7. A Practical PIF Series Selection Workflow
A reliable selection process begins with the application and ends with system verification. First define the active screen dimensions, shape, nearest viewing distance, content type, required resolution, ambient conditions, and expected operating schedule. Next choose between PIF-S, PIF-G, and PIF-C according to image, protection, maintenance, and budget priorities. Then select the module format and pixel pitch, calculate the complete screen layout and resolution, and verify the model-specific curvature.
Before ordering, finalize the support drawing, power distribution, receiving-card capacity, signal route, ventilation, grounding, access method, and spare-module plan. For replacement projects, provide the original product label, front and rear photographs, PCB markings, connector details, receiving-card model, and configuration file for compatibility review.
Conclusion
The most suitable indoor flexible LED module is not necessarily the one with the smallest pixel pitch or the strongest protection claim. It is the model whose pixel density, technology platform, physical format, curvature limit, electrical configuration, and maintenance method match the complete display design.
The PIF Series offers standard flexible SMD, GOB-protected flexible SMD, and flexible COB choices from P0.9375 to P4. By evaluating viewing conditions, content, screen geometry, module layout, surface protection, control requirements, and long-term service access together, designers and integrators can build curved indoor LED displays that are visually effective and technically supportable.
Planning a curved or custom-shaped indoor LED project? Review the complete PIF Series or contact PrimeLEDModules with your screen dimensions, drawing, viewing distance, curvature, content requirements, and control-system information.
