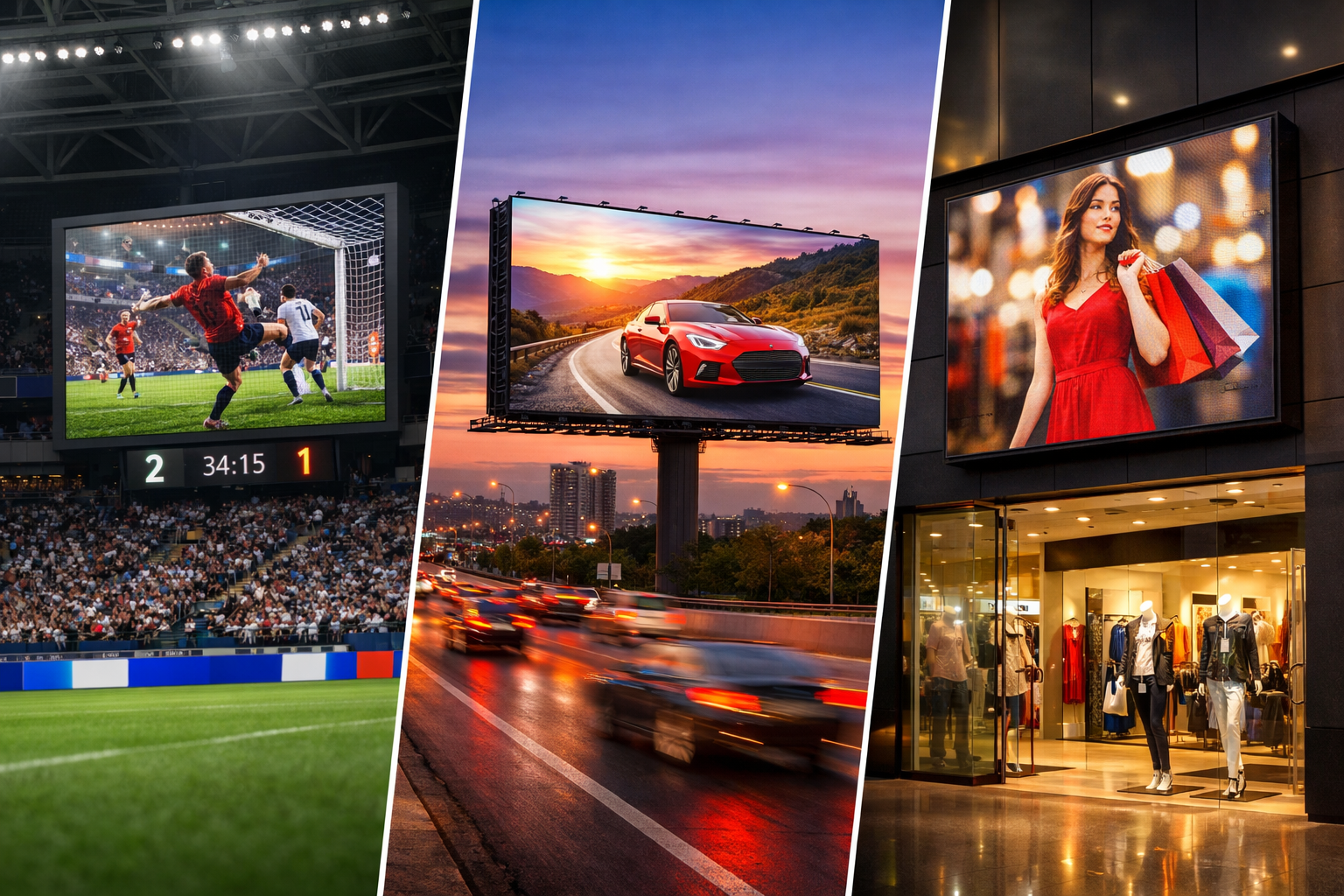

Outdoor LED display modules are used in very different project environments, and the best specification for one installation may be unsuitable for another. A stadium screen, a roadside billboard, and a retail façade may all operate outdoors, yet they differ in viewing distance, content type, screen size, maintenance access, ambient light, and environmental exposure.

Successful module selection therefore begins with the application rather than with pixel pitch alone. Engineers must consider the required native resolution, typical and minimum viewing distances, brightness, refresh performance, cabinet design, protection structure, service direction, power distribution, and long-term access for maintenance.

The PO Series Outdoor LED Display Modules cover pixel pitches from P1.53 to P16 across standard outdoor SMD, GOB-protected SMD, rear-cover SMD, double-sided IP65 SMD, and fine-pitch outdoor MIP platforms. The following sections explain how these options fit three common outdoor applications.

Stadium LED Displays: Visibility, Motion and Service Access

Stadium displays must deliver readable content to spectators positioned across a wide venue. Main video boards commonly show live footage, instant replays, scores, statistics, timing information, and sponsor content. Because viewing distances can extend from tens to hundreds of metres, the project usually values screen area, brightness, viewing angle, motion performance, and reliability more than extremely high pixel density.

Medium and large pixel pitches such as P6, P6.67, P8, P10, or P16 can provide practical coverage for long-distance viewing, while P3–P5 may be considered for venue screens viewed from closer seating areas. Final selection should be based on screen dimensions and the native resolution required for the actual content—not on a single universal viewing-distance formula.

For conventional rear-access cabinets, PO-S standard outdoor SMD modules provide a mature and scalable platform. Where the supporting structure requires an integrated rear cover and access from either side, PO-SR modules offer IP65 front and IP54 rear-cover configurations with front-and-rear service options. For protected front-service structures, PO-SD modules provide 320×320mm formats with double-sided IP65-rated module construction.

Refresh rate also matters when cameras capture live events. A high refresh specification can reduce visible scan lines and flicker, but camera performance also depends on scan mode, grayscale behaviour, driver IC, receiving-card settings, shutter speed, frame rate, and brightness configuration. The complete system should be tested with the intended production cameras before commissioning.

Digital Billboards and Highway Advertising

Roadside and highway billboards are designed to communicate a clear message in a short viewing window. Large text, strong contrast, simple layouts, and appropriate brightness are often more important than very fine pixel pitch. The module must also support the screen dimensions, structural load, electrical design, wind-loading strategy, ventilation, drainage, and maintenance plan of the completed display.

For urban roadside advertising, PO-S P5 320×160mm modules provide a practical balance between image detail, screen area, and project cost. P6.67 and P8 are commonly considered for larger signs viewed from farther away, while P10 and P16 suit very large installations where long-distance legibility and cost-efficient coverage are priorities.

Higher brightness may be required for sun-facing sites, but maximum brightness should not be treated as the only performance measure. Screen orientation, local daylight, contrast, mask design, power consumption, thermal load, operating schedule, and automatic brightness control all influence real-world visibility. Night-time dimming should also be planned to improve viewing comfort, reduce power demand, and comply with local regulations.

The IP rating stated for a module applies to the specified module surfaces and test configuration. It does not automatically establish the weather resistance of the completed billboard. Cabinet seals, module joints, connectors, cable entries, ventilation, drainage, corrosion protection, grounding, and installation workmanship must be designed as one outdoor system.

Retail Façades and Close-Viewing Outdoor Displays

Outdoor screens installed on shopping centres, storefronts, transport concourses, and commercial façades are often viewed from only a few metres away. These projects may display detailed product imagery, pricing, brand graphics, wayfinding information, or small text, making higher pixel density and controlled image quality more important.

Pixel pitches from P1.53 to P3.076 can support close-viewing outdoor applications when matched to the target resolution and screen size. The PO-S P2.5 320×160mm module is a standard SMD option for commercial displays. Where the LED-facing surface needs additional protection against accidental contact and routine handling, PO-G P2 or P2.5 GOB-protected SMD modules may be considered. For still finer outdoor visualization, PO-GD MIP modules extend the range to P1.53, P1.86, P2, and P2.5.

Façade projects frequently have limited rear clearance. In these cases, module service direction and cabinet architecture must be selected together. PO-SR rear-cover modules support front-and-rear service configurations, while PO-SD products use a front-service structure. The exact removal method, mounting points, seals, wiring access, and maintenance clearance remain model- and cabinet-specific.

How Module Size Affects the Project

The current PO Series uses 192×192mm, 256×256mm, 320×160mm, and 320×320mm module formats. Module size influences cabinet opening dimensions, module count, screen resolution, structural layout, power and signal distribution, spare-parts planning, and maintenance workflow.

A common size does not guarantee interchangeability. Before replacement or expansion, confirm mounting points, screw or magnet positions, module thickness, power connector and polarity, data-interface type and pinout, scan configuration, driver IC, receiving-card settings, firmware, and calibration data. Modules used within one screen should use the same verified configuration and, whenever possible, the same production batch.

Content Design Changes the Technical Requirement

Two screens installed at the same viewing distance may still require different specifications because their content is different. A stadium replay board displays full-motion video and large graphics, while a transportation screen may need crisp schedules, route numbers, and emergency messages. A retail façade may combine detailed product images with brand typography. These differences affect the required native resolution, refresh behaviour, grayscale, contrast, and pixel pitch.

Content should therefore be tested at the intended screen resolution before the cabinet design is finalized. If small text is essential, the design team should confirm the actual character height in pixels rather than assuming that a particular pitch will always be readable. For advertising screens viewed by moving traffic, layouts should use short messages, strong contrast, and generous text sizing. For live video, the processor and receiving-card configuration must support the source format without unnecessary scaling or cropping.

Daylight, Orientation and Operating Schedule

Outdoor visibility is strongly affected by screen orientation and local light conditions. A south- or west-facing display may receive intense direct sunlight, while a screen beneath an architectural canopy may operate effectively at a lower brightness. Reflections from nearby glass, seasonal sun angles, shadows, and night-time surroundings can also change perceived contrast.

For this reason, brightness should be specified as part of an operating strategy. Daylight output must preserve legibility, while evening brightness should be reduced to avoid glare and unnecessary power consumption. Where automatic adjustment is required, the project needs a compatible ambient-light sensor, controller, software, and correctly configured brightness schedule. These functions belong to the complete display system rather than the module by itself.

Maintenance Planning in Real Projects

Maintenance access is often decided too late. A module may technically support front removal, but technicians still need access to power supplies, receiving cards, cables, cabinet locks, and structural fasteners. Conversely, a rear-service screen needs a safe corridor with enough clearance for inspection and component replacement.

Stadium and highway projects should consider how maintenance will be performed without disrupting venue operations or traffic. Retail façades may require work to take place from the public side, making module-removal tools and safe access especially important. A useful service plan identifies replaceable components, access direction, isolation procedures, spare-parts quantities, configuration-file storage, and the personnel responsible for recalibration after replacement.

Environmental Engineering Beyond the Module

Rain protection is only one part of outdoor engineering. The completed display can also be affected by condensation, salt air, airborne pollution, UV exposure, insects, dust accumulation, heat cycling, wind pressure, and vibration. The cabinet and supporting structure should provide controlled ventilation and drainage without creating unsealed paths to electrical components.

Power and signal cables should enter the enclosure through properly sealed routes with strain relief. Grounding, bonding, surge protection, lightning protection, and circuit isolation must be designed for the site. In coastal or industrial environments, corrosion-resistant materials and maintenance intervals may be more important than they would be for a sheltered urban installation.

Application-Based PO Series Selection

No application range above is an automatic specification. The final design should be calculated from the installation drawing, screen dimensions, target resolution, content, viewing conditions, structural design, power system, control architecture, environmental requirements, and local regulations.

A reliable project normally moves through four connected stages: define what the audience must see, calculate the screen and resolution, select a compatible module and cabinet platform, and then validate the complete electrical, control, environmental, and maintenance design. Treating these decisions as one system prevents a visually suitable module from becoming mechanically or operationally unsuitable later in the project.

Explore all current configurations in the PO Series Outdoor LED Display Modules collection. For a replacement or system expansion, provide the existing module label, front and rear photographs, PCB markings, connector details, receiving-card model, configuration file, and cabinet drawing before ordering.
