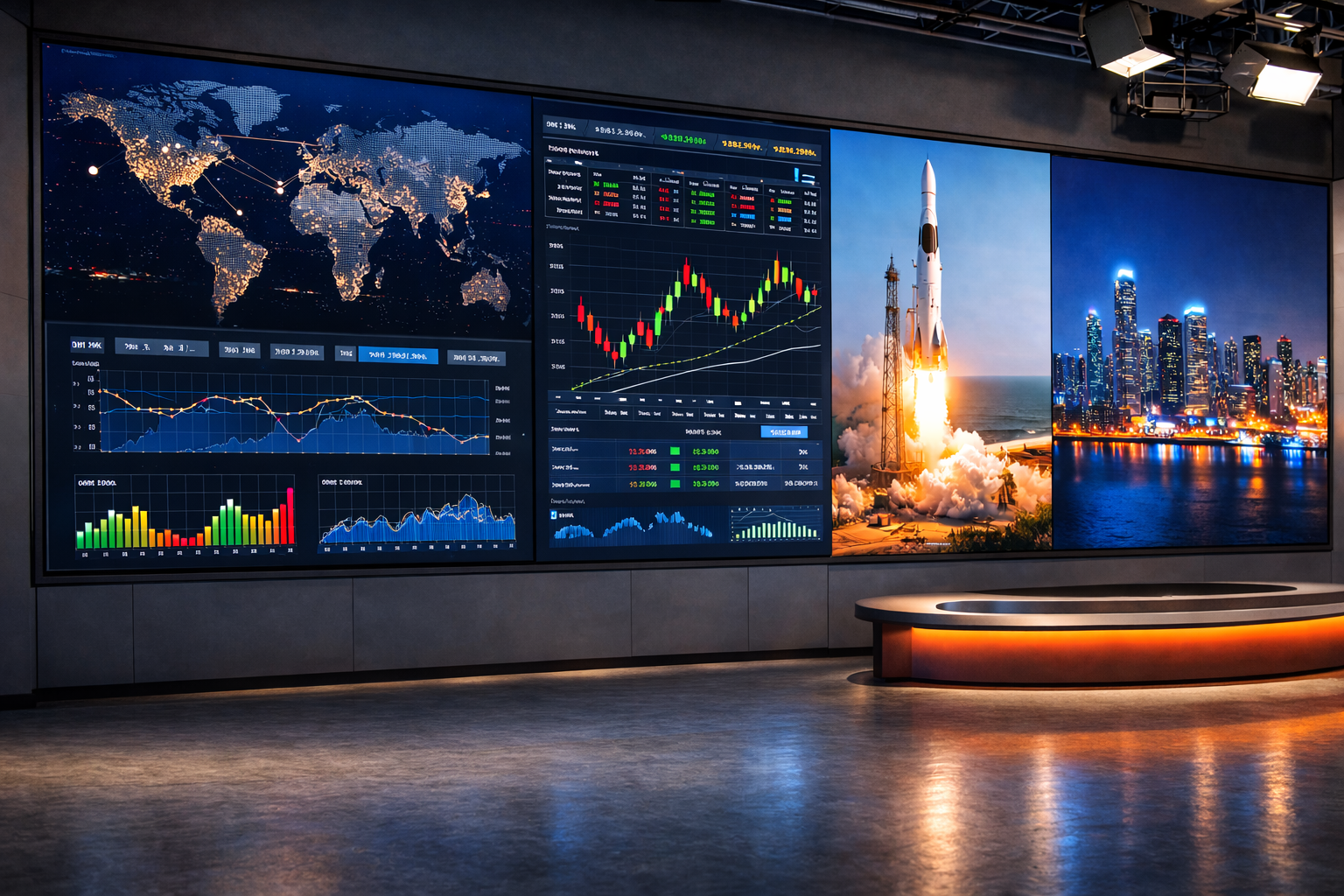

Small pixel pitch LED displays have rapidly become the preferred solution for control rooms, broadcast studios, corporate conference systems, and high-end visualization environments. Compared with traditional large-pitch LED screens, these displays offer significantly higher resolution, smoother image quality, and seamless video walls that are suitable for close viewing distances.

However, when planning a fine pitch LED display project, many users quickly realize that selecting the right module is not always straightforward. Pixel pitch options such as P2.5, P2.0, P1.86, P1.53, and P1.25 all have different characteristics, and choosing the wrong specification may either increase costs unnecessarily or fail to deliver the desired visual performance.

In this guide, we will walk through several key factors that should be considered when selecting small pixel pitch LED modules, including viewing distance, brightness, refresh rate, module size, maintenance design, and how to calculate the final screen resolution.

How to Choose Between Pixel Pitch

Pixel pitch is the most fundamental specification when choosing a fine pitch LED display. It directly determines how dense the pixels are on the screen and therefore how sharp the image will appear.

In general, the smaller the pixel pitch, the higher the pixel density and the higher the achievable resolution. However, smaller pixel pitch also increases the overall cost of the display system, so selecting the right balance is important.

For many indoor display environments, pixel pitches such as P2.5, P2.0, and P1.86 already provide excellent image clarity while maintaining reasonable project costs. These modules are commonly used in conference rooms, stage backdrops, and corporate lobbies.

When higher image detail is required, finer pitch options like P1.53 or P1.25 are often selected. These modules are particularly suitable for environments such as broadcast studios or monitoring centers where operators must observe detailed visual information for long periods of time.

Some projects also use flexible modules such as P1.875, P1.579, or P1.25 when curved LED walls or creative display shapes are required.

Recommended Pixel Pitch for Different Viewing Distances

Another key factor when choosing LED modules is the expected viewing distance. A simple industry rule is that the minimum viewing distance is approximately equal to the pixel pitch value in meters.

For example:

In control rooms or broadcast environments where viewers may sit very close to the display wall, smaller pixel pitches such as P1.53 or P1.25 are typically recommended.

On the other hand, in conference rooms or presentation halls where the audience sits farther away, P2.5 or P2.0 modules often provide sufficient image clarity while reducing system costs.

This balance between viewing distance and pixel pitch is one of the most important considerations when designing a high-resolution LED display.

Recommended Indoor Brightness for LED Displays

Brightness is another important parameter when selecting LED modules for indoor installations.

Unlike outdoor displays that must compete with direct sunlight, indoor LED screens typically require moderate brightness levels to ensure comfortable viewing.

For most indoor applications, a brightness range of 600–1000 nits is sufficient. This level provides good image visibility while avoiding excessive glare that may cause eye fatigue during long viewing sessions.

In control rooms or studios where lighting conditions are carefully managed, even lower brightness levels can be used to achieve optimal visual comfort.

Some flexible LED modules such as P2.0, P1.86, or P1.53 are often selected for creative indoor installations because they provide excellent image quality at moderate brightness levels.

Refresh Rate and Video Performance

For professional video environments such as broadcast studios or live production systems, refresh rate becomes an extremely important specification.

The refresh rate determines how frequently the display updates its image per second. A higher refresh rate results in smoother motion and prevents flickering when the screen is captured by cameras.

Modern small pixel pitch LED displays typically offer refresh rates of 3840 Hz or higher, which is sufficient for most professional applications.

When combined with high grayscale processing (often 14–16 bit grayscale), these displays can reproduce smooth color gradients and natural motion in video playback.

Modules such as P1.86, P1.53, and P1.25 are often used in broadcast environments because they can deliver both high resolution and excellent video performance.

Module Size and Maintenance Design

Another practical factor that many users overlook is the physical size of the LED module and its maintenance design.

Common module sizes include 320 × 160 mm and 240 × 120 mm, which are widely used in fine pitch LED display systems. These standardized sizes allow modules to be easily assembled into larger cabinets and LED walls.

Flexible modules such as P2.5, P2.0, P1.86, and P1.53 are often available in bendable designs, enabling curved LED displays for creative installations.

Maintenance design is also critical for long-term reliability. Many fine pitch LED displays support front maintenance, allowing technicians to remove and replace modules from the front of the screen without dismantling the entire display structure. This feature is especially useful in control rooms and conference environments where space behind the display wall may be limited.

How to Calculate LED Screen Resolution

When planning an LED display project, it is also important to calculate the final screen resolution based on the module specifications and screen size.

The basic formula is relatively straightforward.

Screen resolution can be calculated by dividing the physical screen dimensions by the pixel pitch.

For example, if a display wall is 4 meters wide and uses P1.25 modules, the horizontal resolution would be approximately:

4 meters ÷ 0.00125 meters ≈ 3200 pixels

Similarly, the vertical resolution depends on the height of the screen.

Using this method, designers can determine whether the final display resolution meets their project requirements, such as Full HD, 2K, or 4K.

Modules such as P1.25 and P1.53 are often selected for high-resolution visualization systems because they can achieve very high pixel density within relatively compact screen sizes.

Choosing the Right LED Module for Your Application

Selecting the right small pixel pitch LED module ultimately depends on several factors working together: viewing distance, desired resolution, installation environment, and project budget.

For conference rooms or presentation spaces, P2.5 or P2.0 modules often provide a good balance between performance and cost.

For professional visualization environments such as monitoring centers or broadcast studios, finer pitch options like P1.86, P1.53, or P1.25 may be more suitable due to their higher resolution and improved image detail.

For creative installations or curved LED displays, flexible modules such as P1.875, P1.579, or P1.25 offer additional design possibilities.

By carefully considering these factors, system designers can select the most appropriate LED module and create a display system that delivers excellent visual performance for many years.
