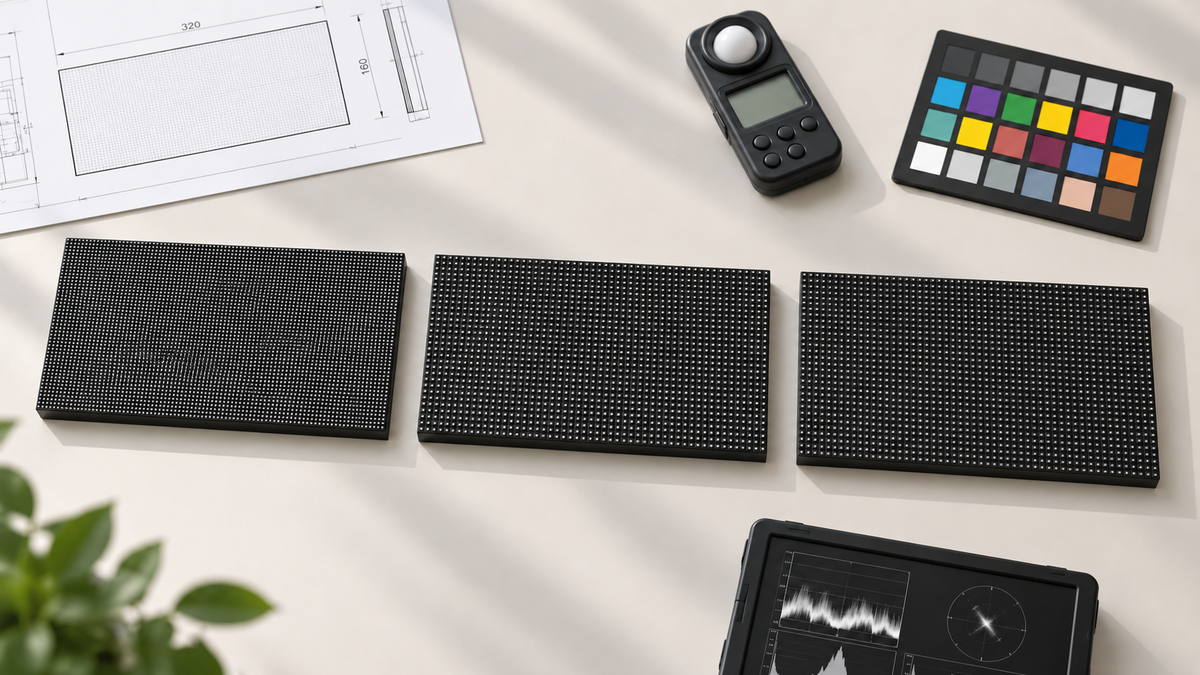

Selecting an SMD LED module is not a matter of choosing the smallest pixel pitch, the highest brightness or the largest refresh-rate number. A successful display is created when pixel density, ambient light, screen dimensions, camera requirements, electrical architecture, cabinet structure and maintenance access work together.
This is why two modules with the same dimensions can produce very different results—and why a module with impressive headline specifications may still be wrong for a particular project. The correct process begins with the application and ends with compatibility verification, sample testing and calibration planning.
This guide explains how to evaluate pixel pitch, brightness, refresh rate and scan mode as a connected system. It is intended for new display projects, system integration, replacement modules and screen expansion.
1. Start with the Project, Not the Product List
Before comparing modules, write down the conditions the finished screen must satisfy. The essential inputs are the indoor or outdoor environment, minimum and typical viewing distance, physical screen dimensions, content type, ambient light, operating hours, camera use, installation depth, maintenance direction and control-system requirements.
These inputs immediately eliminate unsuitable choices. A fine-pitch module designed for a controlled conference room is not automatically suitable for a sunlit storefront. A high-brightness outdoor module may be unnecessary and visually uncomfortable in a compact control room. A magnetic front-service module may be ideal against a wall but incompatible with an existing rear-service cabinet.
Figure 1. A project-first selection sequence. Generic rules help narrow the options, but the exact specification sheet, module drawing and sample test remain decisive.
2. Pixel Pitch: What the Number Really Changes
Pixel pitch is the center-to-center distance between adjacent pixels, normally stated in millimeters. A P2 module has approximately 2mm between pixel centers; a P4 module has approximately 4mm. For a fixed physical area, a smaller pitch creates more pixels and therefore a higher potential image resolution.
Pixel pitch does not directly guarantee sharpness. Perceived image quality also depends on viewing distance, content resolution, scaling, contrast, grayscale, calibration, cabinet alignment and the viewer’s eyesight. Once the audience is far enough away that individual pixels can no longer be resolved, using a substantially smaller pitch may add cost and processing load without producing a proportional visible improvement.
Module resolution calculation
For regular layouts, module resolution can be estimated by dividing each module dimension by the pixel pitch:
Horizontal pixels = module width in millimeters ÷ pixel pitch
Vertical pixels = module height in millimeters ÷ pixel pitch
For example, a 320×160mm P2 module has 160×80 pixels. The same size at P4 has 80×40 pixels, and at P8 it has 40×20 pixels. The physical dimensions remain unchanged, but the pixel count and required controller capacity change significantly.
Figure 2. Equal physical size does not mean equal resolution. The simplified grids illustrate density rather than every physical LED package.
Screen resolution calculation
Once the module layout is known, total screen resolution is calculated from module resolution multiplied by the number of modules horizontally and vertically. The resulting total pixel count is then used to size the sending controller, receiving-card loading, data-port distribution and content canvas.
A design should also check aspect ratio. A screen can have sufficient total pixels and still distort content if its physical and pixel aspect ratio do not match the intended source. Non-standard LED resolutions often require a video processor or carefully prepared content.
3. Viewing Distance: Use Rules of Thumb as a Starting Point Only
A common preliminary rule associates the pitch number in millimeters with a similar minimum viewing distance in meters. For example, P2 may be considered from roughly two meters and P4 from roughly four meters. This is useful for early planning, but it is not a universal optical standard or a guarantee that pixels will be invisible.
The acceptable distance changes with content. Fine text, dashboards and detailed data require more pixel density than bold advertising graphics. A viewer moving through a retail space may approach much closer than the nominal audience position. Camera lenses can also resolve pixel structure and moiré patterns that are less noticeable to the human eye.
Practical viewing-distance evaluation
-
Identify the closest realistic viewer, not only the average distance.
-
Use representative content at its intended text and graphic size.
-
Evaluate the screen from central and off-axis positions.
-
For filmed applications, test with the actual camera, lens, shutter and working distance.
-
Compare the visible improvement of a smaller pitch with its cost, power, processing and service implications.
Figure 3. Conceptual application image showing that content detail and viewing geometry should be evaluated together.
4. A Practical Pixel-Pitch Selection Framework
| Pitch range | General viewing tendency | Typical content and project direction | Important caution |
|---|---|---|---|
| P1.25–P1.9 | Close-viewing fine pitch | Control rooms, studios, premium meeting rooms, detailed commercial visualization | Confirm low-brightness grayscale, calibration and camera behavior |
| P2–P3 | Close-to-moderate viewing | Retail, corporate, exhibitions, transportation information and selected high-resolution outdoor use | Indoor and outdoor versions are not interchangeable |
| P3–P4 | Moderate viewing | General commercial displays, larger indoor walls and outdoor advertising | Balance text size, physical screen size and total resolution |
| P4–P6 | Moderate-to-long viewing | Large-format indoor or outdoor displays, façades and commercial signage | Protection and brightness become increasingly environment-specific |
| P6–P10 and above | Long-distance large format | Billboards, stadiums, roadside and architectural displays | Evaluate luminance, viewing angle, structural load and controller mapping |
This table is a planning framework rather than a fixed rule. A P4 display can be entirely appropriate at a shorter distance when it shows large graphics, while a detailed data dashboard may need a finer pitch at the same distance.
5. Brightness: Specify Usable Luminance for the Real Environment
Brightness is usually stated in nits, which are candelas per square meter. The correct value depends on ambient light and required contrast. Indoor displays typically operate at lower luminance than outdoor displays, but there is no single number that defines every indoor or outdoor installation.
Indoor selection
Conference rooms, control rooms and studios require comfortable brightness and stable grayscale at the actual operating level. A module that reaches a high maximum but performs poorly when dimmed can produce crushed dark detail, color shifts or uneven low-gray output. The dimming range and driver behavior are therefore as important as the maximum figure.
Outdoor selection
Outdoor screens must maintain contrast against daylight. Orientation, direct sun, shade, installation height, mask geometry and viewing angle all matter. Brightness should be adjustable by schedule or ambient-light sensing where appropriate, because a setting needed at noon can be excessive at night.
Why maximum brightness affects the rest of the design
More light generally requires more electrical power and creates more heat. It can also accelerate stress if the system is operated near maximum output for long periods. Power supply capacity, cabling, cabinet ventilation, thermal pathways and expected duty cycle must be evaluated together.
6. Refresh Rate: Important, but Not an Isolated Quality Score
Refresh rate describes how frequently the displayed image is refreshed. A higher rate can reduce visible scan lines or flicker under cameras, which is why professional displays often specify values such as 3840Hz or higher. However, two modules carrying the same refresh-rate number can still behave differently.
Camera performance depends on the complete timing relationship among LED PWM, scan architecture, grayscale processing, content frame rate, camera shutter speed, sensor readout and synchronization. Moiré is primarily a spatial interaction between the pixel grid and the camera sensor and cannot be solved by refresh rate alone.
Questions to ask for broadcast, XR and virtual production
-
What refresh rate is available at the required grayscale and operating brightness?
-
Which driver IC and PWM method are used?
-
Does the system support the intended frame rate and synchronization architecture?
-
What scan ratio is used, and how does it affect camera behavior?
-
Has the exact module been tested with the actual camera and shutter settings?
Figure 4. Conceptual camera-test environment. It illustrates the need to test refresh, grayscale and camera settings together.
7. Grayscale and Low-Brightness Performance
Grayscale describes how finely the system can represent brightness levels between off and full output. Marketing specifications may state a bit depth, but perceived performance depends on how many useful steps remain at the actual operating brightness and how consistently the drivers control very short pulses.
This is especially important indoors, where screens are frequently dimmed. A display can look smooth at high output but reveal banding, color imbalance or non-uniformity at low gray. Good evaluation content includes dark gradients, neutral gray ramps, skin-tone material, slow fades and near-black detail.
Calibration can correct brightness and color differences within a range, but it cannot fully repair poor driver behavior, unsuitable LED bins, unstable power or a module operating outside its intended conditions.
8. Scan Mode: What 1/16, 1/32 or 1/64 Scan Means
LED modules commonly use multiplex scanning. In a 1/16-scan design, one of sixteen row groups is actively driven at a given instant; the controller moves through the groups rapidly enough for the eye to perceive a complete image. Higher-denominator scan ratios are common in fine-pitch modules because more pixels must be managed within a compact area.
Scan ratio influences the available on-time per row group, peak current requirements, brightness potential, driver count, PCB routing, power behavior and camera interaction. It should not be treated as a simple ranking in which one ratio is always better.
Scan mode must match the receiving-card configuration
The module’s row-address method, decoder arrangement, data-group layout and driver IC must match the receiving-card configuration file. A wrong scan configuration can cause duplicated rows, displaced images, missing lines, incorrect colors or no usable image at all.
For replacement projects, phrases such as “HUB75” or “same pitch” do not provide enough information. Confirm whether the connector is HUB75 or a product-specific variation, the pinout, addressing lines, decoder IC, data groups and any required driver-register initialization.
9. Driver IC: The Component Behind Many Visible Specifications
The driver IC regulates LED current and converts incoming grayscale data into timed output. Its architecture affects refresh rate, low-gray stability, brightness uniformity, ghosting control, color consistency at low output and power behavior.
Some drivers provide advanced functions such as open-circuit detection, gain adjustment, low-gray optimization or enhanced PWM timing. These features are valuable only when the PCB, firmware, receiving-card configuration and calibration workflow use them correctly.
Do not accept “PWM driver” as the complete identification for a critical replacement. Obtain the exact IC model and confirm that substitution will not occur without approval if the project depends on a particular performance profile.
10. Module Size, Resolution and Cabinet Compatibility
Common module dimensions help standardize screen construction, but size alone does not establish compatibility. A 320×160mm module can be produced in multiple pitches, resolutions, scan ratios, connector layouts and mounting structures. Even two P2 modules of that size may use different driver ICs, hole positions, data direction and power interfaces.
| Item to verify | Why it matters |
|---|---|
| Physical dimensions and thickness | Determines whether the module fits the cabinet opening and service clearance |
| Mounting holes, magnets and alignment points | Controls positioning, flatness and removal method |
| Module resolution and data direction | Determines pixel mapping and receiving-card loading |
| Signal connector and pinout | Prevents incorrect data, address or ground connections |
| Power voltage, connector and polarity | Prevents electrical damage and voltage drop |
| Driver IC, scan mode and decoder | Required for the correct receiving-card configuration |
| LED package, mask and brightness | Affects color, black level, viewing angle and visual matching |
| Calibration data and production batch | Affects uniformity when replacing or expanding an existing display |
11. Maintenance and Installation Structure
Front-service magnetic modules are useful when a wall has little or no rear access. Rear-service screw-lock modules may be more appropriate for outdoor cabinets with service corridors. Front-and-rear-service structures provide flexibility but must be evaluated as a complete cabinet system.
Flexible modules require confirmation of bending direction, minimum radius, magnet arrangement and supporting frame. Bending a module beyond its specified geometry can stress solder joints, PCB traces and package alignment. Outdoor flexible modules also need a protection strategy that remains effective across the curved assembly.
12. New Screen Selection vs Replacement Selection
For a new display
The design team can optimize pitch, cabinet size, controller capacity, service direction and content canvas together. Samples should be tested under representative ambient light, viewing distance and camera conditions before a large production order.
For replacement or expansion
Compatibility takes priority over theoretical improvement. A newer, brighter or higher-refresh module may not match the existing screen electrically or visually. Record front and rear photographs, PCB markings, connector positions, IC models, resolution, scan configuration, cabinet dimensions, control-system files and calibration information.
Production-batch consistency matters. When possible, retain calibrated spare modules from the original order. If a different batch must be used, expect visual matching and recalibration work.
13. A Complete SMD Module Selection Checklist
-
Application: indoor, outdoor, fixed, rental, flat, curved, filmed or direct-view only?
-
Geometry: total width and height, aspect ratio, closest viewer and installation height?
-
Pitch and resolution: module pixels, total screen pixels and content canvas?
-
Optical performance: usable brightness, contrast, viewing angle, grayscale and color requirements?
-
Camera performance: refresh, frame rate, shutter, scan behavior, synchronization and moiré test?
-
Electrical design: voltage, module current, power supplies, cable loading and redundancy?
-
Control system: driver IC, scan configuration, signal interface, receiving-card loading and port map?
-
Mechanical design: module size, cabinet, flatness, mounting method, service access and curve radius?
-
Environment: temperature, moisture, dust, sunlight, protection level, drainage and corrosion?
-
Lifecycle: production lead time, spare quantity, calibration data, repair method and batch plan?
Frequently Asked Questions
Is a smaller pixel pitch always better?
No. It provides more pixels per area, but the visible benefit depends on viewing distance and content. Smaller pitch also increases pixel count, controller load and usually project cost.
Is 3840Hz refresh rate enough for a camera?
It is a useful starting specification, but not a guarantee. Driver timing, scan ratio, grayscale, camera shutter, frame synchronization and moiré must be tested together.
Does a lower scan ratio denominator mean better quality?
Not automatically. Scan architecture is a system trade-off involving brightness, current, routing, driver quantity and timing. Evaluate the finished module at its intended settings.
Can two modules with the same pitch and dimensions be mixed?
Not safely without complete verification. Resolution, LED package, driver IC, scan mode, connectors, mounting structure, calibration and batch may differ.
How many spare modules should a project order?
The answer depends on screen size, criticality, access, lead time and service strategy. The important principle is to secure same-batch calibrated spares whenever possible and define how their calibration data will be managed.
Conclusion
The right SMD LED module is the one that satisfies the complete project—not the one with the largest number in one specification field. Pixel pitch defines density; viewing distance determines whether that density is useful; brightness must match ambient light; refresh and grayscale must be evaluated with the real camera and operating level; scan mode and driver IC must match the control system.
Calculate the screen first, verify interfaces and structure second, and validate representative samples before committing to production. For replacement and expansion, exact compatibility and batch consistency are more important than a nominal specification upgrade.
