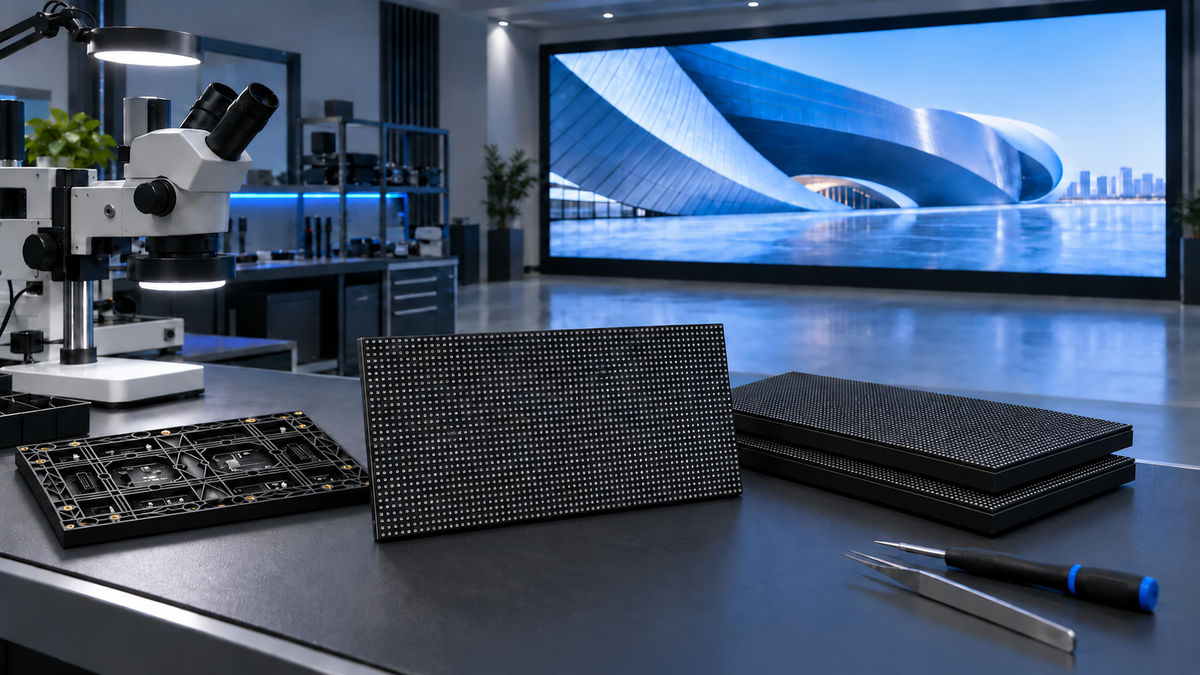

SMD LED modules remain the most widely used building blocks in modern direct-view LED displays. They appear in indoor commercial video walls, rental stages, transportation information systems, stadium screens, roadside billboards and many creative installations. Their popularity is not based on a single headline specification. It comes from a mature supply chain, broad package availability, scalable SMT assembly, flexible product configurations and comparatively straightforward component-level servicing.
Yet “SMD” is often used too loosely. It may be treated as a synonym for an entire LED screen, a particular pixel pitch, or even a protection rating. In engineering terms, SMD describes how an independently packaged LED device is mounted onto a printed circuit board. It does not, by itself, define brightness, refresh rate, waterproofing, viewing distance or image quality. Those results depend on the complete module and display system.
The short definition An SMD LED module is a PCB assembly populated with independently packaged LED devices by surface-mount technology. In a full-color display, each device normally contains red, green and blue light-emitting chips whose output is controlled by driver electronics to form the image.
1. What “SMD” Actually Means
SMD stands for Surface-Mounted Device. In an LED display, the term usually refers to a packaged LED component whose electrical terminals are soldered directly onto pads on the surface of the module PCB. This differs from older through-hole lamps, whose leads pass through drilled holes, and from COB, where bare LED chips are bonded directly to the final module board before board-level encapsulation.
The distinction between the LED package and the LED module is essential. The package is the small electronic and optical component that produces light. The module is a larger functional assembly containing many packages, the PCB, driver ICs, resistors and capacitors, signal and power connectors, mechanical supports, magnets or screws, and—depending on the design—a mask, rear shell, coating or protective treatment.
Figure 1. Simplified SMD pixel and module anatomy. Actual package geometry and bonding method vary by supplier and product.
2. Inside an SMD LED Pixel
RGB chips and the package body
A conventional full-color SMD display package integrates red, green and blue emitting elements in one compact device. The package body provides mechanical support, optical geometry and defined electrical terminals. Depending on the product generation, materials and architecture may include molded resin bodies, ceramic or QFN-style structures, wire-bonded chips, flip-chip elements, and different encapsulants. Therefore, package codes such as 1515 or 2121 indicate a nominal body class, not a complete performance guarantee.
Encapsulant, optical surface and black area
The encapsulant protects the chips and bonding region while shaping how light exits the device. Package surface color, cavity geometry, mask design and the amount of non-emitting black area influence perceived contrast. Smaller packages can increase black area at a given pitch, but final contrast also depends on surface reflection, ambient light, calibration and content.
Solder joints, PCB and driving electronics
The package terminals are connected to copper pads by solder joints formed during reflow. The PCB routes power and high-speed data and supports the driver ICs that regulate current and grayscale. Scan architecture, current setting, PWM behavior, refresh rate, thermal design and signal integrity all affect the finished image. For this reason, two modules using the same SMD package can still behave very differently.
3. How an SMD LED Module Is Manufactured
Figure 2. Typical sequence from LED device packaging to module aging and calibration.
Stage A — manufacturing the LED package
-
Die attach: red, green and blue chips are placed and fixed within the package structure or on its internal carrier.
-
Electrical interconnection: wire bonding or a compatible interconnect method connects the chips to the package terminals.
-
Encapsulation: transparent or optically controlled resin protects the internal structure and forms the emitting surface.
-
Electrical and optical test: devices are checked for electrical function and measured for brightness, wavelength or color coordinates.
-
Binning and taping: devices are grouped within defined tolerances and supplied on reels suitable for automated placement.
Stage B — assembling the LED module
-
Solder-paste printing: a stencil deposits controlled amounts of solder paste onto the PCB pads.
-
Pick-and-place: high-speed SMT equipment places LED packages, driver ICs and passive components in their programmed positions.
-
Reflow soldering: the assembly passes through a controlled temperature profile that melts and solidifies the solder joints.
-
Inspection and repair: automated optical inspection, electrical testing and visual inspection identify placement, polarity or solder defects.
-
Mechanical assembly: masks, rear shells, magnets, screws, connectors and protective treatments are added as required by the design.
-
Aging and calibration: modules operate for a defined period, faults are screened, and brightness/color correction data may be generated for consistent screen performance.
Binning before SMT is an important strength of the SMD supply chain, but it does not eliminate the need for module- and screen-level calibration. PCB tolerances, driver behavior, thermal conditions, optical masks and cabinet alignment still influence uniformity after assembly.
4. How the Module Produces a Full-Color Image
Each physical pixel is controlled through row/column addressing and driver ICs. The screen controller converts incoming video into data for receiving cards and module drivers. Current amplitude and pulse-width modulation regulate apparent brightness across red, green and blue channels, allowing millions or billions of displayed color levels depending on the system architecture and processing depth.
A high refresh-rate specification is especially relevant for cameras, but refresh rate alone does not guarantee excellent on-camera results. PWM frequency, grayscale at low brightness, scan ratio, shutter speed, frame synchronization, driver quality and calibration all matter. Virtual production and broadcast projects should therefore be validated with the actual camera chain and operating brightness—not selected from one number in isolation.
5. Main Advantages of SMD LED Modules
| Engineering advantage | Why it matters in a project |
|---|---|
| Mature ecosystem | Broad availability of packages, SMT equipment, drivers, PCB suppliers and service knowledge supports many product configurations. |
| Wide application range | SMD modules serve conventional indoor displays, rental products, high-brightness outdoor systems and flexible structures. |
| Pre-mount testing and sorting | Packaged devices can be electrically and optically screened before they are mounted onto the module PCB. |
| Scalable production | Established SMT lines support efficient placement and reflow for volume manufacturing. |
| Serviceability | With suitable tools and skill, a defective packaged device can often be replaced without discarding the entire module. |
| Configuration flexibility | Manufacturers can combine package type, pitch, PCB, mask, driver and mechanical structure for different price/performance targets. |
These benefits explain why SMD remains commercially important even as COB and MIP expand. The technologies are complementary: the best choice depends on viewing conditions, mechanical risk, required pitch, servicing strategy and total project economics.
6. Limitations and Engineering Trade-Offs
-
Visible pixel structure: at close viewing distances, independently packaged devices can produce more obvious pixel grain than a continuous COB surface.
-
Package-size constraint: the body and solder-pad area limit how tightly conventional packages can be placed, although compact package designs continue to improve.
-
Exposure to handling and environment: without an additional protective treatment, package bodies and solder joints remain more accessible to impact, contamination, humidity and electrostatic events.
-
Reflection and black consistency: package tops, masks and solder-area geometry influence black-state appearance and ambient-light contrast.
-
Camera interaction: pitch, scan ratio, PWM and viewing geometry may generate moiré or scan artifacts if the display and camera are not matched.
-
Repair quality depends on process control: local device replacement is possible, but poor temperature control, unmatched bins or damaged pads can create new defects.
Important protection note SMD does not mean “indoor only,” and it does not define an IP rating. Outdoor performance is achieved through the package, PCB coating, mask, seals, rear enclosure, connectors, cabinet drainage and complete assembly. An advertised IP rating should be confirmed for the exact product and for the side of the module or cabinet to which it applies.
7. Indoor, Outdoor, Standard and Flexible SMD Modules
| Configuration | Typical design priorities | Common use |
|---|---|---|
| Indoor standard | Fine pitch, controlled brightness, front service, flat cabinet alignment | Retail, corporate, conference, control and exhibition displays |
| Indoor flexible | Flexible PCB/back shell, magnetic positioning, controlled bend radius | Columns, waves, arcs and creative indoor structures |
| Outdoor standard | High luminance, weather protection, masks/louvers, drainage and robust fastening | Billboards, transportation, stadium and public-information screens |
| Outdoor flexible | Flexible weather-resistant structure plus controlled mounting geometry | Curved façades, cylinders and custom outdoor media surfaces |
| GOB-treated SMD | An additional protective adhesive layer over an assembled SMD pixel surface | High-touch or higher-risk surfaces where added front protection is useful |
Figure 3. Conceptual indoor applications: a flat video wall and a curved display column. Final module selection depends on pitch, brightness, geometry and service access.
8. Where SMD Modules Are Commonly Used
Indoor commercial and corporate displays
SMD modules are widely used for retail video walls, meeting rooms, corporate lobbies, showrooms, houses of worship, exhibitions and information displays. The key design variables are viewing distance, ambient light, front-service access, cabinet flatness and acceptable pixel visibility.
Rental, stage and live events
The technology supports bright images, standardized replacement practices and a mature rental ecosystem. Rental success depends less on the package name than on cabinet locks, corner protection, receiving-card redundancy, spare modules and disciplined handling.
Outdoor advertising and public information
High-brightness SMD packages are established in billboards, roadside signs, scoreboards and transport information systems. Outdoor selection must consider direct sun, minimum nighttime brightness, thermal cycling, water paths, salt or pollution exposure, wind load and safe maintenance access.
Creative and curved displays
Flexible SMD modules place surface-mounted devices on a flexible PCB and compliant support structure. They enable concave, convex, cylindrical and wave-shaped displays, but the minimum bend radius, bending direction, magnet layout and cabinet tolerances must be respected. “Flexible” does not mean the module can be folded sharply or repeatedly flexed during operation.
9. How to Select an SMD LED Module for a Real Project
-
Define the environment: indoor/outdoor, ambient temperature, humidity, direct sun, dust, salt exposure and likelihood of physical contact.
-
Establish viewing geometry: minimum and typical viewing distance, screen dimensions, content type and camera use.
-
Choose pitch from the visual requirement: a smaller pitch increases pixel density, but it also affects cost, power density, tolerances and service complexity.
-
Set brightness and contrast targets for the real ambient light. Avoid choosing outdoor brightness for a controlled indoor room, where excessive luminance can reduce comfort and low-gray performance.
-
Confirm refresh, grayscale and scan performance using the intended content and camera settings when broadcast or virtual production is involved.
-
Plan maintenance: front or rear service, access clearance, module extraction method, spare quantity and acceptable downtime.
-
Verify electrical and control compatibility: voltage, current, power connectors, data interface, scan mode, driver IC, receiving-card configuration and firmware.
-
Verify mechanical compatibility: exact dimensions, hole pattern, magnets, cabinet grid, mask height, flatness and waterproof structure.
-
Control production consistency: purchase enough matching modules and spares from the same confirmed configuration and calibration strategy.
10. Replacement Compatibility: Same Size Is Not Enough
Two modules can share the same pixel pitch and outer dimensions yet remain incompatible. Resolution may differ; connectors may be reversed; scan mapping may change; the driver IC may require different configuration; mounting points may not align; color and brightness bins may vary; and calibration data may not match. Mixing modules across production batches can also create visible color blocks even when the electronics operate.
-
Photographs of the front pixel surface and rear PCB
-
Exact width, height and thickness
-
Pixel pitch and module resolution
-
Power and signal connector type and orientation
-
Driver IC markings and scan configuration
-
Cabinet and mounting details
-
Controller/receiving-card information
-
Original label, batch information and displayed fault pattern
Replacement rule Treat a replacement as an engineering match, not a size match. Confirm the complete electrical, optical, mechanical and control-system configuration before ordering.
11. Common Misunderstandings
| Misunderstanding | Engineering clarification |
|---|---|
| “SMD is a complete screen technology specification.” | SMD identifies a package/mounting approach. Screen performance depends on the whole module, cabinet and control system. |
| “GOB is a fourth packaging route equal to SMD, COB and MIP.” | GOB is normally a protective surface treatment applied after an SMD module is assembled; the underlying pixel remains packaged SMD. |
| “A smaller pitch is always better.” | Only when viewing distance, content, budget, thermal design, alignment and maintenance requirements justify it. |
| “High refresh guarantees perfect camera results.” | Camera performance also depends on scan, PWM, grayscale, synchronization, shutter and calibration. |
| “Outdoor SMD is automatically waterproof.” | Protection belongs to the complete product construction and verified rating, not the SMD name. |
| “The same 320 × 160 mm size guarantees compatibility.” | Resolution, interface, scan, driver, mechanics, color and production batch must also match. |
12. Frequently Asked Questions
Is SMD suitable for fine-pitch indoor displays?
Yes. Compact SMD packages are widely used in fine-pitch indoor products, but the practical pitch range depends on the package, PCB, manufacturing capability and target yield.
Can an SMD LED be repaired individually?
Often yes, using appropriate rework equipment and trained technicians. The feasibility and quality depend on pad condition, package availability, bin matching and any surface coating.
Is GOB still SMD?
In the common LED-display implementation, yes. GOB adds a protective adhesive layer over an assembled SMD module; it does not convert the underlying devices into COB.
Is SMD better than COB or MIP?
Not universally. SMD emphasizes maturity, breadth and serviceability; COB emphasizes an integrated surface and close-view performance; MIP combines compact independent packages with pre-SMT testing. Project priorities decide.
What information is most important when requesting a quotation?
Pitch, module dimensions, screen size, indoor/outdoor environment, viewing distance, brightness, service method, control system, quantity, schedule and existing-module details for replacements.
Should spare modules be purchased with the screen?
Usually yes. Matching spares reduce future risk from component substitutions, batch differences and calibration mismatch.
Conclusion
SMD LED modules are successful because they turn independently tested LED packages into scalable display building blocks through a mature SMT process. Their strengths are breadth, production efficiency, configurable brightness and structure, and practical component-level service. Their limitations—visible package texture, exposed surface risk, pitch constraints and system-dependent camera performance—must be managed through correct product design and project selection.
For a new display, repair or expansion project, do not select by “SMD,” pixel pitch or module size alone. Confirm the environment, viewing conditions, brightness, module resolution, driver and scan configuration, connectors, control system, mounting structure and production consistency.
