Colorlight i5+ Receiving Card – DDR2 SODIMM, 32-Group RGB Output, 512×384 Pixel Capacity

In stock
SKU: PL-PKZQ01-CL-i5+
$19.85
Package Qty

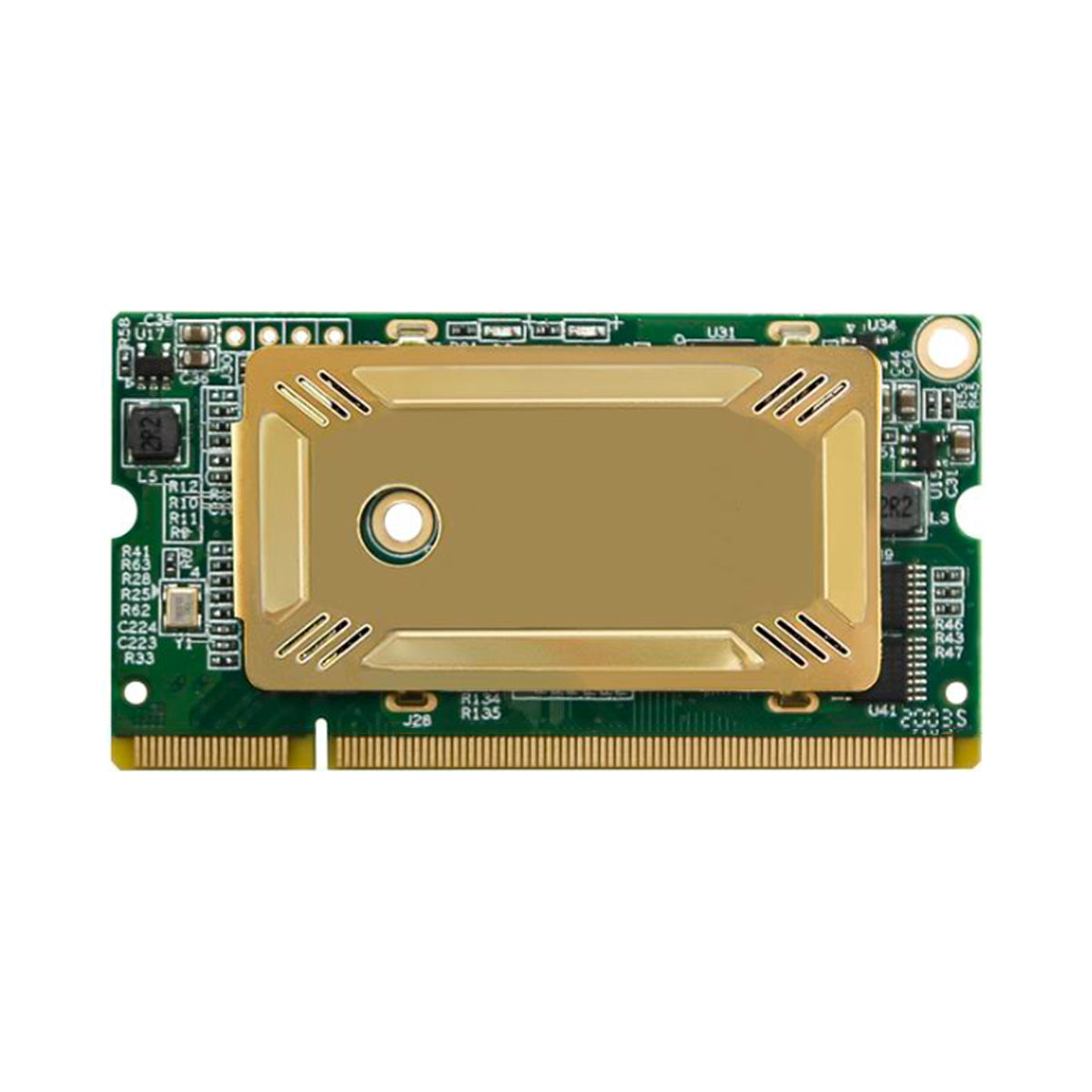

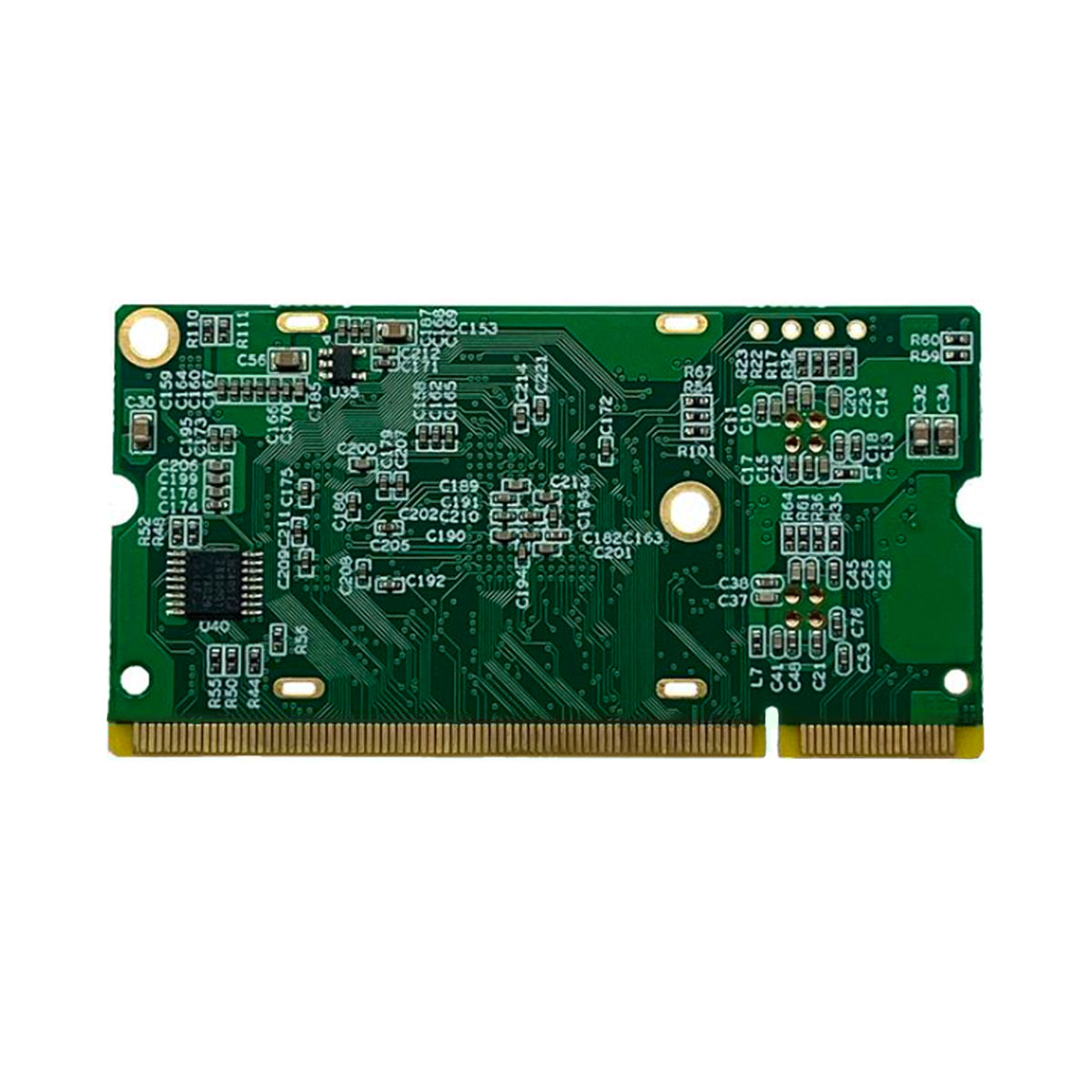

Colorlight i5+ LED Receiving Card with DDR2 SODIMM and 32-Group RGB Output

The Colorlight i5+ LED Receiving Card is a high-end receiving card for fine-pitch LED screens, supporting up to 512×384 pixels per card and 32 RGB data groups (parallel or serial). Designed for stable, low-latency performance, it is ideal for fixed installations, rental LED walls, and creative LED projects.

Featuring DDR2 SODIMM interface for seamless integration with HUB boards and LED modules, the i5+ supports grayscale refinement, independent gamut adjustment, automatic OSD, loop backup, and smart module functionality. It is compatible with irregular displays and offers cabinet monitoring and network cable detection for reliable operation.

Packing Details

Version Package Included
i5+ LED Receiving Card 1 × i5+ LED Receiving Card
1 × Antistatic Bag
1 × User Manual

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Key Specifications

  • Interface: DDR2 SODIMM (connecting receiving card to HUB/module)
  • RGB Data Groups: Up to 32 parallel or 32 serial
  • Max load per card: 512×384 pixels
  • Supports grayscale refinement and independent gamut adjustment
  • Low latency performance for fast display response
  • Automatic OSD, loop backup, and smart module support
  • Compatible with irregular displays and cabinet monitoring
  • Network cable detection enabled
  • Control via sender/controller over network within LED system
  • Power supply: DC 3.3 V (provided by LED cabinet/system)

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the sender box to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the sender box.

Technical Specifications

Parameter i5+
Loading Capacity (pixels) 512×384
RGB Parallel Data Groups 32
Color Depth 8-bit / 10-bit
Dynamic Frame Rate 23.976–240 Hz
Grayscale Refinement √
Multi-layer Calibration ✘
Infi-bit ✘
Independent Gamut Adjustment √
HDR ✘
Low Latency √
Automatic OSD √
Loop Backup √
Receiving Card Backup √
Calibration Coefficient Backup ✘
Configuration Parameter Backup ✘
Smart Module √
Irregular Display √
Cabinet Monitoring √
Network Cable Detection √

Applications

  • Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.

  • Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.

  • Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.

  • Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
