Huidu HD-R708 LED Receiving Card – High-Compatibility RGB Controller, 128×512 Pixel Capacity | For RGB LED Displays

In stock
SKU: PL-PKZQ01-HD-HD-R708
$12.85
Package Qty

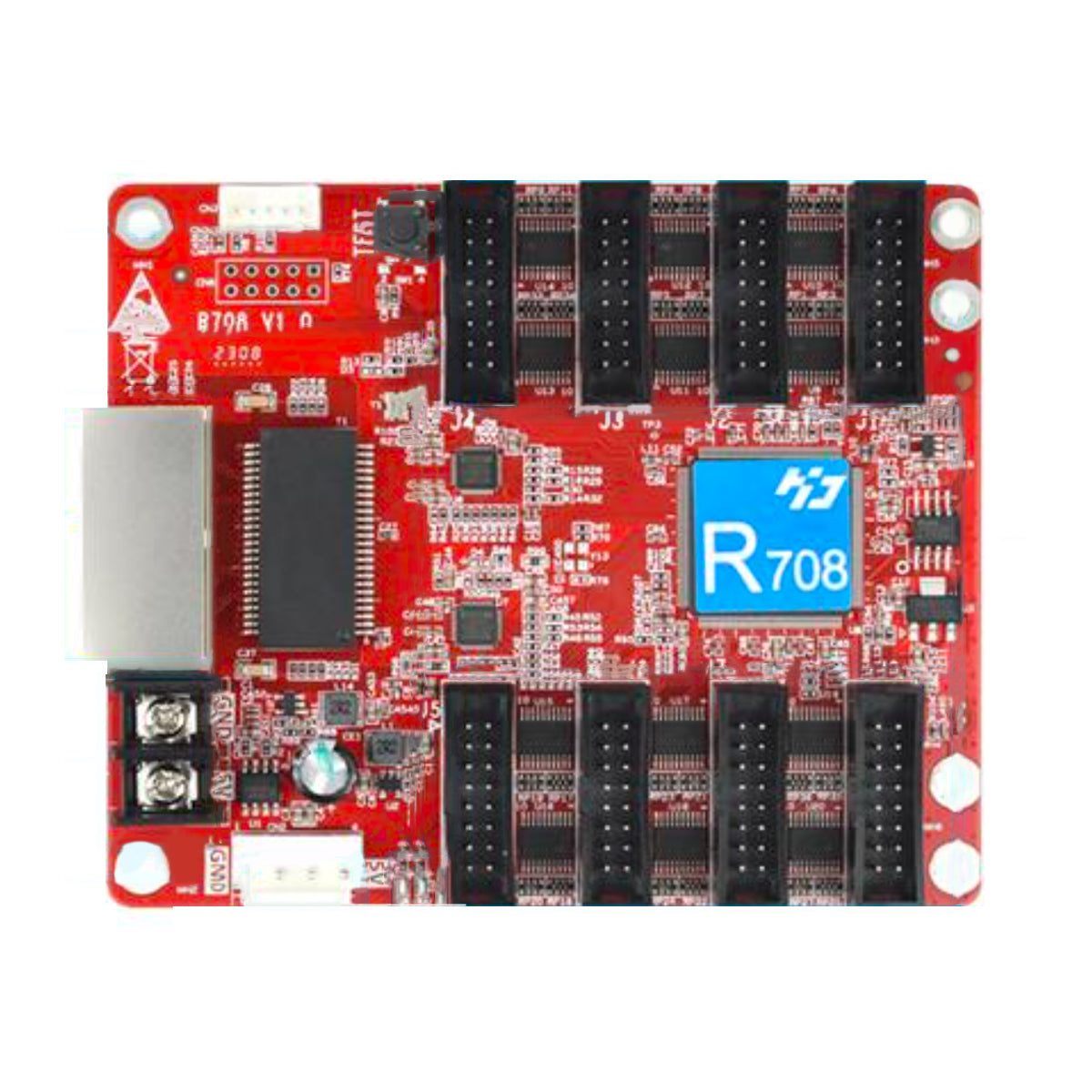

Huidu HD-R708 Receiving Card for Stable RGB Control

The Huidu HD-R708 offers reliable receiving performance with strong compatibility for various full-color LED modules. Its 128×512 pixel capacity ensures smooth display output, making it ideal for small and medium LED installations needing stable cabinet-level control.

Packing Details

Version Package Included
HD-R708 HD-R708 receiving card

About this item

  • R708 ton-board with 8 × HUB75E ports; compatible with R series receiving cards.
  • Works with asynchronous sending cards, synchronous sending cards, and all-in-one LED controllers.
  • Supports dual-mode sending box and VP series video processors.
  • Compatible with common IC modules and most PWM IC modules.
  • Scan mode: supports any scanning method from static to 1/128 scan.
  • Control range: Conventional chip 128 × 512 pixels; PWM chip 256 × 512 pixels; large range supports P1.667 / P1.538 / P1.25 fully loaded with 8 ports.

Key Specifications

  • Ports: 8 × HUB75E
  • Data output: 16 groups of RGB
  • Supported resolution (conventional): 128 × 512 pixels
  • Supported resolution (PWM): 256 × 512 pixels
  • Scan range: Static ~ 1/128
  • Compatibility: Common IC modules; most PWM IC modules
  • Works with: Asynchronous / synchronous sending cards; dual-mode sending box; VP series video processor; all-in-one LED controller
  • Power: 5 W

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the sender box to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the sender box.

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Technical Specifications

Specification Value
Model HD-R708
HUB interface 8 × HUB75E
Data output 16 groups of RGB
Scanning Static ~ 1/128
Loading capacity (Conventional chip) 128 × 512 pixels
Loading capacity (PWM chip) 256 × 512 pixels
Compatibility Common IC modules; most PWM IC modules
Controller compatibility Asynchronous / synchronous sending cards; dual-mode sending box; VP series video processor; all-in-one LED controller
Supported features Module construction, Rotate animation, Specify setting, Extract rows/columns, Brightness correction, Arbitrary sort, Bright line control, Mapping
Power 5 W

Performance Summary

Item HD-R708
Loading capacity Conventional chip: 128 × 512
PWM chip: 256 × 512
HUB interface 8 × HUB75E
Data output 16 group of RGB
Scanning Static ~ 1/128
Module construction √
Rotate animation √
Specify setting √
Extract rows/columns √
Brightness correction √
Arbitrary sort √
Bright line control √
Mapping √
Power 5 W

Applications

  • Cabinet-based LED display systems for fixed installations
  • Receiving control for rental LED screen cabinets
  • Commercial LED display projects for information and advertising
  • LED screen control solutions for exhibitions, events, and conference venues
