Huidu HD-R712 LED Receiving Card – Multi-Module Compatible High-Stability Receiver, 128×1024 Pixel Capacity | For LED Display Screens

In stock
SKU: PL-PKZQ01-HD-HD-R712
$14.85
Package Qty

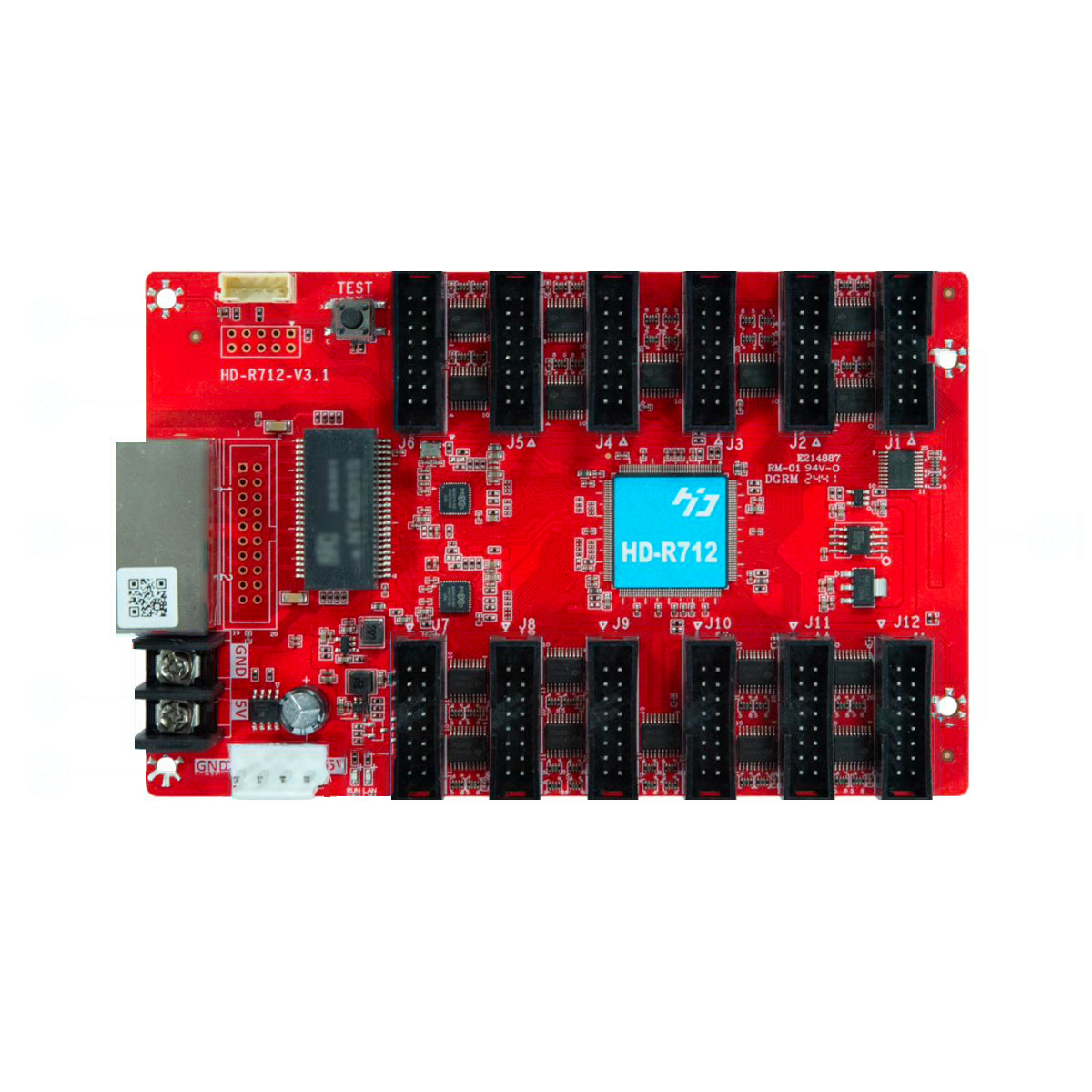

Huidu HD-R712 Receiving Card for High-Capacity LED Control

Built for higher-density LED display configurations, the Huidu HD-R712 serves as a receiving solution for systems where expanded pixel capacity and stable signal distribution are essential. Its architecture supports consistent image output across large cabinet arrays in long-running LED display applications.

Packing Details

Version Package Included
HD-R712 HD-R712 receiving card

About this item

  • Designed for high-resolution LED cabinets with increased pixel loading requirements.
  • Equipped with 12 × HUB75E onboard interfaces for stable multi-module connections.
  • Supports both synchronous and asynchronous LED control systems without an external HUB adapter board.
  • Compatible with dual-mode sending boxes, sending cards, and VP series video processors.
  • Works with all common IC modules and most PWM IC modules.
  • Supports flexible scanning methods from static to 1/128 scan.

Key Specifications

  • HUB interface: 12 × HUB75E
  • Data output: 24 groups of RGB
  • Maximum loading capacity: 262,144 pixels (512 × 512)
  • Recommended loading (conventional IC): 128 × 1024 pixels
  • Recommended loading (PWM IC): 256 × 1024 pixels
  • Scan range: Static ~ 1/128
  • Power consumption: 5 W

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the sender box to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the sender box.

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Technical Specifications

Specification Value
Model HD-R712
HUB interface 12 × HUB75E
Data output 24 groups of RGB
Scanning Static ~ 1/128
Maximum loading capacity 262,144 pixels (512 × 512)
Recommended loading (Conventional IC) 128 × 1024 pixels
Recommended loading (PWM IC) 256 × 1024 pixels
Module compatibility All common IC modules; most PWM IC modules
Controller compatibility Dual-mode sending box; asynchronous/synchronous sending cards; VP series video processor
Supported features Module construction, Rotate animation, Specify setting, Extract rows/columns, Brightness correction, Arbitrary sort, Bright line control, Mapping
Power 5 W

Performance Summary

Item HD-R712
Loading capacity Conventional chip: 128 × 1024
PWM chip: 256 × 1024
HUB interface 12 × HUB75E
Data output 24 groups of RGB
Scanning Static ~ 1/128
Module construction √
Rotate animation √
Specify setting √
Extract rows/columns √
Brightness correction √
Arbitrary sort √
Bright line control √
Mapping √
Power 5 W

Applications

  • Cabinet-based LED display systems for fixed installations
  • Receiving control for rental LED screen cabinets
  • Commercial LED display projects for information and advertising
  • LED screen control solutions for exhibitions, events, and conference venues
