MEAN WELL UHP Series Switching Power Supply UHP-200A-4.5 | 4.5V Output | 180W | CE & UL Certified | For LED Displays & Lighting
Regular price
$42.85
Couldn't load pickup availability
MEAN WELL UHP Series Switching Power Supply UHP-200A-4.5 | 4.5V Output | 180W | CE & UL Certified | For LED Displays & Lighting
About This Item
- 4.5V constant voltage output, designed for LED displays, LED signage, and lighting systems
- Ultra-slim 26 mm low-profile design to fit compact cabinets and slim sign modules
- High reliability fanless structure, cooled by free-air convection for silent operation
- Universal AC input with full range and 300 VAC surge tolerance for 5 seconds
- Built-in active PFC function to enhance power quality and energy efficiency
- Comprehensive protection: Short circuit / Overload / Over-voltage / Over-temperature
- Low leakage current < 1.0 mA, suitable for sensitive electronic systems
- Power-on LED indicator and 3-year warranty for assured performance
Order & Logistics
- Lead Time: Usually ships within 3–5 business days from local warehouses
- HQ Fulfillment: Standard 9–18 days | Express 5–9 days
Key Features
- Model: UHP-200A-4.5
- Output Voltage: 4.5V DC
- Rated Power: 180W
- Low profile: only 26 mm height
- Fanless design: silent free-air convection cooling
- High surge tolerance: withstands 300 VAC input for 5 seconds
- Certifications: CE & UL
Applications
- LED signage display
- Moving sign systems
- LED channel letters
- LED TV wall and video wall modules
Description

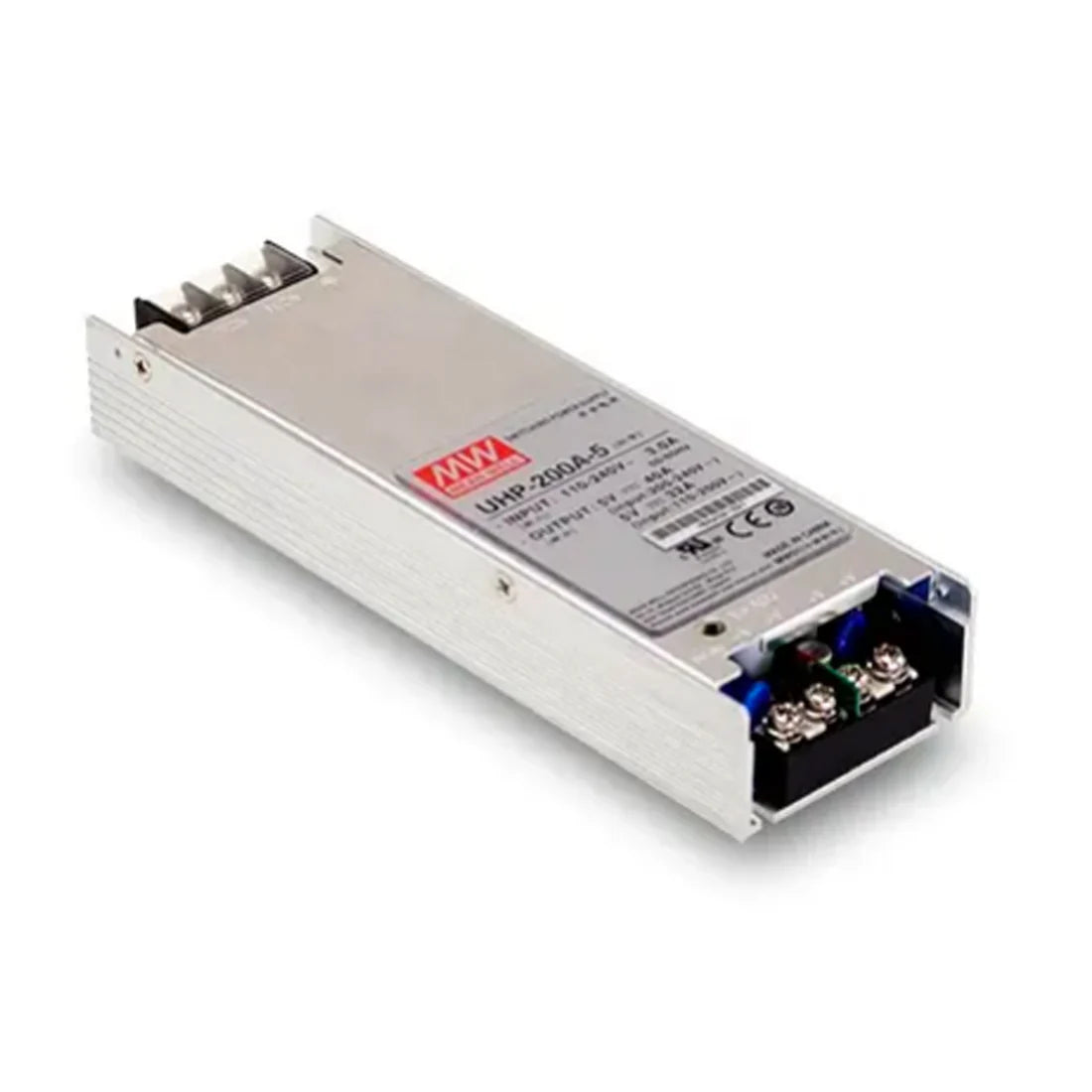

UHP-200A-4.5 is a 180W high-efficiency switching power supply designed specifically for LED display and signage systems. Its ultra-low-profile 26 mm enclosure helps reduce the overall thickness of display cabinets, simplifying transportation and installation. With high power efficiency, active PFC, and comprehensive electronic protections, it delivers stable 4.5V output for LED modules and control systems. Ideal for LED signage display, moving signs, channel letters, and LED TV walls.
