MEANWELL UHP Series PFC Switching Power Supply - AC90-264V | 200W / 350W / 500W | 5V / 12V / 24V / 36V / 48V DC Output Voltage

In stock
SKU: PLM-DY04-MW-UHP-200W-5V-1P
$46.95
Wattage
Output Voltage
Package Qty

MEANWELL UHP Series PFC Switching Power Supply - AC90-264V | 200W / 350W / 500W | 5V / 12V / 24V / 36V / 48V DC Output Voltage | UL / CE Certified

Package Included

Version Package Included
5V 200W 1-Pack 1 × MEANWELL UHP Series Power Supply (5V / 200W), user manual
12V 200W 1-Pack 1 × MEANWELL UHP Series Power Supply (12V / 200W), user manual
24V 200W 1-Pack 1 × MEANWELL UHP Series Power Supply (24V / 200W), user manual
36V 200W 1-Pack 1 × MEANWELL UHP Series Power Supply (36V / 200W), user manual
48V 200W 1-Pack 1 × MEANWELL UHP Series Power Supply (48V / 200W), user manual
5V 350W 1-Pack 1 × MEANWELL UHP Series Power Supply (5V / 350W), user manual
12V 350W 1-Pack 1 × MEANWELL UHP Series Power Supply (12V / 350W), user manual
24V 350W 1-Pack 1 × MEANWELL UHP Series Power Supply (24V / 350W), user manual
36V 350W 1-Pack 1 × MEANWELL UHP Series Power Supply (36V / 350W), user manual
48V 350W 1-Pack 1 × MEANWELL UHP Series Power Supply (48V / 350W), user manual
5V 500W 1-Pack 1 × MEANWELL UHP Series Power Supply (5V / 500W), user manual
12V 500W 1-Pack 1 × MEANWELL UHP Series Power Supply (12V / 500W), user manual
24V 500W 1-Pack 1 × MEANWELL UHP Series Power Supply (24V / 500W), user manual
36V 500W 1-Pack 1 × MEANWELL UHP Series Power Supply (36V / 500W), user manual
48V 500W 1-Pack 1 × MEANWELL UHP Series Power Supply (48V / 500W), user manual

About this item

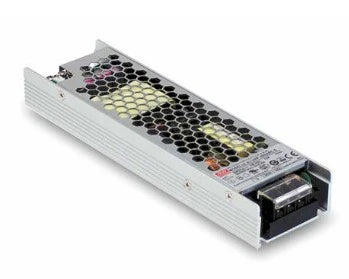

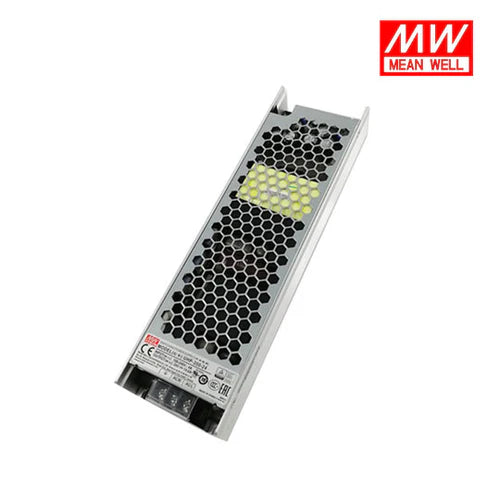

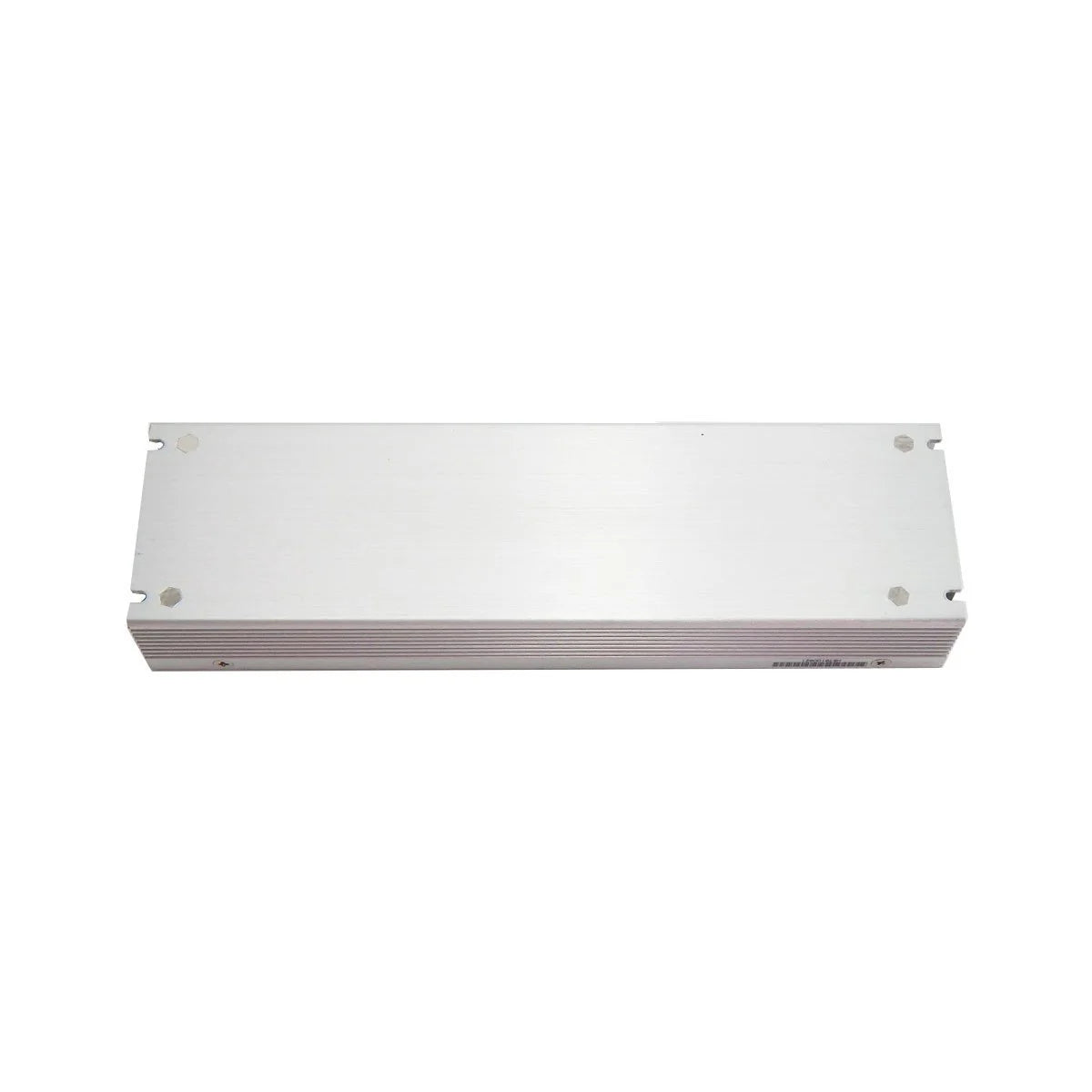

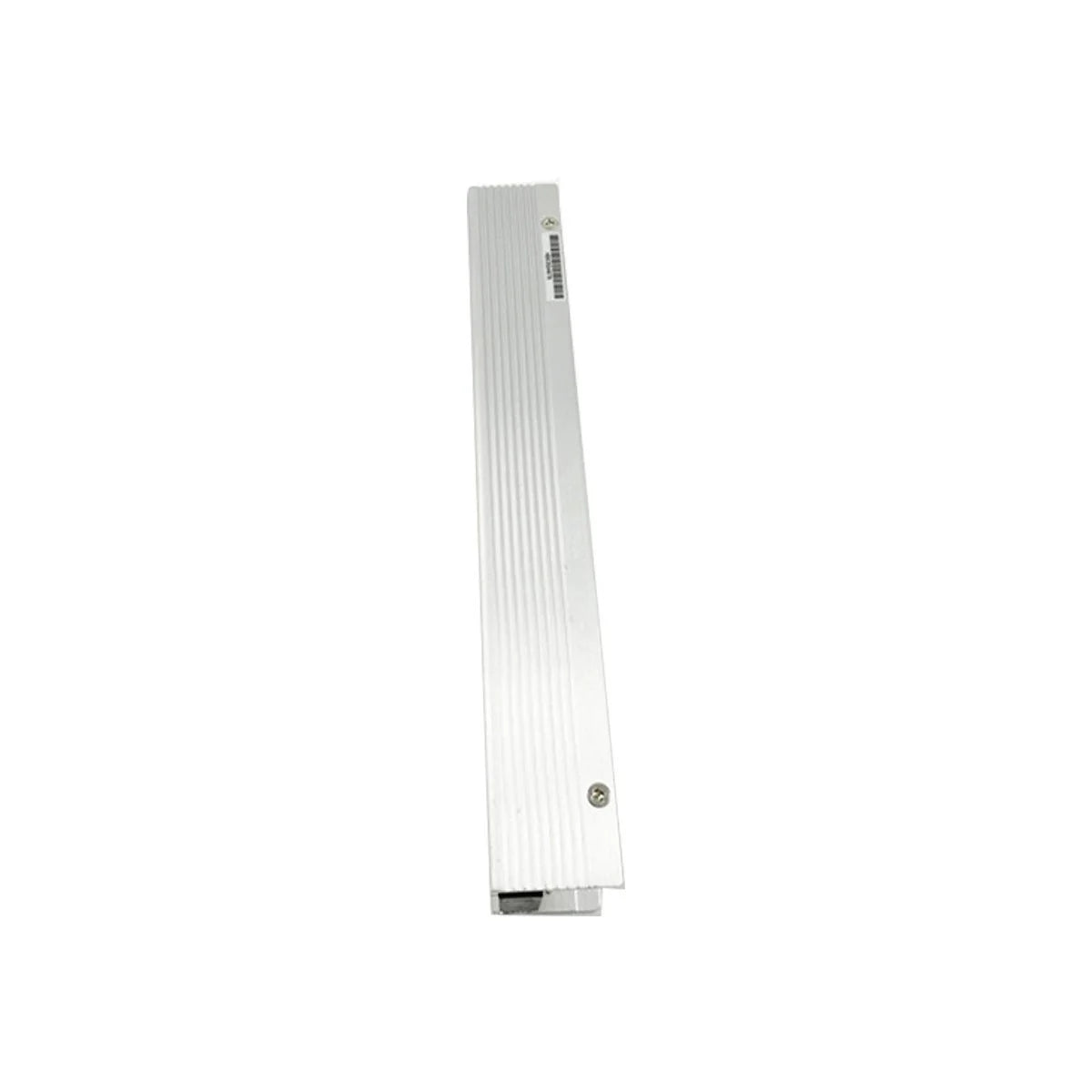

  • Slim and low-profile housing: 26mm thickness for 200W, 31mm for 350W/500W
  • Fanless design: 200W supports convection cooling; silent operation for compact installations
  • Wide input AC 90–264V with built-in active PFC function
  • Withstands 300VAC surge input for 5 seconds for improved input resilience
  • 150% peak load capability (100ms) to handle short-term load spikes
  • Operating temperature range: -20°C to 70°C for demanding environments
  • Protections: short circuit, overload, over voltage, over temperature
  • DC OK active signal and redundant function available (optional, model-dependent)
  • Operating altitude up to 5000 meters (note requirement may apply)
  • LED power-on indicator and 3-year warranty

Order & Logistics

  • Lead Time: Ships within 1–3 business days.
  • Packing: Cardboard box.
  • Shipping Note: This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.

Key Specifications

  • Input Voltage: AC 90–264V, 50/60Hz
  • Output Voltage Options: 5V DC / 12V DC / 24V DC / 36V DC / 48V DC
  • Output Power Options: 200W / 350W / 500W
  • Profile Thickness: 26mm (200W); 31mm (350W/500W)
  • Cooling: Fanless; 200W convection cooling
  • Active PFC: Built-in active PFC function
  • Surge Withstand: 300VAC input surge for 5 seconds
  • Peak Load: 150% peak load capability (100ms)
  • Operating Temperature: -20°C to 70°C
  • Altitude: Up to 5000 m (note requirement may apply)
  • Protection: Short circuit, overload, over voltage, over temperature
  • Indicator: LED power-on indicator
  • Certification: UL / CE
  • Warranty: 3 years

Technical Specifications

Model UHP-200-5 UHP-200-12 UHP-200-24 UHP-200-36 UHP-200-48 UHP-350-5 UHP-350-12 UHP-350-24 UHP-350-36 UHP-350-48 UHP-500-5 UHP-500-12 UHP-500-24 UHP-500-36 UHP-500-48
Rated output voltage 5V DC 12V DC 24V DC 36V DC 48V DC 5V DC 12V DC 24V DC 36V DC 48V DC 5V DC 12V DC 24V DC 36V DC 48V DC
Rated output current 40A 16.7A 8.4A 5.6A 4.2A 60A 29.2A 14.6A 9.75A 7.3A 80A 41.7A 20.9A 13.9A 10.45A
Output current range 0–40A 0–16.7A 0–8.4A 0–5.6A 0–4.2A 0–60A 0–29.2A 0–14.6A 0–9.75A 0–7.3A 0–80A 0–41.7A 0–20.9A 0–13.9A 0–10.45A
Rated output power 200W 200.4W 201.6W 201.6W 201.6W 300W 350W 350.4W 351W 350.4W 400W 500.4W 501.6W 500.4W 501.6W
Ripple & noise (max) 200mVp-p 240mVp-p 240mVp-p 240mVp-p 300mVp-p 200mVp-p 200mVp-p 240mVp-p 240mVp-p 240mVp-p 200mVp-p 200mVp-p 240mVp-p 360mVp-p 360mVp-p
Efficiency (typ.) 91% 93% 94% 94% 94% 90% 91% 92% 94% 94% 94% 94% 94.5% 95% 95%
Input voltage range AC 90–264V / DC 127–370V
Frequency range 47–63Hz
Product dimensions (L × W × H) 194 × 55 × 26 mm 220 × 62 × 31 mm 232 × 81 × 31 mm
Operating temperature -30°C to +70°C
Protection Short circuit / Overload (110%–140%) / Over voltage / Over temperature
Cooling Built-in cooling fan (forced air cooling)
Safety & compliance UL / TUV / CE / BIS / EAC (model dependent)

Usage Notes / Installation Tips

  • Confirm the required DC output voltage (5V/12V/24V/36V/48V) before ordering
  • Select wattage based on total load and keep headroom for stable operation
  • Disconnect AC power before wiring or adjusting terminals
  • Provide adequate ventilation and avoid sealing the unit in an unventilated enclosure
  • Follow local electrical codes when integrating into systems or cabinets

Applications

  • Industrial control systems and automation equipment
  • LED lighting systems requiring stable DC output
  • Test benches, labs, and electronic prototyping
  • 3D printers, CNC peripherals, and DIY electronics
  • Communication equipment and embedded systems
