Home » NovaStar A5s Plus Receiving Card – Compact HDR-Optimized Controller with 512×384 Pixel Loading for Indoor/Outdoor LED Displays
PrimeLEDModules

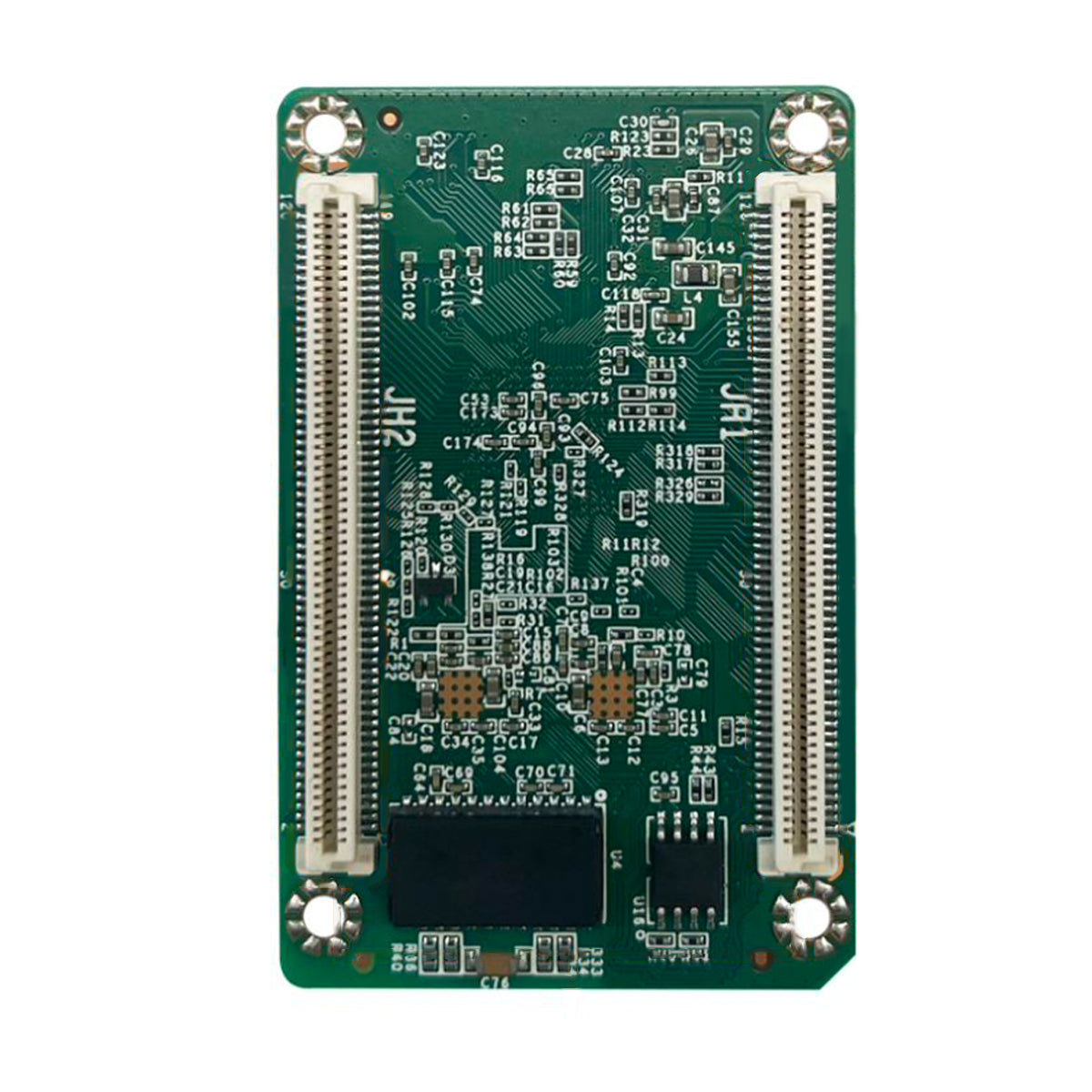

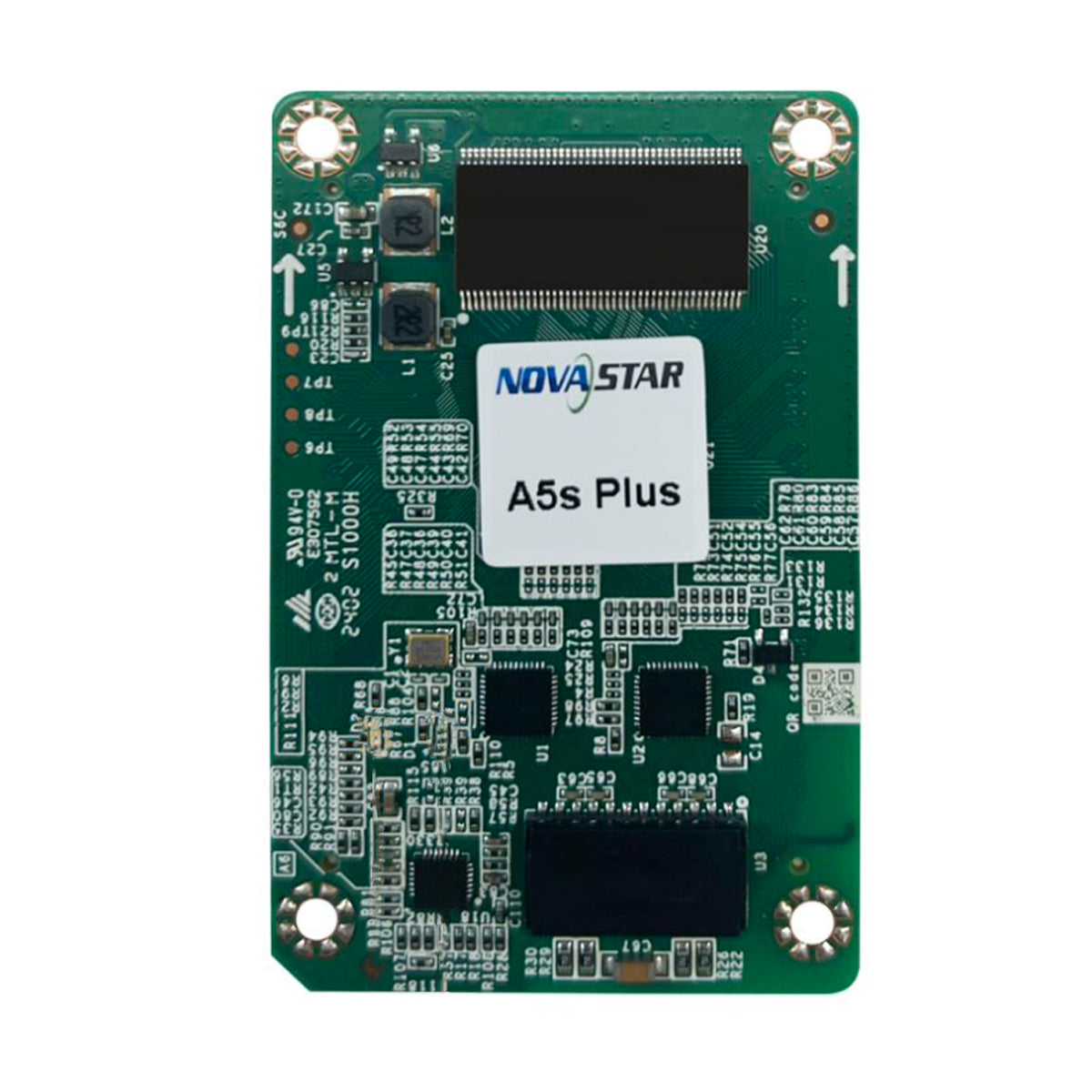

NovaStar A5s Plus Receiving Card – Compact HDR-Optimized Controller with 512×384 Pixel Loading for Indoor/Outdoor LED Displays

In stock
SKU: PL-PKZQ01-NS-A5S-Plus
$13.85
Package Qty

NovaStar A5s Plus HDR-Optimized Receiving Card

The NovaStar A5s Plus Receiving Card is a high-performance LED display controller optimized for HDR and high-resolution LED screens. Supporting up to 512 × 384 pixels, it delivers precise image quality with pixel-level brightness and chroma calibration, advanced color processing, and image rotation for superior visual performance.

Featuring a high-density connector design, the A5s Plus ensures stable signal transmission, low latency, and long-term reliability. Its flexible compatibility with multiple LED module pixel pitches makes it ideal for indoor and outdoor fixed displays, rental LED walls, stage backdrops, commercial signage, and creative LED installations.

Packing Details

Version Package Included
A5s Plus 1 × A5s Plus Receiving Card
1 × Antistatic Bag
1 × User Manual

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Key Specifications

  • High-density input connector for reliable LED data reception

  • 32 parallel RGB groups & 64 serial groups for stable signal transmission

  • Max load: 512 × 384 pixels for high-resolution display

  • Network-based control via NovaLCT & NovaCLB software

  • Standard low-voltage DC supply through LED cabinet

  • Reliable operation from –20°C to +70°C

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the receiving card to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the receiving card.

Technical Specifications

Model A5s Plus A8s-N A10s Plus-N
Loading Capacity 512 × 384 512 × 384 512 × 512
Parallel RGB Data Groups 32 32 32
Serial Data Groups 64 64 64
HDR × √ √
Mapping √ √ √
Temperature/Voltage/Communication Monitoring √ √ √
Dual-Card Backup √ √ √
Automatic Calibration √ √ √
Pixel-Level Brightness & Chroma Calibration √ √ √
Calibration Coefficient Backup × √ √
Firmware Read-Back √ √ √
Individual RGB Gamma Adjustment √ √ √
18bit+ √ √ √
22bit+ × √ √
Precise Grayscale × √ √
Color Management √ √ √
Full Grayscale Calibration × × ×
Shutter Fit × × ×
Dynamic Booster × × ×

Applications

  • Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.

  • Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.

  • Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.

  • Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
