NovaStar MCTRL300 Sender Box – Compact External Sending Controller, 1.3 Million Pixel Loading for LED Displays

In stock
SKU: PL-PKZQ01-NS-MCTRL300
$179.85
Package Qty

NovaStar MCTRL300 External Sending Controller

The NovaStar MCTRL300 Sending Box is a compact, high-performance LED display controller designed for small to medium LED screens. Featuring 1× DVI input, 1× audio input, and dual Gigabit Ethernet outputs, it supports resolutions up to 1920×1200@60Hz, delivering sharp and stable image transmission for a wide range of display setups.

With pixel-level brightness and chroma calibration, a light sensor interface for automatic brightness adjustment, and USB control plus dual UART cascade ports (up to 20 devices), the MCTRL300 offers strong flexibility for professional systems. Its durable aluminum housing and multi-standard certifications make it ideal for fixed LED displays, digital signage, stage rental screens, and small to mid-scale LED video walls.

Packing Details

Version Package Included
MCTRL300 1 × MCTRL300 Sending Box
1 × Power Cable
1 × DVI Cable
1 × USB Cable
1 × User Manual
1 × Protective Packaging (Antistatic Bag + Foam)

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Key Specifications

  • 1 × DVI + 1 × audio input – synchronized HD video & audio

  • 2 × Gigabit Ethernet outputs – stable, low-latency LED data

  • Max Resolution: 1920 × 1200 @ 60Hz – high-definition display

  • Type-B USB & dual UART cascade – supports up to 20 units

  • AC 100–240V – universal power input

  • Operating Temp: –20°C to +60°C – reliable in various environments

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the receiving card to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the receiving card.

Technical Specifications

Specification Details

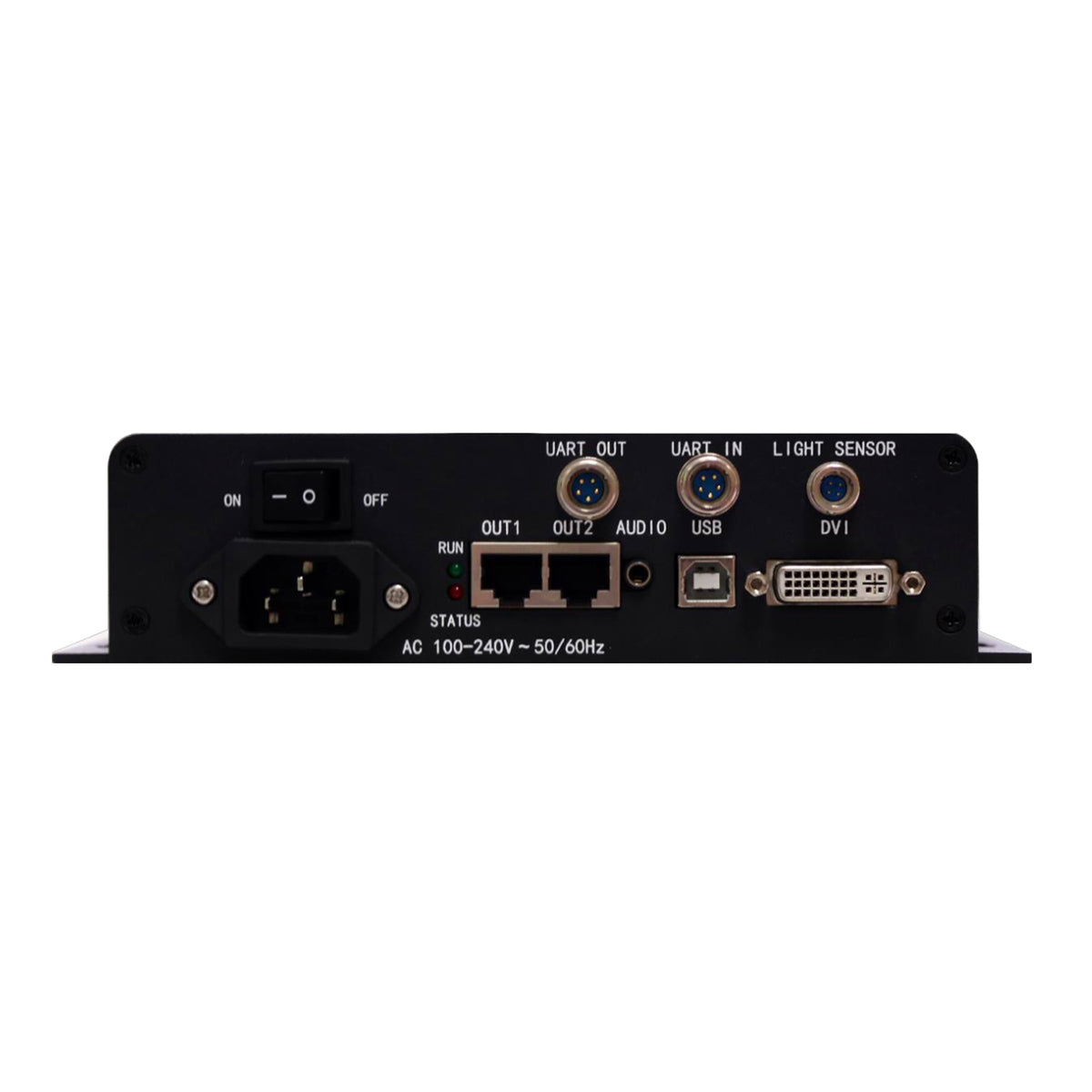

Input Connectors 1 × SL-DVI input; 1 × audio input for high-fidelity video and audio
Output Connectors 2 × Gigabit Ethernet ports for stable, low-latency transmission
Control Ports 1 × Type-B USB; 2 × UART cascading ports (supports up to 20 devices)
Sensor Port 1 × light sensor interface for automatic brightness adjustment
Supported Resolution Up to 1920 × 1200 @ 60Hz – ensures crisp, HD display quality
Calibration Pixel-level brightness & chroma calibration via NovaLCT / NovaCLB
Certifications EAC, CE, FCC, IC, PFOS, CB – global compliance

Applications

  • Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.

  • Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.

  • Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.

  • Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
