NovaStar MCTRL660 PRO Sender Box – Genlock-Enabled High-Performance Controller, 650,000 Pixel Loading for LED Screens

In stock
SKU: PL-PKZQ01-NS-MCTRL660-PRO
$998.85
Package Qty

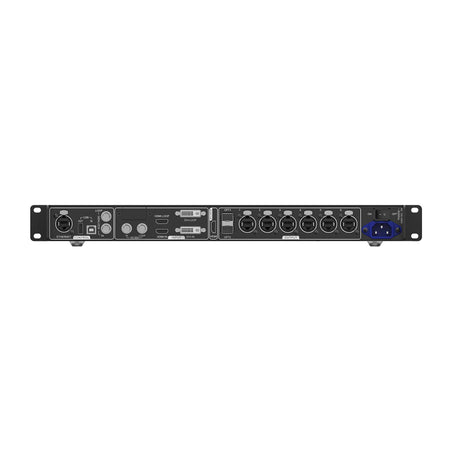

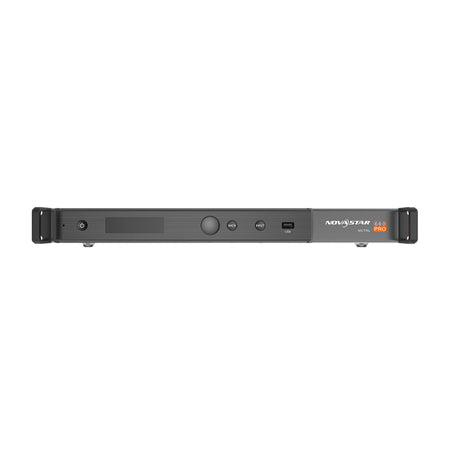

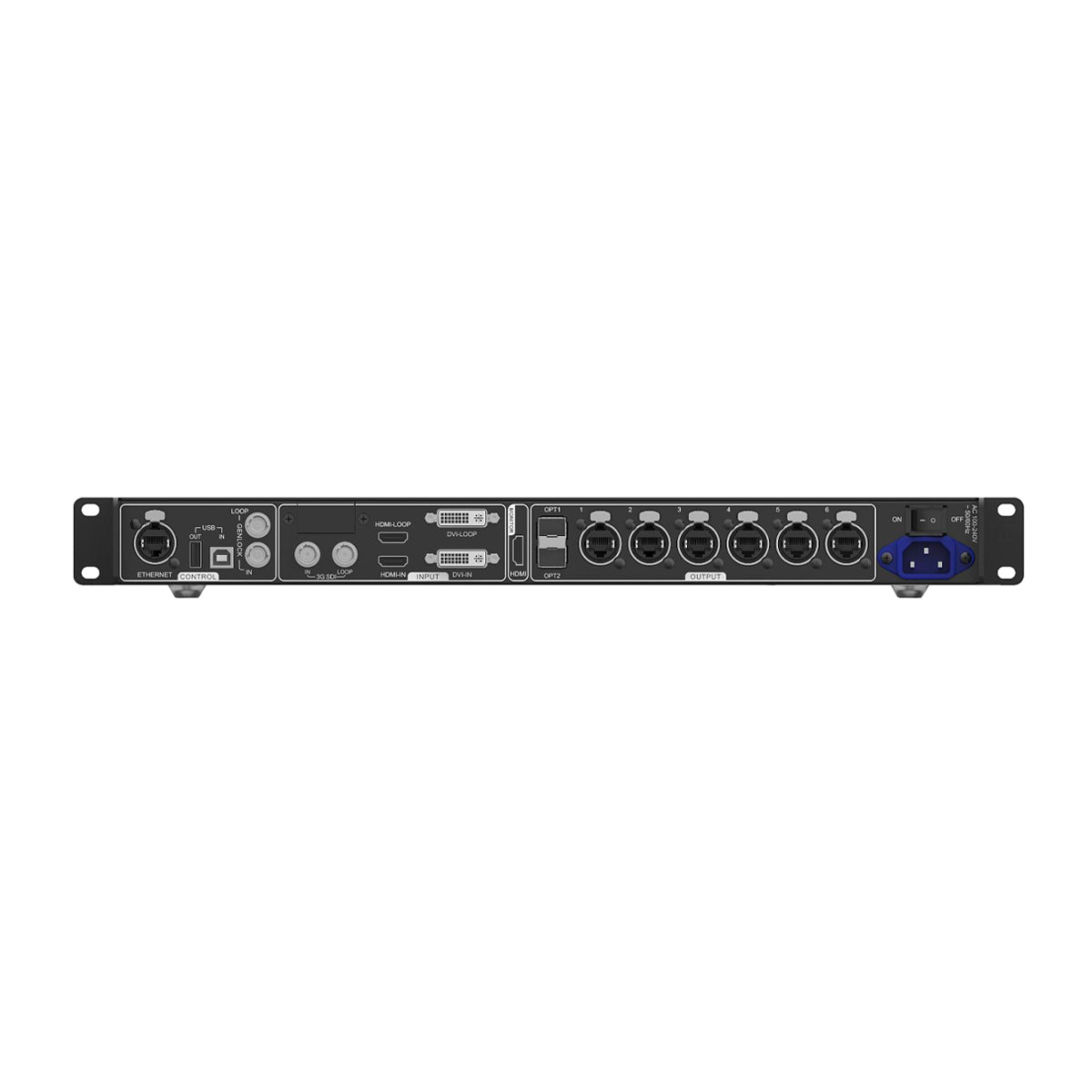

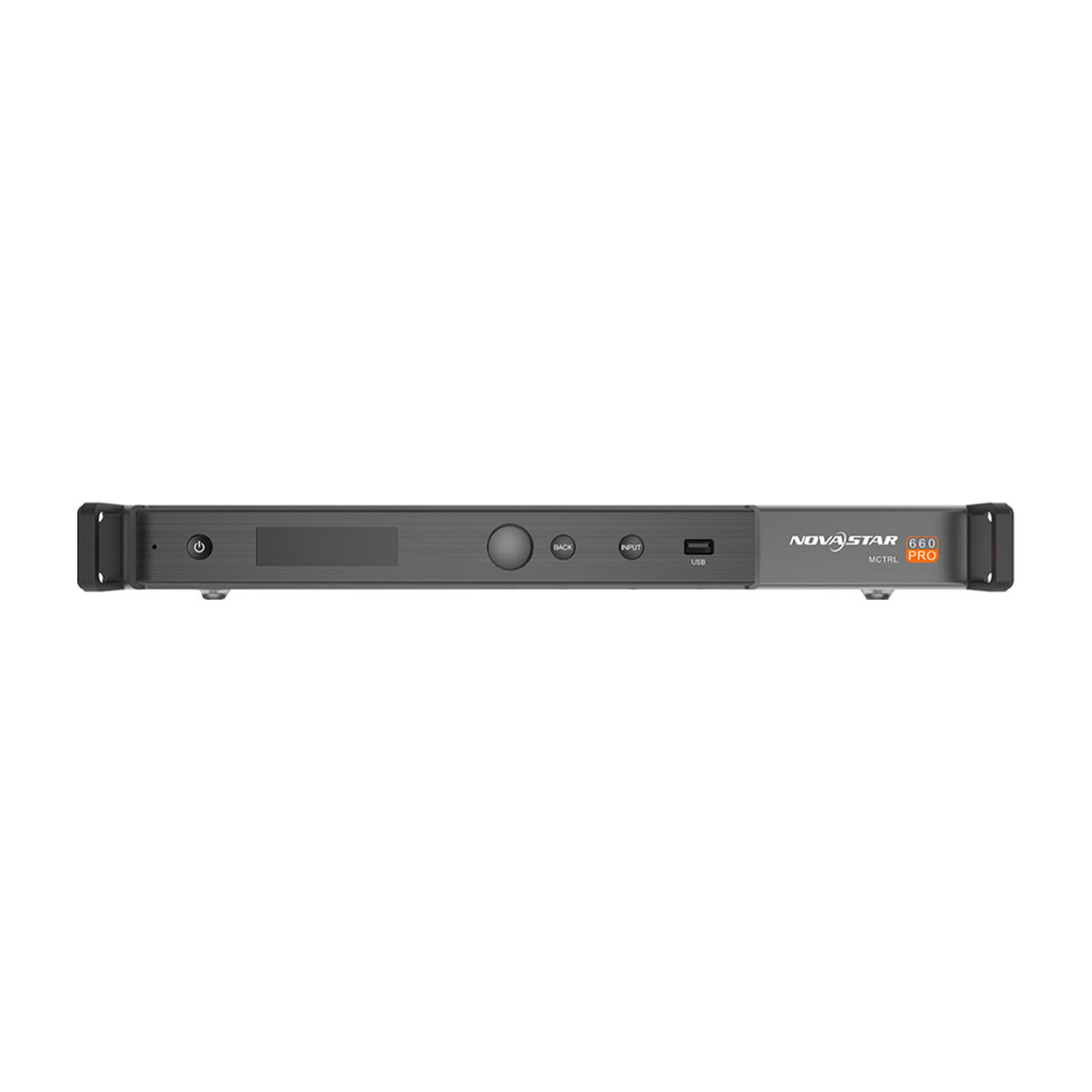

NovaStar MCTRL660 PRO Genlock Sending Controller

The NovaStar MCTRL660 Pro LED Sender Box is a high-performance LED display controller designed for medium to large LED screens. Supporting up to 650,000 pixels with pixel-level brightness and chroma calibration, it delivers stable, low-latency performance for professional fixed and rental LED installations.

Featuring Genlock synchronization, multi-angle image mirroring, and RGB gamma adjustment, the MCTRL660 Pro ensures uniform and precise visual output. Its compact design and efficient heat dissipation make it ideal for commercial signage, stage displays, and creative LED projects.

Packing Details

Version Package Included
MCTRL660 Pro 1 × MCTRL660 Pro LED Sender Box
1 × Antistatic Bag
1 × User Manual

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Key Specifications

  • 8 / 10 / 12-bit input support

  • Genlock sync for multi-device stability

  • Max load: 650,000 pixels

  • Low-latency mode (down to 1 frame)

  • Pixel-level brightness & chroma calibration

  • RGB gamma fine-tuning for uniformity

  • Multi-angle image mirroring

  • Cascade up to 8 units

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the sender box to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the sender box.

Technical Specifications

Feature MCTRL600 PRO
Input Support 8 / 10 / 12-bit HD video for high-fidelity LED display
Genlock Sync Ensures stable multi-controller operation
Pixel Loading 650,000 pixels for medium to large LED screens
Low Latency Mode Optional, as low as 1-frame delay with source sync
Calibration Pixel-level brightness & chroma correction
Gamma Adjustment Independent RGB gamma tuning for uniform low-gray performance
Image Mirroring Multi-angle mirroring for stage and creative displays
Cascading Supports up to 8 units for extended setups

Applications

  • Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.

  • Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.

  • Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.

  • Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
