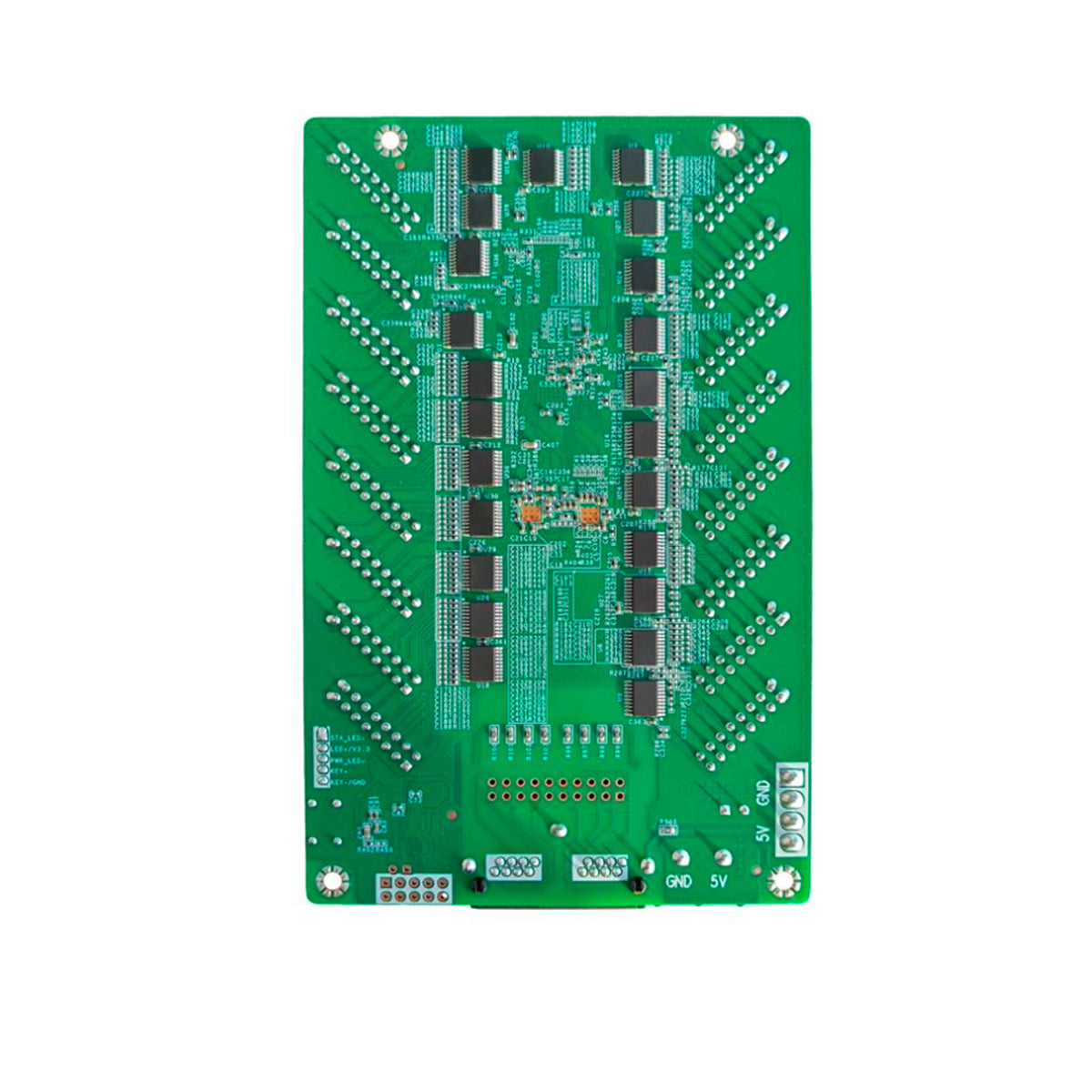

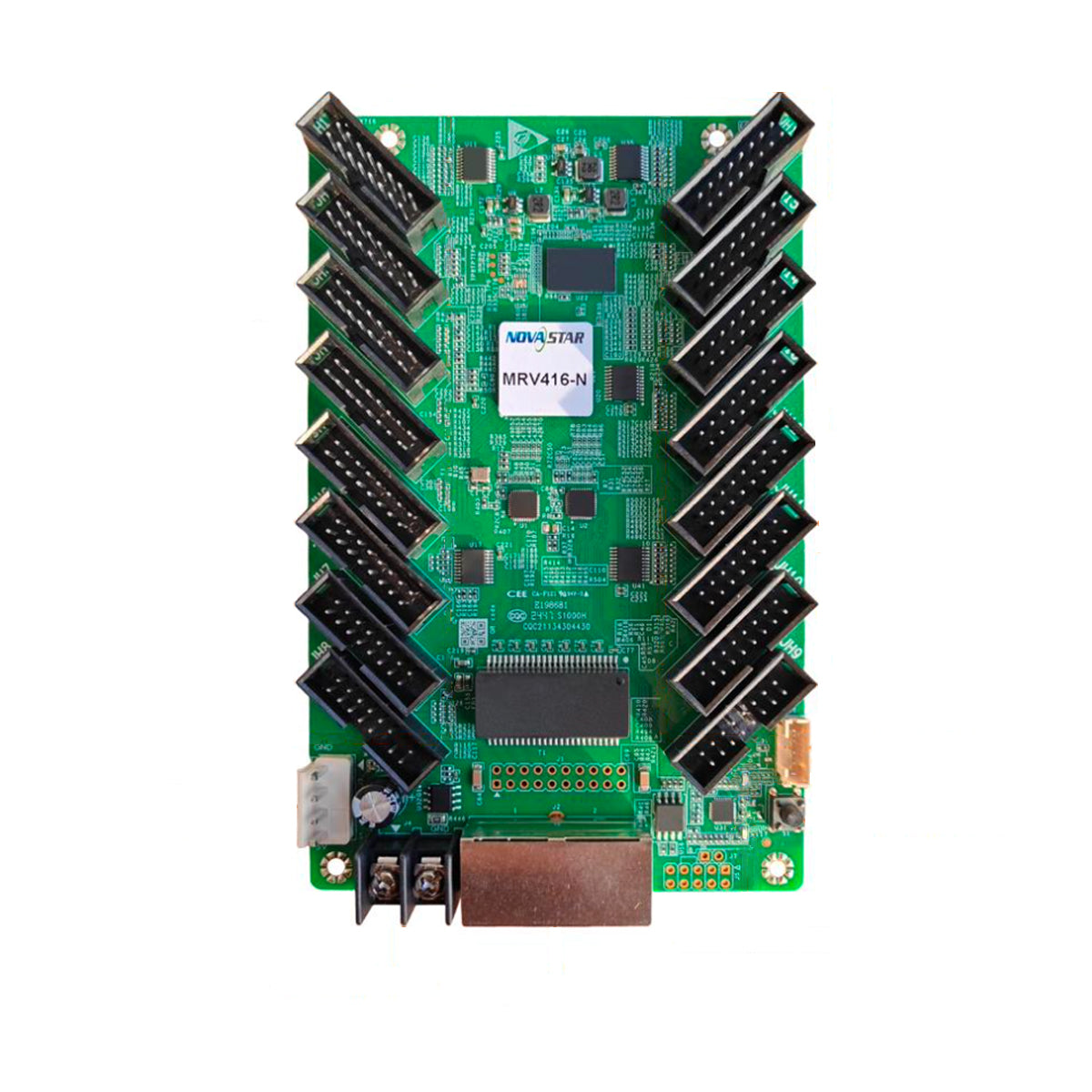

NovaStar MRV416-N LED Receiving Card – 32-Group HUB75 Receiver with 512×512 Pixel Capacity for Indoor Video Walls

In stock
SKU: PLM-PKZQ01-NS-MRV416-N
$16.85
Package Qty

NovaStar MRV416-N Receiving Card – 32-Group HUB75 LED Receiver with 512 × 512 Pixel Capacity for Indoor Video Walls

The NovaStar MRV416-N receiving card is engineered for high-definition indoor LED video walls requiring precise signal distribution and stable long-term performance.
With 32 groups of HUB75 outputs and a maximum loading capacity of 512 × 512 pixels, it delivers reliable control for commercial LED screens, control rooms, and fine-pitch display systems.

Packing Details

Version Package Included
MRV416-N 1 × MRV416-N Receiving Card
1 × Antistatic Bag
1 × User Manual

About this item

  • Supports up to 512 × 512 pixels per receiving card for high-resolution indoor LED displays

  • 32 groups of HUB75 outputs enable flexible module connection and optimized cabinet wiring

  • Designed for indoor video walls and fine-pitch LED screens requiring stable signal control

  • High-precision grayscale processing ensures smooth brightness transitions and accurate color output

  • Fully compatible with NovaStar LED control systems for seamless configuration and management

  • Reliable hardware architecture supports continuous commercial operation with low failure rates

  • Suitable for fixed installation LED screens in professional indoor environments

Quick Specs

Specification Detail
Product Type LED Receiving Card
Model MRV416-N
Max Loading Capacity 512 × 512 pixels
HUB75 Output Groups 32
Output Interface HUB75
Application Type Indoor LED displays
Control System NovaStar
Power Supply DC 5 V
Installation Cabinet internal mounting

Installation & Maintenance Tips

  • Confirm firmware compatibility with the NovaStar sending card before installation

  • Use high-quality HUB75 cables to maintain stable data transmission

  • Secure the receiving card firmly inside the LED cabinet to prevent vibration

  • Power off the system before installing or removing the receiving card

  • Organize signal and power cables clearly to simplify future maintenance

  • Ensure adequate cabinet ventilation to support long-term stable operation

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days

  • Packaging: Anti-static protection with reinforced outer carton to ensure safe transportation

  • Shipping Origin: Shipped directly from warehouse

  • Standard Shipping: 9–18 days

  • Express Shipping: 5–9 days

  • Shipping Costs: Calculated at checkout based on destination and order quantity

Full Specifications

Model MRV208-1 MRV412-N MRV416-N
Loading capacity (pixel) 256×256 512×512 512×512
Max. parallel RGB data groups 16 24 32
Output Interface HUB75E×8 HUB75E×12 HUB75E×16
Max. Scanning 64 64 64
3D √ √ √
Pixel Level Brightness & Chroma Calibration √ √ √
18bit+ – √ √
Color Management – √ √
RGB Gamma Independent Adjustment – √ √
Low latency – √ √
Multi-batch Adjustment √ √ √
Temperature, Voltage & Communication Status Monitoring √ √ √
Redundancy Backup √ √ √
Configuration File Dual Backup √ √ √
Firmware Program Backup √ √ √
Firmware Program Read-back √ √ √
90-degree Multiple Rotation – √ √
Prestore Picture √ √ √
Support for 5-pin LCD √ √ √
Bit Error Testing √ √ √
Mapping √ √ √

Applications

  • Indoor LED video walls

  • Control room and monitoring displays

  • Commercial advertising LED screens

  • Conference and exhibition LED displays

  • Corporate lobby and showroom LED walls
