NovaStar MSD300 Sending Card – Entry-Level DVI Sender with 1280×1024 Input Resolution for Small–Medium LED Screens

In stock
SKU: PL-PKZQ01-NS-MSD300-1
$108.85
Package Qty

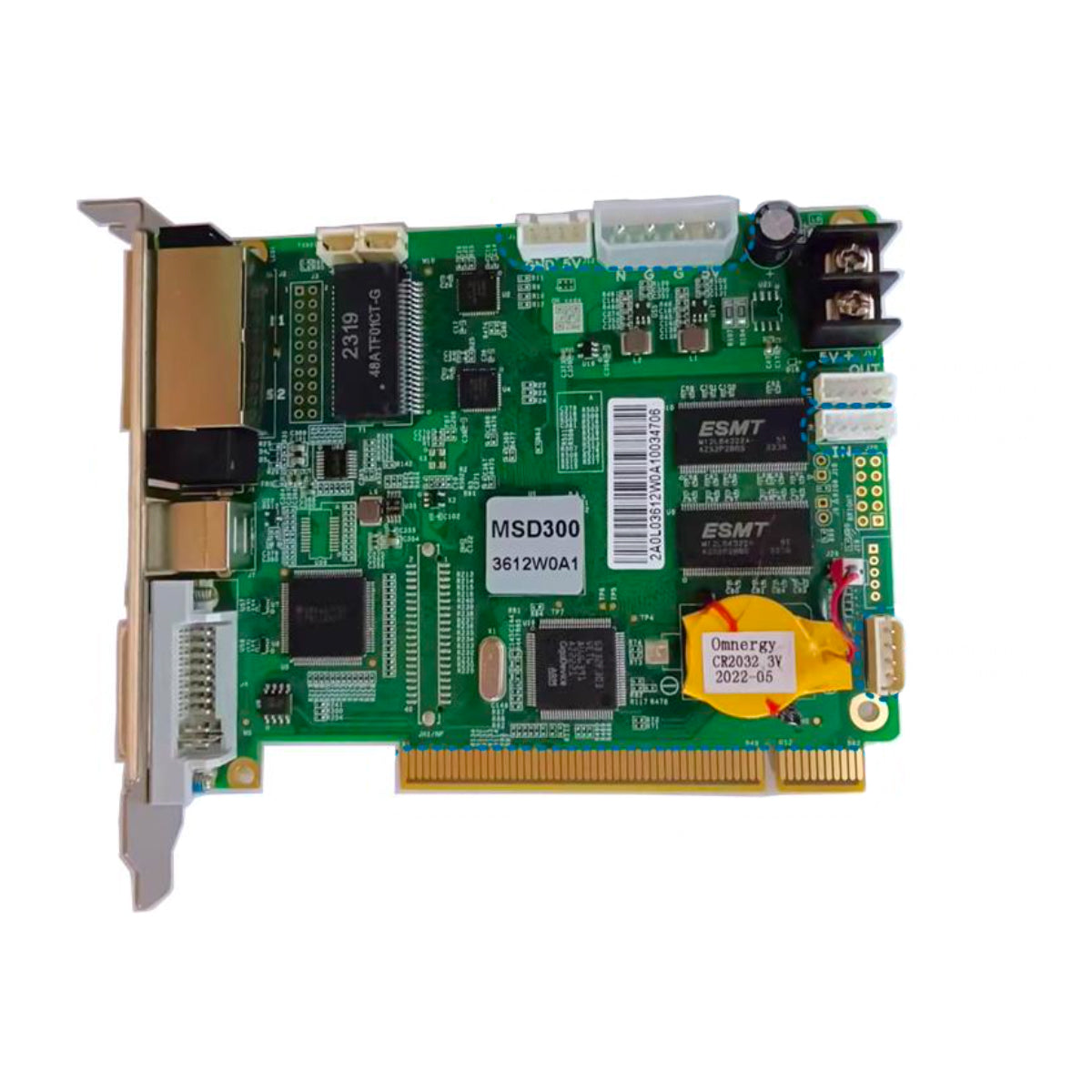

NovaStar MSD300 DVI Sending Card

The NovaStar MSD300 Sending Card is a professional LED screen controller with DVI video input and dual Ethernet outputs, designed for small to medium pixel-count LED displays. It supports up to 1920 × 1200 @ 60Hz input resolution and is adaptable to various LED module pixel pitches for versatile applications.

Featuring USB control, cascade management, and a built-in light sensor interface for automatic brightness adjustment, the MSD300 ensures stable and consistent performance. Its compact, durable design with efficient heat dissipation makes it ideal for fixed LED billboards, rental LED screens, commercial advertising displays, and creative LED installations.

Packing Details

Version Package Included
MSD300 1 × MSD300 Sending Card
1 × User Manual
1 × Antistatic Bag

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Key Specifications

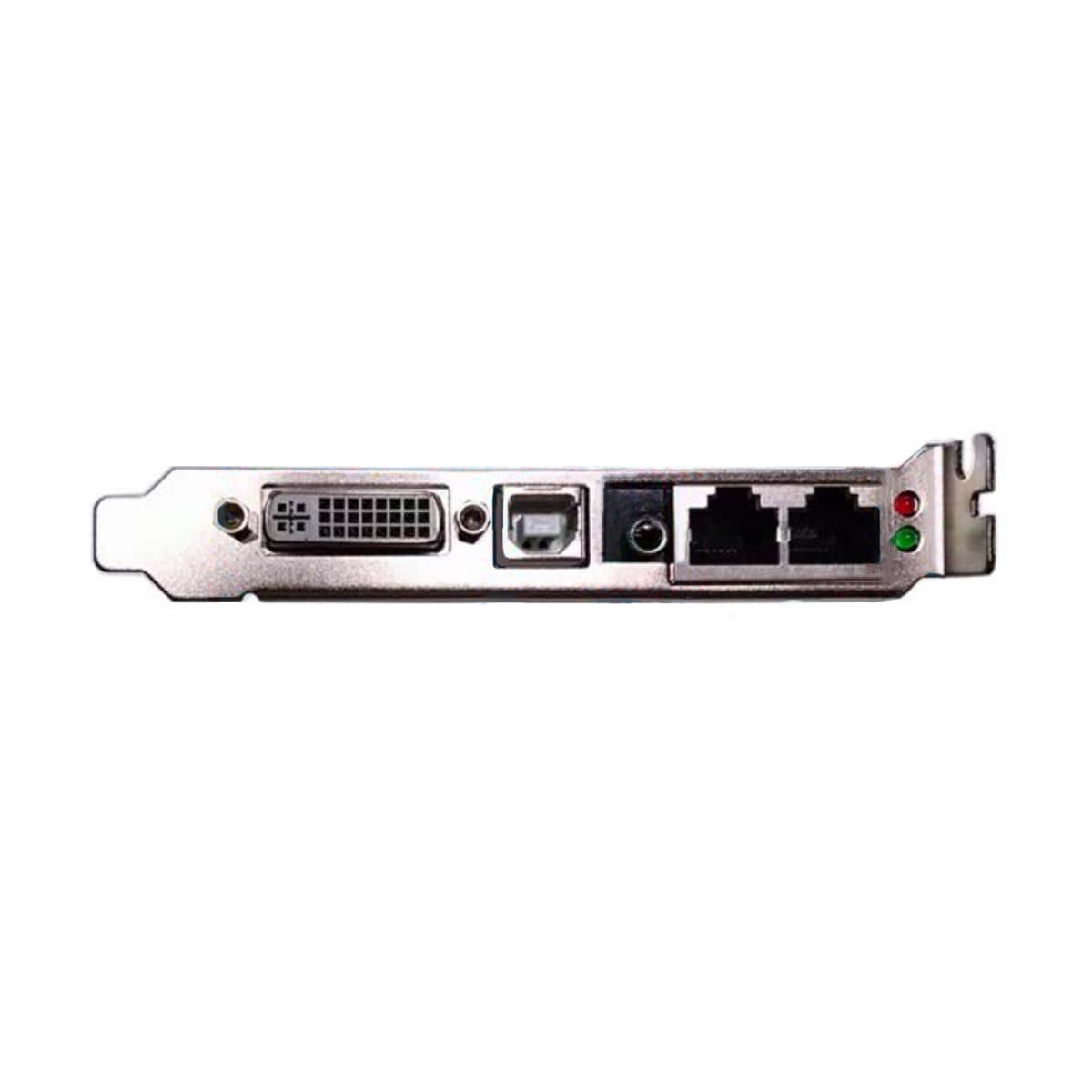

  • 1 × DVI + 1 × 3.5 mm audio input – versatile signal sources

  • 2 × Ethernet outputs – stable, high-speed data transmission

  • Max Resolution: 1920 × 1200 @ 60Hz – high-definition display

  • USB control – supports cascading for multi-device management

  • AC 100–240V – wide-range input for reliable operation

  • Operating Temp: –20°C to +60°C – indoor/outdoor ready

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the receiving card to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the receiving card.

Technical Specifications

Specification Value
Max Capacity 1.3 million pixels
Supported Resolutions 1280×1024, 1024×1200, 1600×848, 1920×712, 2048×668, up to 1920×1200 @ 60Hz
Video Input 1 × DVI
Audio Input 1 × 3.5 mm audio
Output 2 × Ethernet ports
Control USB (cascade supported)
Light Sensor Interface 1 × interface
Power Supply AC 100–240V
Operating Temperature –20°C to +60°C

Applications

  • Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.

  • Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.

  • Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.

  • Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
