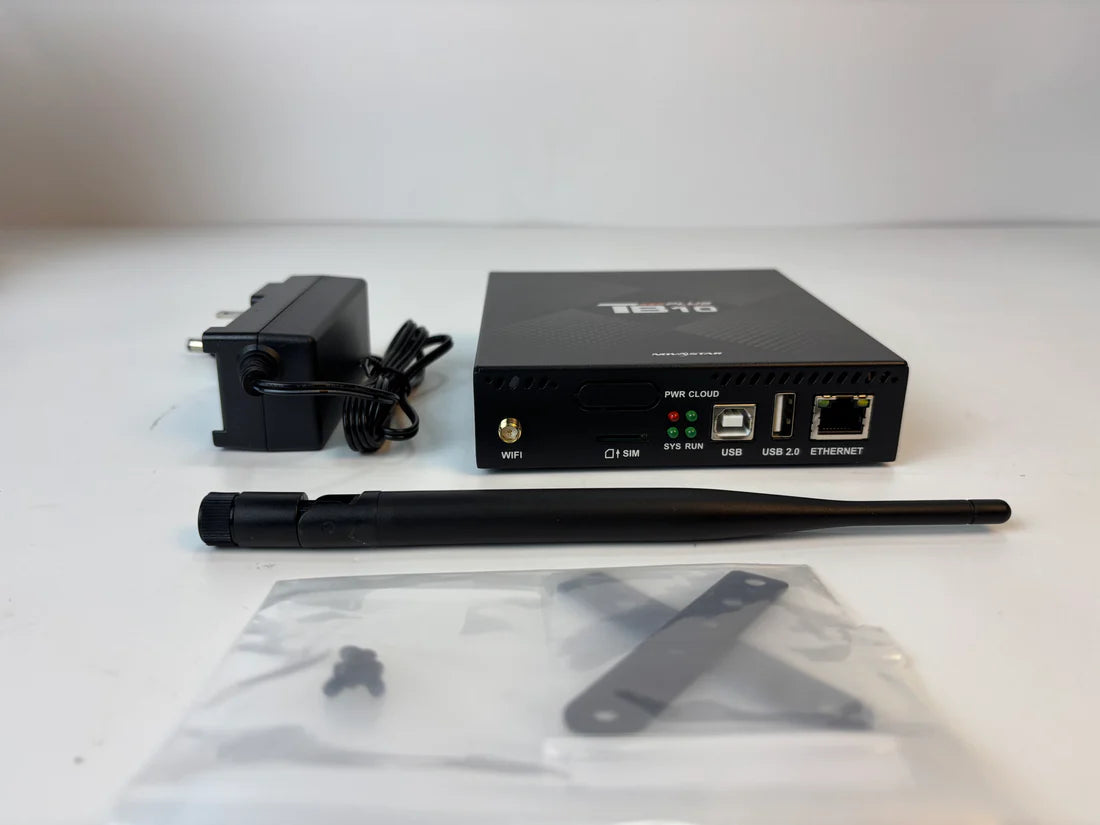

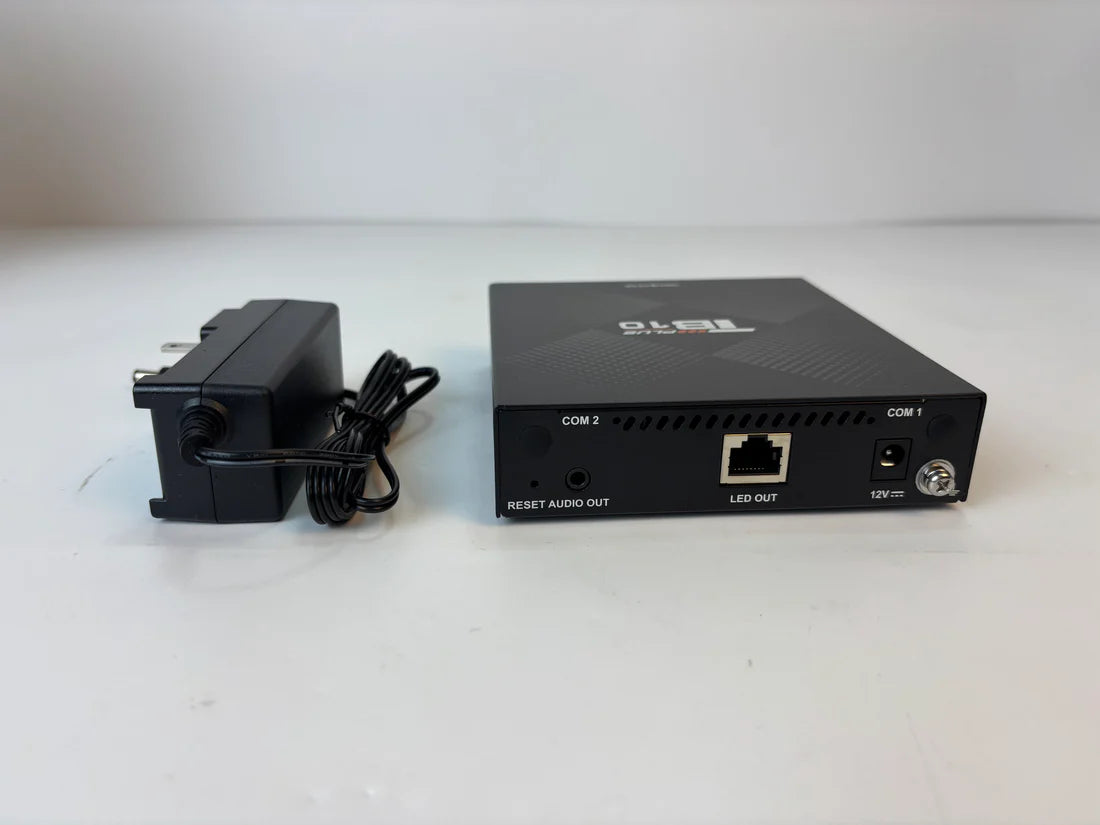

NovaStar TB10 Plus Multimedia Player – Entry-Level Async LED Controller, 650,000 Pixel Loading with Wi-Fi Connectivity

In stock
SKU: PL-PKZQ01-NS-TB10-PLUS
$78.85
Package Qty

NovaStar TB10 Plus Asynchronous LED Controller

The NovaStar TB10 Plus Multimedia Player is an entry-level asynchronous LED controller designed for compact to medium-sized LED displays. Supporting up to 650,000 pixels with flexible USB, LAN, Wi-Fi, and optional 4G connectivity, it provides stable, reliable playback for fixed LED billboards, retail stores, and shelf displays.

Featuring cloud-based publishing, remote monitoring, secure playback verification, and 2.4G Wi-Fi with AP & STA modes, the TB10 Plus ensures versatile installation options. Its metal casing offers long-term durability and professional-grade performance.

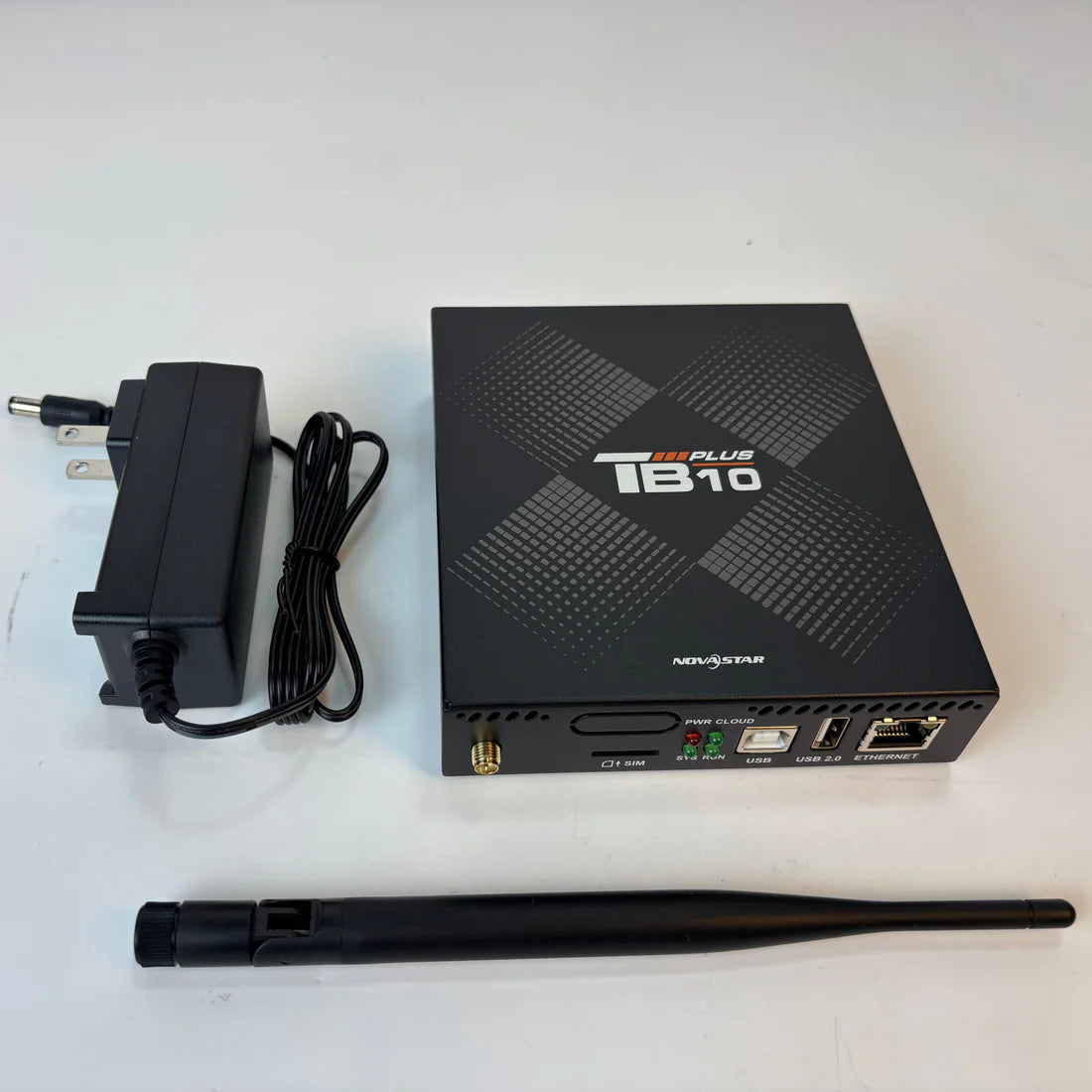

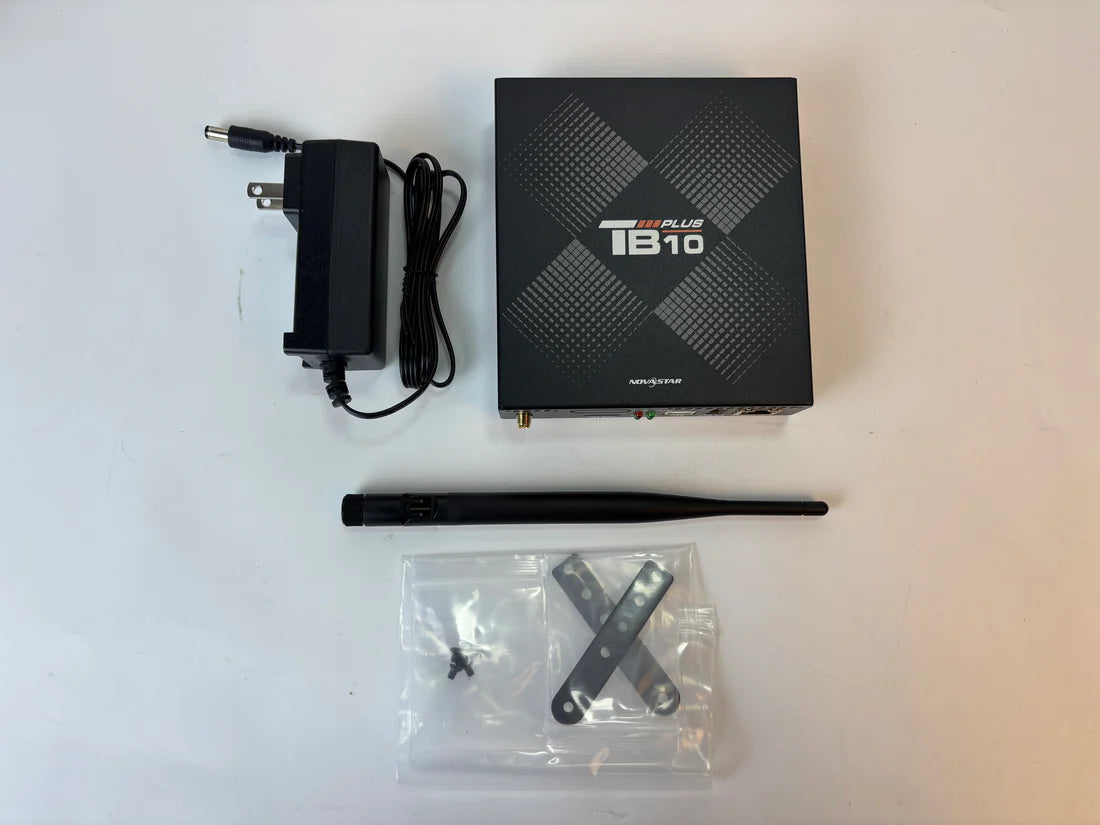

Packing Details

Version Package Included
TB10 Plus 1 × TB10 Plus Multimedia Player
1 × Antistatic Bag
1 × User Manual

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Key Specifications

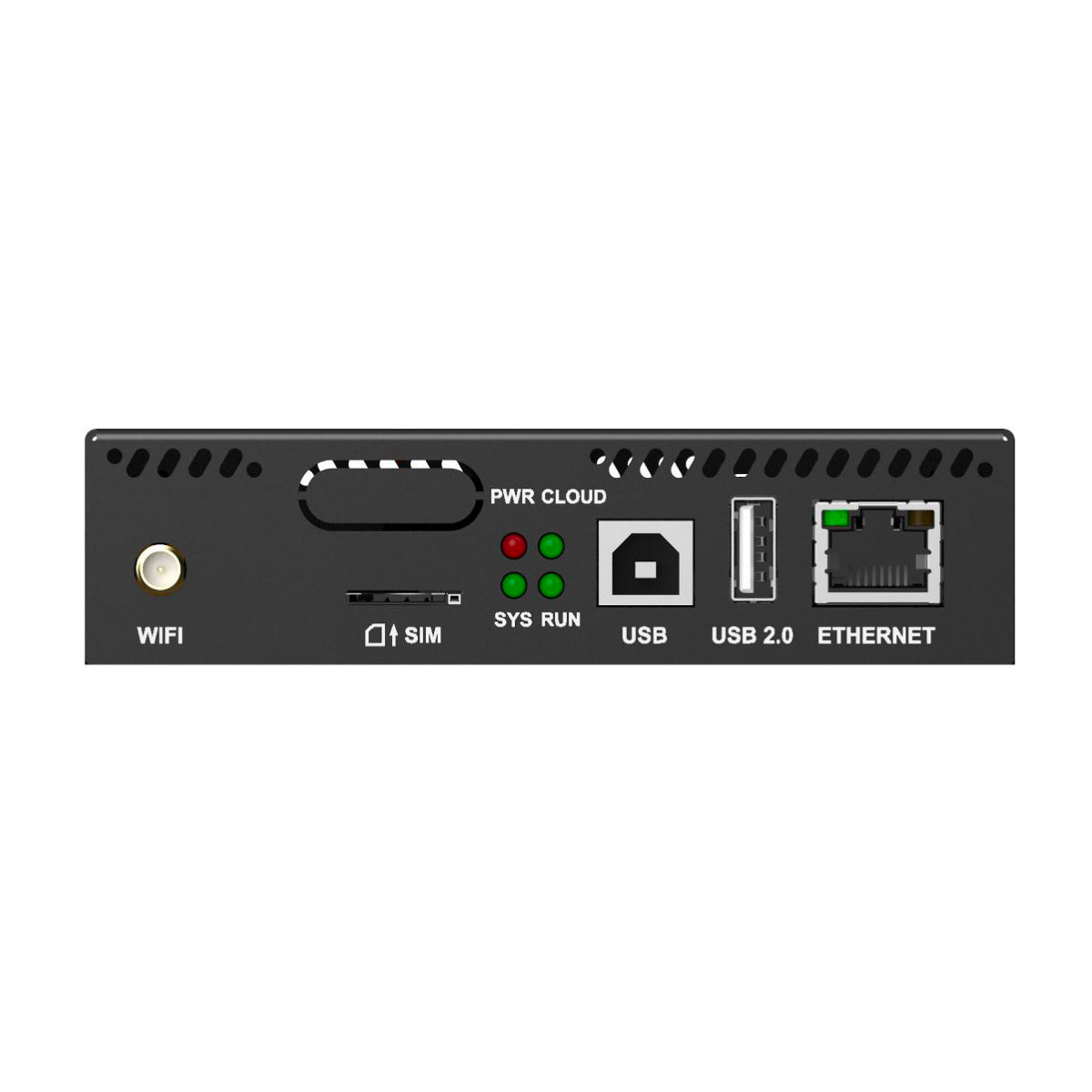

  • Input Ports: 1 × USB 2.0 (Type A), 1 × USB (Type B) for media and control

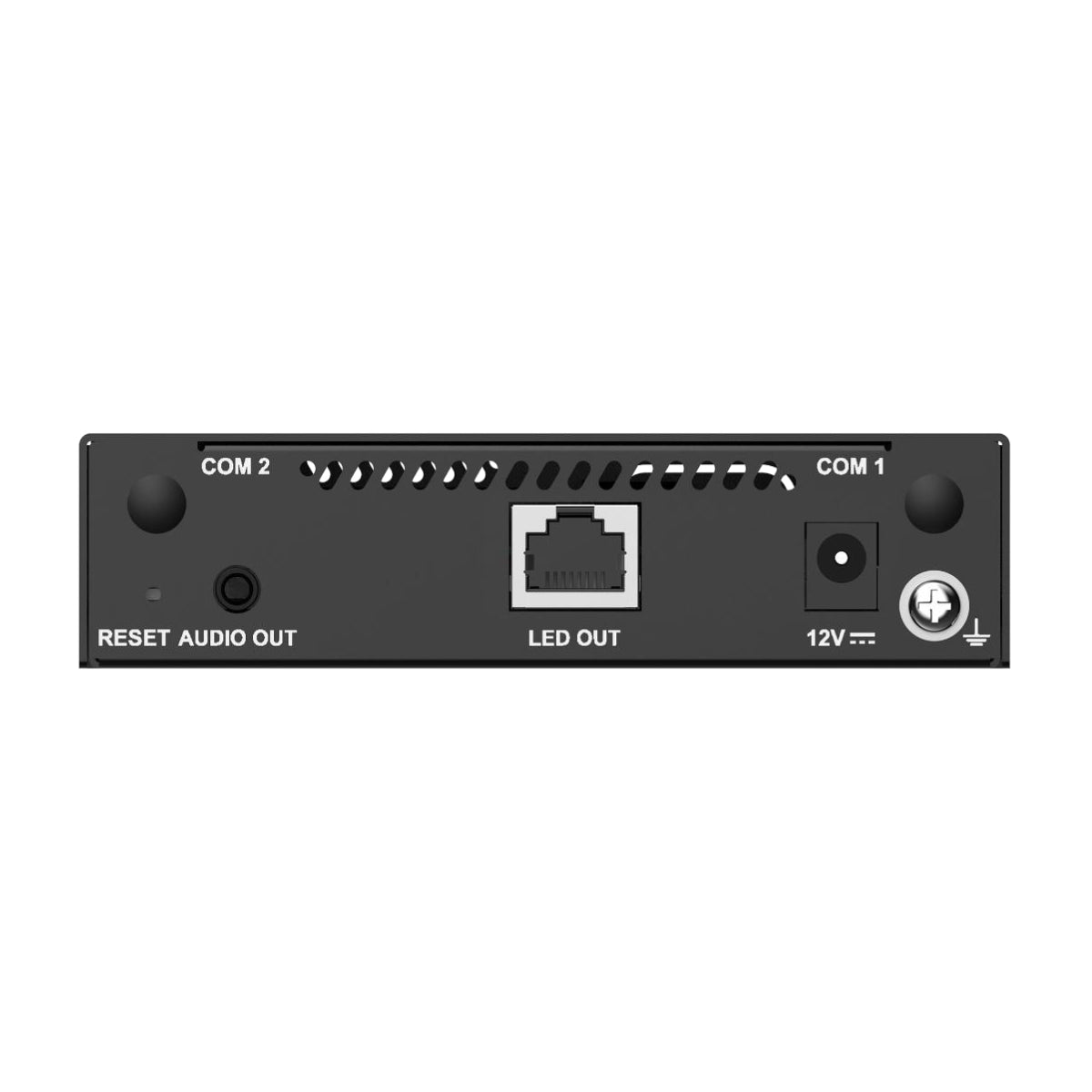

  • Output Ports: 1 × Gigabit Ethernet, 1 × stereo audio output

  • Supported Resolution: Up to 2048 × 2048 (8192 × 2048 for ultra-long screens)

  • Control Method: USB / LAN / Wi-Fi / Cloud-based operation

  • Power Supply: AC 100–240V wide-range input

  • Audio: Stereo, 48 kHz sample rate

  • Mobile Connectivity: Optional 4G; Wi-Fi 2.4G (AP & STA)

  • LED Module Compatibility: Supports multiple pixel pitches with secure playback verification

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the player to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the multimedia player.

Technical Specifications

Specification TB10 Plus
CPU 4 Core A35 Processor, 1.4GHz
Storage 2GB + 32GB
Decode Ability 4K 60fps
Operating System Android 10
Max Pixel Capacity 0.65 million pixels
Max Width / Max Height 2048 × 2048 (Ultra-long: 8192 × 2048)
Video Windows 1 × 4K / 3 × 1080P / 8 × 720P / 16 × 480P / 20 × 360P
LED Output Ports 1 Main, 1 Backup RJ45
Sync Mode NTP, GPS
Dual Mode Switch ×
HDMI Splicing Playback ×
Audio Output √
Sensor Access √
Remote Power Control Requires multifunction card
Sensor One aviation plug
USB Local Playback √ USB2.0
LAN 100 Mbps
Wi-Fi 2.4G Switchable AP & STA
4G Optional
5G Not supported
Viplex Handy √ Cloud/PC/Mobile
NovaStar SDK Agreement √
Appearance Material Metal case
Power Port AC 100–240V
Certification CE EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC

Applications

  • Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.

  • Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.

  • Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.

  • Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
