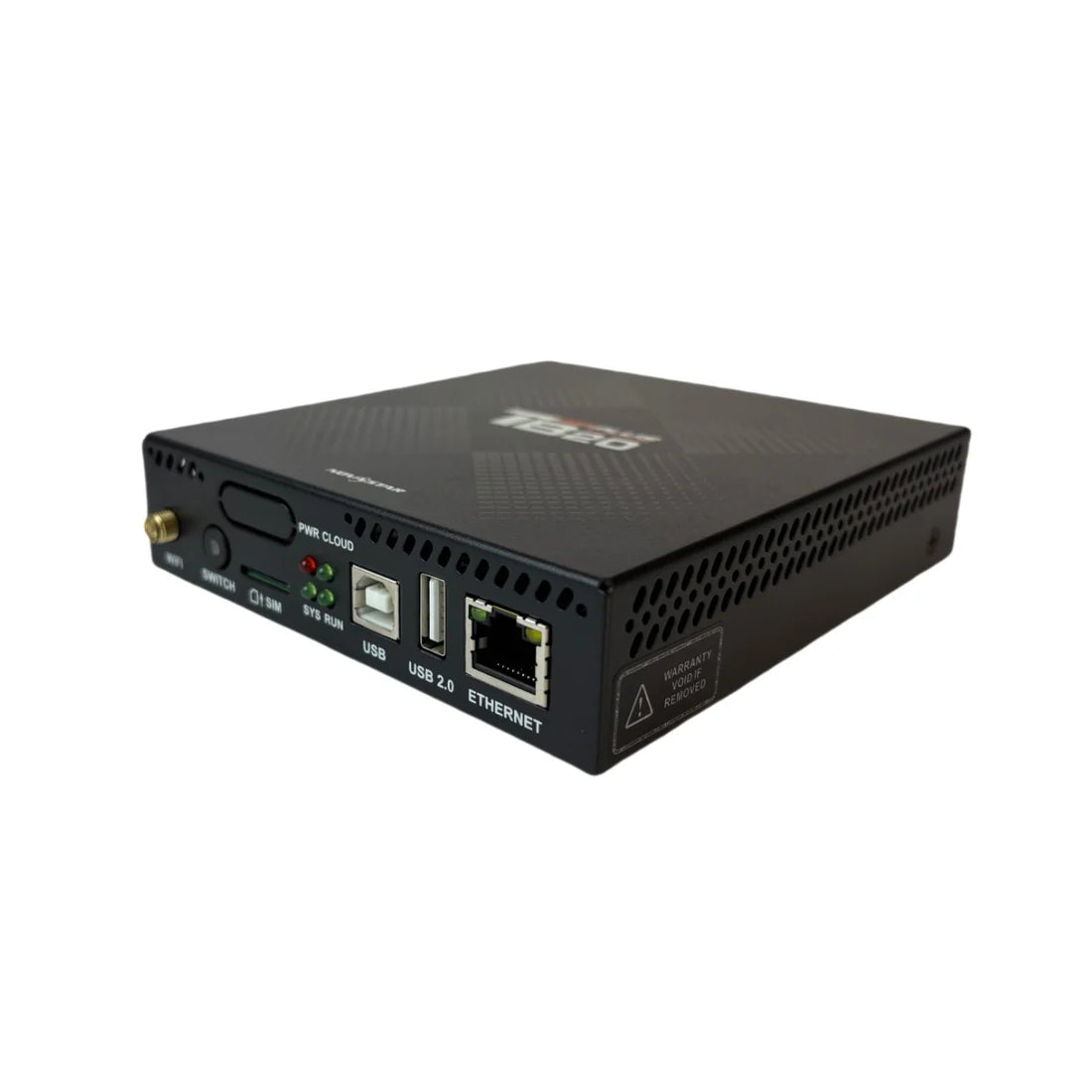

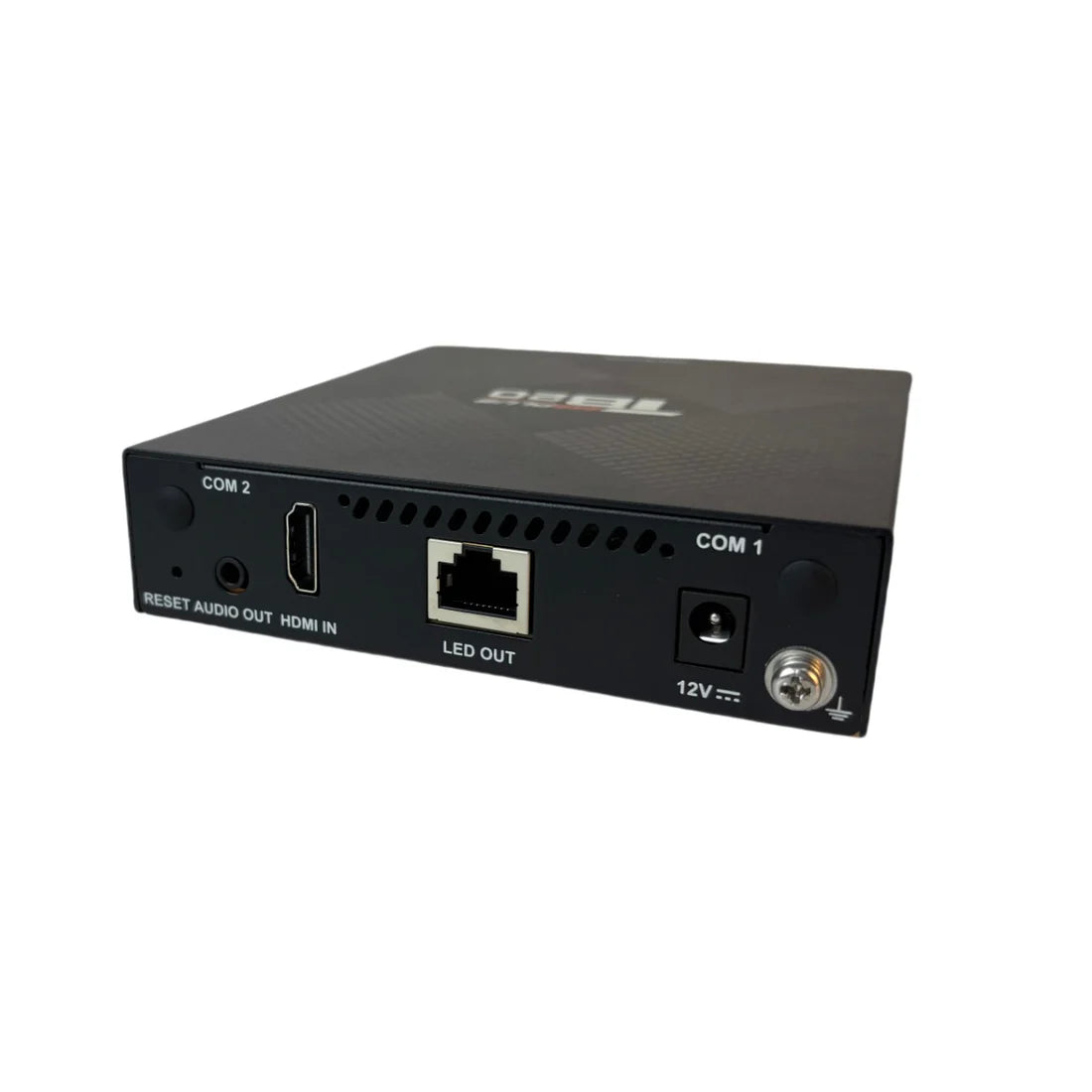

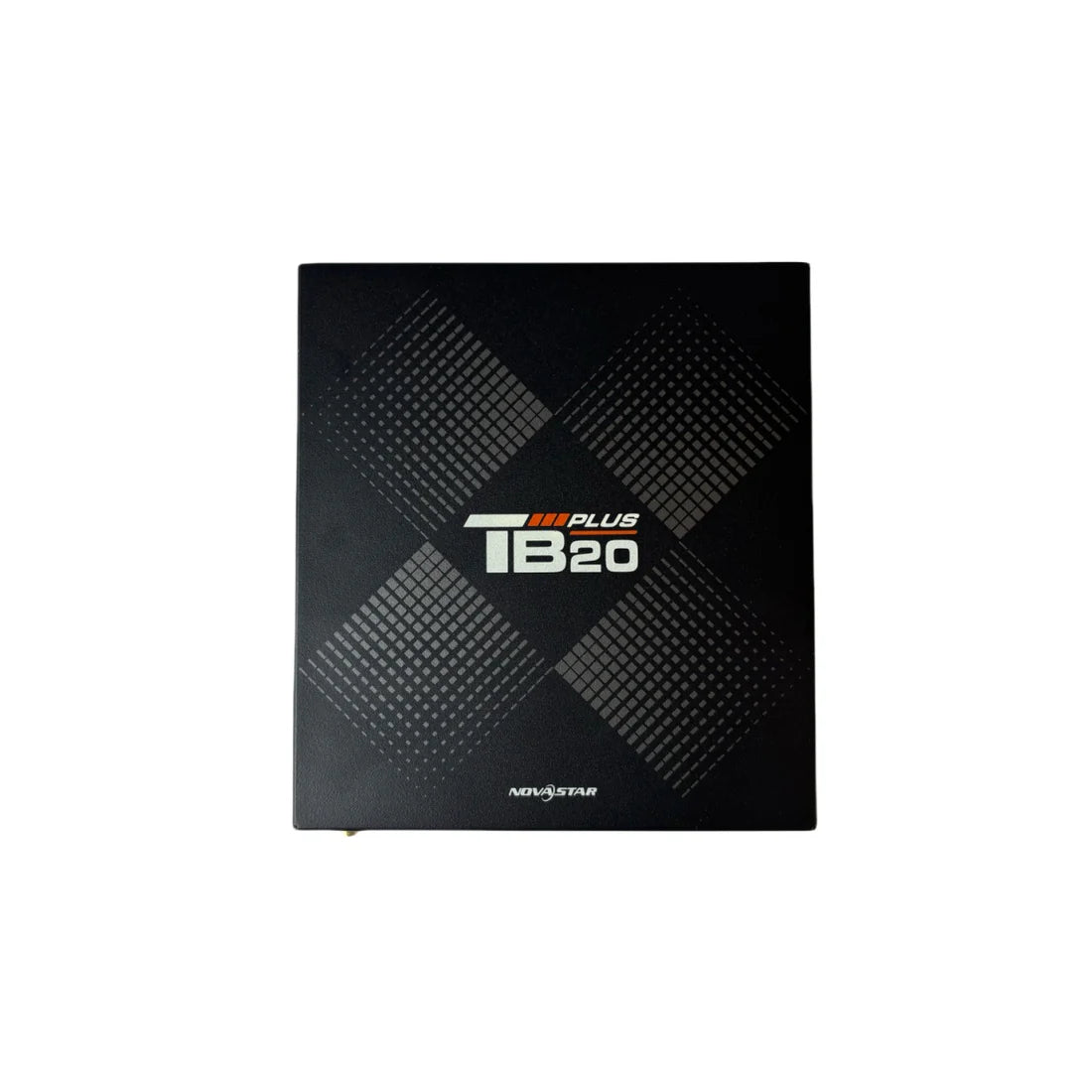

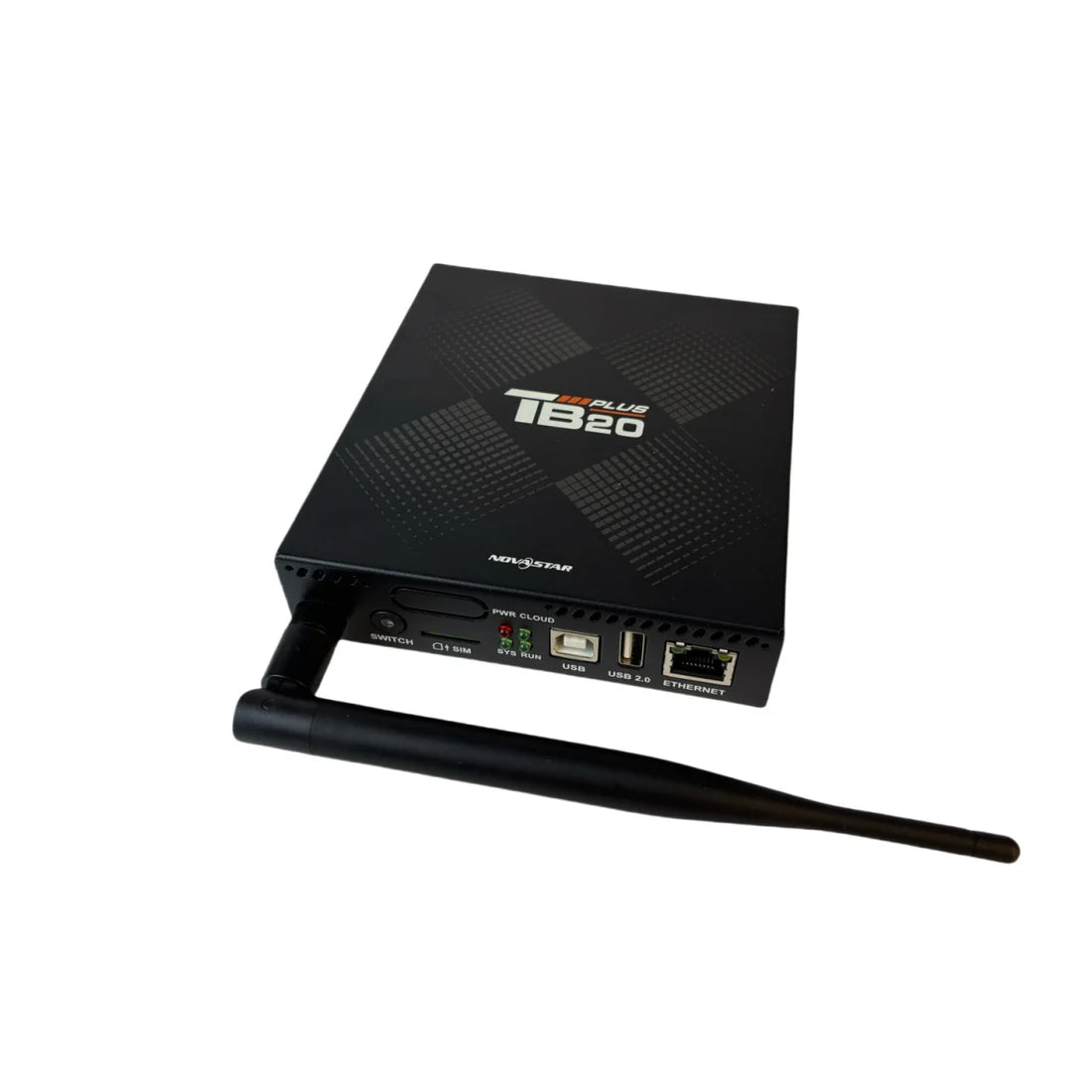

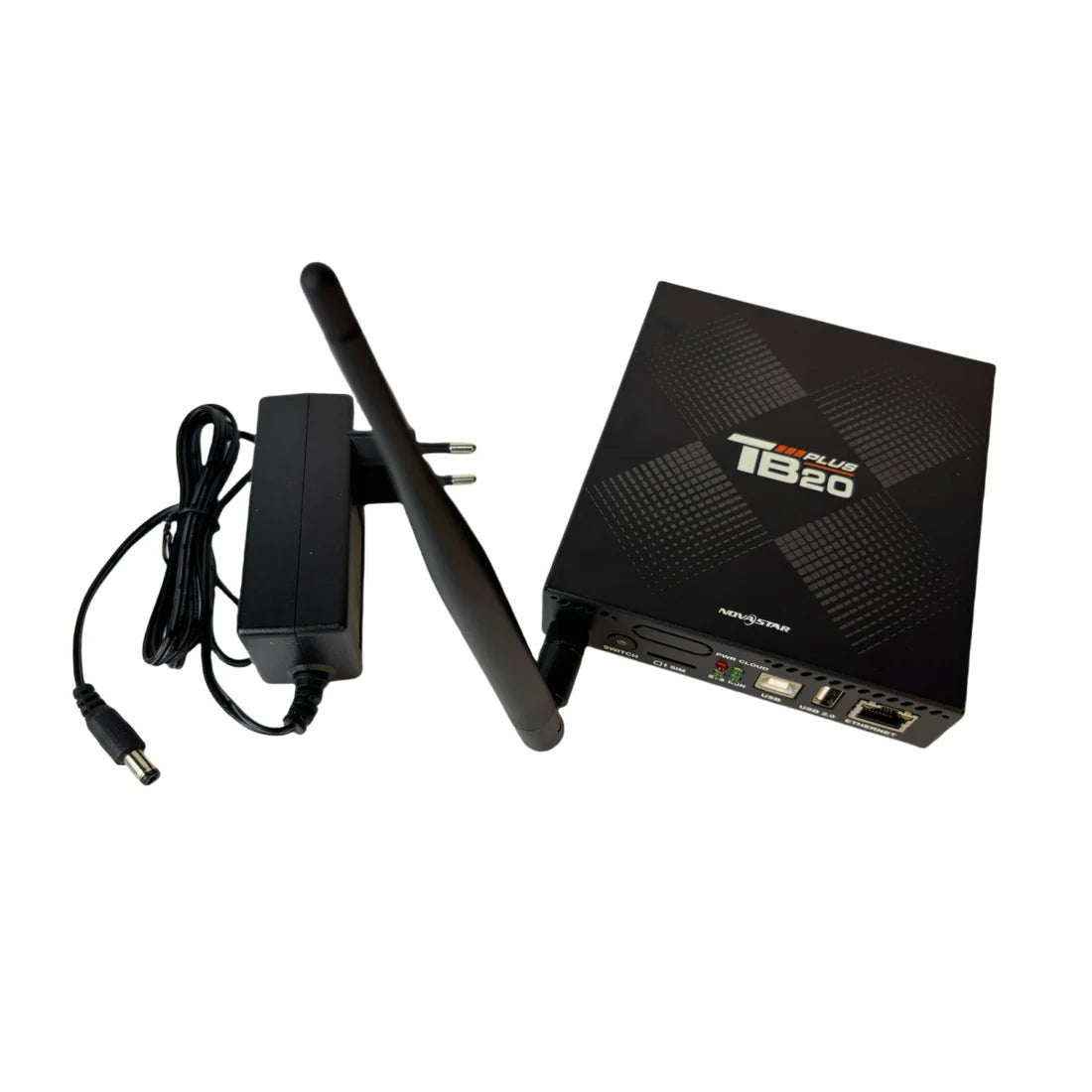

NovaStar TB20 Plus Cloud-Enabled LED Controller
The NovaStar TB20 Plus Multimedia Player is a dual-network port cloud LED controller designed for medium-sized LED displays. Supporting up to 1.3 million pixels with dual-mode operation, it provides stable synchronous and asynchronous playback for fixed LED displays, retail screens, lamp-post displays, chain store advertising, and smart city projects.
Featuring USB, LAN, Wi-Fi, and optional 4G connectivity, along with cloud-based management via Viplex Handy, the TB20 Plus ensures flexible installation and professional-grade performance. Its compact metal casing delivers long-term reliability.
Packing Details
| Version | Package Included |
|---|---|
| TB20 Plus | 1 × TB20 Plus Multimedia Player 1 × Antistatic Bag 1 × User Manual |
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days.
-
Packaging: Safe packaging with foam padding to ensure safe transport.
-
Shipping Origin: All products ship directly from our warehouse.
-
Standard Shipping: 9–18 days | Express Shipping: 5–9 days.
-
Shipping Costs: Calculated based on cart weight, dimensions, and destination.
Key Specifications
-
USB 2.0 local playback, LAN, Wi-Fi
-

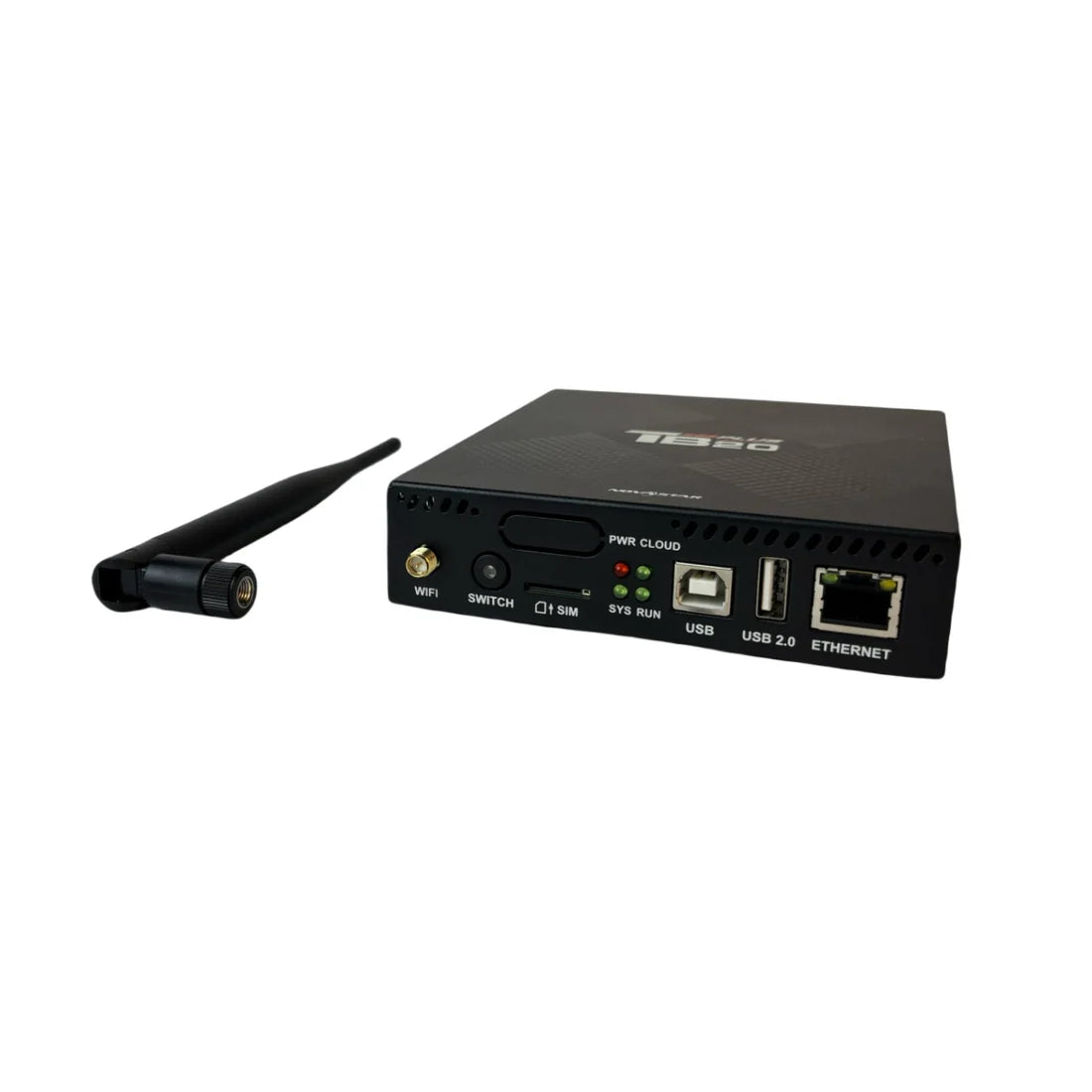

1 × RJ45 main, 1 × RJ45 backup, stereo audio output
-
Up to 2048 × 2048 pixels (8192 × 2048 for ultra-long screens)
-
Cloud / PC / Mobile via Viplex Handy, Network, Wi-Fi, optional 4G
-
AC 100–240V wide-range input
-
Supports multiple LED module pixel pitches
-
Synchronous & asynchronous playback
-

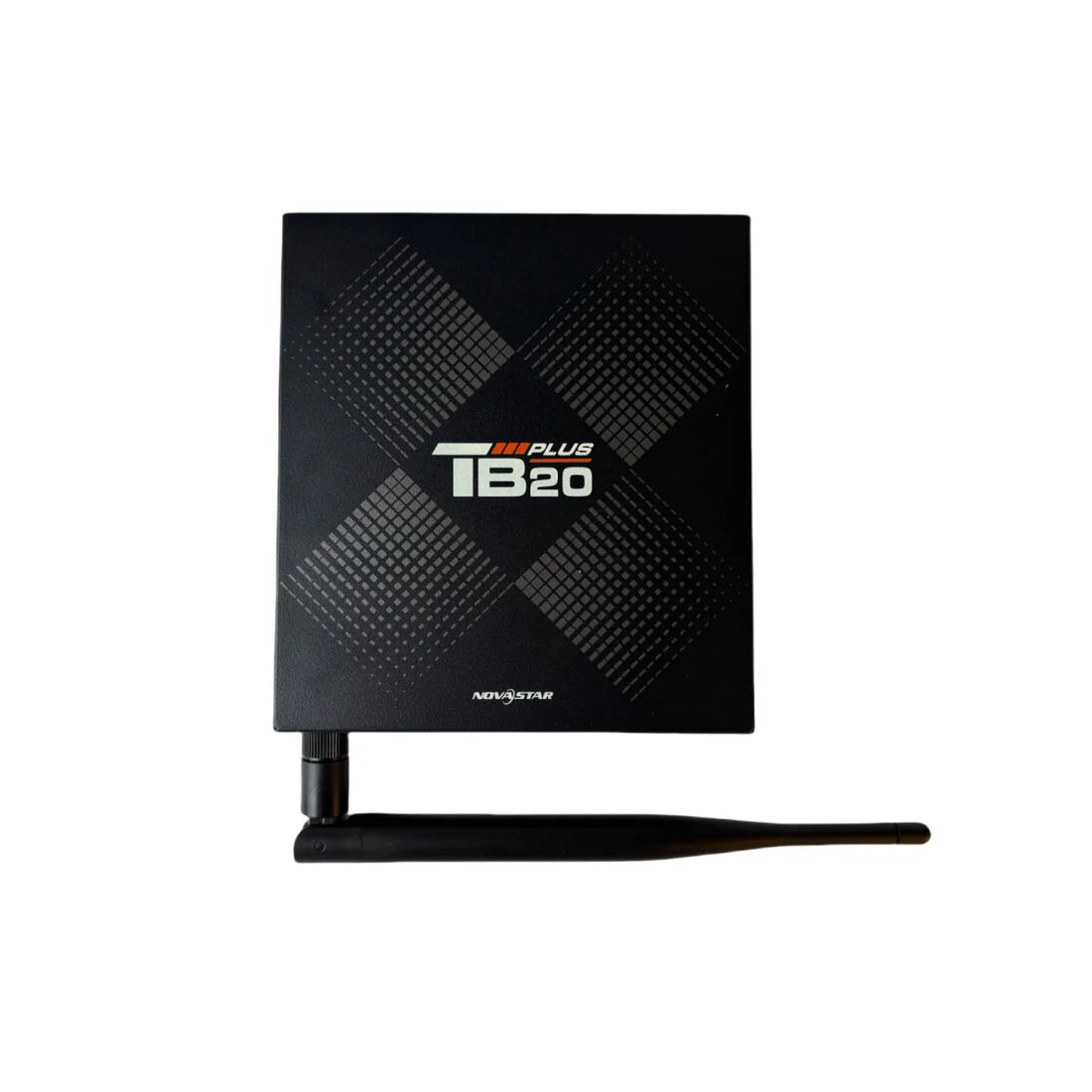

Compact metal case for durability
Installation Tips
-
Power Off First: Always switch off the LED display system before installing or removing the player to prevent damage.
-
Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.
-
Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.
-
Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the multimedia player.
Technical Specifications
| Specification | TB20 Plus |
|---|---|
| CPU | 4 Core A35 Processor / 1.4GHz |
| Storage | 2GB + 32GB |
| Decode Ability | 4K 60fps |
| Operating System | Android 10 |
| Max Pixel Capacity | 1.3 million pixels |
| Max Width / Max Height | 4096 × 4096 |
| Video Windows | 1 × 4K / 3 × 1080P / 8 × 720P / 16 × 480P / 20 × 360P |
| LED Output Ports | 1 Main, 1 Backup RJ45 |
| Sync Mode | NTP, GPS |
| Dual Mode Switch | √ |
| HDMI Splicing Playback | × |
| Audio Output | √ |
| Sensor Access | √ |
| Remote Power Control | Requires multifunction card |
| Sensor | One aviation plug |
| USB Local Playback | √ USB2.0 |
| LAN | 100 Mbps |
| Wi-Fi | 2.4G Switchable AP & STA |
| 4G | Optional |
| 5G | Not supported |
| Viplex Handy | √ Cloud/PC/Mobile |
| NovaStar SDK Agreement | √ |
| Appearance Material | Metal case |
| Power Port | AC 100–240V |
| Certification | CE EMC, LVD, RoHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC |
Applications
-
Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.
-
Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.
-
Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.
-
Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
