NovaStar TB30 Multimedia Player – Asynchronous Controller with USB Playback, 1.3 Million Pixel Loading for LED Screens

In stock
SKU: PL-PKZQ01-NS-TB30
$339.85
Package Qty

NovaStar TB30 USB-Playback LED Controller

The NovaStar TB30 Multimedia Player is a high-performance asynchronous LED controller designed for indoor and outdoor LED displays. Supporting up to 1.3 million pixels with multiple video window outputs, it delivers stable playback and flexible control for fixed installations, rental displays, and creative LED setups.

Equipped with USB local playback, dual-mode WiFi, optional 4G connectivity, and redundant backup, the TB30 ensures reliable performance. Its compact metal case and built-in cooling design provide long-term durability for professional LED applications.

Packing Details

Version Package Included
TB30 1 × TB30 Multimedia Player
1 × Antistatic Bag
1 × User Manual

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Key Specifications

  • HDMI & USB input support

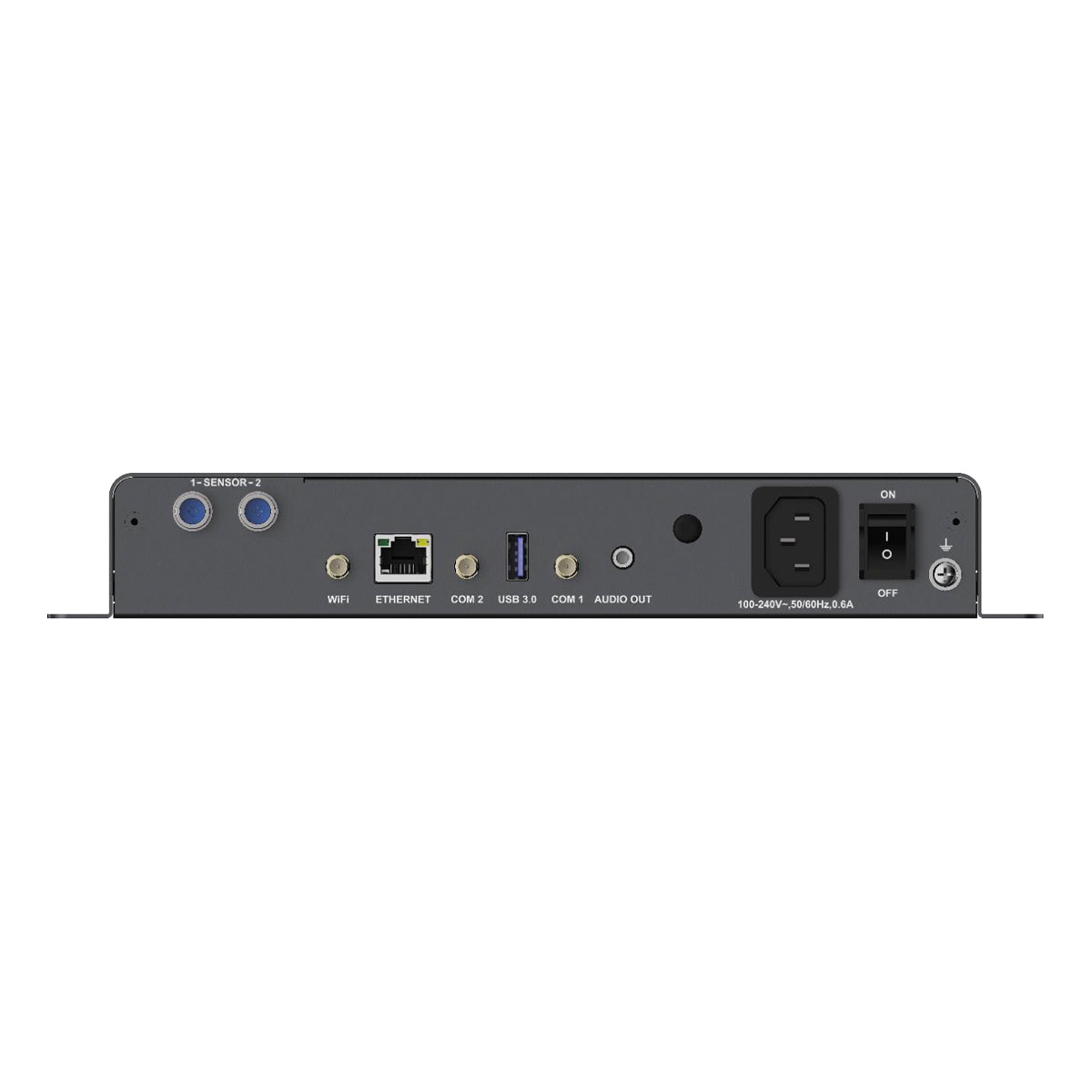

  • 1 × RJ45 main + 1 × RJ45 backup, stereo audio output
  • Max resolution: 4096 × 4096 (stretched up to 8192 × 2084)
  • Control via USB, Network, WiFi, optional 4G
  • AC 100–240V wide-range input
  • Supports multiple LED module pixel pitches
  • Synchronous & asynchronous playback
  • Compact metal case with built-in cooling

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the sender box to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the sender box.

Technical Specifications

Specification Details
CPU 4 Core A55 Processor / 1.8GHz
Storage 1GB + 32GB
Decode Ability 4K 60fps
Operating System Android 11
Max Capacity 0.65 million pixels
Max Width / Max Height 4096 × 4096
Number of Video Windows 1×4K / 2×1080P / 4×720P / 4×480P / 6×360P

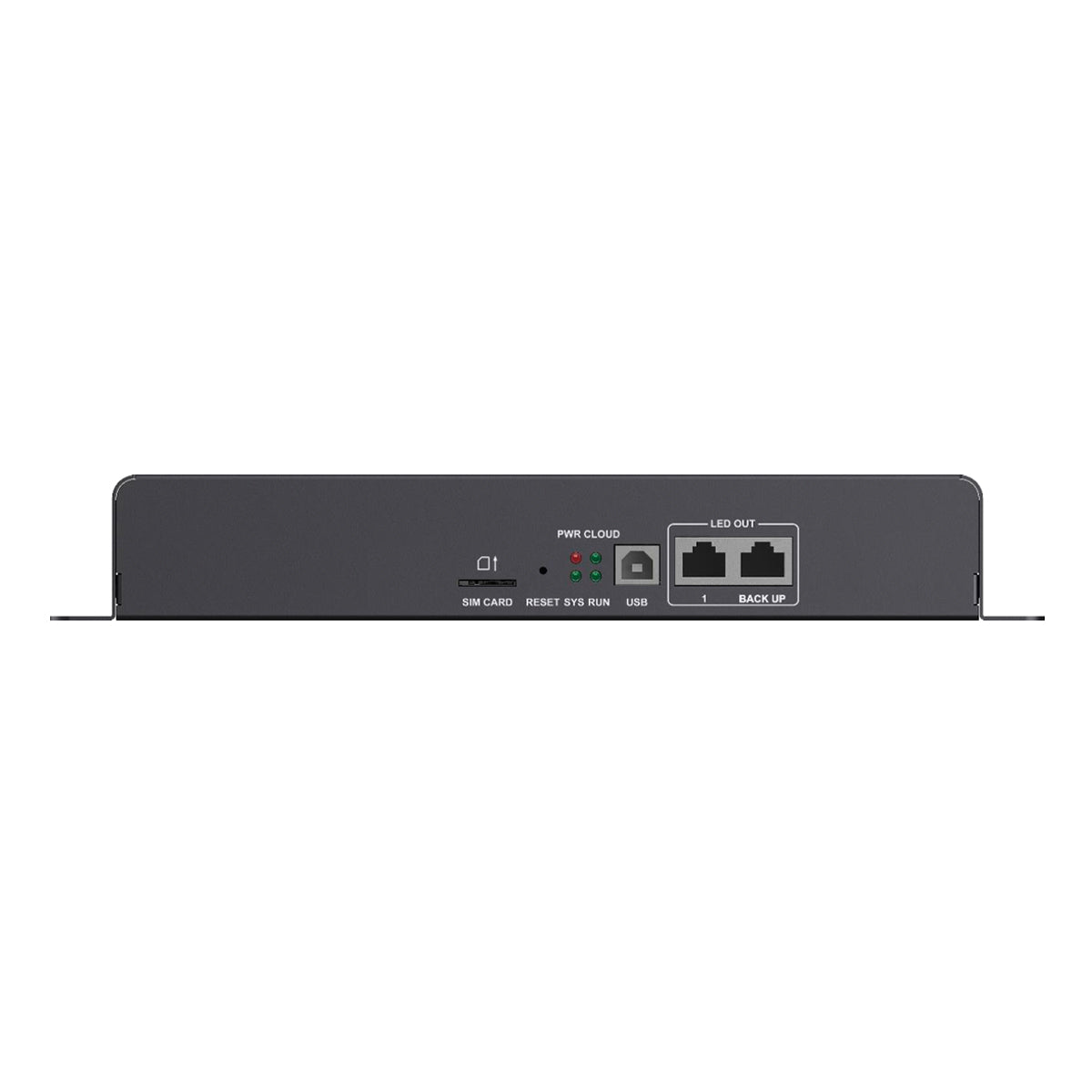

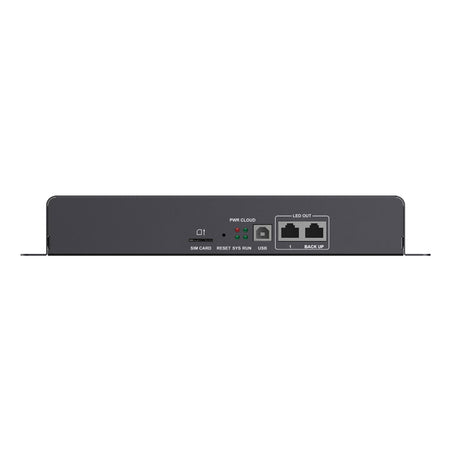

LED Output Port 1 Main + 1 Backup
Sync Mode NTP, GPS
Dual Mode Switch ×
HDMI Splicing Playback ×
Audio Output √
Sensor Access √
Remotely Control Power Need Connect Multifunction Card
Sensor Two aviation plug
USB Local Playback √ USB3.0
LAN 1000 Mbps
WiFi 2.4G Switchable AP & STA
4G Support (Option)
5G Support (Option)
Viplex Handy (Cloud / PC / Mobile Phone) √
Novastar SDK Agreement √
Appearance Material Metal Case
Power Port AC 100–240V
Certification CE EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC

Applications

  • Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.

  • Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.

  • Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.

  • Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
