NovaStar TU15 PRO Playback Controller – Dual-Mode Sync/Async Processor with 2.6 Million Pixel Loading for LED Screens

In stock
SKU: PL-PKZQ01-NS-TU15-PRO
$559.85
Package Qty

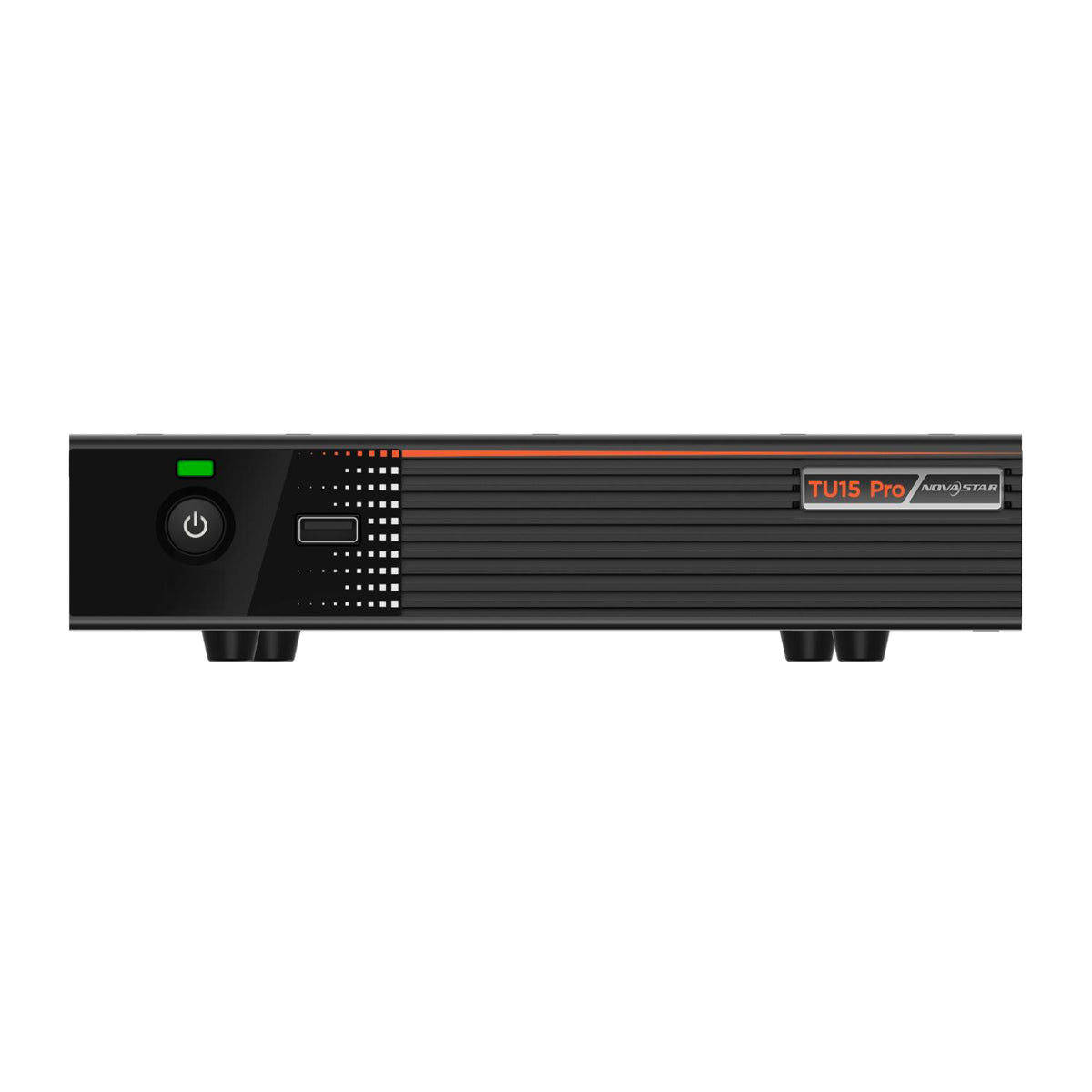

NovaStar TU15 PRO Dual-Mode Playback Controller

The NovaStar TU15 Pro is a powerful dual-mode (sync/async) LED playback control processor designed for professional single-screen LED applications. With a loading capacity of up to 2.6 million pixels, integrated Android system, and built-in sending card functionality, it offers an all-in-one solution for conferences, education, broadcasting, and commercial displays.

Featuring multi-platform wireless screen mirroring, intelligent broadcast control, and flexible installation options, the TU15 Pro delivers smooth, high-quality visuals without the need for separate controllers or complex setup. Ideal for meeting rooms, lecture halls, hotels, telemedicine rooms, and corporate environments.

Packing Details

Version Package Included
TU15 Pro 1 × TU15 Pro Controller
1 × Antistatic Bag
1 × User Manual

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Key Specifications

  • Built-in Android 11 playback controller
  • Max load: 2.6 million pixels
  • 2 × HDMI 1.3 inputs + 3 × USB 2.0
  • 4 × Ethernet outputs for LED screens
  • Wireless screen mirroring: Windows / macOS / iOS / Android
  • Supports synchronous & asynchronous display
  • Flexible installation: wall-mount or tabletop
  • Ideal for meetings, presentations, and signage

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the sender box to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the sender box.

Technical Specifications

Feature Details
Input Voltage DC 12V 3A
Standby Power ≤0.5W
Loading Capacity 2.6 million pixels
Max Resolution Width 4096 px, Height 1920 px
Operating System Android 11
Wi-Fi Wi-Fi6 (AP) / Wi-Fi5 (Station)
Memory 4GB RAM / 32GB Storage

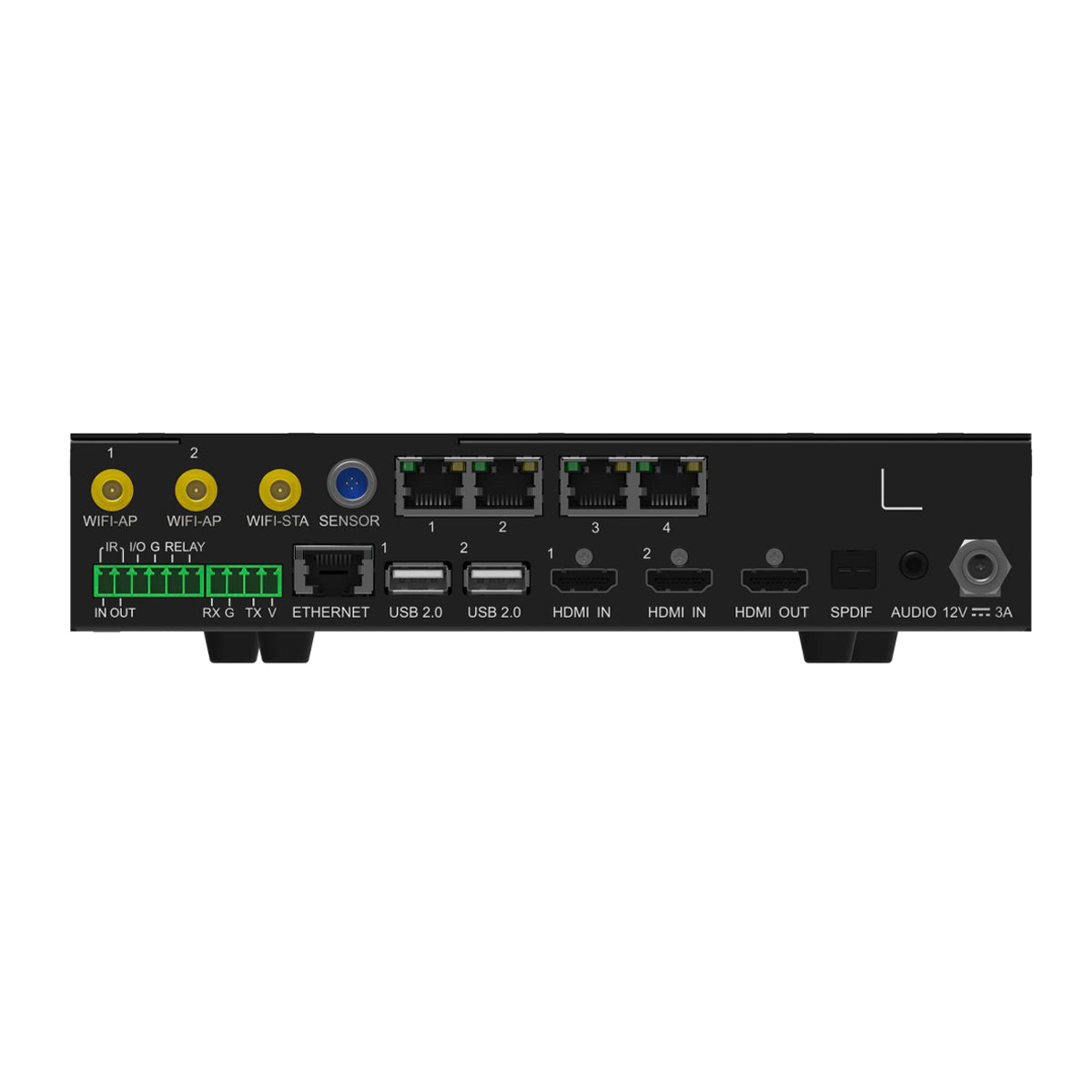

Input Ports 2 × HDMI 1.3, 3 × USB 2.0
Output Ports 6 × RJ45, 1 × HDMI 1.3, 1 × SPDIF, 1 × 3.5mm Audio
Control Ports 1 × 100 Mbps Ethernet, 1 × RS232, 1 × Sensor port
Wireless Projection Windows / iOS / Android / Type-C wireless adapter
Whiteboard Supported (requires IR frame)
Photo Mapping Supports mobile phone photo mapping
Intelligent Voice Control Supported
Image Enhancement Supported
Free Scaling Supported
Display Modes Standard / Soft / Theater / Meeting
Eye Protection Mode One-click low-blue-light mode
Custom Launcher Supported
Custom Boot Animation Supported

Applications

  • Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.

  • Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.

  • Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.

  • Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
