NovaStar TU20 PRO Playback Controller – Hybrid LED Control Box with 4K Input, 3.9 Million Pixel Loading

In stock
SKU: PL-PKZQ01-NS-TU20-PRO
$1,099.95
Package Qty

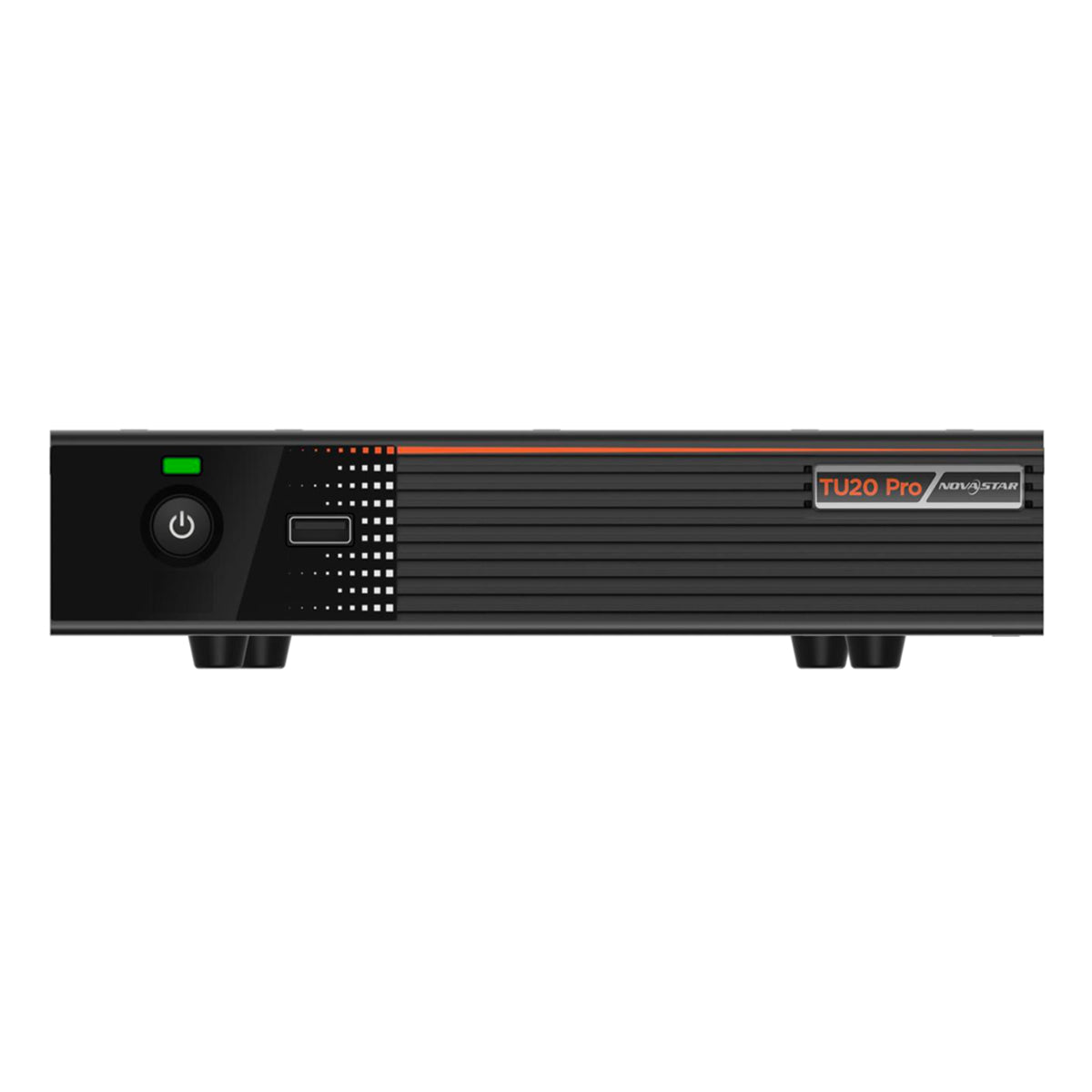

NovaStar TU20 PRO 4K-Input Playback Controller

The NovaStar TU20 Pro is a hybrid playback and control processor designed for small to medium-sized LED displays. Supporting up to 3.9 million pixels with multiple input sources and onboard Android system, it delivers flexible, stable, and efficient playback performance for commercial and professional installations.

Equipped with 2× HDMI 1.3, 3× USB inputs, wireless screen mirroring, and app/remote control, the TU20 Pro offers streamlined content management and reliable signal output. Its compact form factor makes it ideal for meeting rooms, exhibition halls, retail displays, and integrated LED playback environments.

Packing Details

Version Package Included
TU20 Pro 1 × TU20 Pro Controller
1 × Power Adapter
1 × User Manual

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Key Specifications

  • 2× HDMI 1.3 + 3× USB 2.0 inputs

  • 5× Ethernet outputs for LED screens

  • Max load: 3.9 million pixels

  • Supports up to 4096×1920 resolution

  • Wireless screen mirroring & app control

  • Compact design for flexible installation

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the sender box to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the sender box.

Technical Specifications

Specification Details
Size 211.7 mm × 185.0 mm × 50.6 mm
Input Voltage DC 12V 3A
Loading Capacity 3.9 million pixels
Max Resolution Width 4096 px, Height 1920 px
Operating System Android 11
Wi-Fi Wi-Fi6 (AP); Wi-Fi5 (Station)
Memory Space 4GB RAM / 32GB Storage

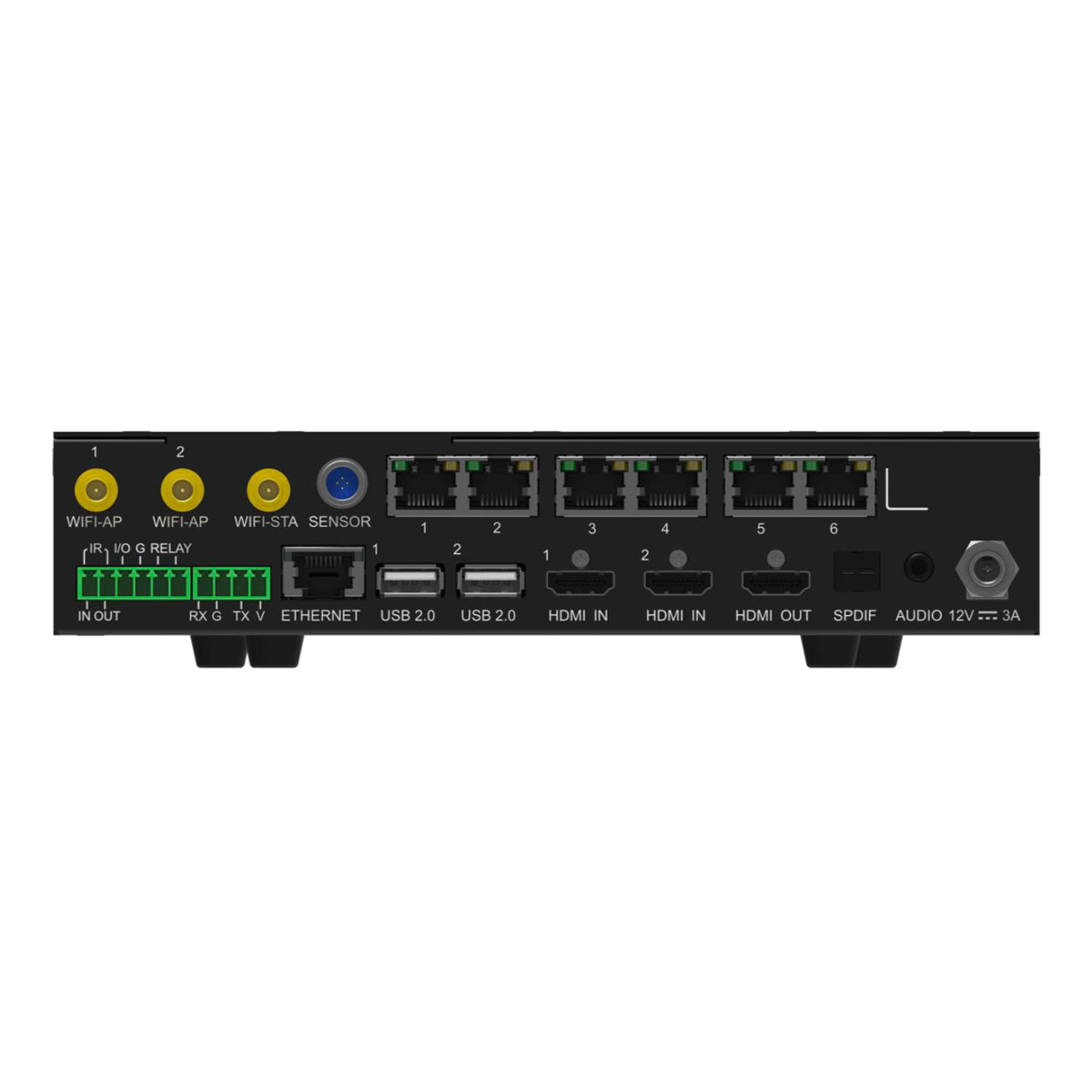

Input Ports 2× HDMI 1.3, 3× USB 2.0
Output Ports 6× RJ45, 1× HDMI 1.3, 1× 3.5mm Audio, 1× SPDIF

Applications

  • Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.

  • Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.

  • Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.

  • Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
