NovaStar VX1000 PRO Video Processor – Ultra HD 4K Processor with HDR & Seamless Switching, 4.9 Million Pixel Loading
Couldn't load pickup availability

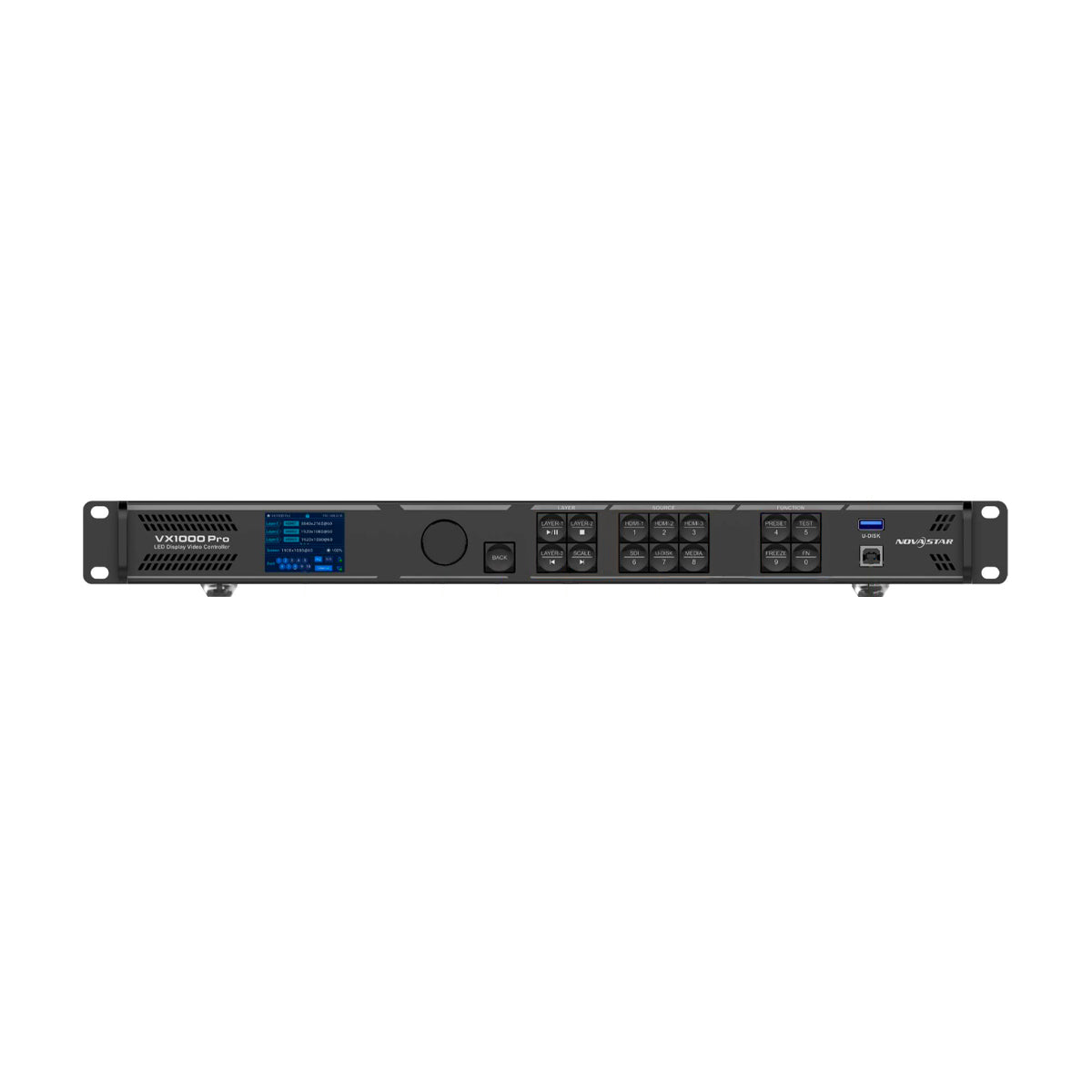

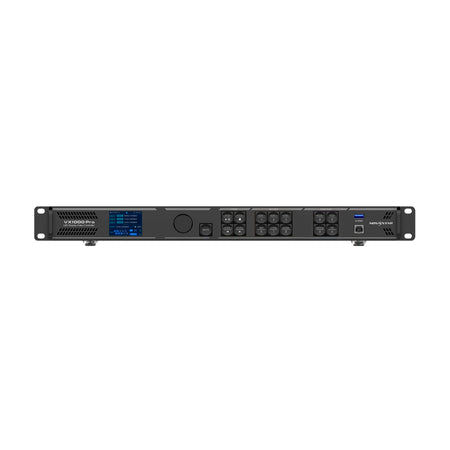

NovaStar VX1000 PRO Ultra HD LED Video Processor
The NovaStar VX1000 PRO Video Processor is a high-performance LED controller supporting up to 6.5 million pixels. Compatible with ultra-wide and high-resolution LED screens, it delivers pixel-level brightness and chroma calibration, ensuring stable, low-latency performance for professional indoor/outdoor, rental, and creative LED installations.
Featuring multi-input HDMI & DVI, 10× Gigabit Ethernet outputs, and USB control, the VX1000 PRO provides flexible scaling, cascading, and redundant system support. Its compact design with efficient cooling makes it ideal for medium/high-end rental displays, stage control, and fine-pitch LED screens.
Packing Details
| Version | Package Included |
|---|---|
| VX1000 PRO | 1 × VX1000 PRO Video Processor 1 × Antistatic Bag 1 × User Manual |
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days.
-
Packaging: Safe packaging with foam padding to ensure safe transport.
-
Shipping Origin: All products ship directly from our warehouse.
-
Standard Shipping: 9–18 days | Express Shipping: 5–9 days.
-
Shipping Costs: Calculated based on cart weight, dimensions, and destination.
Key Specifications
- HDMI & DVI dual input
- 10× Gigabit Ethernet outputs
- Max load: 6.5 million pixels
- Supports up to 10240×8192 @ 60Hz
- USB control & cascading
- Stable performance for rental & fixed LED screens
- Supports video controller, bypass, and fiber converter modes
- Compact design with efficient cooling
Installation Tips
-
Power Off First: Always switch off the LED display system before installing or removing the sender box to prevent damage.
-
Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.
-
Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.
-
Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the sender box.
Technical Specifications
| Feature | VX1000 PRO |
|---|---|
| Loading Capacity | 6.5 million pixels |
| Max Resolution | 10240 × 8192 pixels |
| Layers | 6 × 2K × 1K |
| Input Connectors | 1× HDMI 2.0 (IN & LOOP), 2× HDMI 1.3, 1× 3G-SDI (IN & LOOP), 1× 10G OPT Port (OPT1), 1× USB3.0 |

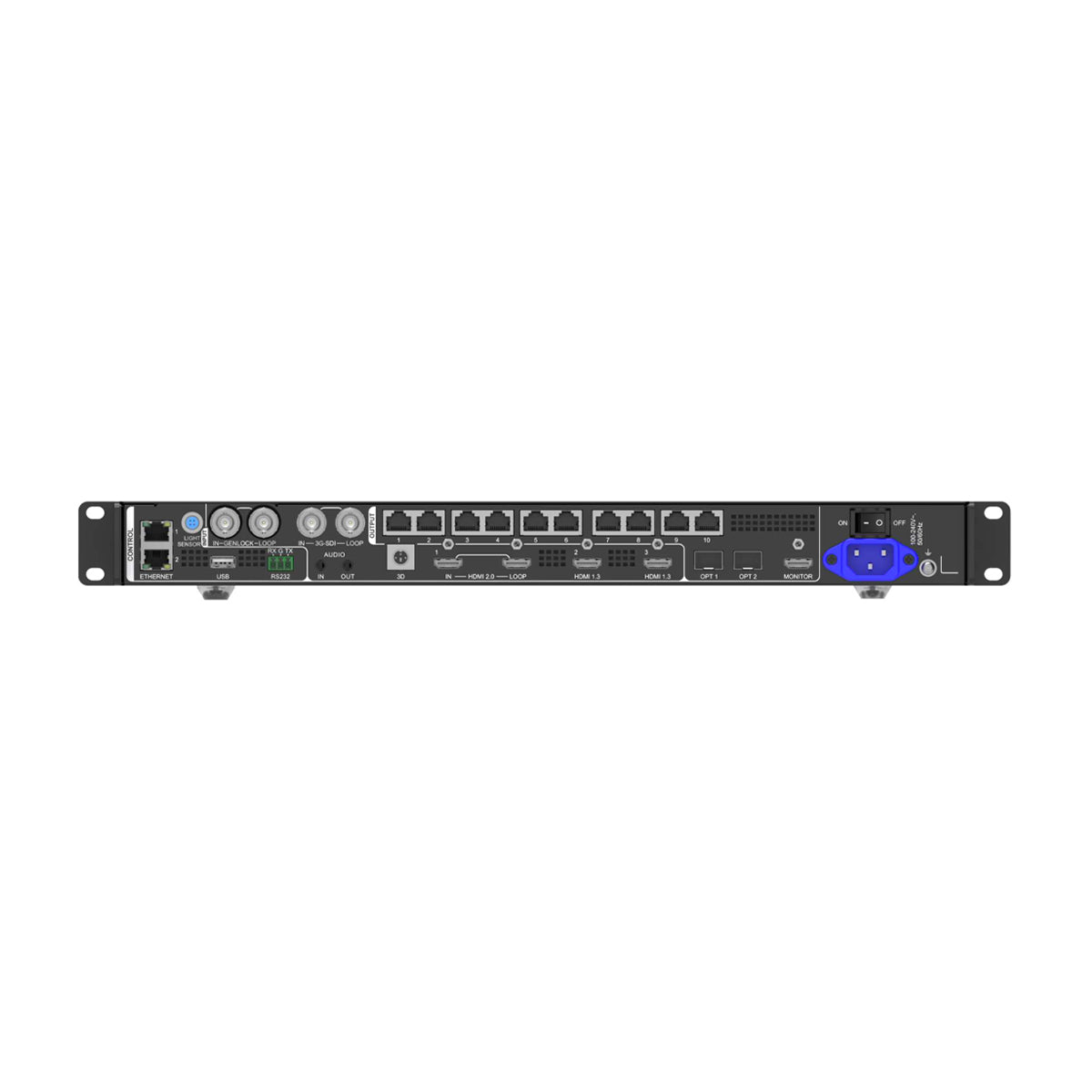

| Output Connectors | 10× Ethernet Ports, 1× HDMI1.3, 1× HDMI 2.0 LOOP, 1× 3G-SDI LOOP, 2× OPT |
| Control Method | USB / Network |
| Power Supply | AC 100–240V |
| Operating Temperature | -20°C to 60°C |
Applications
-
Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.
-
Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.
-
Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.
-
Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
