NovaStar VX400 PRO Video Processor – Compact 4K HDR Processor with 1.3 Million Pixel Loading for High-Resolution LED Walls

In stock
SKU: PL-PKZQ01-NS-VX400-PRO
$1,249.00
Package Qty

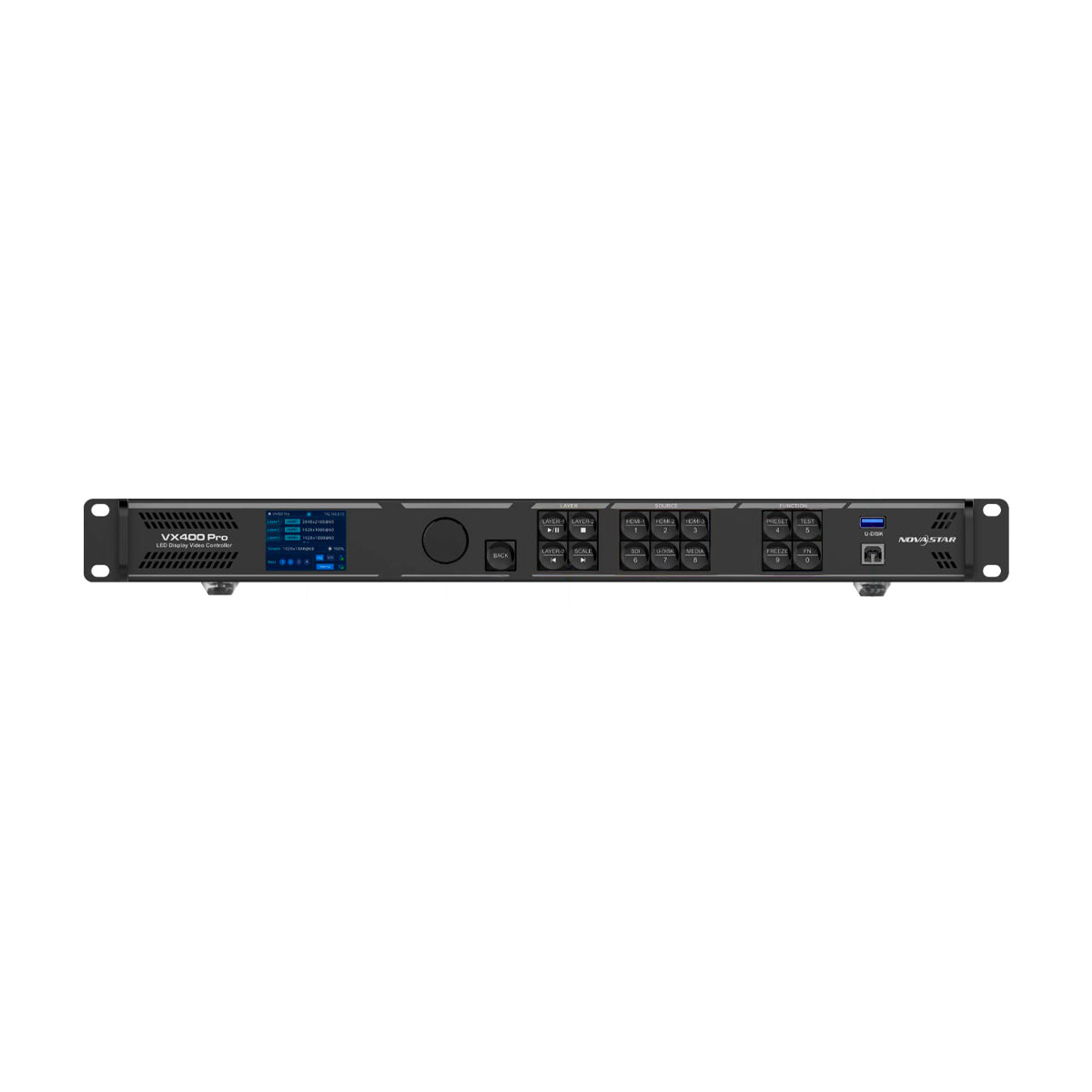

NovaStar VX400 PRO 4K LED Video Processor

The NovaStar VX400 Pro is a compact and high-performance all-in-one LED video processor designed for high-resolution and ultra-wide LED displays. Supporting up to 2.6 million pixels with stepless scaling, low latency, HDR, and pixel-level calibration, it delivers exceptional image quality for rental, stage, and fine-pitch LED applications.

Featuring HDMI 2.0, SDI, OPT, and multi-mode operation (Video Controller / Fiber Converter / Bypass), the VX400 Pro integrates seamlessly with NovaLCT and V-Can for screen configuration, layer control, presets, and firmware management — making it ideal for professional live events and fixed installations.

Packing Details

Version Package Included
VX400 Pro 1 × VX400 Pro Video Processor
1 × Power Cable
1 × USB Cable
1 × User Manual

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Key Specifications

  • 1× HDMI 2.0 + 2× HDMI 1.3 + SDI input

  • 4× Ethernet + HDMI loop + SDI loop + dual OPT outputs

  • Max load: 2.6 million pixels

  • Supports up to 10240×8192 output resolution

  • USB & Ethernet control, NovaLCT + V-Can supported

  • Low-latency processing & stepless output scaling

  • Stable performance for rental & high-end fixed LED screens

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the sender box to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the sender box.

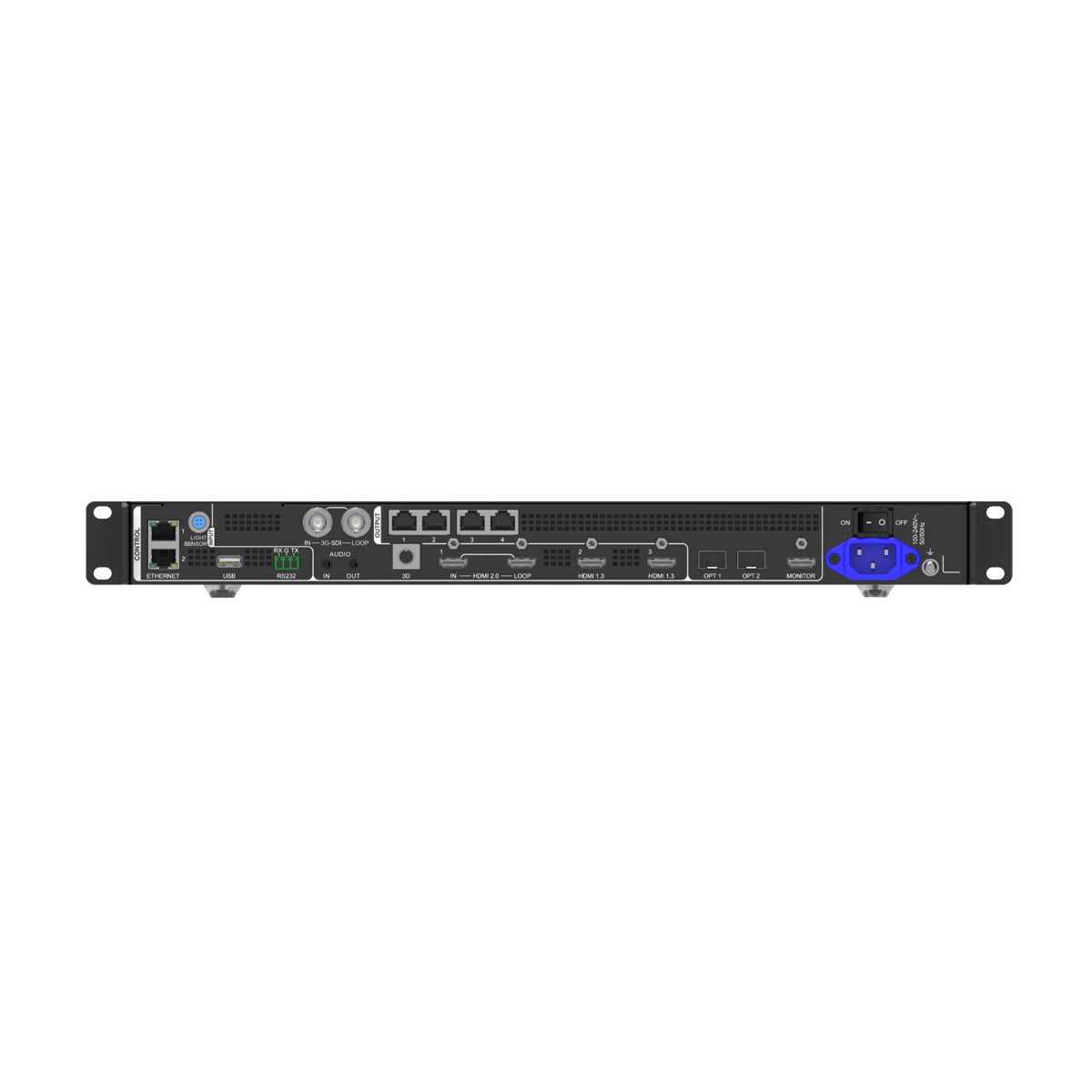

Technical Specifications

Specification VX400 Pro
Loading Capacity 2.6 million pixels
Max Width 10240 px
Max Height 8192 px
Layers 6 × 2K × 1K
Input Connectors 1 × HDMI 2.0 (IN & LOOP)
2 × HDMI 1.3
1 × 3G-SDI (IN & LOOP)
1 × 10G OPT Port (OPT1)
1 × USB3.0
Output Connectors 4 × Ethernet
1 × HDMI 1.3
1 × HDMI 2.0 LOOP
1 × 3G-SDI LOOP
2 × OPT
Presets 256
Control Connectors 2 × Ethernet
1 × USB

Applications

  • Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.

  • Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.

  • Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.

  • Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
