NovaStar VX600 PRO Video Processor – Multi-Input 4K LED Processor with Advanced Scaling, 2.3 Million Pixel Capacity

In stock
SKU: PL-PKZQ01-NS-VX600-PRO
$1,349.00
Package Qty

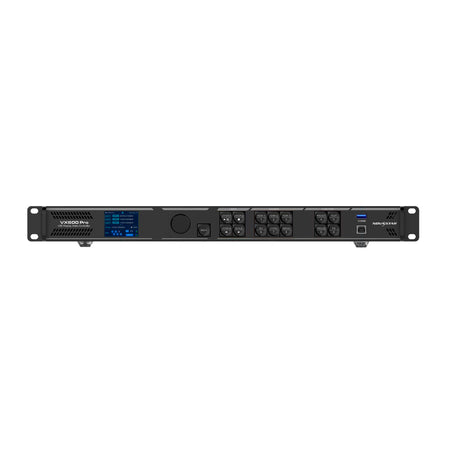

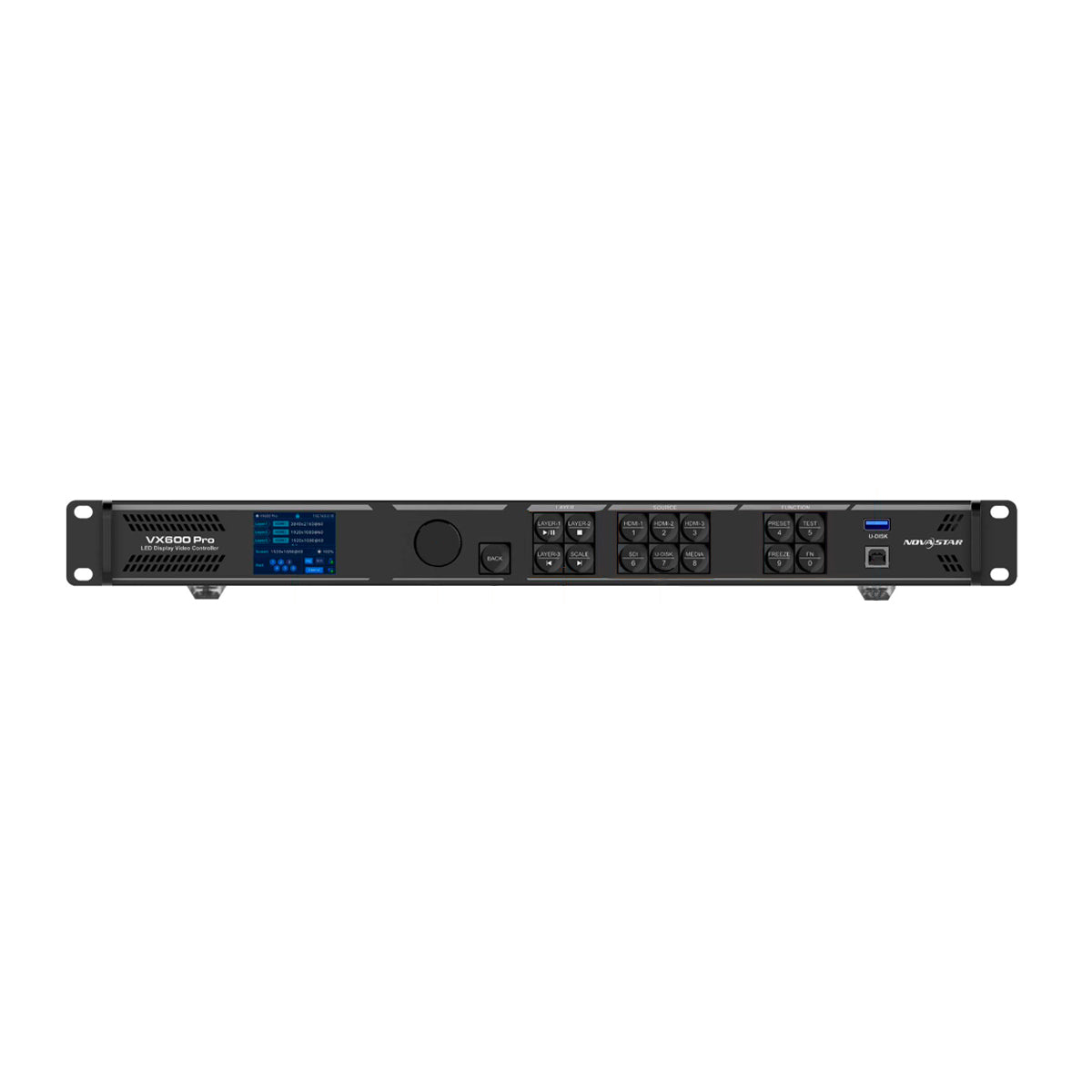

NovaStar VX600 PRO Multi-Input 4K Video Processor

The NovaStar VX600 PRO Video Processor is a high-performance LED controller designed for medium to large LED displays. Supporting up to 3.9 million pixels with pixel-level brightness and chroma calibration, it ensures stable, low-latency performance for professional fixed and rental LED installations.

Featuring advanced scaling, multiple working modes (Video Controller, ByPass, Fiber Converter), and redundant system support, the VX600 PRO delivers reliable, precise visual output. Its compact design and efficient cooling make it ideal for indoor/outdoor installations, rental displays, and creative LED projects.

Packing Details

Version Package Included
VX600 PRO 1 × VX600 PRO Video Processor
1 × Antistatic Bag
1 × User Manual

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days.

  • Packaging: Safe packaging with foam padding to ensure safe transport.

  • Shipping Origin: All products ship directly from our warehouse.

  • Standard Shipping: 9–18 days | Express Shipping: 5–9 days.

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination.

Key Specifications

  • HDMI & DVI dual input support

  • 6× Gigabit Ethernet outputs

  • Max load: 2.3 million pixels

  • Supports up to 1920×1200 @ 60Hz

  • USB control & cascading support

  • Stable performance for rental & fixed LED screens

Installation Tips

  • Power Off First: Always switch off the LED display system before installing or removing the sender box to prevent damage.

  • Use Shielded Network Cables: Ensure stable, interference-free signal transmission for consistent display performance.

  • Maintain Adequate Ventilation: Keep proper airflow inside the LED cabinet to guarantee long-term reliable operation.

  • Anti-Static Precautions: Avoid static discharge; always use anti-static protection when handling the sender box.

Technical Specifications

Feature Details
Loading Capacity 3.9 million pixels
Max Width 10240 pixels
Max Height 8192 pixels
Layers 6 × 2K × 1K

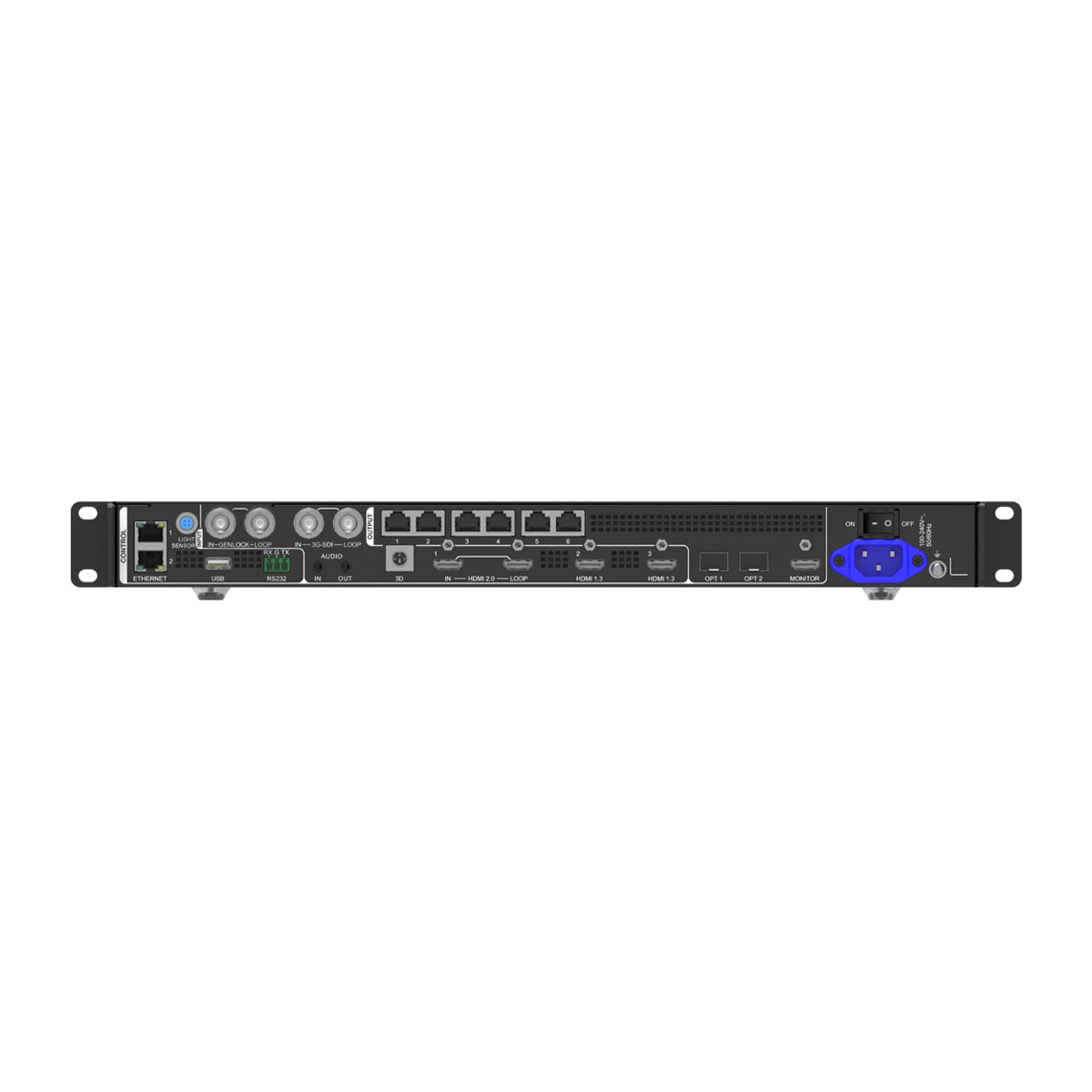

Input Connectors 1× HDMI 2.0 (IN & LOOP)
2× HDMI 1.3
1× 3G-SDI (IN & LOOP)
1× 10G OPT Port (OPT1)
1× USB3.0
Output Connectors 6× Ethernet Ports
1× HDMI 1.3
1× HDMI 2.0 LOOP
1× 3G-SDI LOOP
2× OPT
Presets 256
Control Connectors 2× Ethernet Port
1× USB

Applications

  • Fixed Outdoor LED Billboards: Permanent advertising screens, building façades, and public information displays.

  • Rental Stage LED Screens: Concerts, touring events, exhibitions, and large-scale rental setups.

  • Indoor/Outdoor Commercial Displays: Retail signage, shopping malls, transportation hubs, and outdoor advertising panels.

  • Conference, Exhibition, and Event Displays: Meeting rooms, exhibition halls, corporate events, and professional stage backgrounds.
