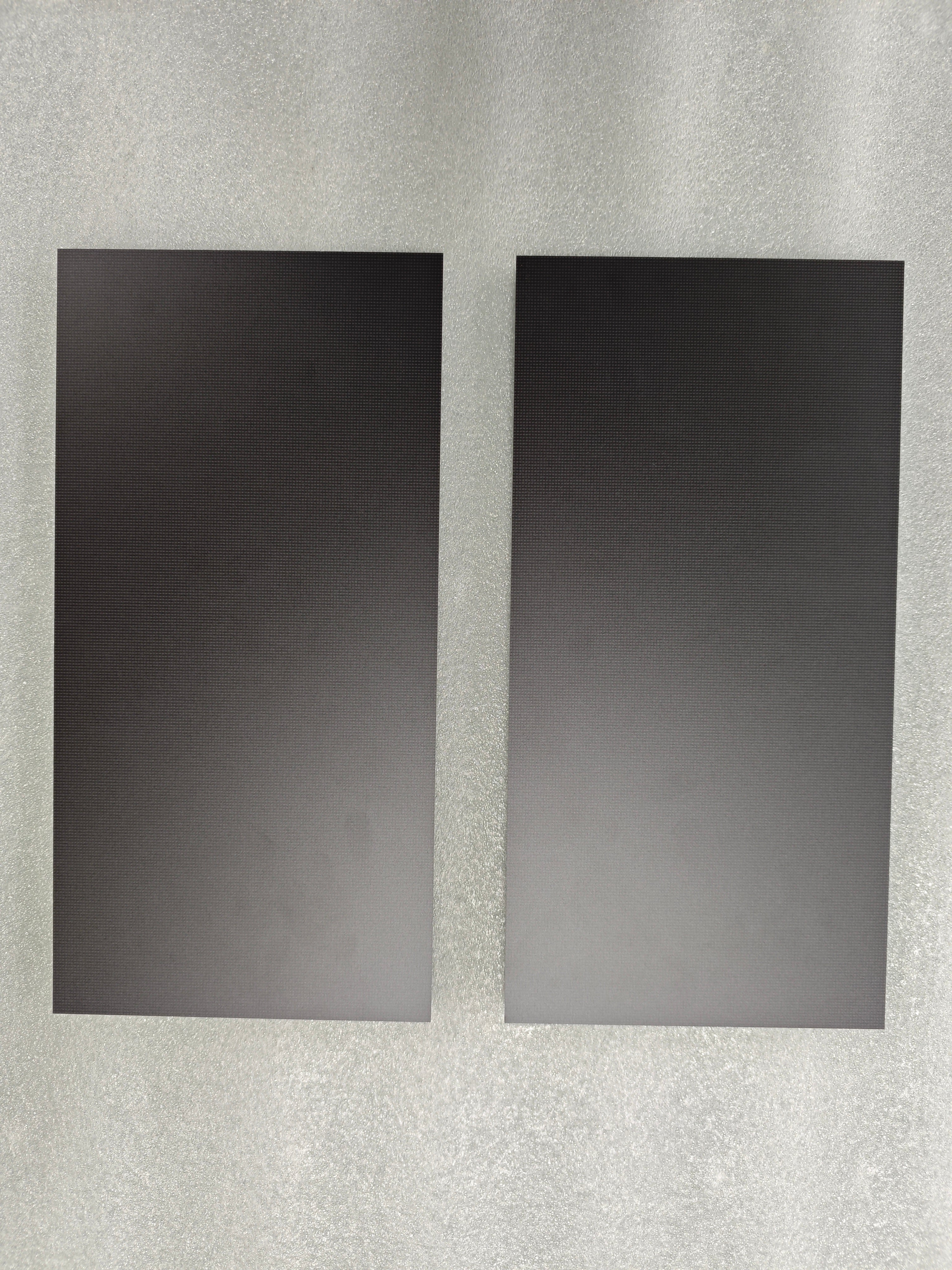

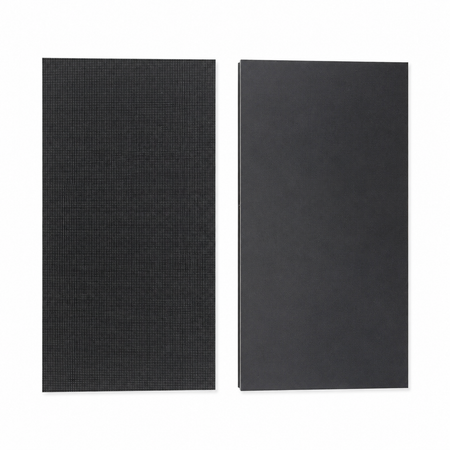

PI-C Series P1.86 COB Indoor LED Display Module | 320×160mm Front Service Flip-Chip COB Module for Broadcast Studio LED Displays

The PI-C Series P1.86 COB Indoor LED Display Module is a professional 320mm × 160mm fine pitch indoor COB LED module designed for broadcast studio LED displays, high-end indoor LED video walls, control room visualization systems, and close-viewing commercial display projects. Featuring a 1.86mm pixel pitch, Flip-Chip LED technology, COB film encapsulation, 3840Hz refresh rate, and a full front service structure, this module delivers excellent image consistency, strong surface protection, reduced glare, and dependable long-term performance for professional indoor LED applications.

With a 172 × 86 module resolution, approximately 288,906 pixels/m², 600 nits brightness, a 10,000:1 contrast ratio under dark-room conditions, and wide 160° horizontal and vertical viewing angles, the P1.86 COB LED module provides smooth motion, detailed image reproduction, and stable camera performance. The standardized 320×160mm front service module format supports professional LED video wall construction for broadcast studios, television production facilities, command centers, corporate experience centers, premium conference rooms, and other engineering projects requiring reliable fine pitch COB display technology.

Package Included

About This Item

• Professional P1.86 COB Indoor LED Display Module: Designed for high-resolution indoor LED display systems, the 1.86mm pixel pitch combines advanced Flip-Chip COB technology with excellent image clarity, making it suitable for broadcast studios, television production facilities, control rooms, command centers, corporate presentation systems, and premium indoor LED video walls.
• Advanced Flip-Chip COB Display Technology: The Flip-Chip LED architecture with COB film encapsulation improves surface uniformity, reduces exposed LED components, enhances display consistency, and provides dependable long-term performance for demanding fine pitch indoor applications.
• Broadcast-Ready Visual Performance: Featuring 600 nits brightness, 3840Hz refresh rate, a 10,000:1 contrast ratio under dark-room conditions, and wide 160° viewing angles, the module provides smooth motion, detailed visuals, and stable image performance for direct viewing and professional camera environments.

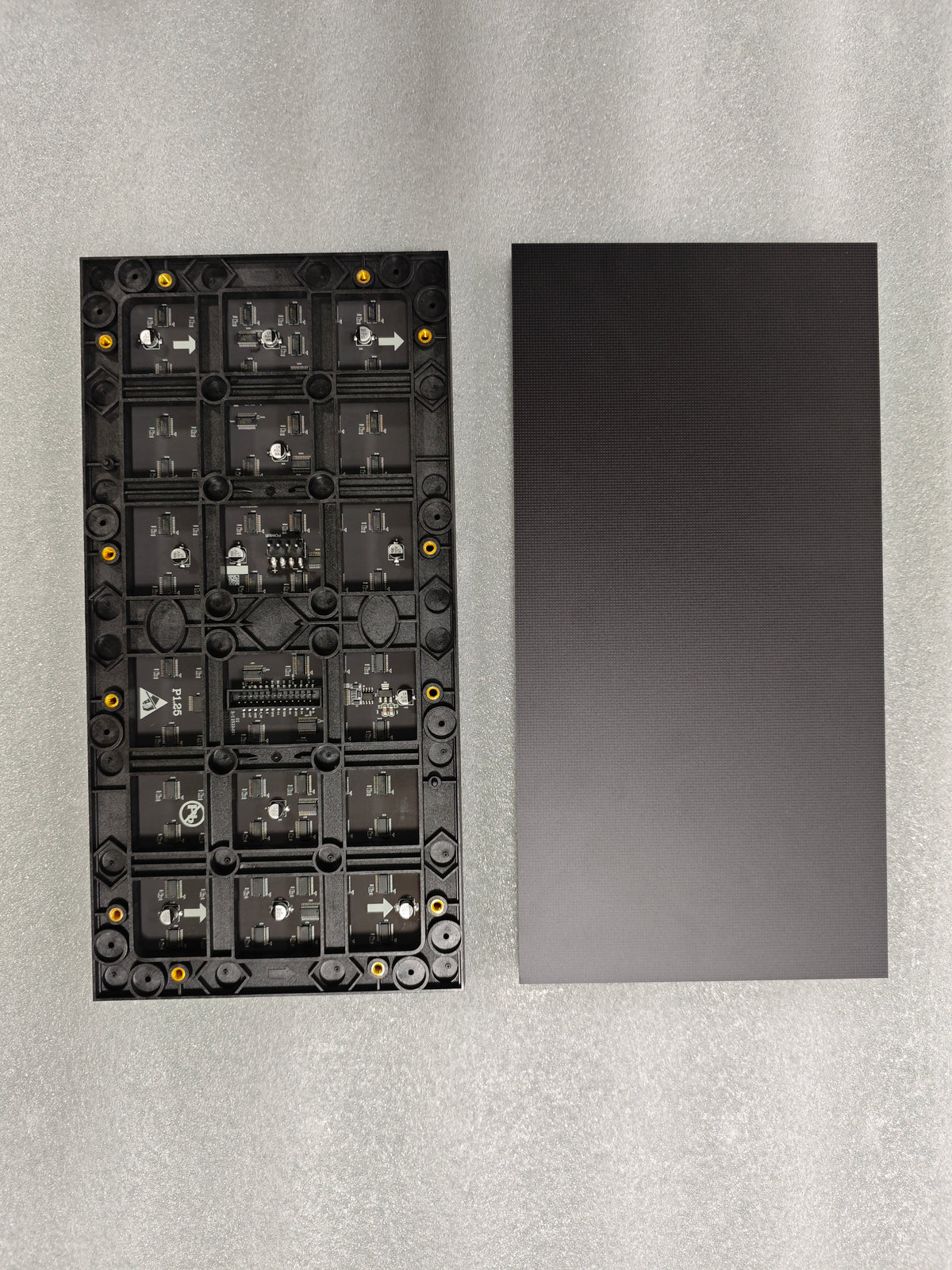

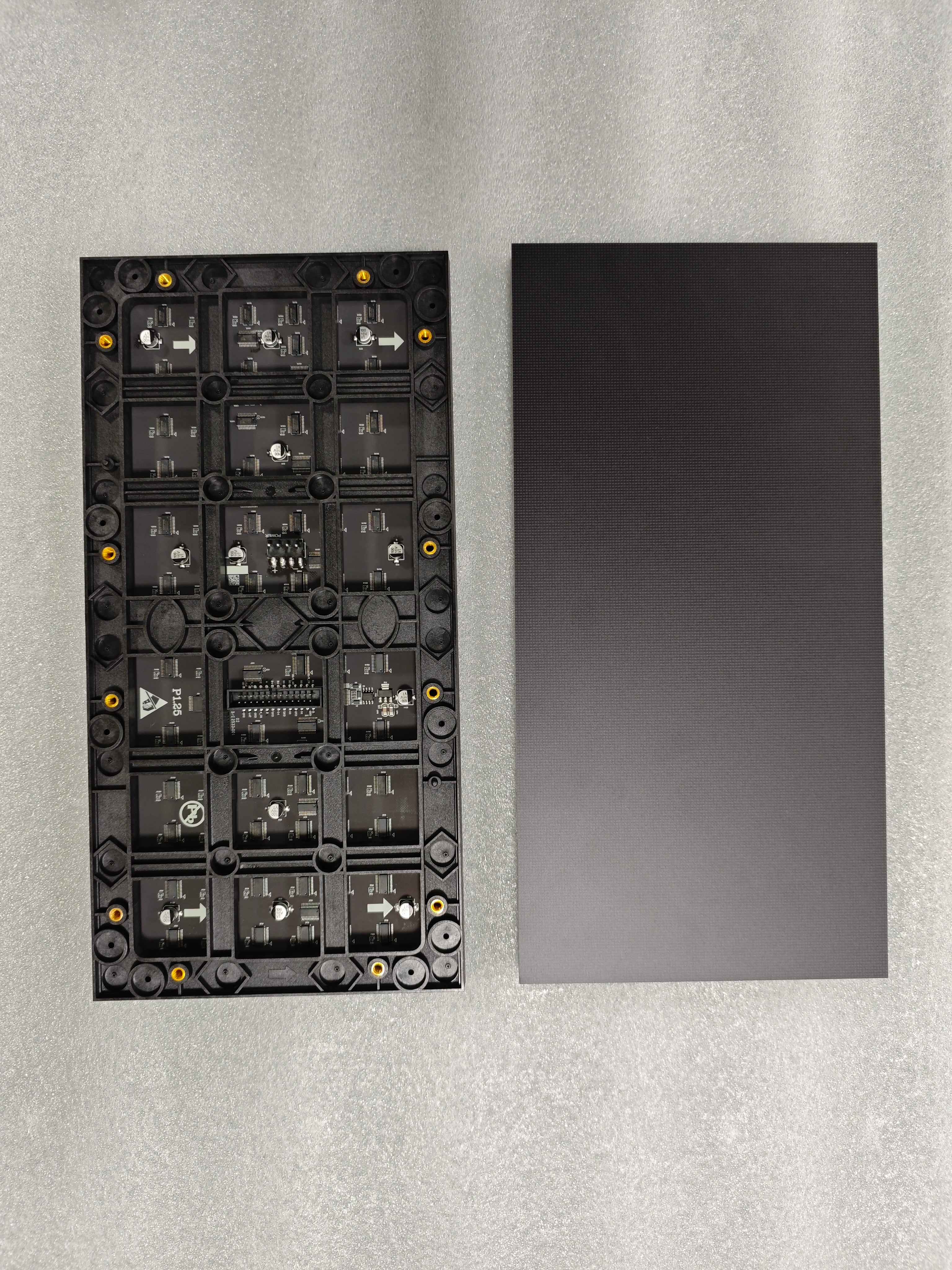

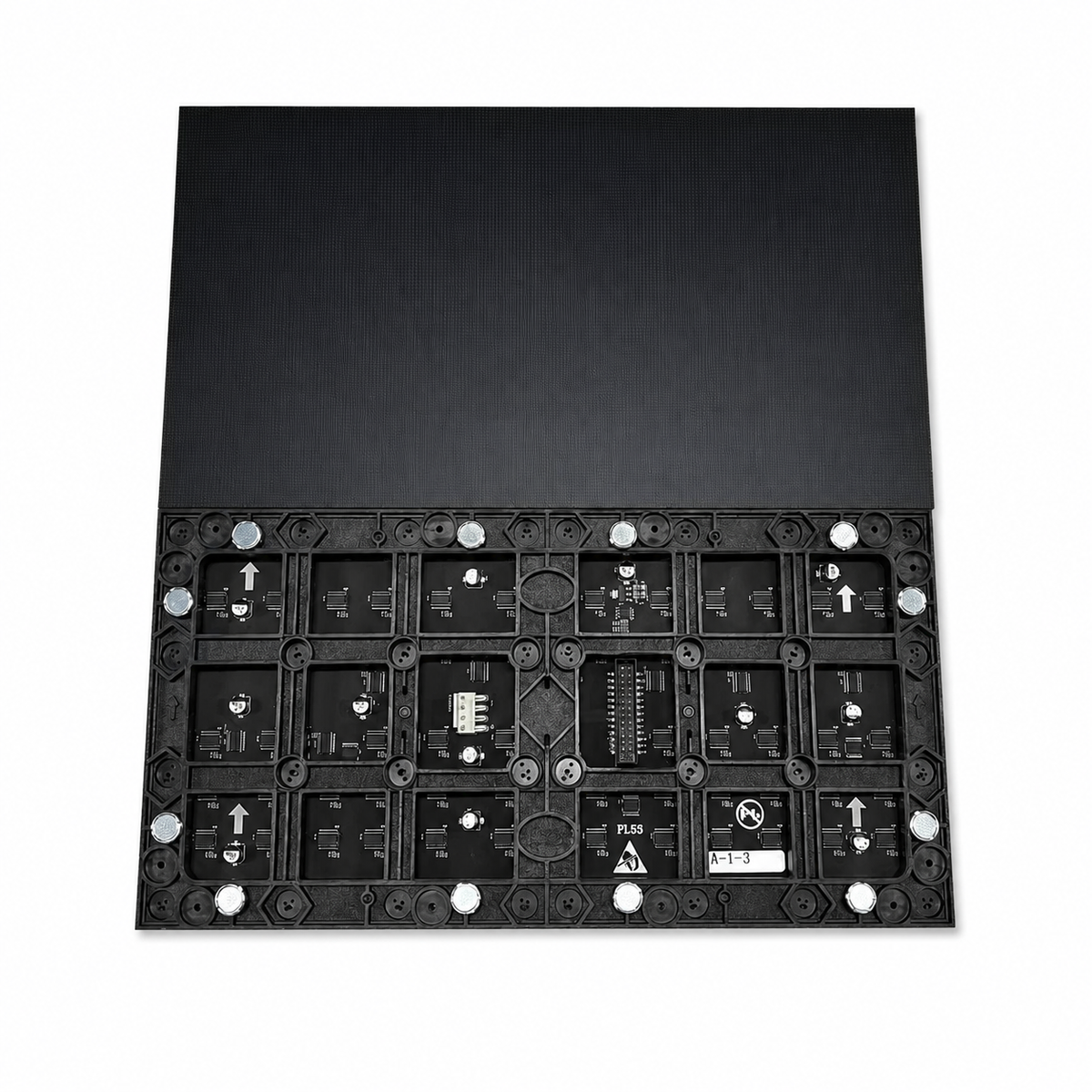

• Standard 320×160mm Front Service Module: The standardized module size supports efficient cabinet assembly and convenient module replacement, while the full front service design makes it suitable for wall-mounted installations and projects where rear maintenance access is limited.

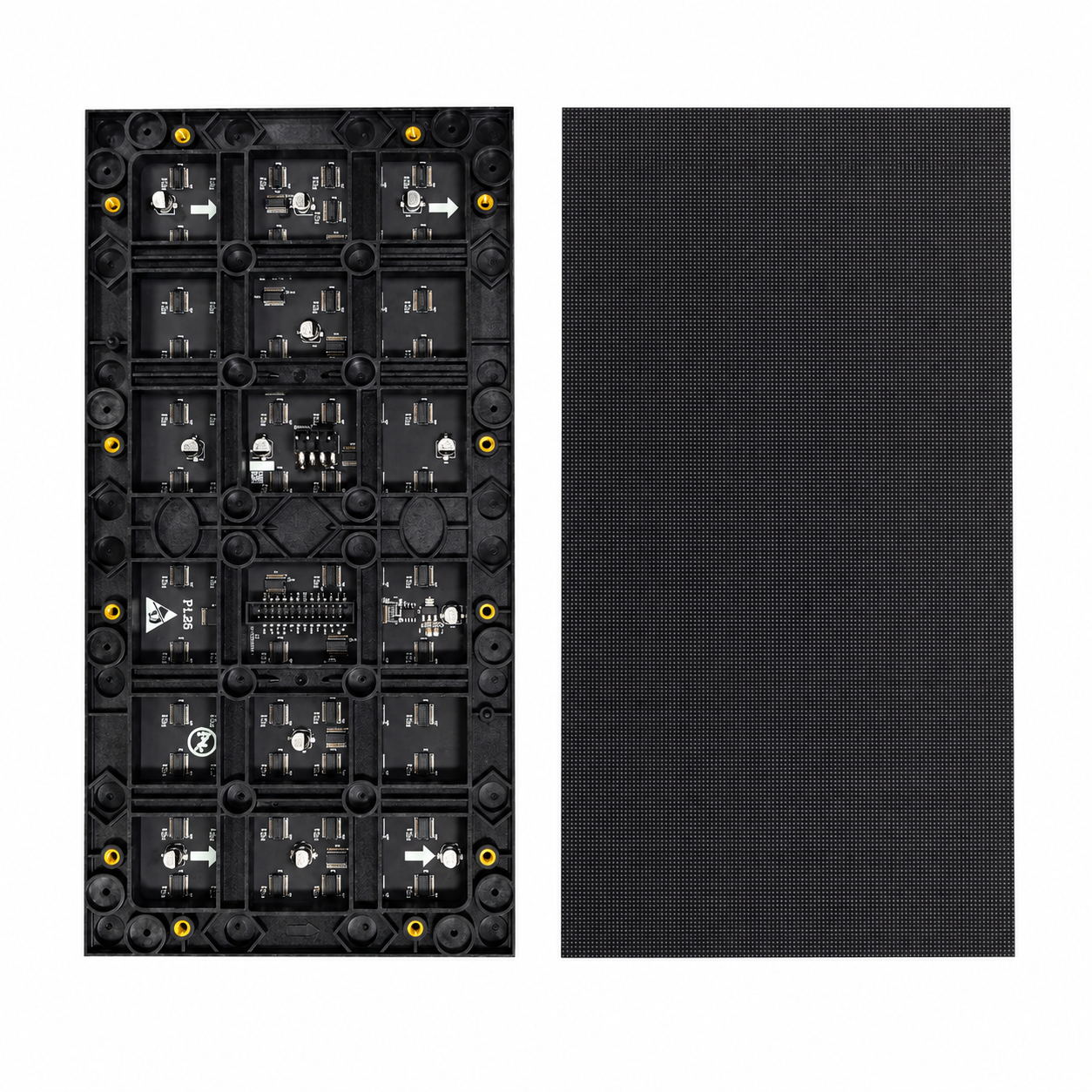

• 26PIN Data Interface for System Integration: The module uses a 26PIN data interface for signal connection, supporting structured system integration with compatible receiving cards, cabinet wiring configurations, and professional indoor LED control systems.
• Bulk Project Procurement Ready: Available in 100pcs MOQ, 200pcs, and 500pcs package options to support channel distribution, engineering procurement, AV system integration, and large-scale commercial indoor LED display deployments.

Order & Logistics

Lead Time

PI-C Series: Handling time 15–20 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
• Express options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
• Shipping Terms: DDP TERM, all fees included, except for destination countries where this service is unavailable.
• Project logistics: This product supports MOQ purchasing, channel stocking orders, engineering procurement, system integration, and project-based delivery.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

Protection & Design Features

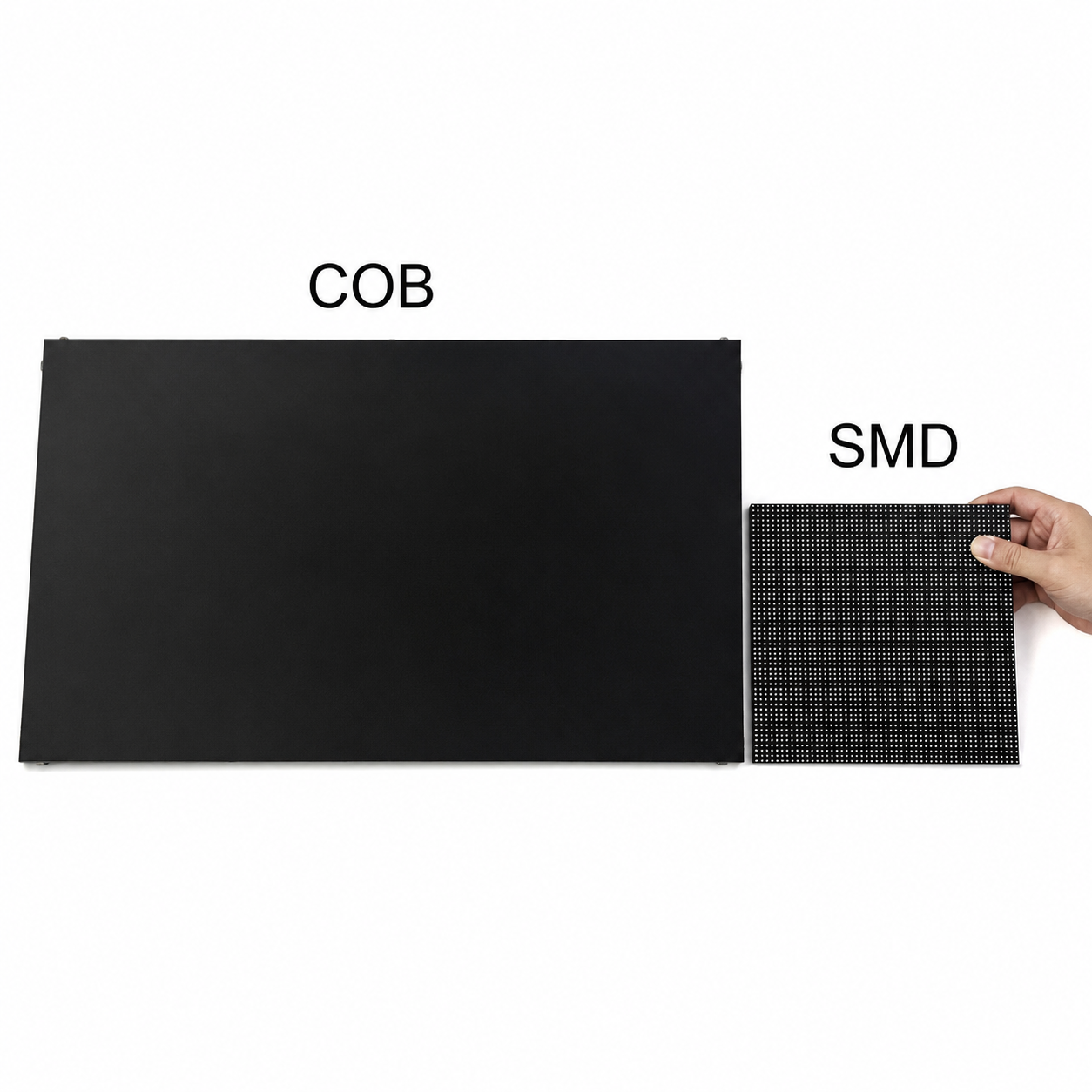

• Advanced Flip-Chip COB Technology: Built with advanced Chip-on-Board packaging technology to deliver excellent light uniformity, strong color consistency, reduced pixel-spacing visibility, and dependable long-term performance for premium indoor LED display applications.
• COB Film Encapsulation & 4H Surface Hardness: The protected COB surface improves resistance to accidental contact and handling while helping maintain a uniform visual surface across fine pitch indoor LED video walls.
• Standard Front Service Module Architecture: The standardized 320×160mm module format supports efficient cabinet integration, simplified maintenance, convenient module replacement, and full front service operation.
• 26PIN Signal Connection: The dedicated 26PIN data interface provides a standardized connection method for compatible cabinet wiring and receiving card configurations used in professional indoor COB LED display systems.
• High-Consistency Display Architecture: Designed to provide excellent surface uniformity, stable visual consistency, high contrast, and smooth motion performance across large indoor LED video wall installations.

Installation Guide

• Confirm the cabinet size, module size, receiving card configuration, power supply capacity, mounting structure, and front service requirements before installation.
• Install the P1.86 320×160mm COB indoor LED modules according to the cabinet layout and ensure each module is accurately aligned and securely fixed.
• Connect the 26PIN data interface according to the cabinet wiring plan, receiving card configuration, and signal direction requirements.
• Connect the power system according to the cabinet wiring design and verify input voltage, grounding, power polarity, signal direction, and cabinet flatness before powering on the LED display.
• For full front service maintenance, remove and replace the COB LED module from the front side using proper tools and anti-static handling procedures.
• Avoid scratching, pressing, bending, or impacting the COB surface during transportation, cabinet assembly, installation, and maintenance.

Applications

• Broadcast Studio LED Displays
• Television Production LED Walls
• P1.86 Fine Pitch COB Indoor LED Displays
• High-End Indoor LED Video Walls
• Control Room LED Displays
• Command Center LED Screens
• Security Monitoring Center Displays
• Corporate Experience Center LED Walls
• Executive Boardroom LED Displays
• Premium Conference Room LED Screens
• XR & Virtual Production LED Displays
• Museum Digital Display Systems
• Luxury Retail LED Displays
• Airport Information LED Screens
• Financial Trading Center Displays
• Professional AV LED Display Projects
• Large-Scale Commercial Indoor LED Displays
