PI-G Series P1.25 GOB Indoor LED Display Module | 320×160mm Front Service GOB LED Module for Ultra Fine Pitch Command Center LED Displays
The PI-G Series P1.25 GOB Indoor LED Display Module is a professional 320×160mm GOB LED module designed for ultra fine pitch indoor LED displays, command center LED video walls, and mission-critical indoor LED screen projects requiring extremely high pixel density, precise image detail, and enhanced surface protection. Featuring a 1.25mm pixel pitch, SMD1212 LEDs, GOB encapsulation technology, and a front service structure, it delivers ultra-high-resolution image performance, stable brightness, smooth grayscale, wide viewing angles, and stronger protection against impact, dust, moisture, and frequent handling.
As a premium P1.25 GOB indoor LED module, this product supports command center system integrators, AV solution providers, engineering contractors, channel distributors, and commercial project buyers requiring standardized module supply, stable bulk purchasing, and long-term project deployment. It is suitable for command center LED displays, control room video walls, security monitoring center screens, broadcast studio LED walls, executive boardroom displays, financial trading center LED screens, and other professional indoor LED display projects where high resolution, durability, and long-term reliability are critical.
Package Included
| Version | Package Included |
|---|---|

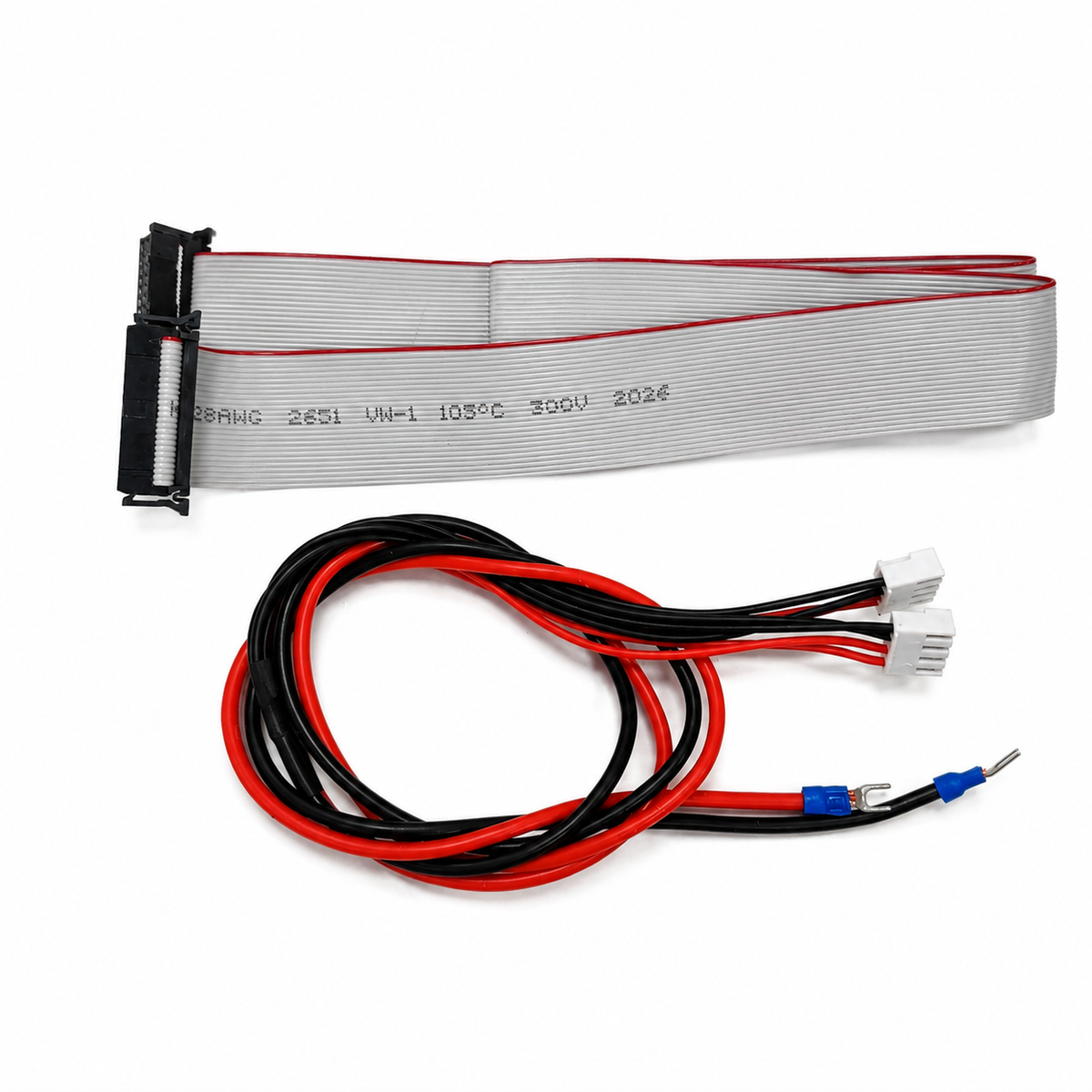

| 1pc Sample Pack | 1 × P1.25 320×160mm GOB Indoor LED Display Module 1 × 5V Power Cable 1-to-2 Split 1 × Flat Data Cable |
| 40pcs Standard Pack | 40 × P1.25 320×160mm GOB Indoor LED Display Module 20 × 5V Power Cable 1-to-2 Split 40 × Flat Data Cable |
| 200pcs Pack | 200 × P1.25 320×160mm GOB Indoor LED Display Module 100 × 5V Power Cable 1-to-2 Split 200 × Flat Data Cable |
| 500pcs Pack | 500 × P1.25 320×160mm GOB Indoor LED Display Module 250 × 5V Power Cable 1-to-2 Split 500 × Flat Data Cable |
About This Item
- Professional P1.25 Ultra Fine GOB Indoor LED Display Module: Designed for mission-critical indoor LED display systems, the 1.25mm pixel pitch combines ultra-high image precision with advanced GOB surface protection, making it an ideal solution for command centers, operation centers, security monitoring systems, and other professional visualization environments.
- Exceptional Close-Viewing Performance: Featuring ≥600 nits brightness, a refresh rate above 3840Hz, a 3000:1 contrast ratio, and a wide 160° viewing angle, the module delivers ultra-sharp images, smooth motion, outstanding grayscale performance, and accurate color reproduction for close-viewing and camera-friendly applications.
- Standard 320×160mm Cabinet Compatibility: The standardized module size is fully compatible with mainstream indoor LED cabinets, supporting efficient cabinet assembly, convenient module replacement, and scalable ultra fine pitch LED video wall construction.
- Front Service Maintenance Design: Supports complete installation and maintenance from the display front, making it ideal for wall-mounted indoor LED displays and professional projects where rear maintenance access is restricted.
- Designed for Mission-Critical Display Applications: Perfect for command center LED video walls, emergency operation centers, security operation centers, military command systems, transportation control centers, financial trading centers, broadcast studios, and other professional indoor environments requiring maximum image precision and enhanced display durability.
- Bulk Project Procurement Ready: Available in sample, standard carton, and engineering package options to support product evaluation, channel stocking, engineering procurement, and large-scale commercial indoor LED display deployments.
Order & Logistics
Lead Time
PI-G Series: Handling time 3–5 business days.
Freight & Delivery
Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.
- Available shipping methods: Standard shipping / Express shipping / Project logistics.
- Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
- Express options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
- Shipping Terms: DDP TERM, all fees included, except for destination countries where this service is unavailable.
- Project logistics: This product supports bulk purchasing, channel stocking orders, engineering procurement, and project-based delivery.
For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.
Specifications
| Specification | Value |
|---|---|
| Module Size | 320×160 mm |
| Pixel Pitch | 1.25 mm |
| LED Type | SMD1212 |
| Module Resolution | 256×128 |
| Module Pixels | 32,768 dots |
| Scan Rate | 1/64 |
| Pixel Density | 655,000 dots/㎡ |
| Brightness | ≥600 nits |
| Contrast Rate | 3000:1 |
| Color Depth | 16 bit |
| Signal Interface | 26PIN |
| Grey Level | 16,384 |
| Refresh Frequency | >3840 Hz |
| Driving IC | MBI/ICN |
| Color Uniformity | ≥97% |
| Protection Rating | IP30 |
| Life Span | ≥100,000 hours |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 10% ~ 90% |
| Voltage | DC 5V |
| Viewing Angle | H:160°, V:160° |
| Power Consumption | Max. 20 W |
| Blind Spot Rate | ≤0.0003 |
Protection & Design Features
- Advanced GOB Encapsulation Technology: Built with professional Glue-on-Board (GOB) encapsulation technology to provide superior resistance against accidental impact, dust, moisture, electrostatic contact, and frequent handling while maintaining stable brightness, accurate color reproduction, and dependable long-term display performance.
- Standard Front Service Module Structure: The standardized 320×160mm front service module architecture supports efficient cabinet installation, simplified maintenance, convenient module replacement, and seamless compatibility with mainstream indoor LED cabinet systems.
- Reinforced Surface Protection Design: The fully encapsulated LED surface enhances mechanical strength, improves long-term operational stability, and helps minimize LED damage during transportation, installation, maintenance, and continuous operation in demanding professional indoor display environments.
Installation Guide
- Confirm the cabinet size, module size, pixel pitch, receiving card layout, power supply capacity, and front service structure before installation.
- Install the P1.25 GOB indoor LED modules according to the cabinet layout and ensure each module is securely fixed in position.
- Connect the flat data cables according to the signal direction, receiving card configuration, and indoor LED screen wiring plan.
- Connect the DC 5V power cables correctly and check polarity before powering on the LED display system.
- For front service maintenance, remove and replace the GOB LED module from the front side using proper tools and anti-static handling methods.
- Avoid scratching, pressing, bending, or impacting the LED surface during transportation, cabinet assembly, installation, and maintenance.
Applications
- Ultra Fine Pitch GOB Indoor LED Displays
- P1.25 GOB Indoor LED Display Modules
- High-Density GOB LED Video Walls
- Command Center LED Video Walls
- Control Room LED Displays
- Security Monitoring Center Screens
- Government Command Center Displays
- Financial Trading Center LED Walls
- Broadcast Studio LED Displays
- Executive Boardroom LED Screens
- Corporate Presentation LED Walls
- High-Resolution Commercial LED Video Walls
- Airport Operation Center Displays
- Premium Indoor Digital Signage Systems
- Museum Digital Display Systems
- Professional AV LED Display Projects
- Mission-Critical Indoor LED Display Installations
- Commercial Indoor LED Display Projects
- Large-Scale Commercial LED Display Projects
- Premium Showroom LED Displays
