PI-GI Series P2 Indoor LED Display Module – 320×480mm | GOB | Front Service | Integrated Module | Integrated GOB Display & Exhibition Halls
Regular price
$17,999.99
Couldn't load pickup availability
PI-GI Series P2 Integrated GOB Indoor LED Display Module | 320×480mm Front Service Integrated LED Module for Fine Pitch Commercial LED Displays

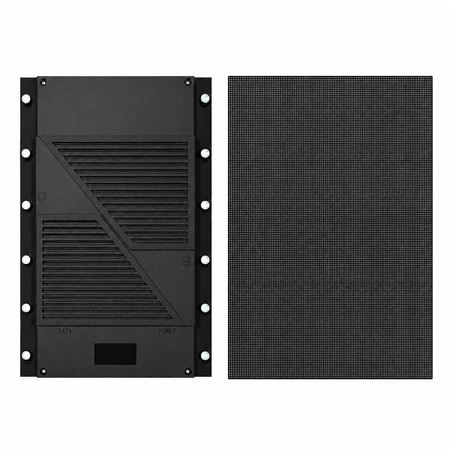

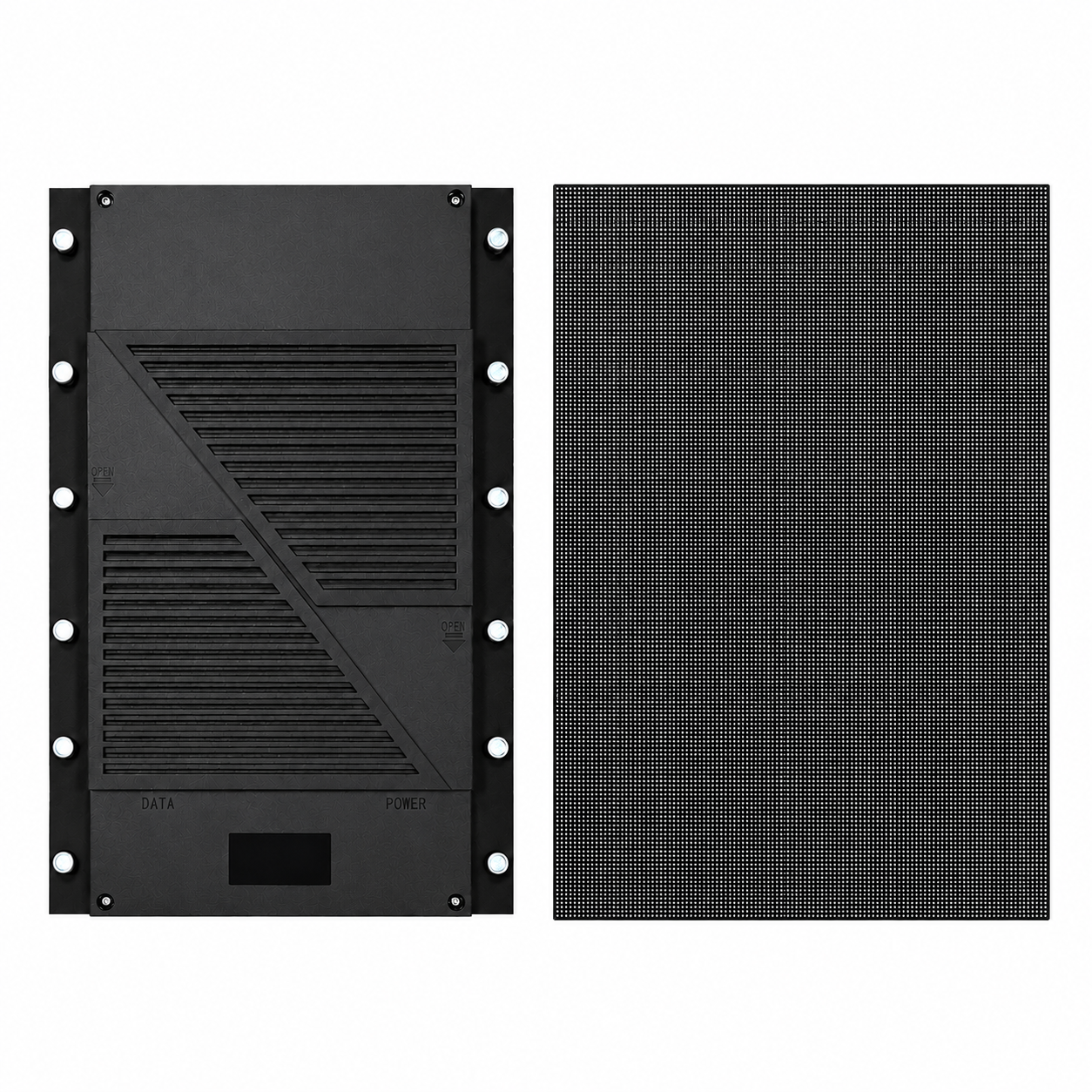

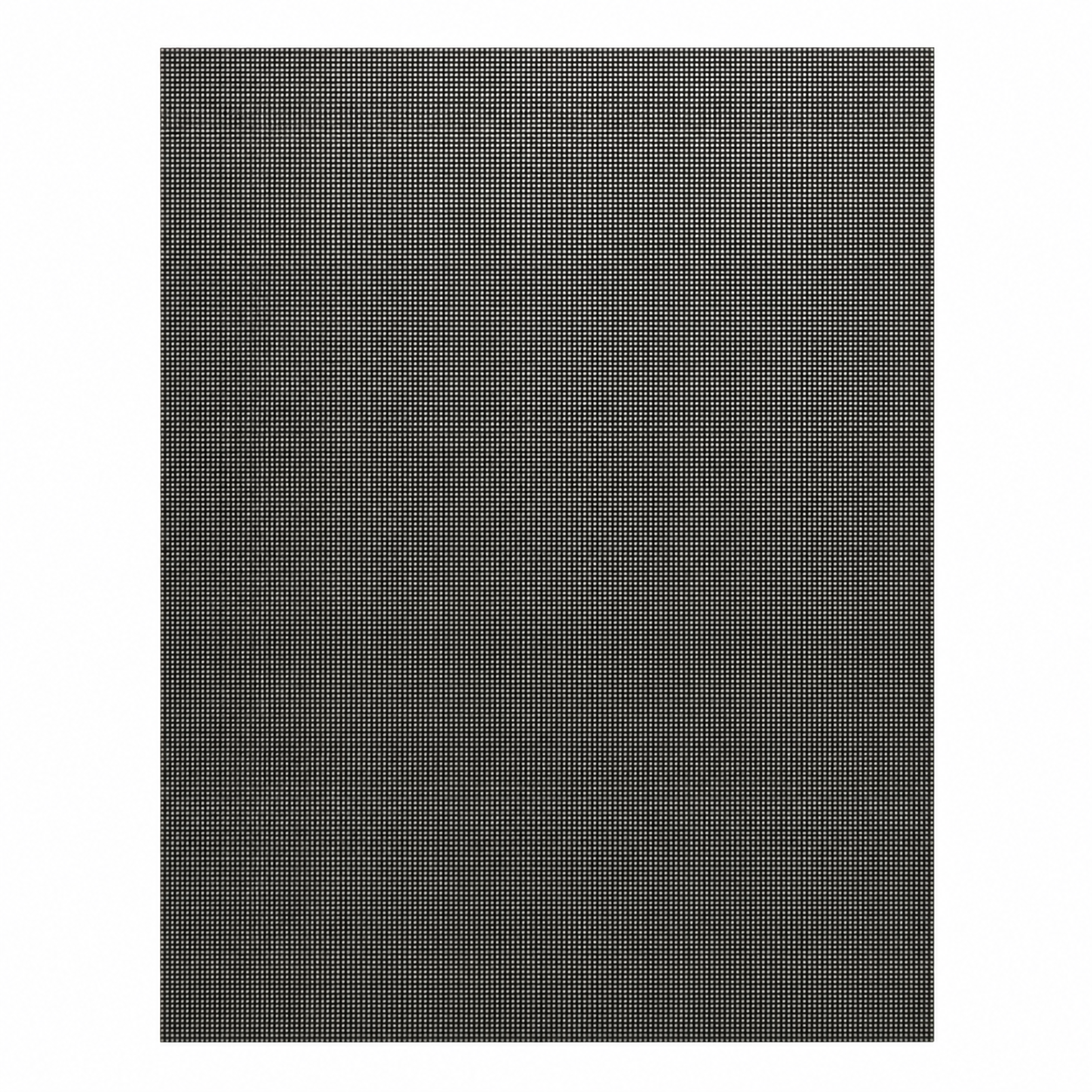

The PI-GI Series P2 Integrated GOB Indoor LED Display Module is a professional 320mm × 480mm integrated GOB indoor LED module, factory-assembled from three 160mm × 320mm GOB LED modules to form one complete integrated display unit. Compared with conventional individual LED modules, the integrated design significantly reduces installation time, cabinet assembly complexity, wiring workload, and project deployment costs. Featuring a 2.0mm pixel pitch, SMD1515 LEDs, GOB encapsulation technology, and a front service integrated structure, it delivers excellent image clarity, outstanding durability, and reliable long-term performance for professional indoor LED display systems.
Designed for fine pitch commercial LED displays, this P2 integrated GOB LED module is widely used in exhibition halls, corporate showrooms, brand experience centers, conference rooms, retail flagship stores, museum digital displays, and other premium indoor LED projects. It is an ideal solution for system integrators, engineering contractors, AV solution providers, channel distributors, commercial display solution providers, and project buyers seeking faster installation, enhanced surface protection, standardized integrated modules, and efficient large-scale project delivery.
Package Included
| Version | Package Included |
|---|---|
| 100pcs MOQ Pack | 100 × P2 320mm × 480mm Integrated GOB Indoor LED Display Module (assembled from 3 × 160 × 320mm LED modules) 100 × Wide-Voltage Power Supply 100 × NovaStar or Colorlight Receiving Card 100 × Daisy-Chain Ethernet Cable 100 × Daisy-Chain Power Cable 1,200 × Mounting Magnets |
| 200pcs Pack | 200 × P2 320mm × 480mm Integrated GOB Indoor LED Display Module (assembled from 3 × 160 × 320mm LED modules) 200 × Wide-Voltage Power Supply 200 × NovaStar or Colorlight Receiving Card 200 × Daisy-Chain Ethernet Cable 200 × Daisy-Chain Power Cable 2,400 × Mounting Magnets |
| 500pcs Pack | 500 × P2 320mm × 480mm Integrated GOB Indoor LED Display Module (assembled from 3 × 160 × 320mm LED modules) 500 × Wide-Voltage Power Supply 500 × NovaStar or Colorlight Receiving Card 500 × Daisy-Chain Ethernet Cable 500 × Daisy-Chain Power Cable 6,000 × Mounting Magnets |
About This Item
- Professional P2 Integrated GOB Indoor LED Display Module: Designed for premium indoor LED display systems, the 2.0mm pixel pitch combines high-definition image quality with a factory-integrated three-panel structure, making it an ideal solution for exhibition halls, museums, corporate experience centers, and large commercial LED video wall projects.
- Integrated Design for Faster Project Deployment: Factory-integrated from three 320×160mm GOB LED modules into one complete 320×480mm display module, reducing installation time, module alignment, wiring complexity, and on-site assembly while improving overall project efficiency.

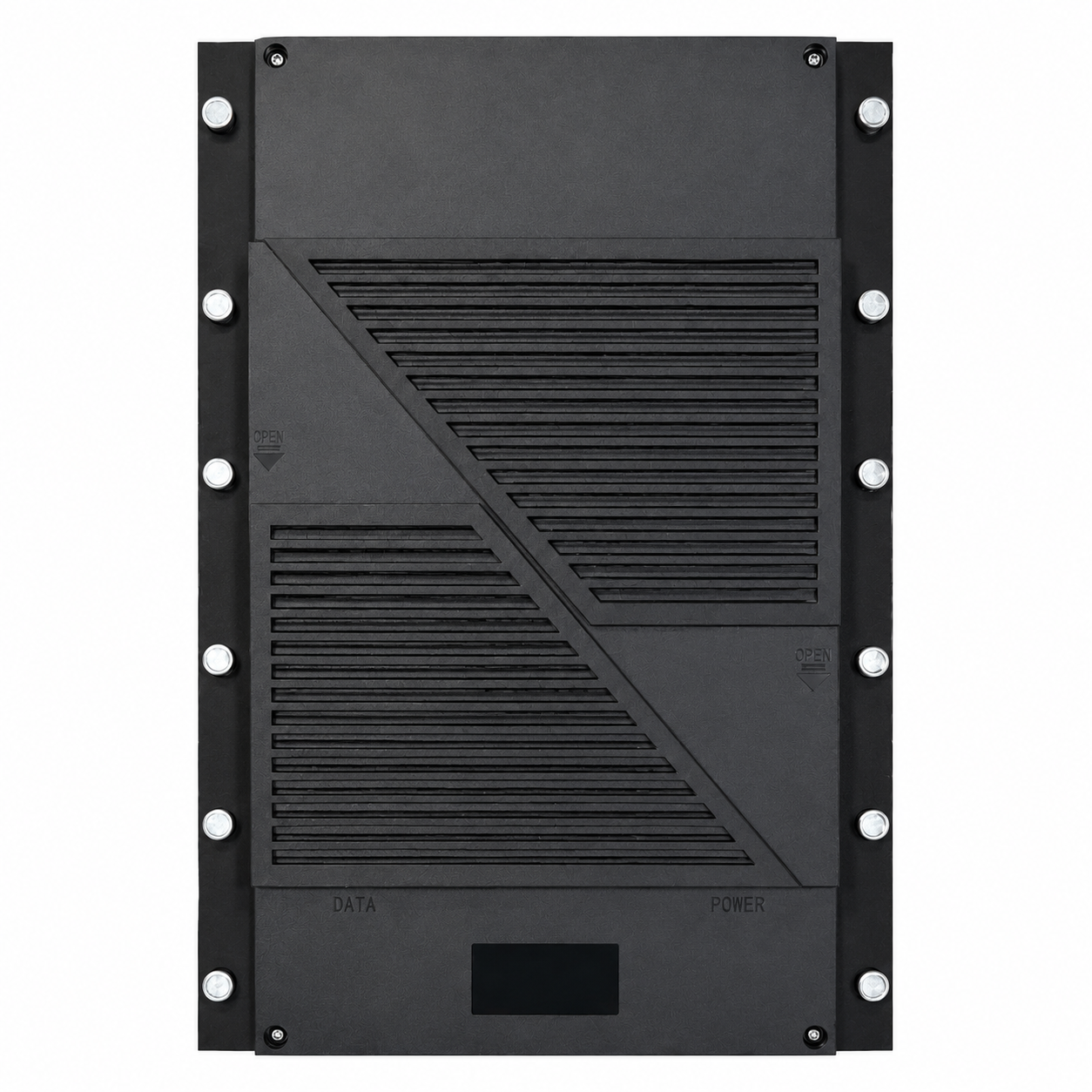

- Complete Integrated Display Solution: Each integrated module includes a wide-voltage power supply, a NovaStar or Colorlight receiving card, one daisy-chain Ethernet cable, one daisy-chain power cable, and twelve magnetic mounting points, simplifying cabinet integration and system commissioning.
- Front Service Maintenance Design: Supports complete installation and maintenance from the display front, making it ideal for wall-mounted indoor LED displays and commercial installations where rear maintenance access is limited.
- Designed for Professional Exhibition Applications: Perfect for exhibition hall LED displays, museum digital displays, convention centers, brand experience centers, corporate lobbies, premium retail environments, and other indoor LED display projects requiring efficient installation, outstanding image quality, and reliable long-term operation.
- Bulk Project Procurement Ready: Available in 100pcs MOQ Pack, 200pcs Pack, and 500pcs Pack options to support product evaluation, engineering procurement, channel distribution, and large-scale commercial indoor LED display deployments.
Order & Logistics
Lead Time
PI-GI Series: Handling time 15–20 business days.
Freight & Delivery
Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.
- Available shipping methods: Standard shipping / Express shipping / Project logistics.
- Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
- Express options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
- Shipping Terms: DDP TERM, all fees included, except for destination countries where this service is unavailable.
- Project logistics: This product supports MOQ purchasing, channel stocking orders, engineering procurement, and project-based delivery.
For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.
Specifications
| Specification | Value |
|---|---|

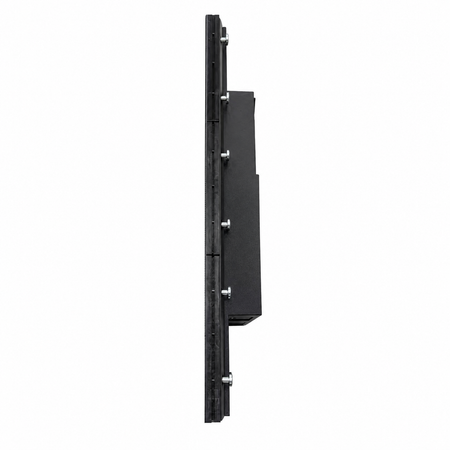

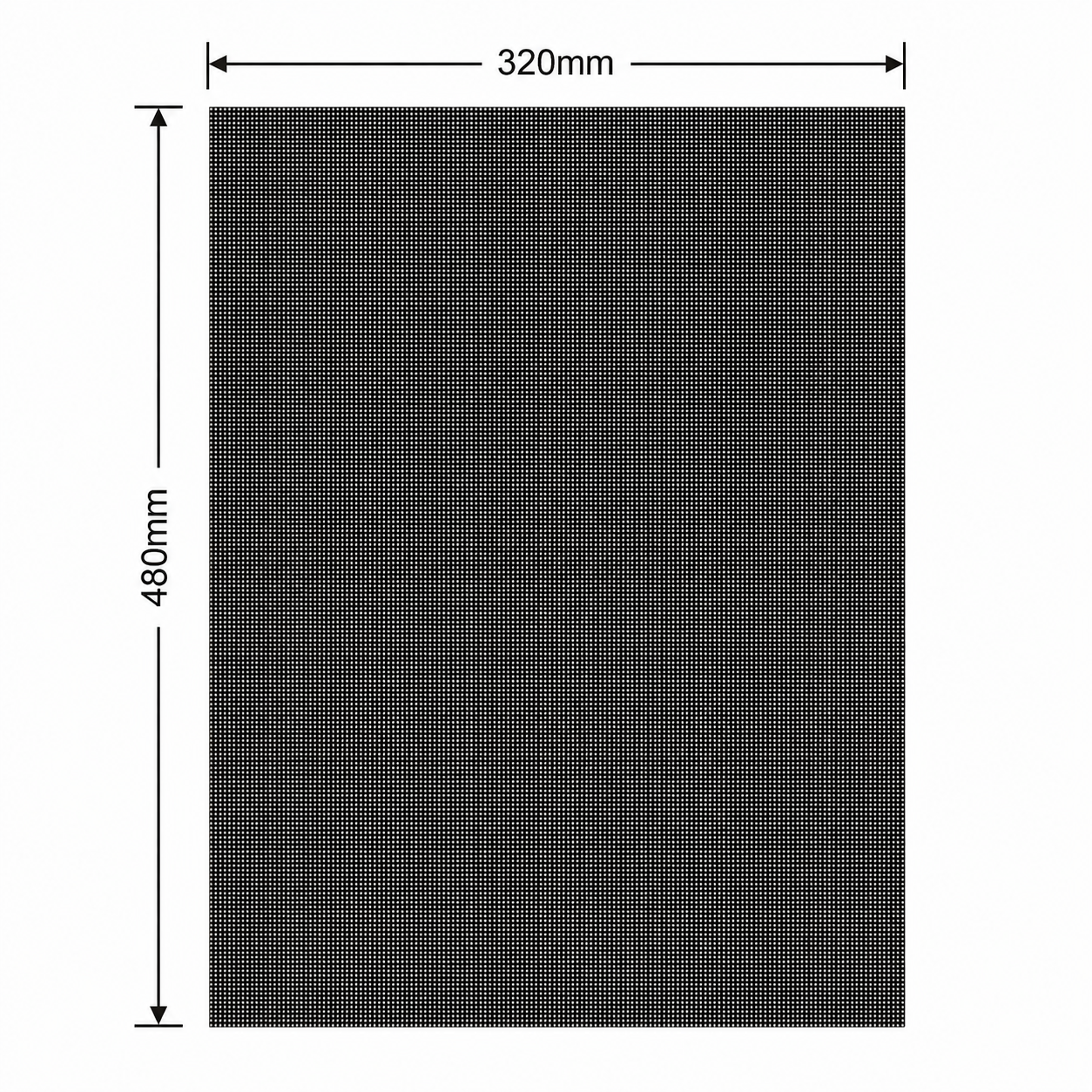

| Module Size | 320 × 480 × 46.5mm |
| Module Structure | Factory-integrated from 3 × 160 × 320mm GOB LED modules |
| Integrated Configuration | Wide-voltage power supply, NovaStar or Colorlight receiving card, daisy-chain Ethernet cable, daisy-chain power cable, and 12 mounting magnets |

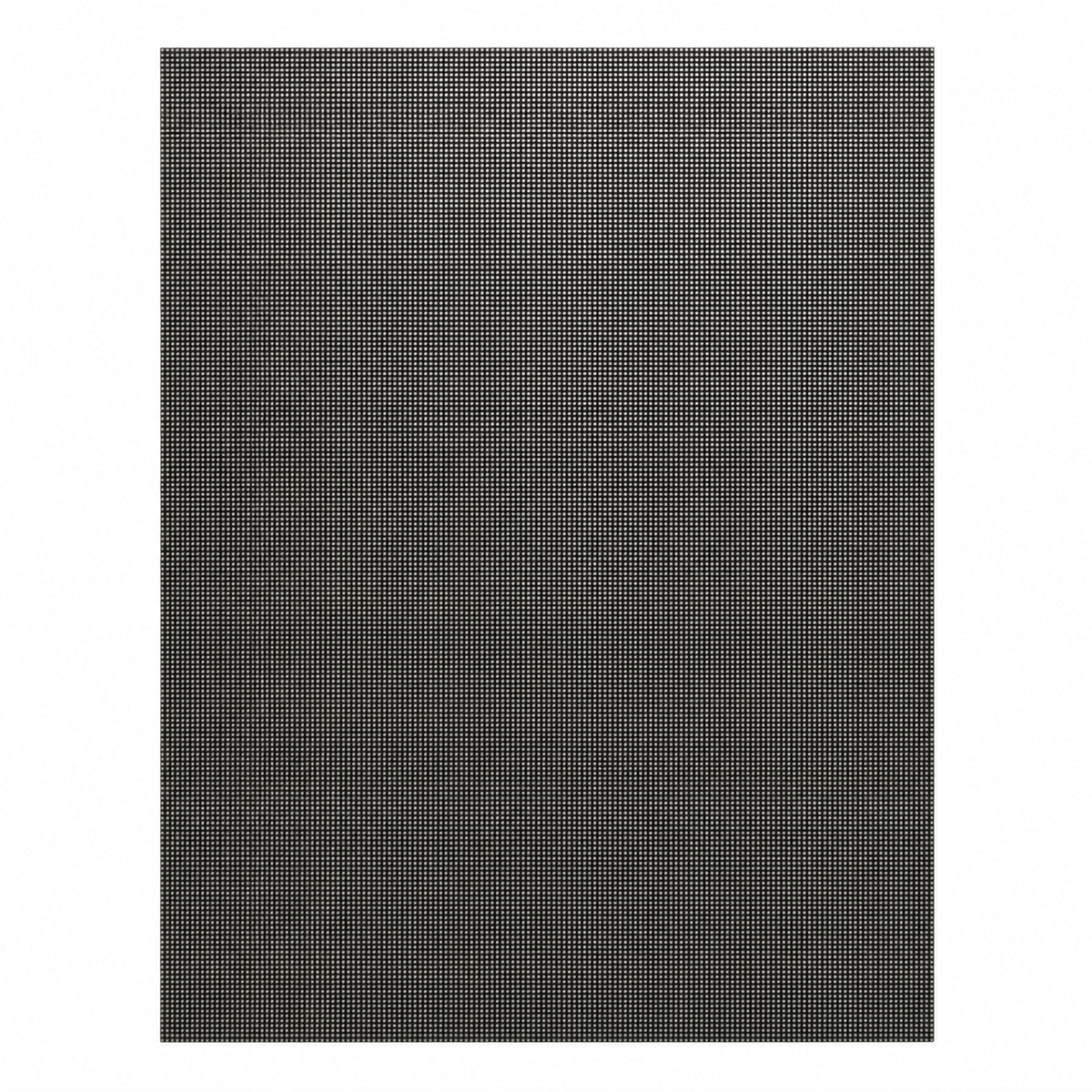

| Pixel Pitch | 2.0mm |
| Module Resolution | 160 × 240 |
| Pixel Density | 250,000 dots/㎡ |
| Scan Rate | 1/40 |
| LED Package | SMD1515 |
| Viewing Angle | H:120° / V:120° |
| Module Weight | 2.3kg/pc |
| Interface | HUB75 |

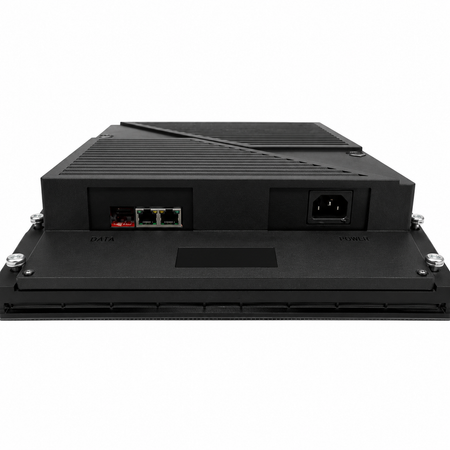

| Power & Signal Connector | Dedicated Power & Signal Connector |
| Flame Retardant Rating | V-0 |
| Brightness | ≥500cd/m² |
| Gray Scale | ≥14bit |
| Color Temperature | 1000–10000K adjustable |
| Contrast Ratio | ≥5000:1 |
| Brightness Adjustment | Manual / Automatic Adjustment |
| Refresh Rate | ≥3840Hz |
| Frame Rate | 60Hz |
| Dead Pixel Rate | ≤0.003%, factory shipment: 0 |
| Regional Dead Pixel Rate | ≤0.009% |
| Screen Flatness | ≤5° |
| Surface Flatness | ≥98% |
| Operating Temperature | -10°C ~ 60°C |
| Operating Humidity | 35%–75% RH, non-condensing |
| Application Environment | Indoor |
Protection & Design Features
- Advanced GOB Encapsulation Technology: Built with professional Glue-on-Board (GOB) encapsulation technology to improve resistance against accidental impact, dust, moisture, electrostatic contact, and frequent handling while maintaining stable image quality and dependable long-term display performance.
- Factory-Integrated Three-Panel Structure: Factory-integrated from three 320×160mm GOB LED modules into one standardized 320×480mm front service module, improving installation efficiency, structural consistency, and cabinet integration for professional indoor LED display systems.

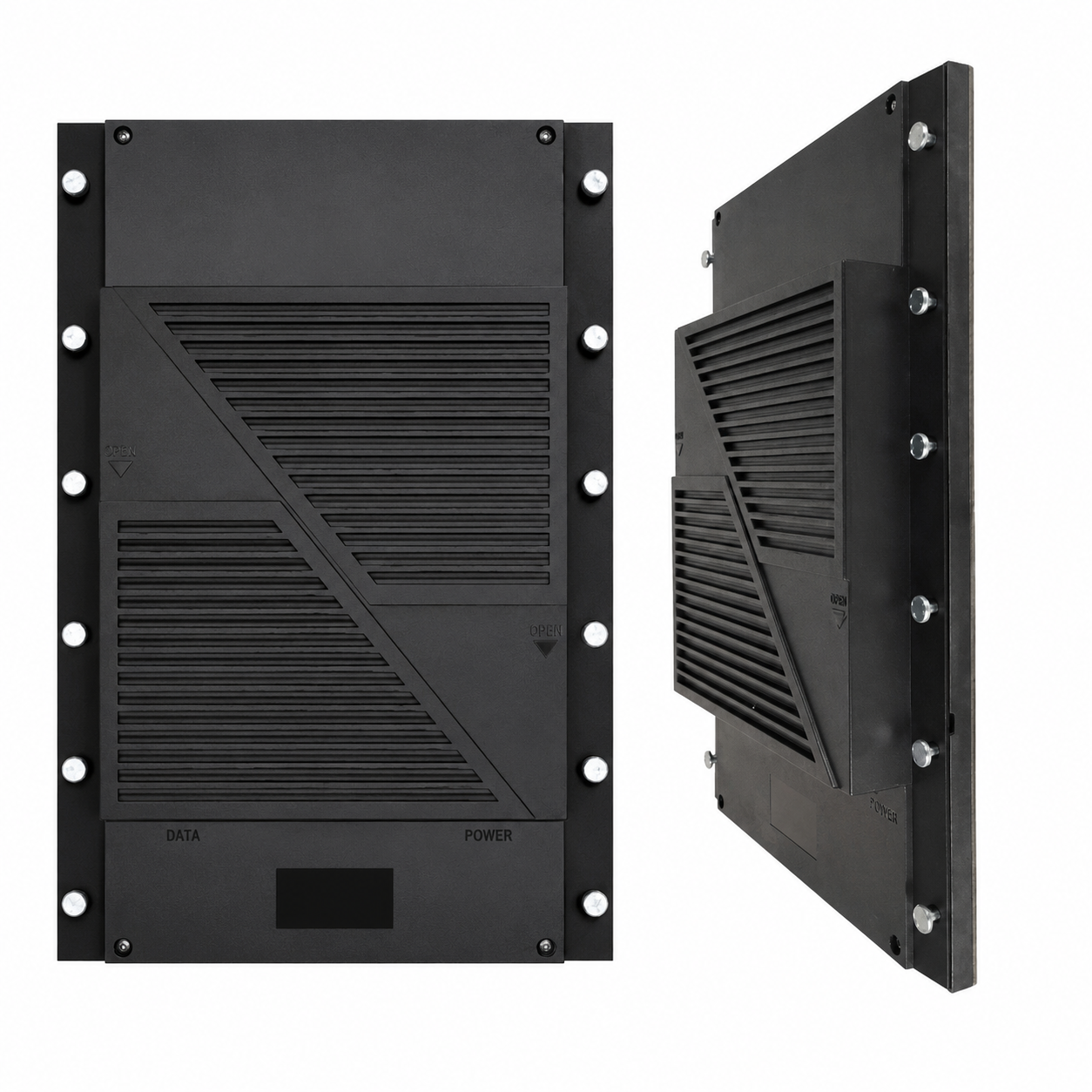

- Integrated Power & Control Architecture: Each module is pre-configured with a wide-voltage power supply, a NovaStar or Colorlight receiving card, daisy-chain signal and power cables, and twelve magnetic mounting points, simplifying wiring, reducing installation complexity, and improving engineering efficiency for large indoor LED video wall projects.
Installation Guide
- Confirm cabinet structure, module size, receiving card layout, wide-voltage power supply configuration, daisy-chain cabling plan, magnet position, and front service requirements before installation.

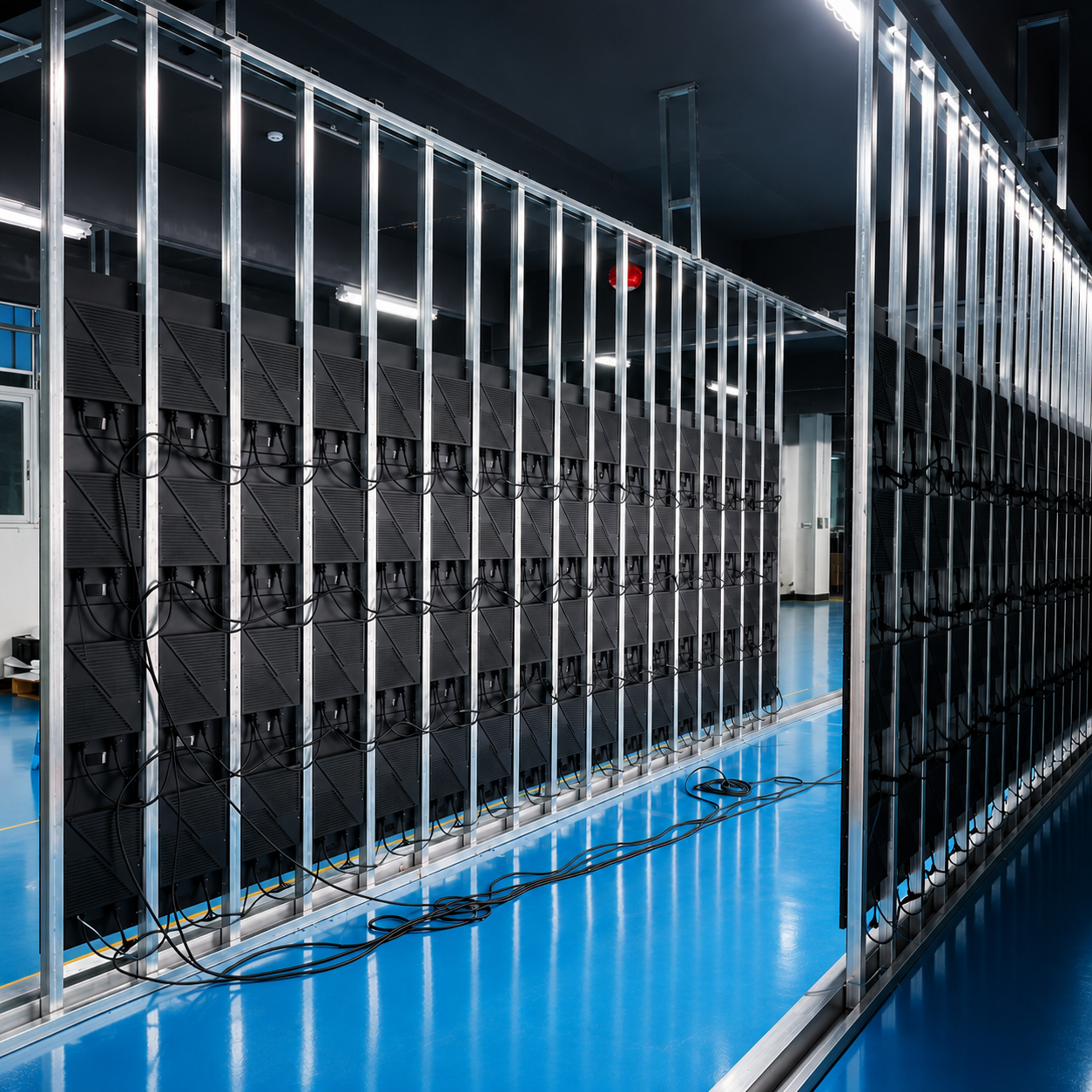

- Install the P2 integrated GOB modules according to the cabinet layout and ensure each module is securely fixed in position. The integrated module design eliminates on-site alignment of three individual modules, helping shorten installation time and improve cabinet consistency.

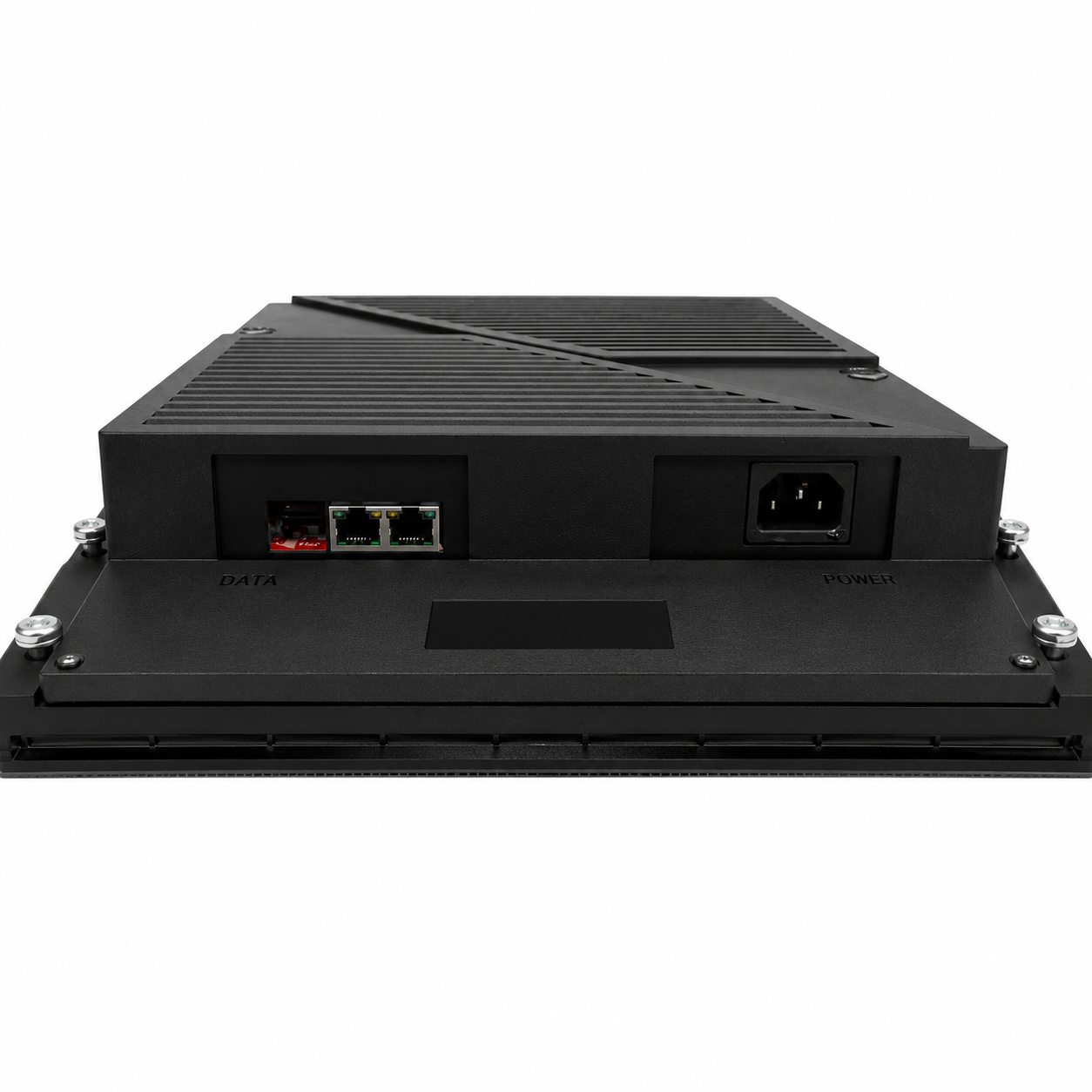

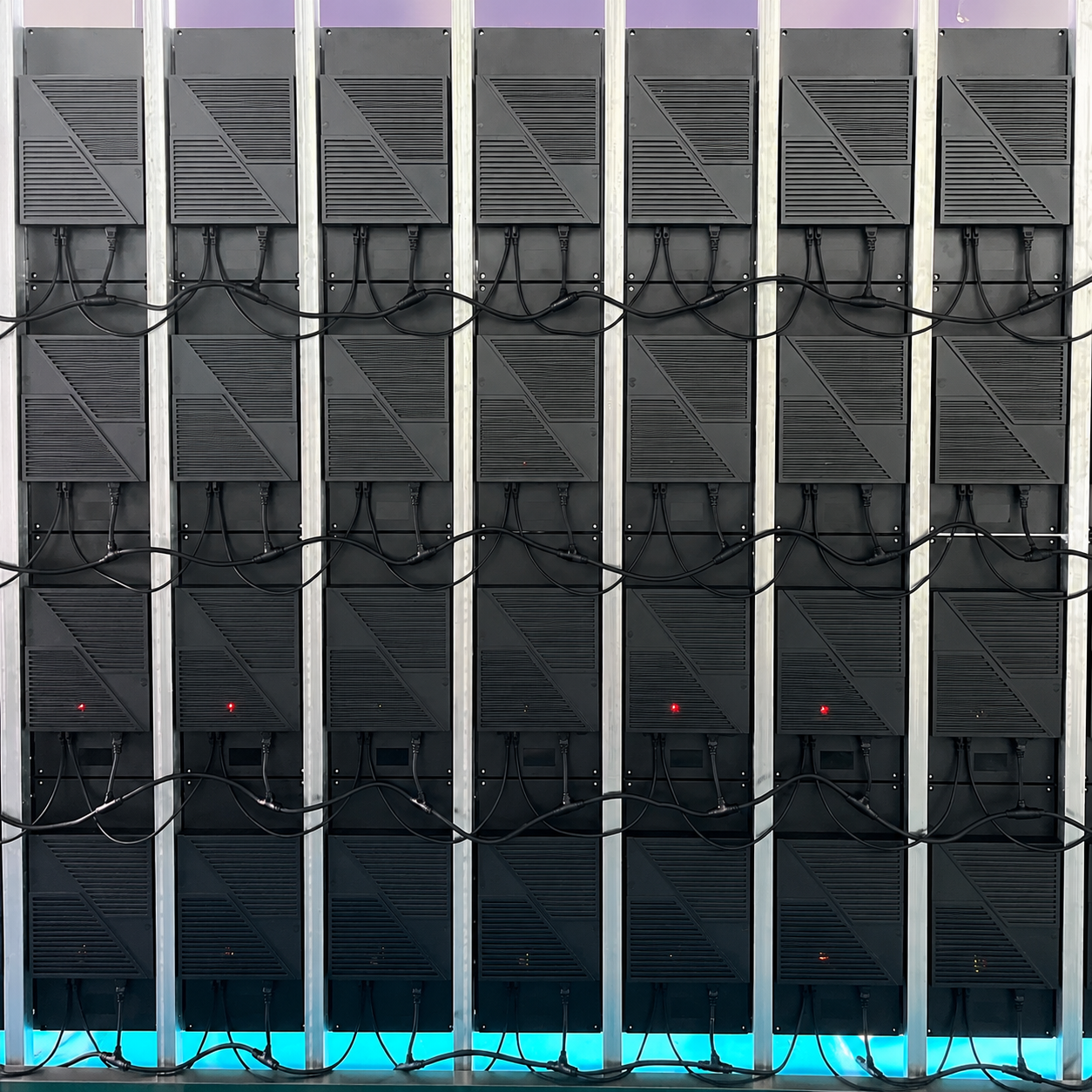

- Connect the daisy-chain Ethernet cable and daisy-chain power cable according to the LED screen wiring plan and receiving card configuration.
- Check power polarity, receiving card status, cable connection direction, magnet fixation, and cabinet grounding before powering on the display system.
- For front service maintenance, remove and replace the integrated GOB module from the front side using proper tools and anti-static handling methods.
- Avoid scratching, pressing, bending, or impacting the GOB surface during transportation, cabinet assembly, installation, and maintenance.
Applications
- P2 Integrated GOB Indoor LED Display Modules
- 320×480mm Integrated LED Modules
- Fine Pitch Integrated GOB LED Displays
- Exhibition Hall LED Displays
- Exhibition Center LED Video Walls
- Commercial Indoor LED Displays
- Corporate Showroom LED Displays
- Brand Experience Centers
- Museum Digital Displays
- Retail Flagship Store LED Screens
- Conference Room LED Displays
- Indoor Digital Signage Systems
- Interactive Exhibition Displays
- Commercial LED Video Walls
- Large Indoor LED Display Projects
