PI-S Series P2 Indoor LED Display Module | 320×160mm SMD Front Service LED Module for Fine Pitch Indoor LED Displays

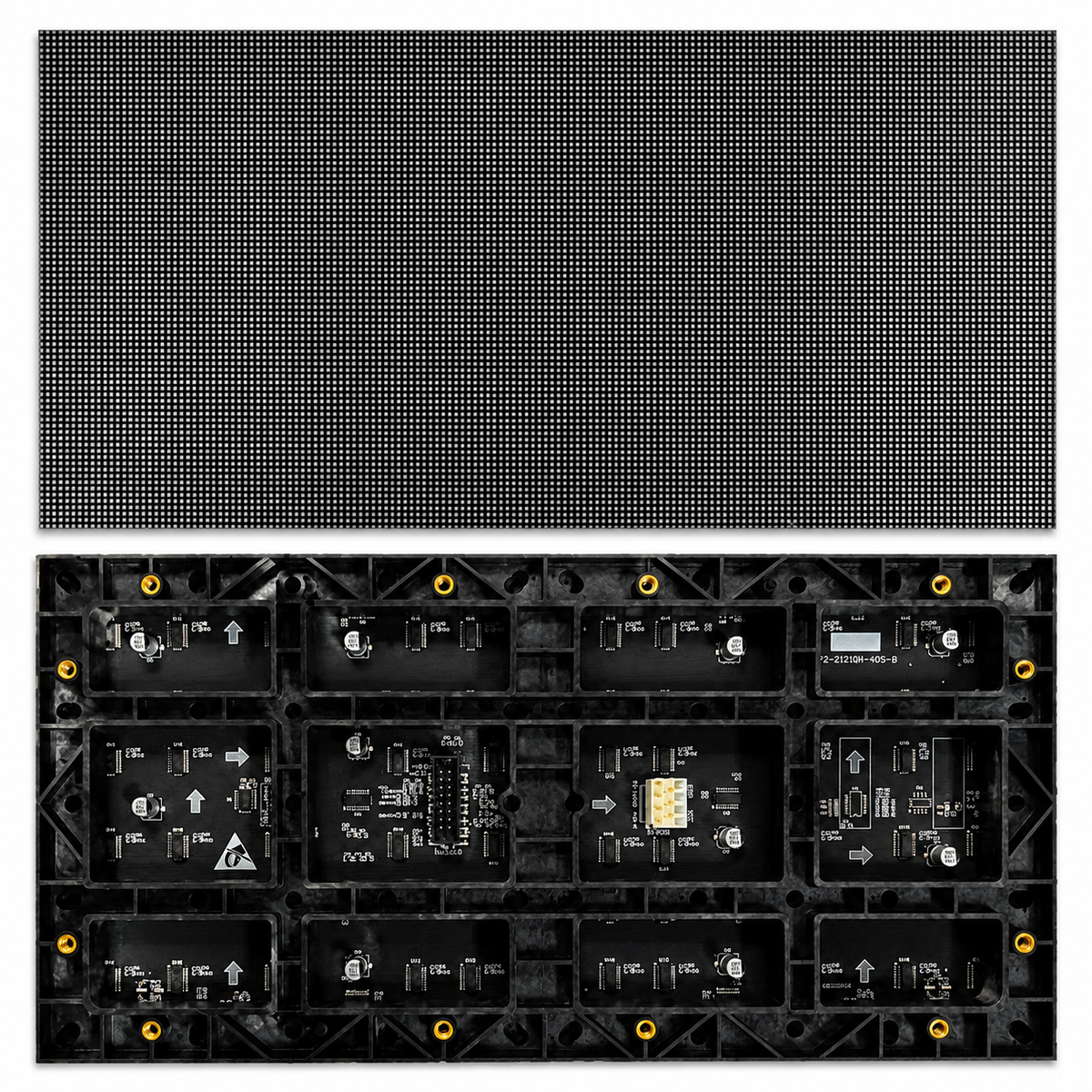

The PI-S Series P2 Indoor LED Display Module is a professional 320mm × 160mm SMD LED module designed for fine pitch indoor LED displays, high-definition LED video walls, and close-viewing commercial display projects that require high pixel density, stable image quality, and dependable long-term operation. Featuring a 2.0mm pixel pitch, SMD1515 LEDs, a 160 × 80 module resolution, and a front service standard module structure, it delivers sharp visual detail, consistent color performance, and smooth image output for professional indoor LED screen systems.

With 250,000 dots/m² pixel density, brightness of at least 600 nits, a 3000:1 contrast ratio, and a refresh rate above 3840Hz, this P2 indoor LED module is suitable for executive boardrooms, control room video walls, command center displays, broadcast studios, corporate lobbies, financial trading centers, and other high-resolution indoor LED display projects where close viewing and accurate information presentation are important.

Package Included

About This Item

• Professional P2 Fine Pitch Indoor LED Display Module: Designed for premium commercial indoor LED display systems, the 2.0mm pixel pitch delivers exceptional image clarity and comfortable close-viewing performance, making it ideal for corporate lobbies, executive meeting rooms, premium retail environments, and high-end digital signage.
• High-Resolution Visual Performance: Featuring ≥600 nits brightness, a refresh rate above 3840Hz, a 3000:1 contrast ratio, and a wide 160° viewing angle, the module delivers smooth motion, vivid colors, and outstanding image uniformity for professional indoor LED display applications.

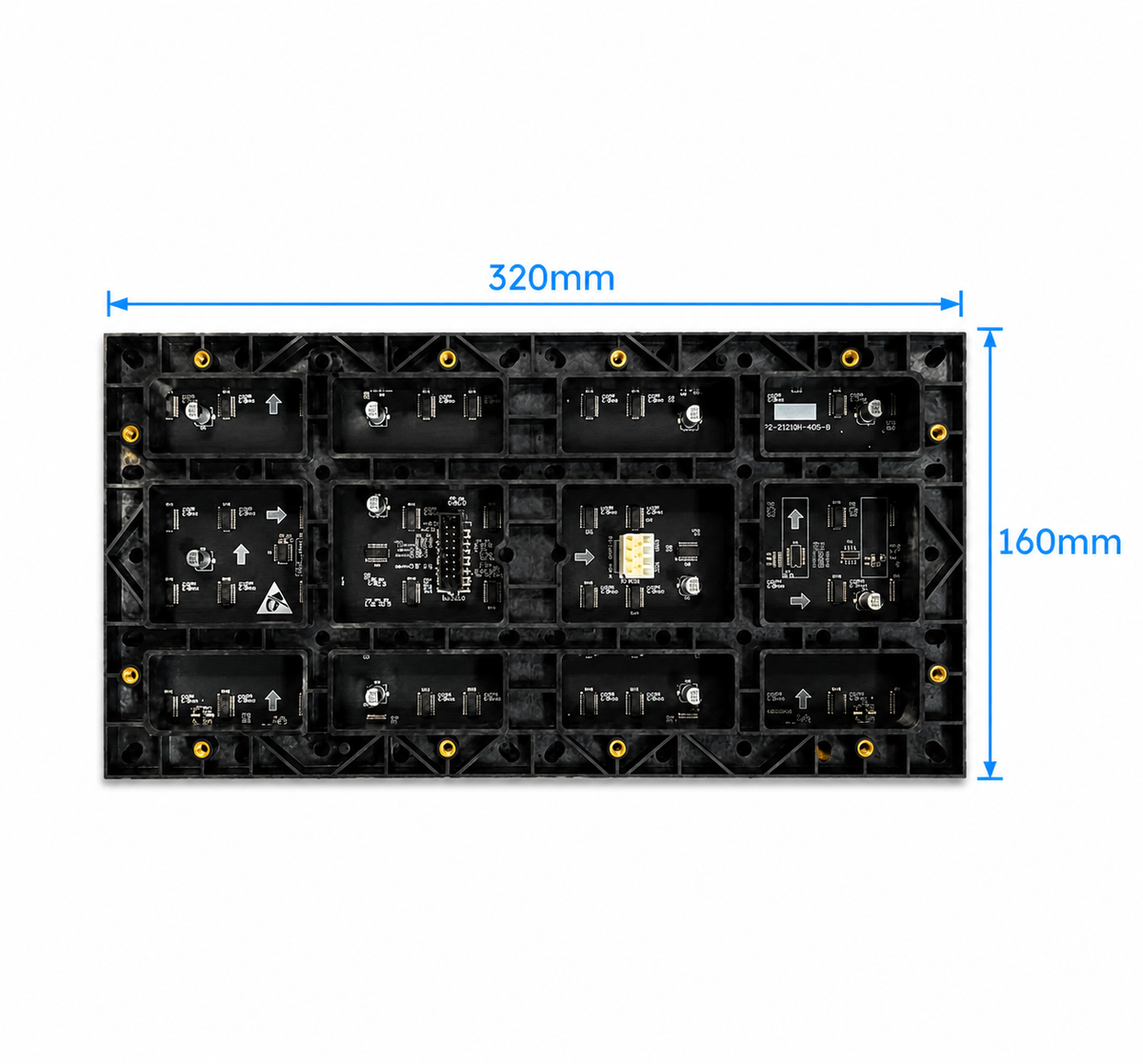

• Standard 320×160mm Cabinet Compatibility: The standardized module size is fully compatible with mainstream indoor LED cabinets, enabling efficient cabinet assembly, simplified module replacement, and scalable LED video wall construction for projects of various sizes.
• Front Service Maintenance Design: The front service architecture allows complete installation and maintenance from the display front, making it an excellent choice for wall-mounted LED screens and commercial installations where rear access is limited.
• Designed for Premium Commercial Applications: Ideal for corporate lobby LED displays, conference rooms, command centers, control rooms, broadcast studios, financial institutions, and other professional indoor environments requiring high-resolution image performance.
• Bulk Project Procurement Ready: Available in sample, standard carton, and engineering package options to support product evaluation, channel stocking, engineering procurement, and large-scale commercial indoor LED display deployments.

Order & Logistics

Lead Time

PI-S Series: Handling time 3–5 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
• Express options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
• Shipping Terms: DDP TERM, all fees included, except for destination countries where this service is unavailable.
• Project logistics: This product supports bulk purchasing, channel stocking orders, engineering procurement, and project-based delivery.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

Protection & Design Features

• Mature SMD1515 Technology Platform: Built with proven SMD1515 LED packaging technology, providing excellent light consistency, stable color reproduction, and dependable long-term performance for fine pitch indoor LED display applications.
• Standard Front Service Module Structure: The standardized 320×160mm front service module architecture supports efficient installation, simplified maintenance, convenient module replacement, and full compatibility with mainstream indoor LED cabinet systems.
• High-Precision PCB & Modular Design: Engineered with a precision PCB layout and standardized modular construction to enhance signal transmission stability, improve display uniformity, and ensure reliable operation across large fine pitch indoor LED video wall installations.

Installation Guide

• Confirm the cabinet size, module size, pixel pitch, receiving card layout, power supply capacity, and front service structure before installation.
• Install the P2 320×160mm indoor LED modules according to the cabinet layout and ensure each module is securely fixed and accurately aligned.
• Connect the flat data cables according to the signal direction, receiving card configuration, and indoor LED screen wiring plan.
• Connect the DC 5V power cables correctly and check polarity before powering on the LED display system.
• For front service maintenance, remove and replace the LED module from the front side using proper tools and anti-static handling methods.
• Avoid bending, pressing, scratching, or impacting the LED surface during transportation, cabinet assembly, installation, and maintenance.

Applications

• Fine Pitch Indoor LED Displays
• P2 Indoor LED Display Modules
• High-Definition LED Video Walls
• Corporate Lobby LED Displays
• Executive Boardroom LED Screens
• Conference Center LED Displays
• Command Center Video Walls
• Control Room LED Displays
• Broadcast Studio LED Screens
• Corporate Presentation Systems
• Financial Trading Center Displays
• Security Monitoring Center Screens
• Government Command Center Displays
• Airport Information LED Displays
• University Lecture Hall LED Screens
• Museum Digital Displays
• Premium Indoor Digital Signage
• Large-Scale Commercial LED Display Projects
