PI-S Series P3 Indoor LED Display Module | 192×192mm SMD Front-Service Module for Commercial Indoor LED Displays
The PI-S Series P3 Indoor LED Display Module is a professional 192×192mm SMD module designed for commercial indoor LED displays, retail LED screens, digital signage, and fixed indoor LED video walls. Featuring a 3mm pixel pitch, SMD2121 LEDs, a 64×64-pixel module resolution, and a standard front-service module structure, it provides a practical balance of image clarity, viewing distance, system cost, and dependable long-term operation.
With a pixel density of 111,111 pixels/m², brightness of at least 800 nits, a 3000:1 contrast ratio, and wide 160° horizontal and vertical viewing angles, this P3 module is suitable for shopping malls, retail advertising, corporate lobbies, conference rooms, exhibition spaces, and other commercial indoor applications where viewers are generally positioned three meters or farther from the display.
The square 192×192mm module format supports integration with indoor LED cabinets specifically designed for compatible 192×192mm modules. Before installation or replacement, buyers must confirm the cabinet dimensions, mounting points, magnet positions, signal interface and pinout, scan configuration, power connection, receiving-card settings, firmware, and calibration requirements.
Package Included
| Package Option |
Package Included |
| 1pc Sample Pack |

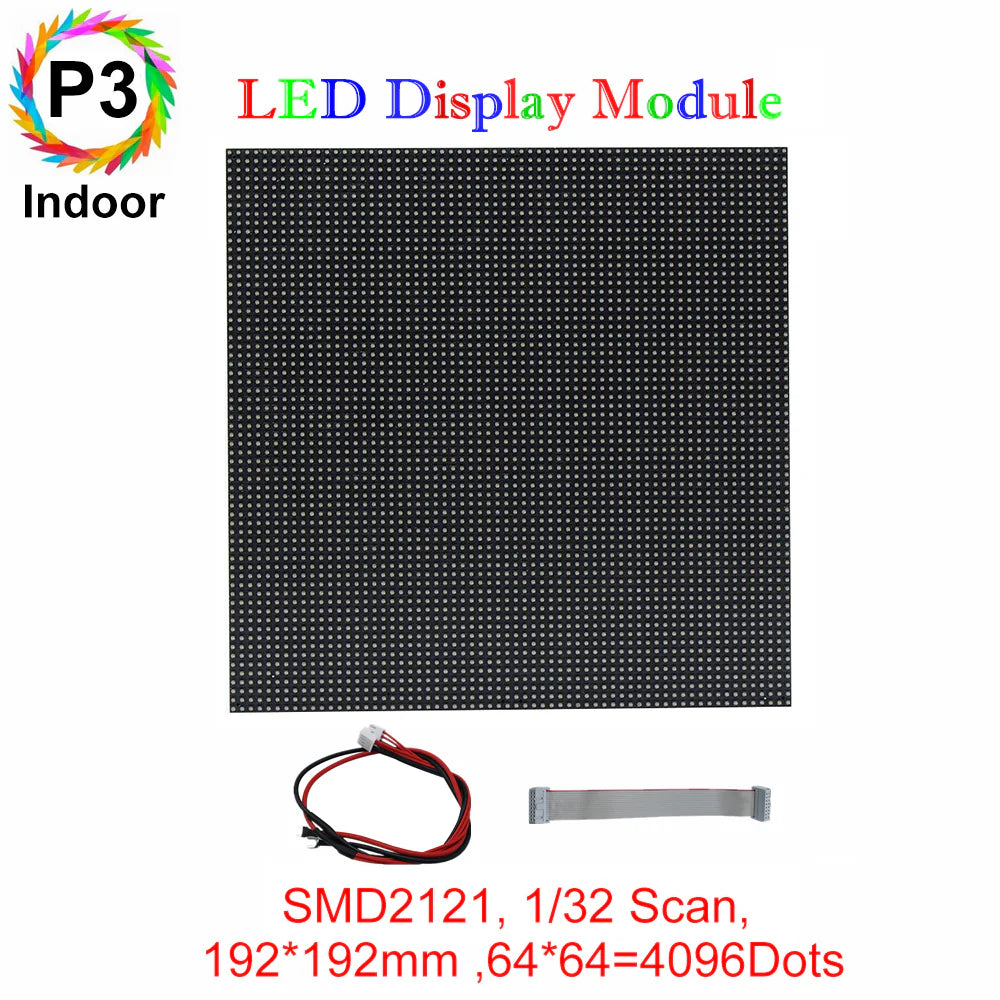

1 × P3 192×192mm Indoor LED Display Module
1 × 5V 1-to-2 Power Cable
1 × Flat Data Cable |
| 40pcs Standard Pack |
40 × P3 192×192mm Indoor LED Display Modules
20 × 5V 1-to-2 Power Cables
40 × Flat Data Cables |
| 200pcs Project Pack |
200 × P3 192×192mm Indoor LED Display Modules
100 × 5V 1-to-2 Power Cables
200 × Flat Data Cables |
| 500pcs Project Pack |
500 × P3 192×192mm Indoor LED Display Modules
250 × 5V 1-to-2 Power Cables
500 × Flat Data Cables |
About This Item
-
Professional P3 Indoor LED Display Module: The 3mm pixel pitch provides a practical balance of image clarity, viewing distance, screen size, and project cost for commercial indoor LED displays, retail screens, exhibition displays, and indoor digital signage.
-
Clear and Consistent Visual Performance: With ≥800 nits brightness, a 3000:1 contrast ratio, and wide 160° horizontal and vertical viewing angles, the module delivers clear images, consistent colors, and reliable visual performance in professional indoor environments.
-

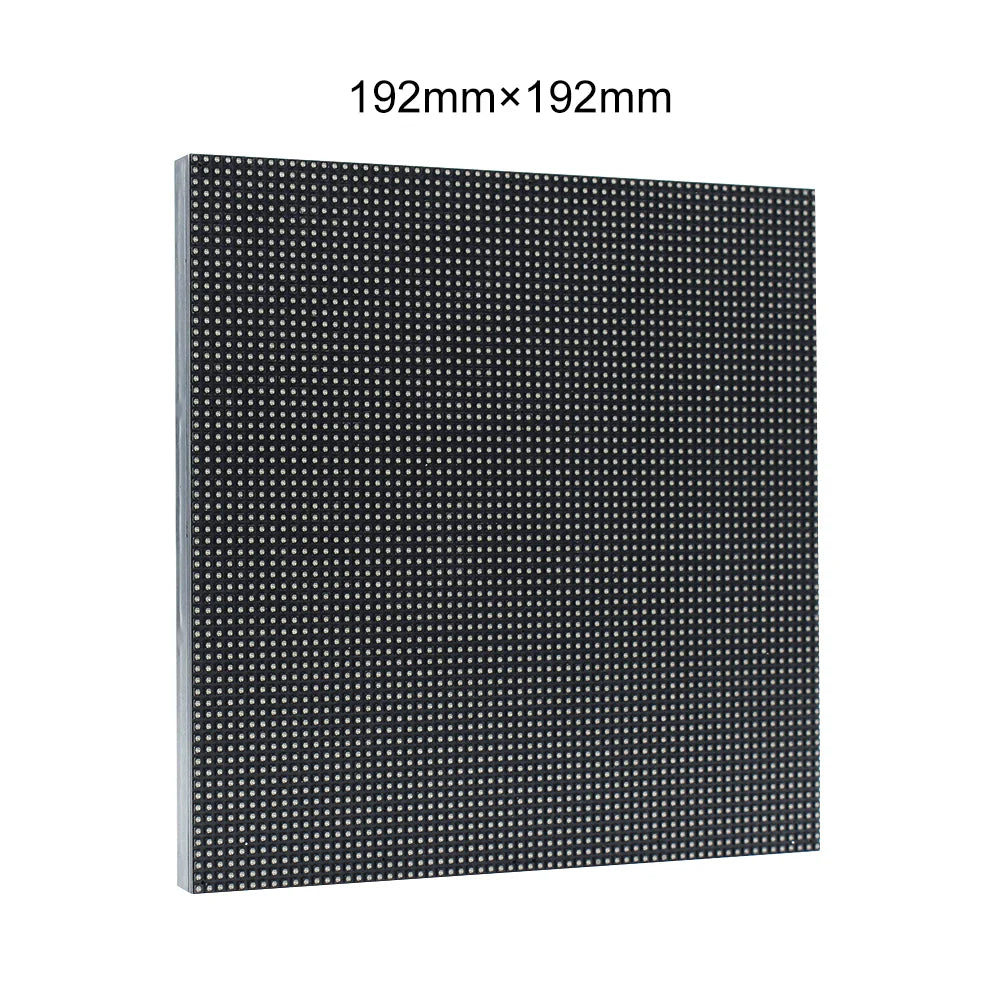

192×192mm Standard Module Format: The square module format supports integration with compatible indoor LED cabinets designed for 192×192mm modules. Mechanical dimensions, mounting points, magnet positions, signal interfaces, scan configuration, power connections, and receiving-card settings must be verified before installation or replacement.
-
Front-Service System Integration: The module supports front-access installation and maintenance when used with a compatible front-service cabinet and mounting structure, making it suitable for wall-mounted displays and locations with limited rear access.
-
Reliable Commercial Operation: Proven SMD2121 packaging, a precision PCB design, and stable driving performance support consistent image quality and dependable operation across commercial indoor LED video walls.
-
Flexible Procurement Options: Sample, standard-pack, and project-pack options support product evaluation, spare-module preparation, channel stocking, system integration, and bulk project procurement.
Order & Logistics
Lead Time
PI-S Series: Handling time is 3–5 business days.
Freight & Delivery
Shipping fees are not included in the product price and will be calculated separately based on the actual freight cost.
-
Available shipping methods: Standard shipping, express shipping, and project logistics.
-
Estimated shipping time: Standard delivery typically takes 9–18 business days, while express delivery typically takes 5–9 business days.
-
Express options: DHL, UPS, and FedEx services may be available depending on the destination, package size, and order quantity.
-
Shipping terms: DDP (Delivered Duty Paid), with applicable shipping fees, duties, and taxes included, is available for eligible destination countries. If DDP service is unavailable, we will contact the buyer to confirm an alternative shipping arrangement.
-
Project logistics: Bulk purchasing, channel stocking, engineering procurement, and project-based delivery are supported.
For large-quantity orders, please contact us to confirm product configuration, freight arrangements, production schedules, and delivery plans.
Specifications
| Specification |
Value |
| Module Size |
192×192mm |
| Pixel Pitch |
3mm |
| LED Type |
SMD2121 |
| Module Resolution |
64×64 pixels |
| Pixels per Module |
4,096 pixels |
| Scan Rate |
1/32 scan |
| Pixel Density |
111,111 pixels/m² |
|
Viewing Distance |
3m or greater |
| Pixel Configuration |
1R1G1B |
| Brightness |
≥800 nits |
| Contrast Ratio |
3000:1 |
| Color Depth |
16-bit |
| Grayscale Levels |
16,384 levels |
| Refresh Rate |
>1920Hz |
| Driver IC |
MBI / ICN series, subject to production configuration |
| Color Uniformity |
≥97% |
| Protection Rating |
IP30, indoor use only |
| Expected Service Life |
≥100,000 hours under specified operating conditions |
| Operating Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Operating Humidity |
10%–90% RH, non-condensing |
| Input Voltage |
DC 5V |
| Viewing Angle |
160° horizontal / 160° vertical |
| Power Consumption |
20W maximum per module |
| Dead Pixel Rate |
≤0.03% (≤0.0003) |
Protection & Design Features
-

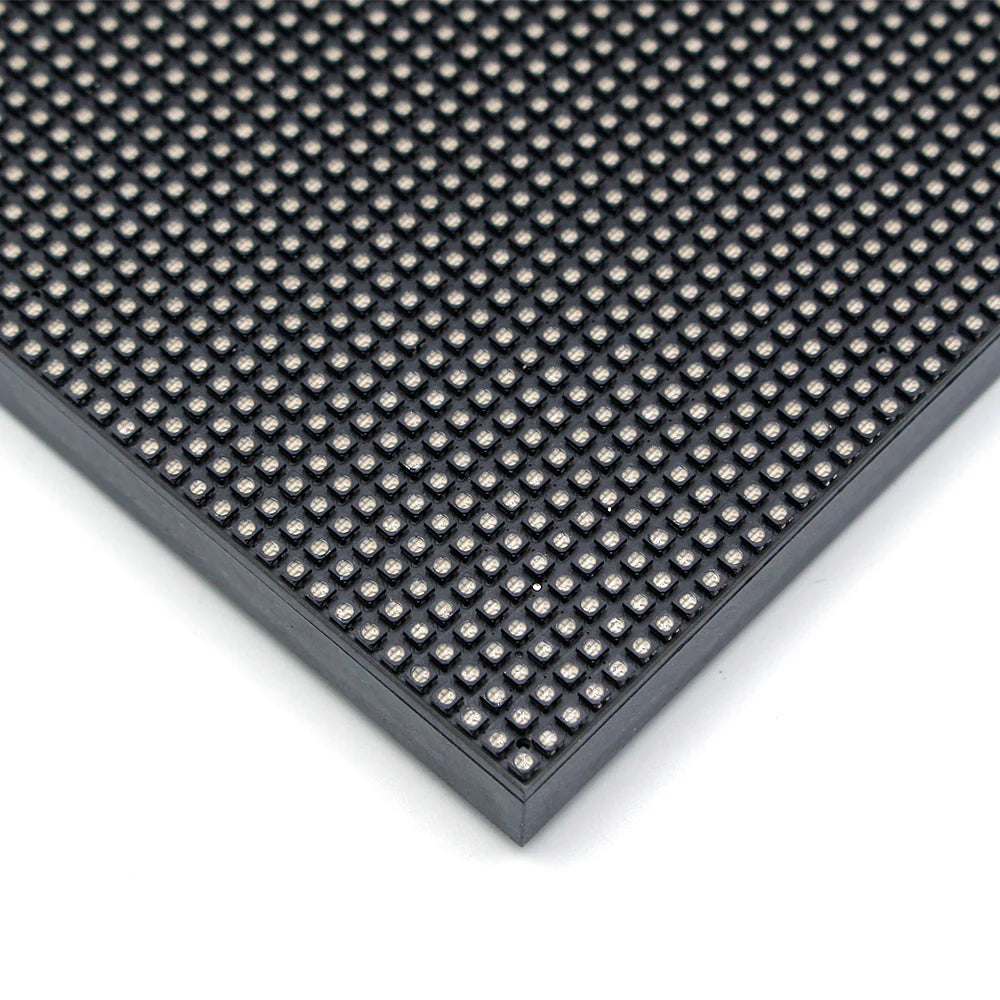

Mature SMD2121 Technology Platform: Proven SMD2121 packaging supports stable light output, consistent color performance, and dependable long-term operation in commercial indoor LED display applications.
-
Standard Front-Service Module Structure: The 192×192mm module architecture supports efficient installation and convenient front-access maintenance when integrated with a compatible cabinet and mounting system. Cabinet dimensions, mounting points, signal interfaces, power connections, scan configuration, and receiving-card settings must be confirmed before installation.
-

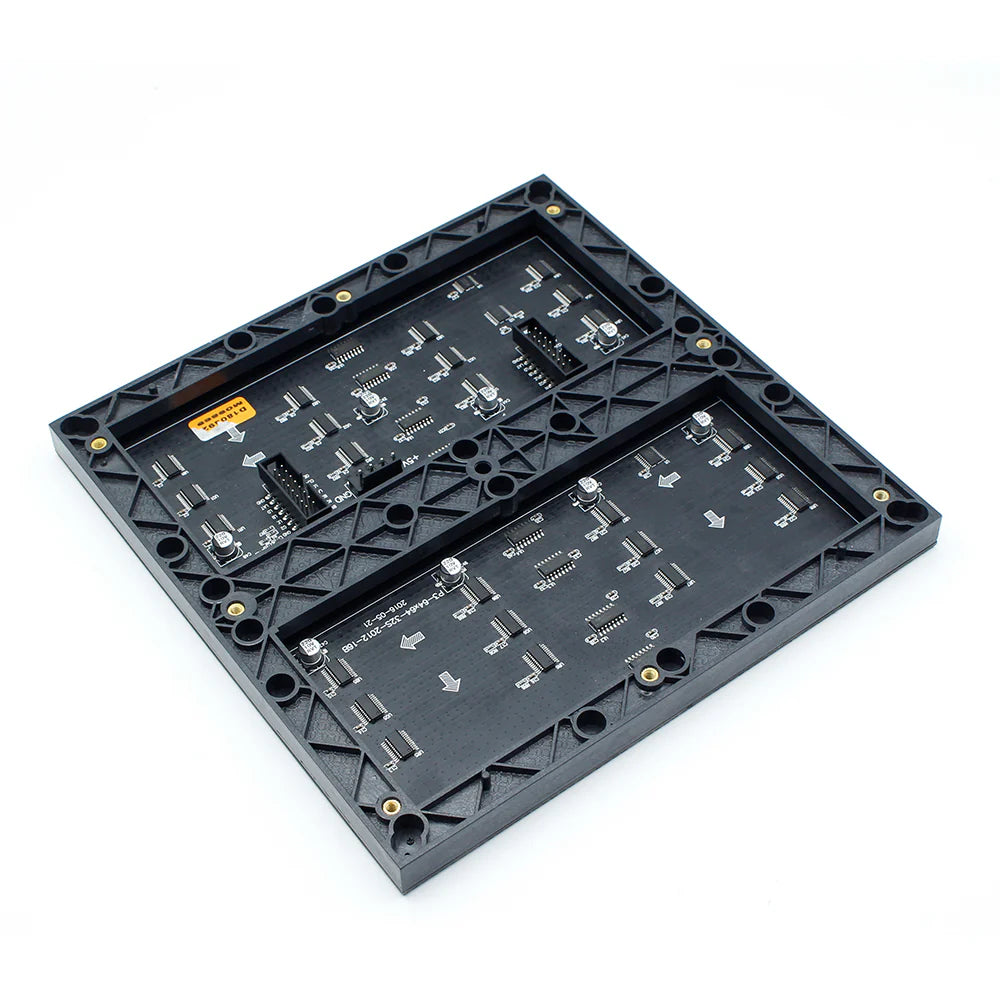

Precision PCB and Modular Design: The PCB layout and modular construction support stable signal transmission, accurate module alignment, and consistent display performance across larger indoor LED video walls.
Compatibility & Replacement Notice
A matching 192×192mm module size and P3 pixel pitch do not guarantee direct compatibility with an existing LED cabinet or display system. Before ordering modules for replacement, expansion, or mixed installation, please confirm the mounting-hole layout, magnet positions, signal connector and pinout, scan rate, driver IC configuration, DC power connector and polarity, receiving-card configuration, firmware, and calibration data.
For consistent brightness and color across the complete display, modules from the same production batch are recommended. When purchasing spare modules for an existing screen, please provide clear photos of the front and rear of the original module, PCB markings, connector details, receiving-card model, configuration file, and existing product label for compatibility review.
Installation Guide
- Confirm the cabinet dimensions, mounting layout, module size, pixel pitch, signal interface, receiving-card configuration, power-supply capacity, and front-service structure before installation.
- Install the P3 192×192mm modules according to the approved cabinet layout, ensuring that every module is securely fixed, correctly oriented, accurately aligned, and level with adjacent modules.

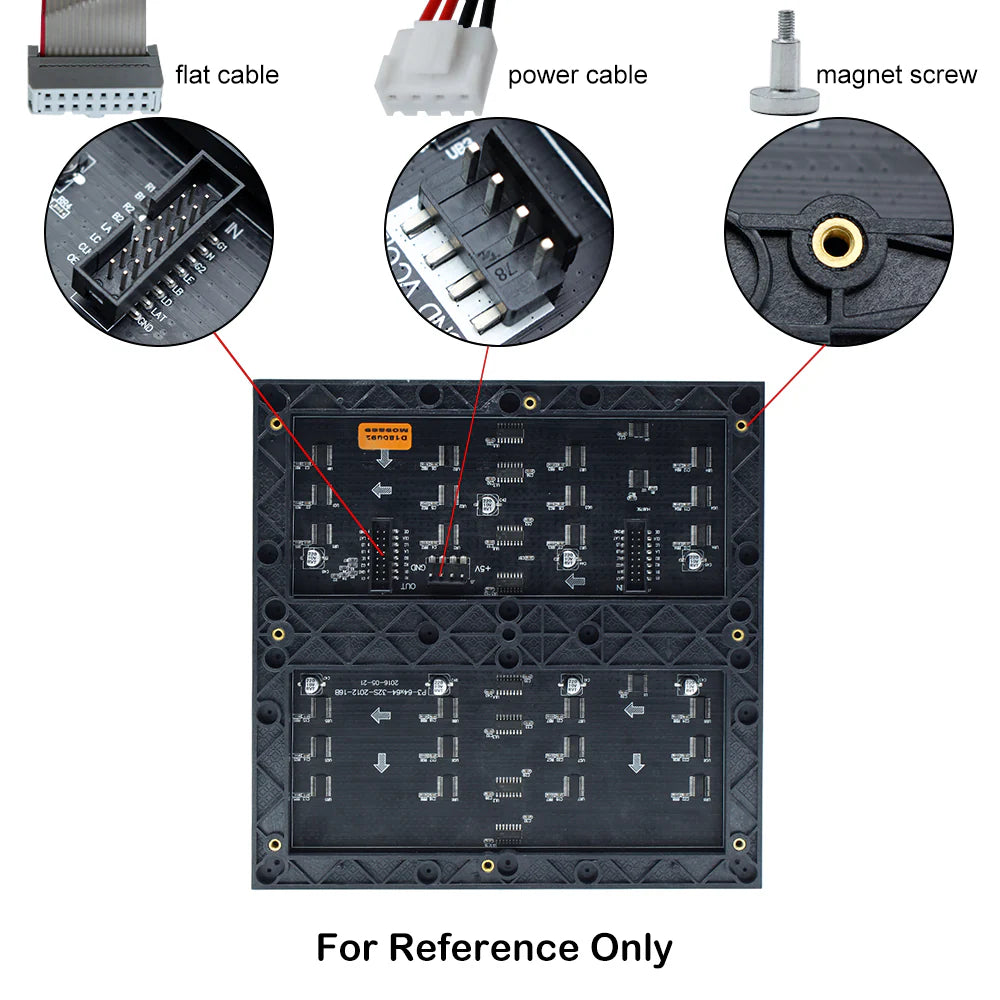

- Connect the flat data cables according to the documented signal direction, receiving-card mapping, connector pinout, and screen wiring plan.
- Connect the DC 5V power cables with the correct connector orientation and polarity. Verify all connections before powering on the display system.
- Load and verify the correct receiving-card configuration before full-screen commissioning. Do not apply configuration files from a different module model without technical confirmation.
- For front-service maintenance, use the correct removal tools and anti-static handling procedures. Avoid bending, pressing, scratching, or impacting the LED surface during transportation, installation, and servicing.
